Digital interface USB to I2S LVDS AES SPDIF Accusilicon 32bit 768kHz DSD512 Silver

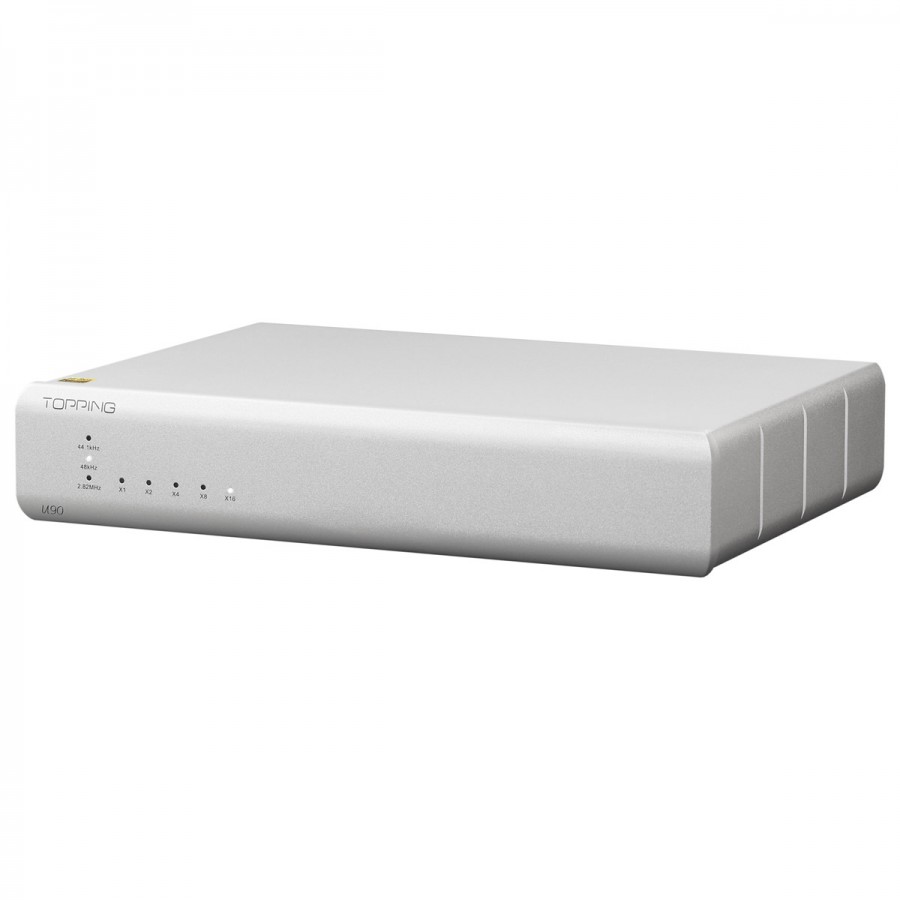

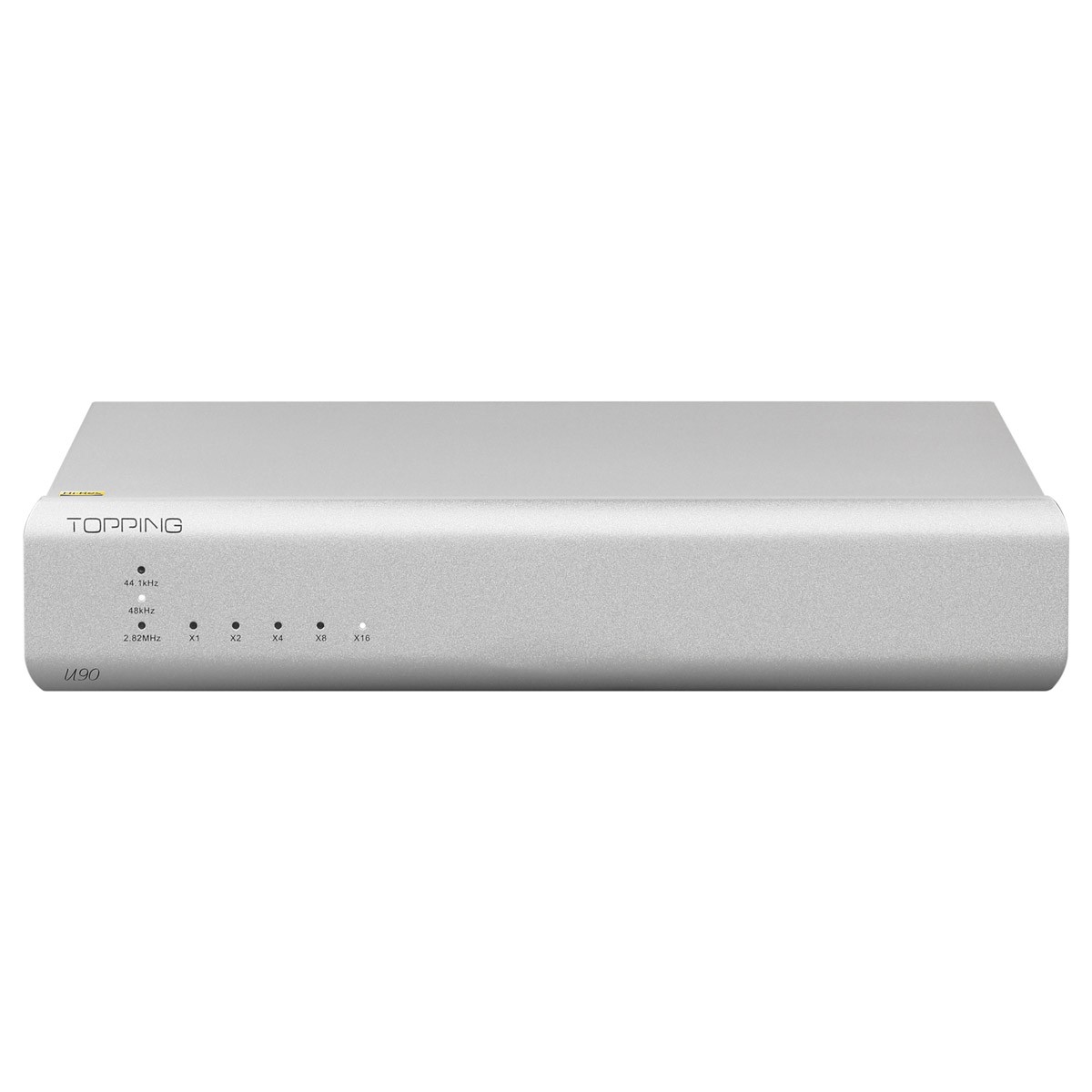

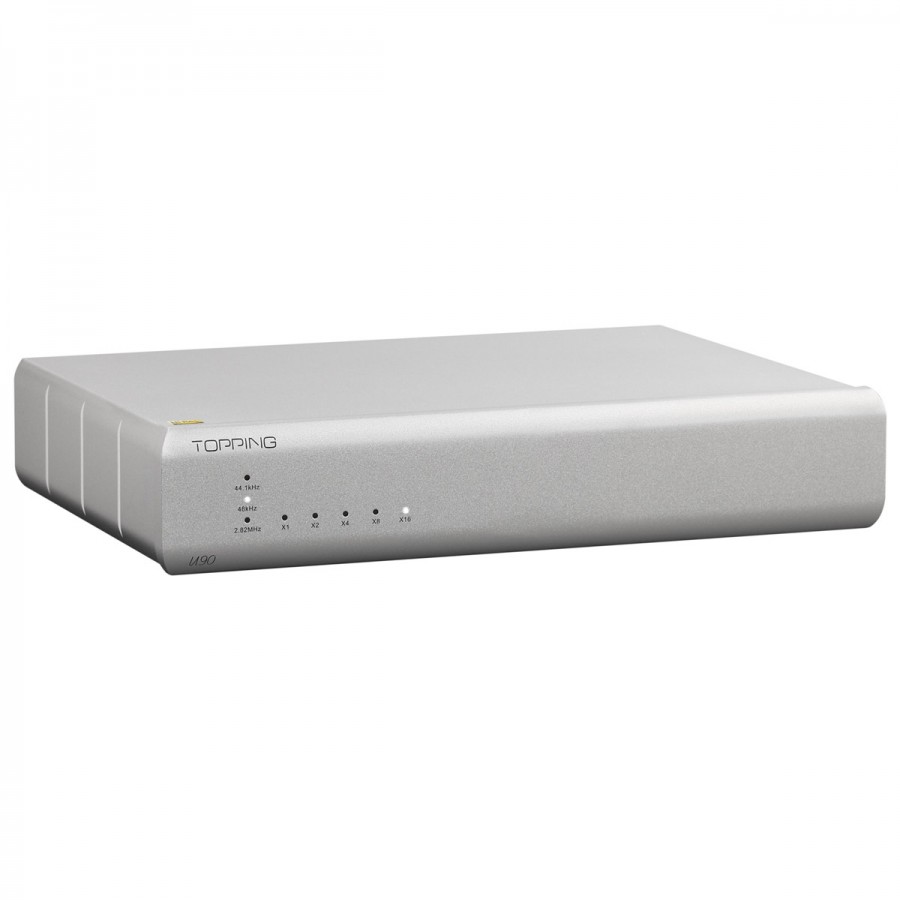

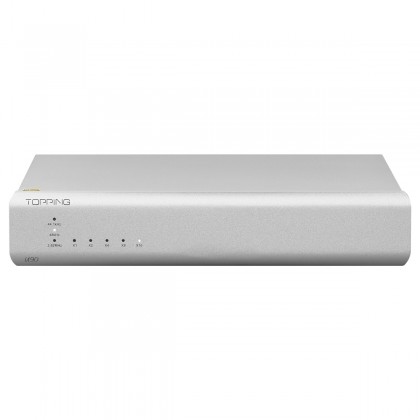

Topping unveils with its U90 a powerful digital interface, allowing to take advantage of a wide range of outputs, while supporting high resolution audio streams and embedding an optimized architecture to maintain the integrity of the original signal.
The input is simply done on USB-B connector. The U90, is also not stingy as for its outputs. There is in fact an I2S LVDs output on HDMI connector, two coaxial outputs, two AES outputs and two optical outputs. Enough to satisfy the great majority of the current uses for this type of device.
In order to ensure a perfect compatibility with different brands, having an I2S pinout that can vary, the U90 is equipped with four switches allowing to modify this pinout.
The U90 uses a pair of Accusilicon femtosecond oscillators for its clock signal, combined with an Altera MAX II CPLD. This design allows perfect synchronization and management of the clock signals for extremely efficient jitter suppression. In addition, the USB input is isolated to eliminate noise generated by a ground loop.

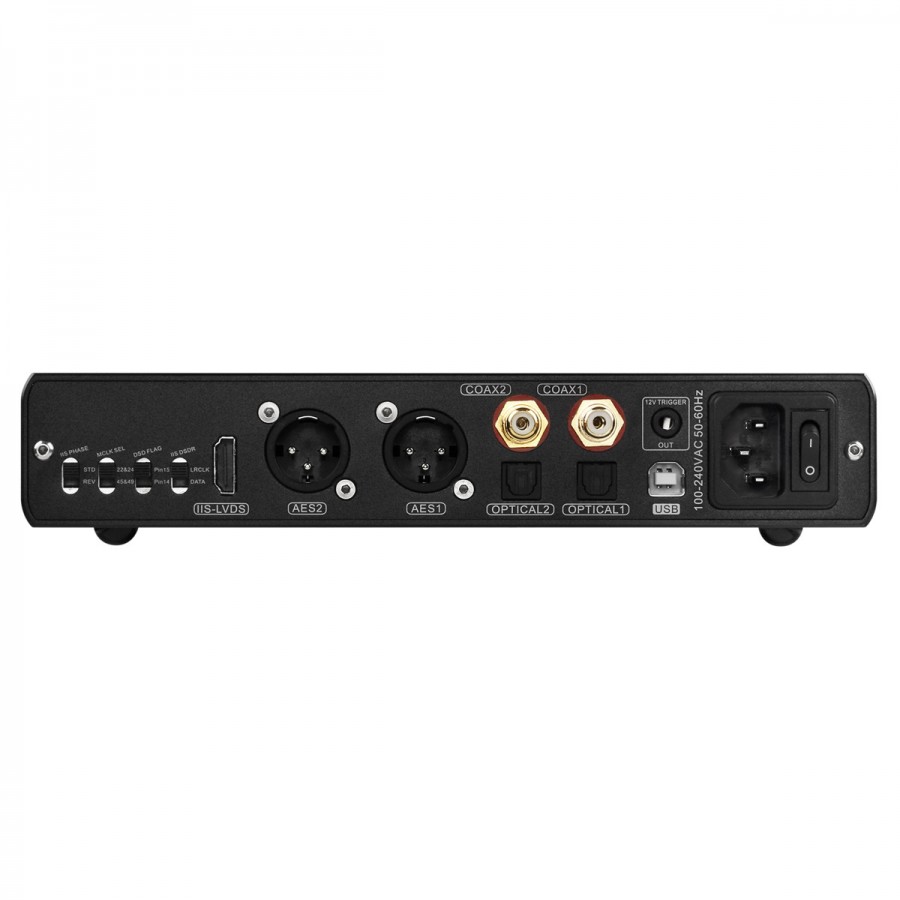

The rear panel of the U90 also has a 12V trigger output. When used with other devices that have this input, the U90 can automatically control the on/off of the system it is integrated in.
Specifications | |
---|---|
Product type | Digital interface |
Input | 1x USB |
Outputs | 1x I2S LVDS (HDMI) 2x AES/EBU 2x Optical Toslink 2x Coaxial 1x Trigger 12V |
Supported sampling rates | I2S LVDS : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256 AES, Optical, Coaxial : PCM up to 24bit 192khz, DSD DoP up to DSD64 |
General | |
---|---|
Supply voltage | 100-240VAC 50/60Hz |
Housing material | Aluminum |
Dimensions | 222 x 160 x 45mm |
Color | Silver |
Package | 1x Topping U90 1x Power cable 1x USB Cable |
Input | USB |
Output | I2S LVDS via HDMI |
Output | AES/EBU |
Output | Optical Toslink |
Output | Coaxial SPDIF |
Max sampling rate | DSD512 |
Max sampling rate | 768kHz |
Color | Silver |
Interface chip | NC |
