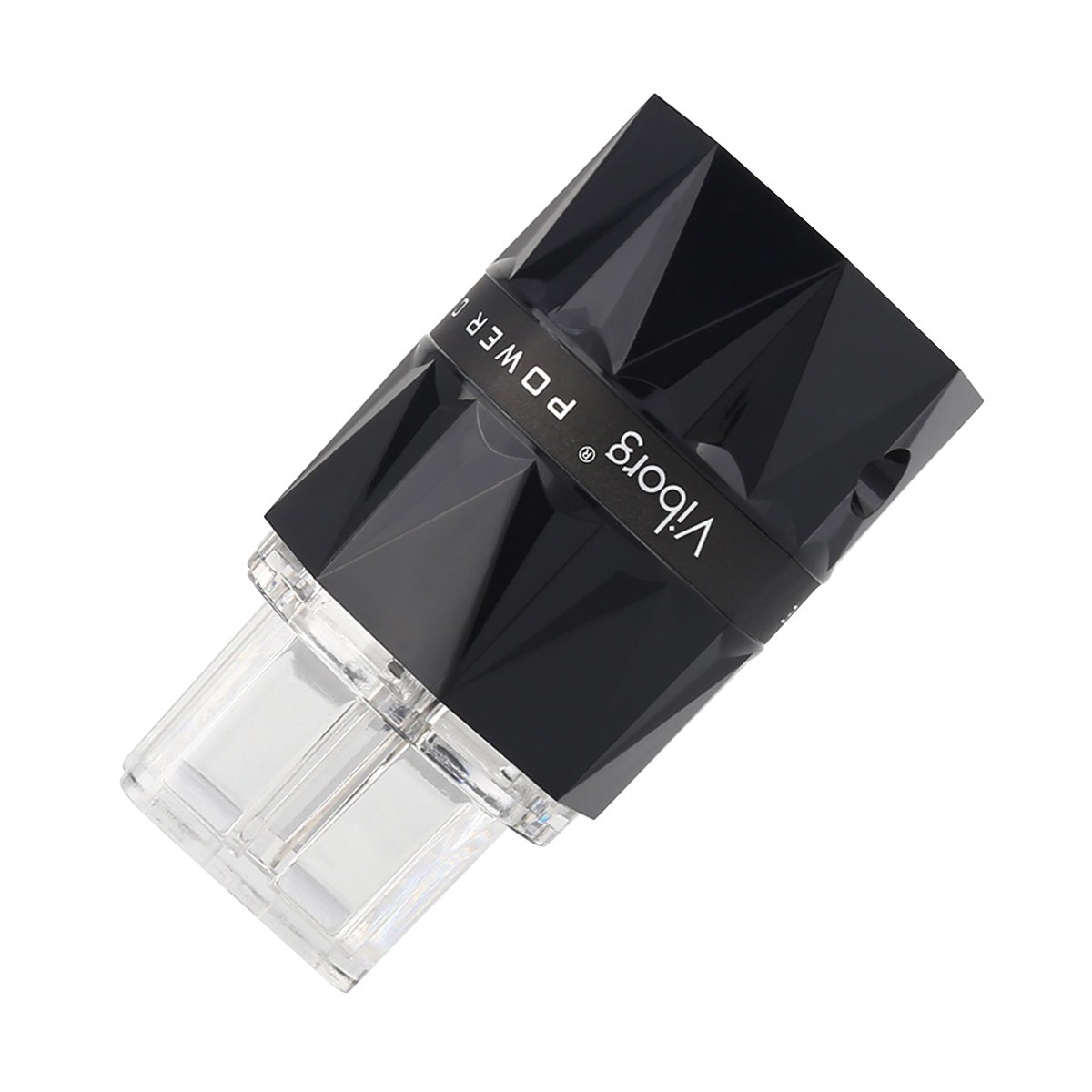

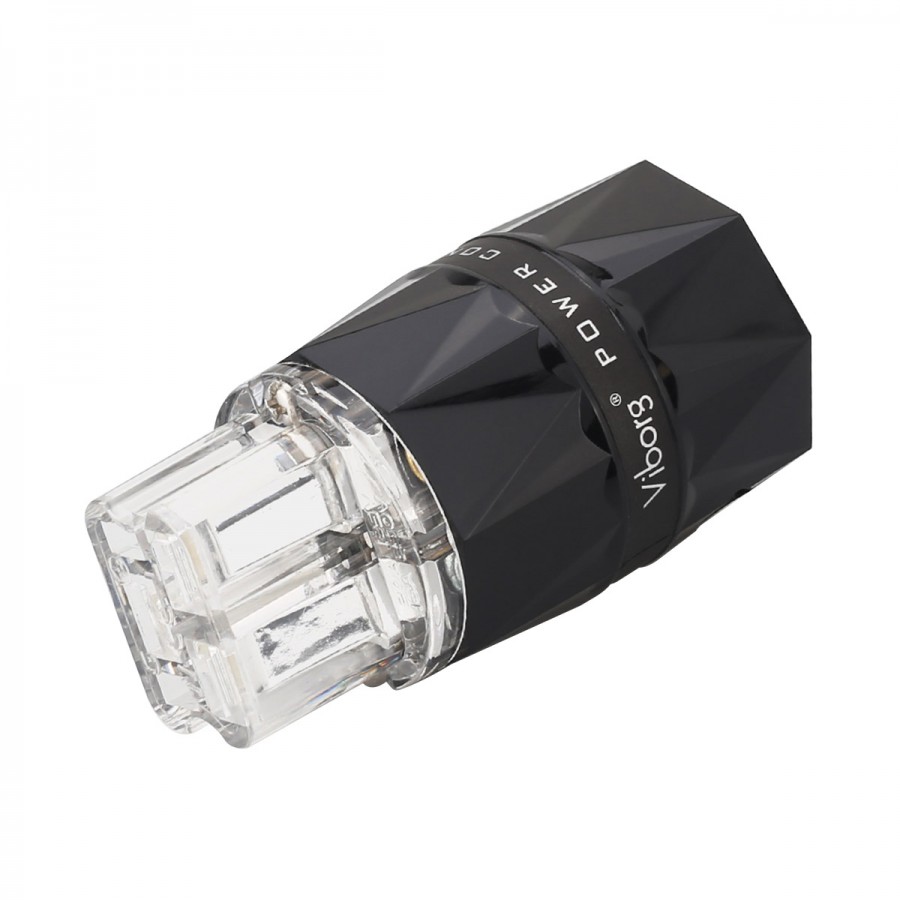

VIBORG VF523S Connector IEC C19 Silver Plated Pure Copper Ø19mm

VIBORG VF523S Connector IEC C19 Silver Plated Pure Copper Ø19mm

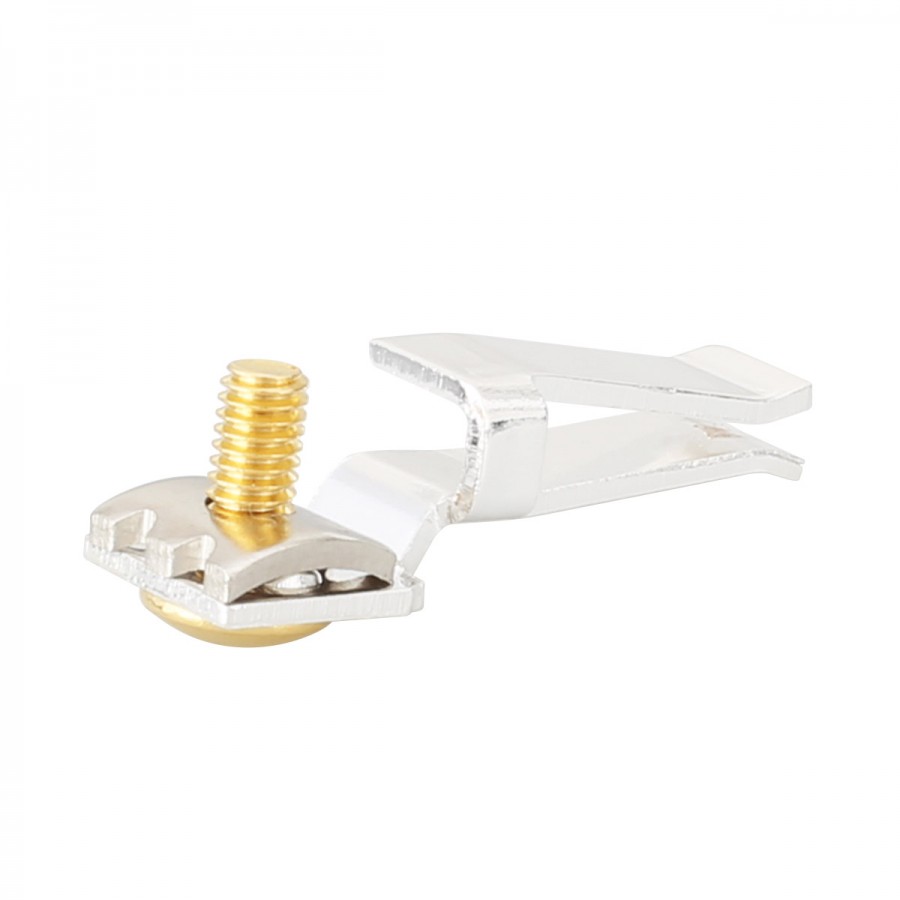

This IEC C19 Viborg VF523S high-end connector uses high quality materials to provide the best possible electrical conductivity. Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Silver. The body is made of a particularly resistant polycarbonate, Bayer Makrolon 2805. The assembly is extremely simple with a screw system, so no soldering is required. The connector accepts cables with a diameter from Ø6mm to Ø19mm and conductors with a maximum diameter of Ø8mm.

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 15741
New product

45,90 €tax incl.

38,25 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 15-10-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Viborg VF523S

Connector IEC C19 Silver Plated Pure Copper Ø19mm

Viborg VF523S Connecteur IEC C19 Cuivre Pur Plaqué Argent Ø19mm

This IEC C19 Viborg VF523S high-end connector uses high quality materials to provide the best possible electrical conductivity. Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Silver. The body is made of a particularly resistant polycarbonate, Bayer Makrolon 2805. The assembly is extremely simple with a screw system, so no soldering is required. The connector accepts cables with a diameter from Ø6mm to Ø19mm and conductors with a maximum diameter of Ø8mm.

Technical characteristics

Specifications
Product typeIEC Connector
Connector typeIEC C19
Cable external diameterØ6mm - Ø19mm
Max. conductor diameterØ8mm
Contacts materialPure Copper
Contacts platingOFC Copper
Silver
Body materialBayer Makrolon 2805
Connection typeTo screw
Dimensions55 x 40mm
Total length75mm
Voltage / Current250V / 16A
125V / 20A

Data sheet
Max cable diameter (mm)19.0
Mounting typeTo screw
ConnecticFemale
ConnectorIEC C19
Contacts Material (Connector)Copper
Contacts Plating (Connector)Silver
Rated current (A)20.0
Rated current (A)16.0
