DAYTON AUDIO CE81PF-8 Speaker Driver Full Range
By buying this product you get 1 loyalty point
![[GRADE B] AUDIOPHONICS MPC6 V2 Power Distribution Case 6 ports Black Aluminium](https://www.audiophonics.fr/62549-thumb_default/audiophonics-mpc6-v2-power-distribution-case-6-ports-black-aluminium.jpg)
![[GRADE A] CRINEAR DAYBREAK In-Ear Monitors IEM Dynamic Balanced Armature Planar Magnetic 20 Ohm 105dB 2Hz-40kHz](https://www.audiophonics.fr/74194-thumb_default/crinear-daybreak.jpg)
![[GRADE S] SHANLING M6 PRO HiFi DAP Compact Music Player DAC 2x AK4497 32bit 768kHz DSD128 Titanium](https://www.audiophonics.fr/72951-thumb_default/shanling-m6-pro-hifi-dap-compact-music-player-dac-2x-ak4497-32bit-768khz-dsd128-titanium-sbs.jpg)
![[GRADE A] SHANLING CD-S100 (23) CD Player DAC AK4493 Sanyo HD850 USB 32bit 384kHz DSD512 Black](https://www.audiophonics.fr/69128-thumb_default/shanling-cd-s100-23-cd-player-dac-ak4493-sanyo-hd850-usb-32bit-384khz-dsd512-black.jpg)
![[GRADE A] SABAJ A20D 2023 DAC AK4499EX Headphone Amplifier TPA6120A2 XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA](https://www.audiophonics.fr/69108-thumb_default/sabaj-a20d-2023-dac-ak4499ex-headphone-amplifier-tpa6120a2-xmos-xu316-bluetooth-50-32bit-768khz-dsd512-mqa.jpg)
![[GRADE A] GUSTARD X26III DAC 2x ES9039SPRO NOS Streamers LAN Roon Airplay UPnP 32bit 768kHz DSD512 Black](https://www.audiophonics.fr/70815-thumb_default/gustard-x26-iii-black-sba.jpg)

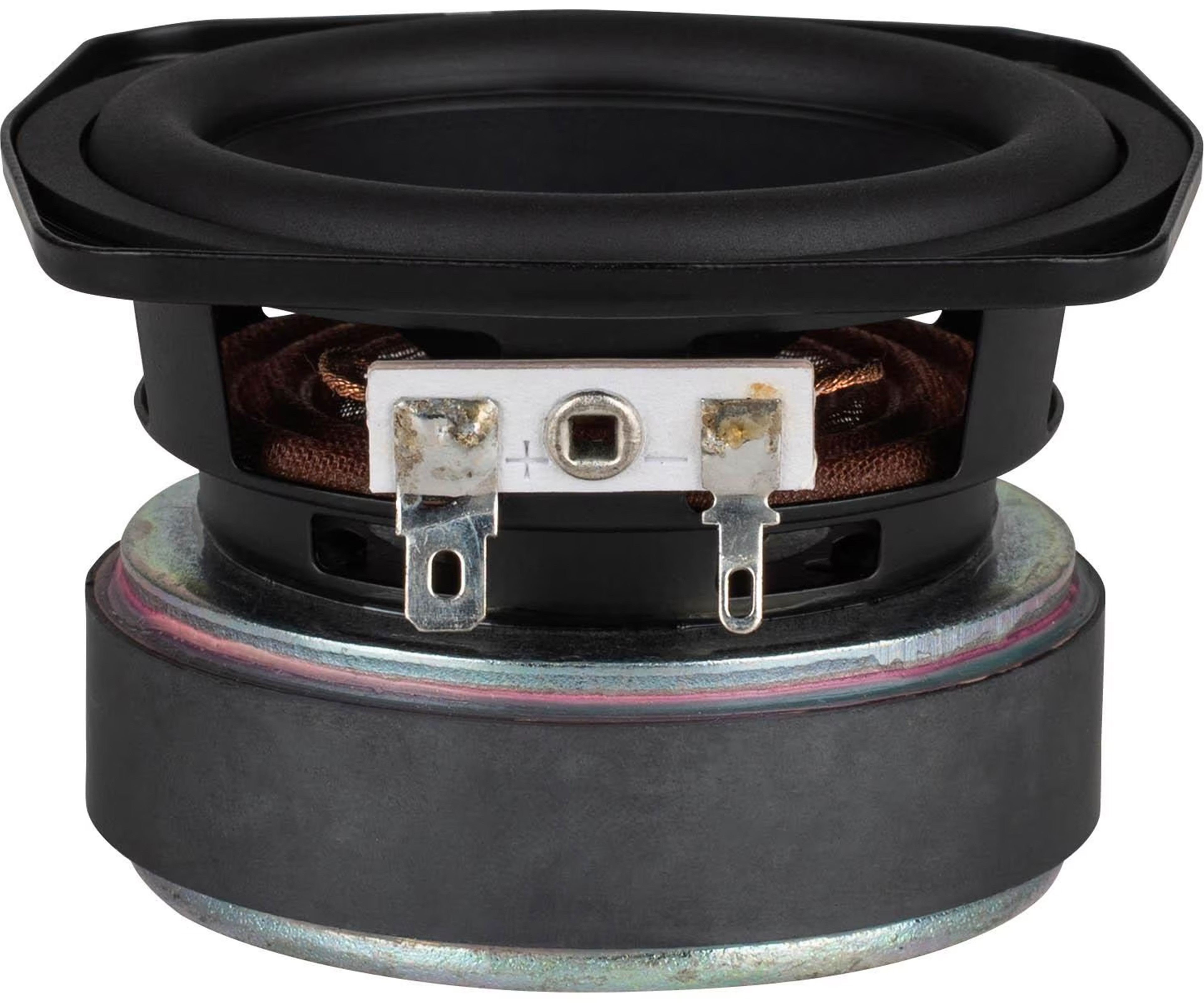

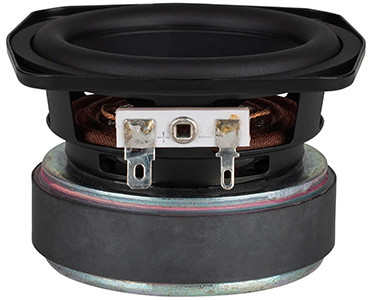

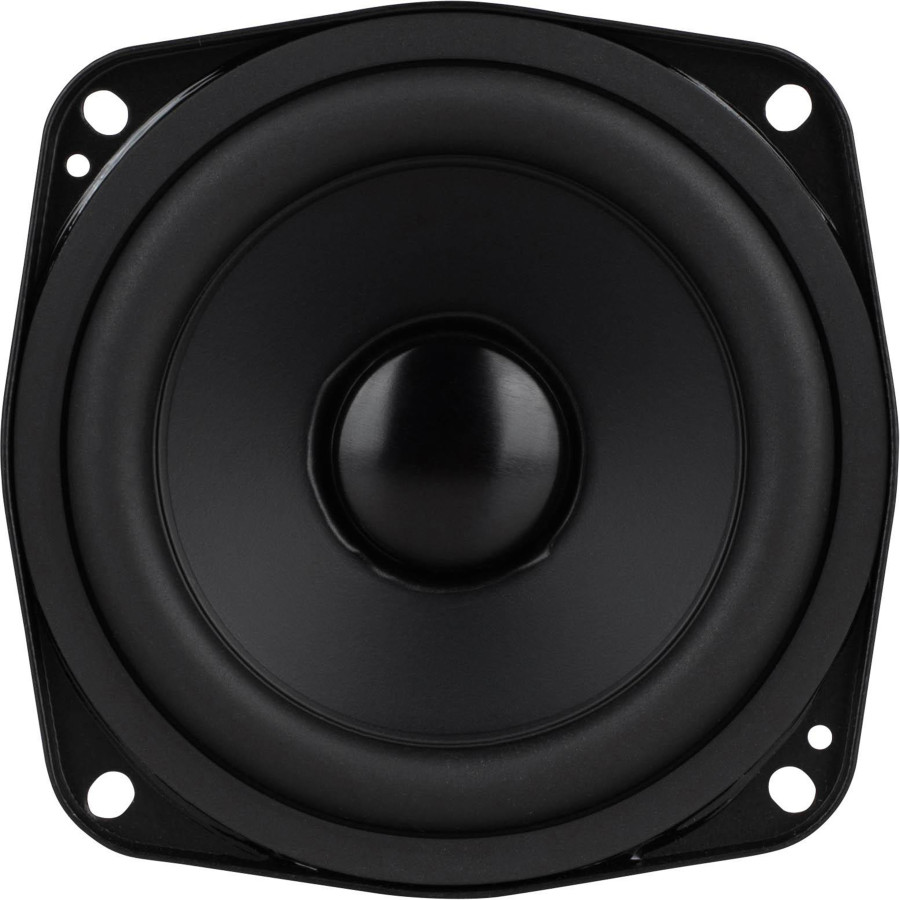

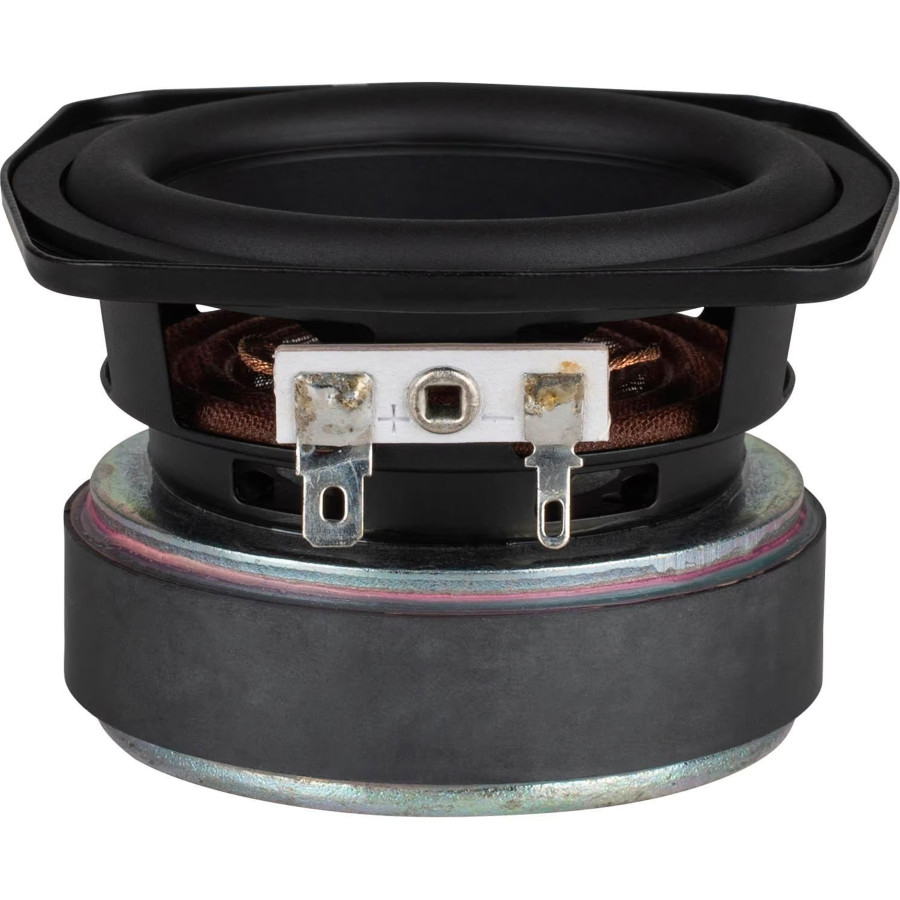

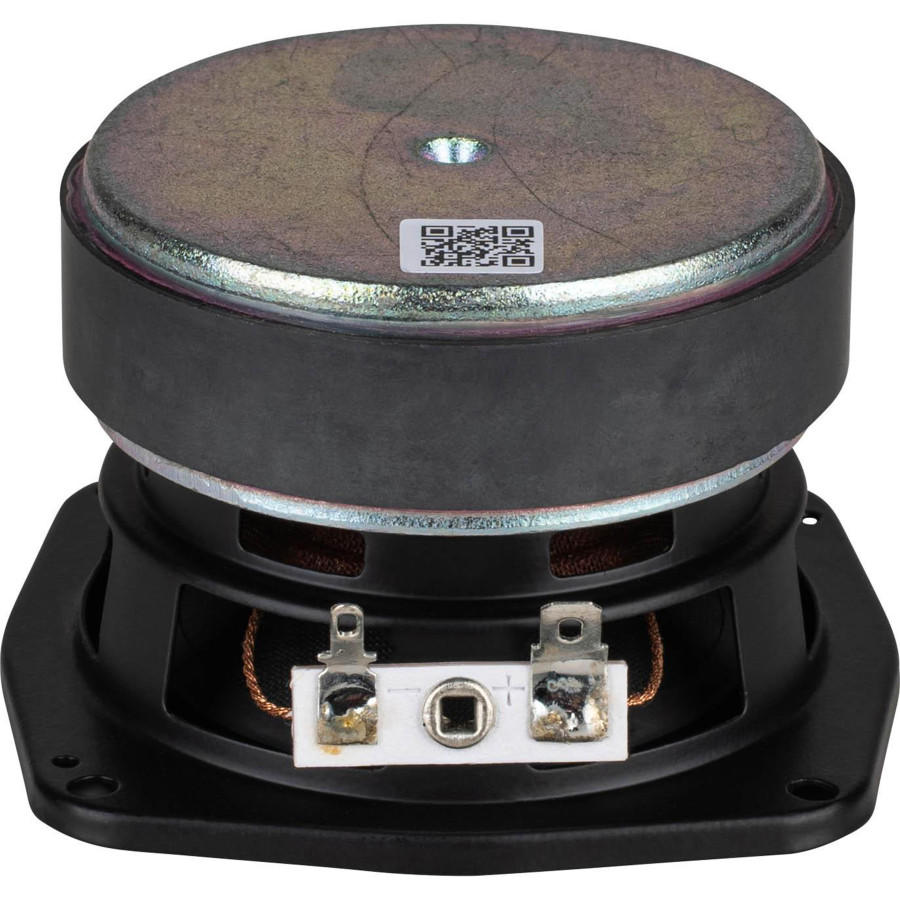

Dayton Audio CE81PF-8 Full-Range Speaker 15W 8 Ohm 84dB 80Hz-18kHz
The Dayton Audio CE81PF-8 is a 7.62cm (3") full-range speaker, with an impedance of 8 Ω and a power handling of 15 W, designed for installations where space and budget are limited. Its compact format allows integration into small enclosures, while its full-range design ensures signal reproduction without requiring filtering between multiple drivers.
Intended for DIY projects as well as commercial applications, it can be used for background sound reinforcement in stores, small-scale installations, or vocal reinforcement in a meeting room. It is thus a compact option for manufacturers and integrators looking for a versatile driver for uses where footprint and cost must remain under control.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Full-range |
| Impedance | 8Ω |
| Sensitivity | 84dB 2.83V/1m |
| Frequency response | 80Hz-18kHz |
| Voice coil diameter | 1.98cm (0.78") |
| Nominal diameter | 7.62cm (3") |
| Power | RMS: 15W MAX: 30W |
| Thiele-Small parameters | |
|---|---|
| Resonance frequency (Fs) | 97Hz |
| Cone surface area (Sd) | 28.3cm² |
| Voice coil inductance (LE) | 0.14mH |
| DC resistance (Re) | 6.7Ω |
| Mechanical quality coefficient (Qms) | 7.92 |
| Electromagnetic quality coefficient (Qes) | 0.9 |
| Total quality coefficient (Qts) | 0.81 |
| Force factor (BL) | 3.72T·m |
| Total moving mass + air load on the cone (Mms) | 3g |
| Mechanical compliance of suspension (Cms) | 0.889mm/N |
| Compliance equivalent volume (Vas) | 0.03ft³ |
| Max linear excursion (Xmax) | 2.7mm |

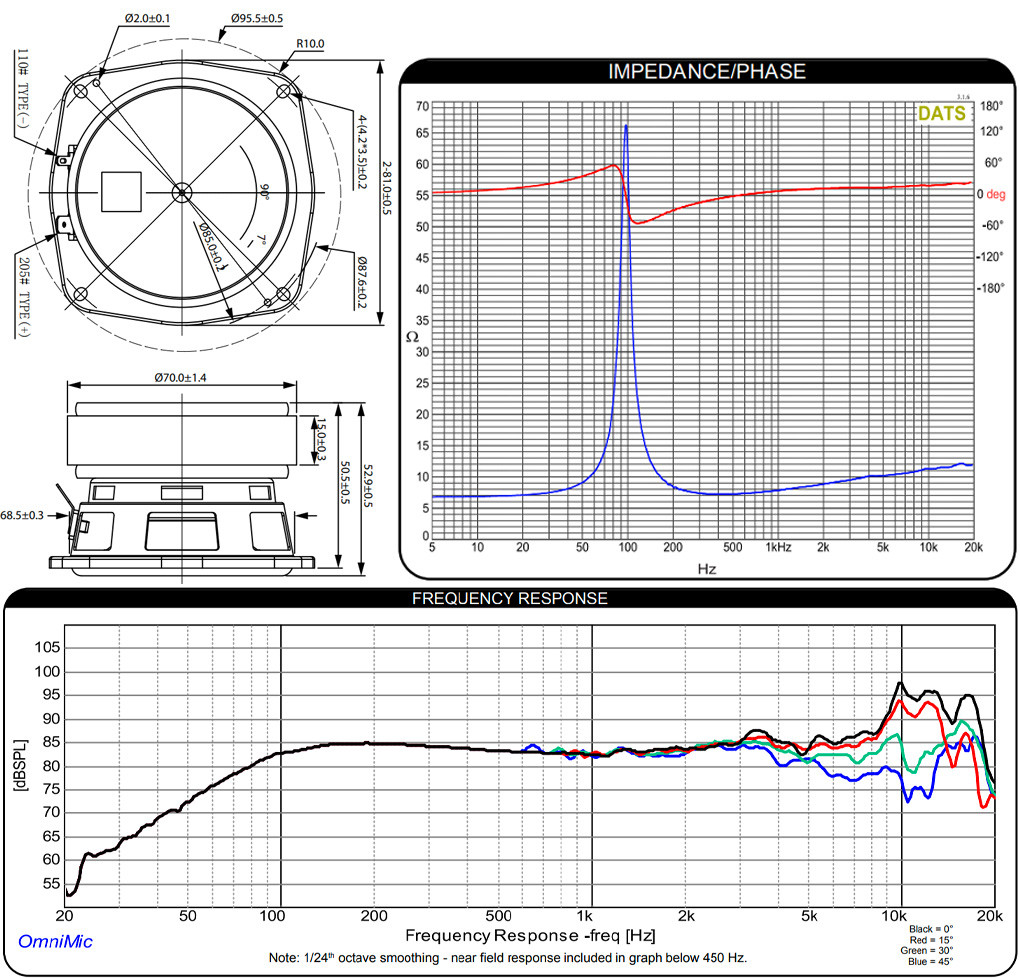

| Mounting informations | |
|---|---|
| Cutout diameter | 2.7" |
| Depth | 2" |
| Number of mounting holes | 4 |
| Total external diameter | 3.75" |
| Materials | |
|---|---|
| Diaphragm | Paper |
| Magnet | Ferrite |
| Frame | Steel |
| Surround | Rubber |
| General | |
|---|---|
| Weight | 550g |
| Package | Sold individually |
| Speaker Power (W RMS) | 15.0 |
| Speaker Type | Full range |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 76.2 |
| Diaphragm type | Paper |
| Efficiency / Sensitivity (dB) | 84.0 |
| Max Linear Excursion (Xmax) (mm) | 2.7 |
| Lowest frequency (Hz) | 80 |
| Highest frequency (Hz) | 18000 |
