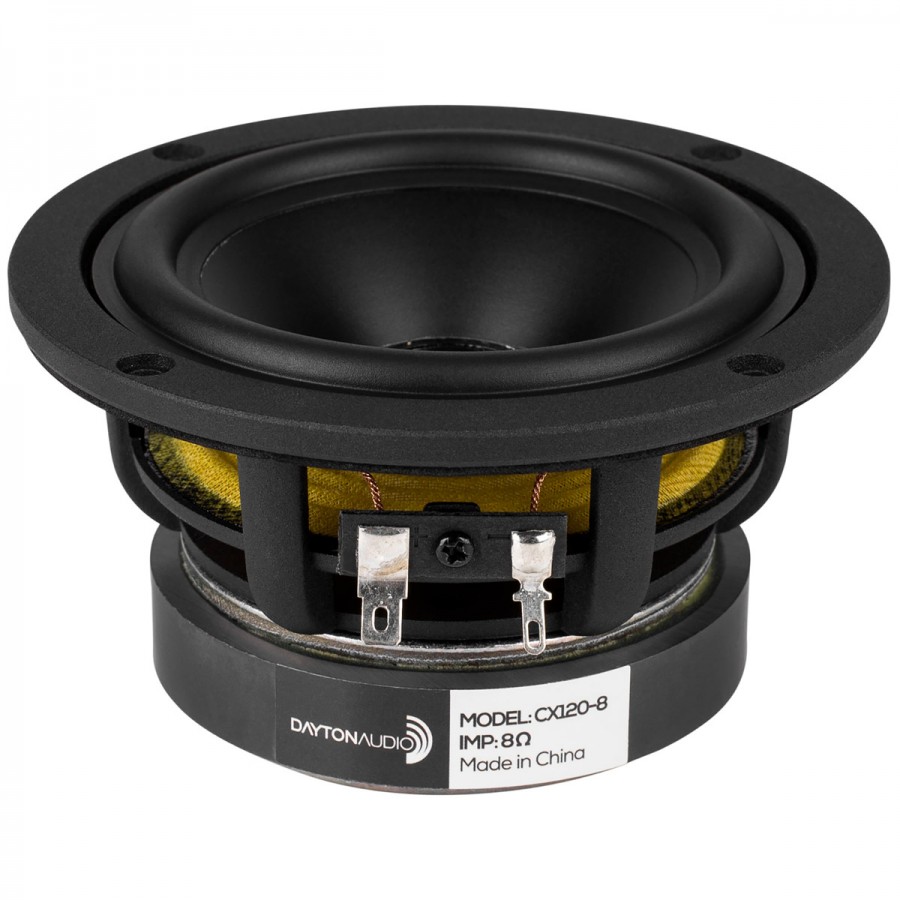

DAYTON AUDIO CX120-8 Speaker Driver Coaxial Woofer with Silk Dome Tweeter 40W 8 Ohm 88dB 90Hz - 20000Hz Ø10.2cm

DAYTON AUDIO CX120-8 Speaker Driver Coaxial Woofer with Silk Dome Tweeter 40W 8 Ohm 88dB 90Hz - 20000Hz Ø10.2cm New
The Dayton Audio CX120-8 is a coaxial wideband loudspeaker providing high quality reproduction in a compact format. It incorporates both a 4" woofer and a 3/4" silk dome tweeter. The speaker offers a good balance between rigidity, low mass and damping, developing a natural and soft sound.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Yes, notify me when available !
Reference : 14340
New product

29,08 €tax excl.

Including 0,04 € for green tax
Available on order

- +

Produit garantie 2 ans

More info

Dayton Audio CX120-8

Speaker Driver Coaxial Woofer with Silk Dome Tweeter 40W 8 Ohm 88dB 90Hz - 20000Hz Ø10.2cm

Dayton Audio CX120-8 Haut-Parleur de Grave Coaxial avec Tweeter à Dôme en Soie 40W 8Ω 88dB 90Hz - 20000Hz Ø10.2cm

The Dayton Audio CX120-8 is a coaxial wideband loudspeaker providing high quality reproduction in a compact format. It incorporates both a 4" woofer and a 3/4" silk dome tweeter. The speaker offers a good balance between rigidity, low mass and damping, developing a natural and soft sound. The silk dome tweeter delivers detailed and accurate high frequencies with very low distortion. In addition, the tweeter's optimized placement and flare reduce phase problems with the phase driver, a common problem with coaxial speakers. The CX120 has been designed for use as a full-range bookshelf speaker, to extend the frequency response of a 3-way system or even for a Car Audio system.

Dayton Audio CX120-8 Haut-Parleur de Grave Coaxial avec Tweeter à Dôme en Soie 40W 8Ω 88dB 90Hz - 20000Hz Ø10.2cm

Woofer 4"

  • 1" Voice coil on aluminium former for high power handling
  • Cone offering an excellent balance of stiffness, low mass and damping for a natural and soft sound
  • Optimized rubber surround for reduced break up in the midrange band
  • Attractive rigid open cast frame cast frame to minimize reflections, resonances and improve air flow
  • High energy ferrite magnet for greater cone control and improved efficiency

Tweeter 3/4"

  • Silk dome provides detail and clarity of high frequencies
  • Coaxially mounted to pole piece of woofer cone
  • Optimized placement and trimmed flaring to reduce phase issue interaction with woofer
  • Strong neodymium magnet
  • Trimmed flared throat to minimize phase issues causing suck-out with woofer

High pass filter required (not included)

Technical characteristics

Specifications
Speaker driver typeCoaxial speaker driver Woofer + Tweeter
Woofer nominal diameterØ101.6mm (4")
Tweeter nominal diameterØ19mm (0.75")
Woofer powerRMS : 40W
Max : 80W
Tweeter powerRMS : 20W
Max : 40W
Woofer / Tweeter impedance8Ω
Frequency response90Hz - 20000Hz
Woofer sensitivity88.5dB @ 2.83V/1m
Tweeter sensitivity89.2dB @ 2.83V/1m
Voice coil diameterØ25.4mm (1")
Weight884g
Thiele-Small Parameters
Woofer resonant frequency (Fs)87.5Hz
Tweeter resonant frequency (Fs)2745HzHz
Woofer DC resistance (Re)6.22Ω
Tweeter DC resistance (Re)5.6Ω
Woofer frequency response90Hz - 5500Hz
Tweeter frequency response4500Hz - 20000Hz
Woofer voice coil inductance (Le)0.63mH
Tweeter voice coil inductance (Le)0.04mH @ 10kHz
Woofer mechanical quality coefficient (Qms)2.89
Tweeter mechanical quality coefficient (Qms)2.20
Woofer electromagnetic quality coefficient (Qes)0.57
Tweeter electromagnetic quality coefficient (Qes)7.91
Woofer total quality coefficient (Qts)0.48
Tweeter total quality coefficient (Qts)1.72
Compliance equivalent volume (Vas)0.106 ft.³
Mechanical compliance of suspension (Cms)0.765mm/N
Force factor (BL)5.08Tm
Diaphragm mass inc. airload (Mms)4.82g
Maximum linear excursion (Xmax)3mm
Surface area of cone (Sd)52.51cm²
Material
Cone materialPoly
Surround materialRubber
Voice coil wire materialCCA
Voice coil formerAluminium
Basket / FrameAluminium
MagnetFerrite
Mounting informations
Overall outside diameterØ120.6mm (4.75")
Cutout diameterØ98.4mm (3.875")
Depth63.5mm (2.5")
Bolt circle diameter109.5mm (4.313")
Number of mounting holes4
Optimum cabinet size (Measured with BassBox 6 Pro)
Sealed volume0.046ft³
Sealed F3156Hz
Vented volume0.147ft³
Vented F380Hz

Data sheet
Speaker Power (W RMS)40
Speaker TypeFull range
Impedance (Ω)4
Loudspeaker diameter (cm)102
Diaphragm typePolypropylene
Efficiency / Sensitivity (dB)88
Xmax (mm)3
Lowest frequency90
Highest frequency20000
