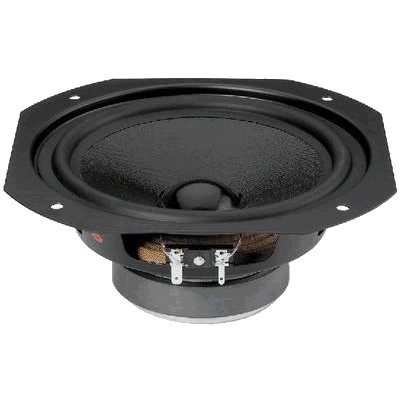

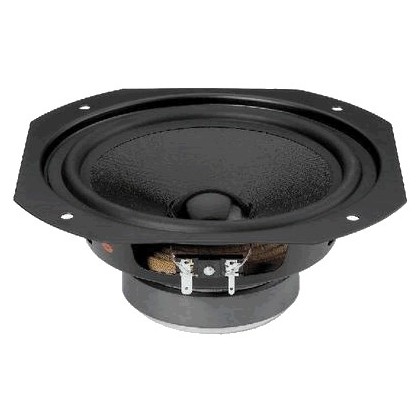

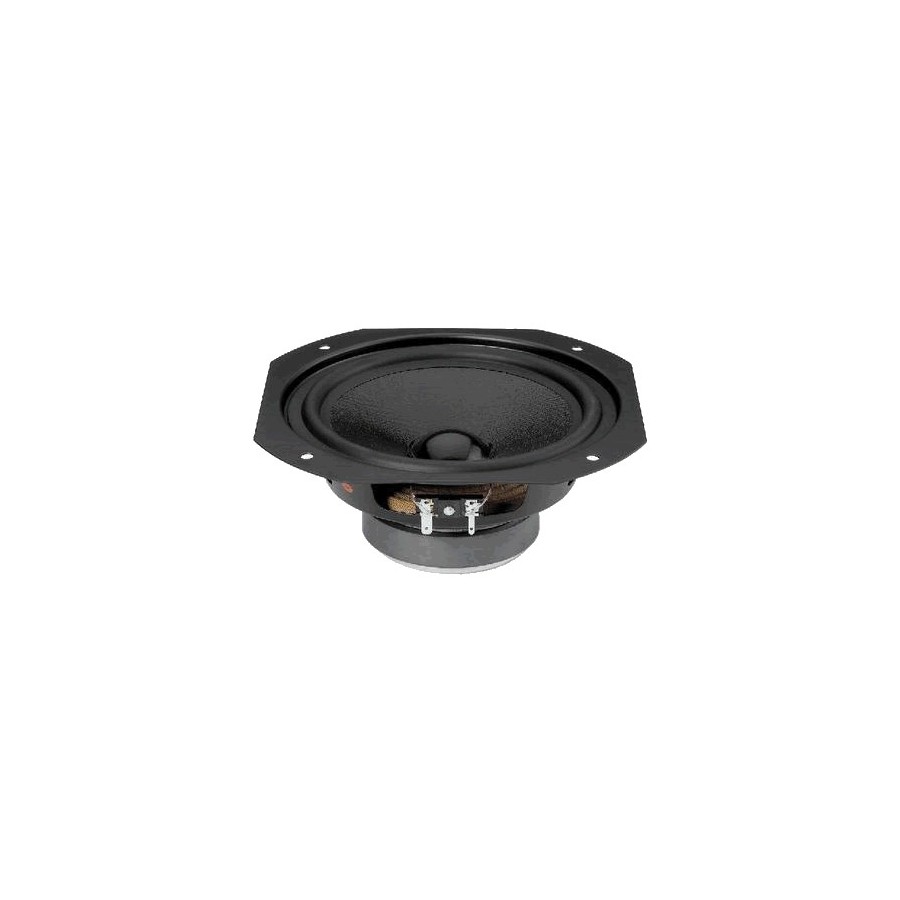

MONACOR SPH-175 Speaker Driver Midbass 60W 8 Ohm 90dB

Monacor SPH-175
No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Reference : 839
New product

60,00 €tax excl.

Including 0,25 € for green tax

- +

Shipping date: 06-07-2022.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info
Bass-midrange speaker, 100 W MAX , 8 Ω

Specially coated paper membrane, rubber suspension, optimized aluminum bowl, the ideal speaker for 2-way systems.


Inductance coil. (The)




 Impedance (Z) 8 Ω

 Resonance frequency (fs) 33 Hz

 Maximum bandwidth f3-5000 Hz

 Freq. cut. (fmax). 3000 Hz

  Maximum Power  100 W MAX

 Rated power (P) 60 W RMS

 Pressure sound. (1W / 1m) 90 dB

 Compliance susp. (Cms) 1.86 mm / N

 Moving mass (Mms) 12.5 g
 pan>
 Mechanical resistance (Rms) 1.3 kg / s

 Mechanical overvoltage. (Qms)  1.98

 Electrical overvoltage (Qes) 0.43

 Fact. total surge (Qts) 0.35

 Volume equ. (VAS) 48 l

 DC resistance. (Re) 5.7 Ω

  0.5 mH

 Coil diameter 25 mm

 Coil holder Alu

 Height winding 10 mm

 Air gap height 6 mm
 pan>
 Linear Excursion (X MAX ) ± 2 mm

 Transmitting surface (Sd) 137 cm 2

 Flight. air displaced (Vd) 27.4 cm 3

 Force factor (BxL) 6 Tm

 Ref. (No) 0.4%

 Magnet diameter 84 mm

  Magnet weights 12.5 oz.

 cutting Ø 162 mm

 Mounting depth 70 mm

 Dimensions 177 x 177 mm

 Weight 1.2 kg

 Recommended Min Volume

 closed 16 l

 bass reflex 35 l




Data sheet
Speaker Power (W RMS)60.0
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)175.0
Diaphragm typePaper
Efficiency / Sensitivity (dB)90.0
Max Linear Excursion (Xmax) (mm)2.0
Lowest frequency (Hz)N/A
Highest frequency (Hz)5000
