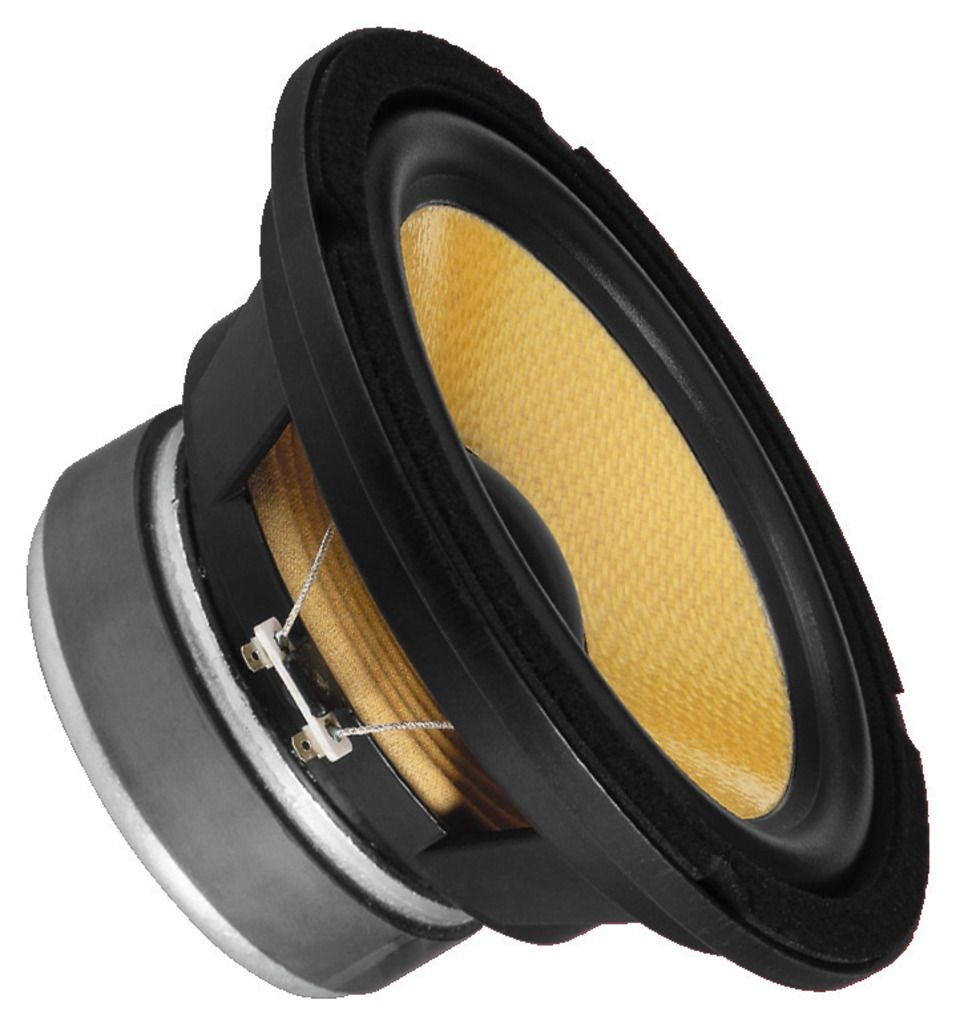

This SPH-200KE speaker from MONACOR is a low-midrange driver with a Kevlar fiber cone. It also features an aluminum bowl for 2- and 3-way systems. It delivers excellent bass reproduction across the entire Hi-Fi spectrum. Its nominal impedance is 8 ohms and its power handling rating is 80W.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Speaker Low Midrange |
| Impedance | 8 ohm |
| Frequency range | f3-4,500Hz |
| Resonance frequency (fs) | 28Hz |
| Nominal power | 80W |
| Max. power | 120W |
| SPL | 90dB/W/m |
| Suspension compl. (CMS) | 0.89 mm/N |
| Moving mass (Mms) | 37g |
| Mech. Q factor (QMS) | 4.65 |
| Electr. Q factor (Qes) | 0.41 |
| Total Q factor (Qts) | 0.38 |
| Equivalent volume (Vas) | 54l |
| DC resistance (Re) | 6.2 Ω |
| Force factor (BxL) | 9.90 Tm |
| Voice coil induct. (Le) | Inductance bobine 0.75 mH |
| Voice coil diameter | Ø50mm |
| Voice coil former | Kapton |
| Linear excursion (Xmas) | ± 4.75 mm |
| Eff. cone area (SD) | 207 cm2 |
| Magnet weight | 840g + 50g |
| Magnet diameter | Ø 120mm |
| Mounting cutout | Ø 182mm |
| Mounting depth | 89mm |
| General | |
|---|---|
| Dimensions | Ø 212mm x 100mm |
| Net weight | 2.72kg |
| Package | 1x MONACOR SPH-200KE |
| Speaker Power (W RMS) | 80.0 |
| Speaker Type | Midbass |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 200.0 |
| Diaphragm type | Kevlar |
| Efficiency / Sensitivity (dB) | 90.0 |
| Max Linear Excursion (Xmax) (mm) | 4.7 |
| Lowest frequency (Hz) | N/A |
| Highest frequency (Hz) | 4500 |
