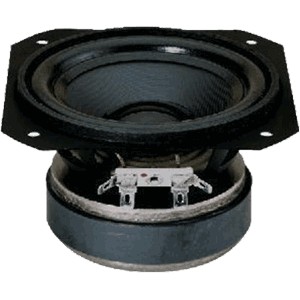

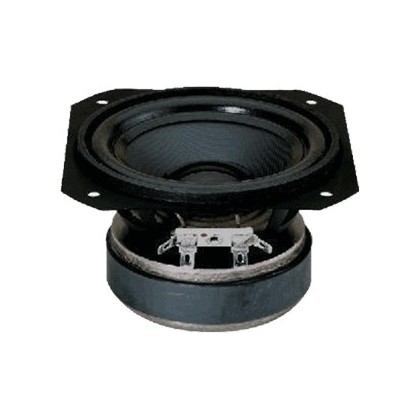

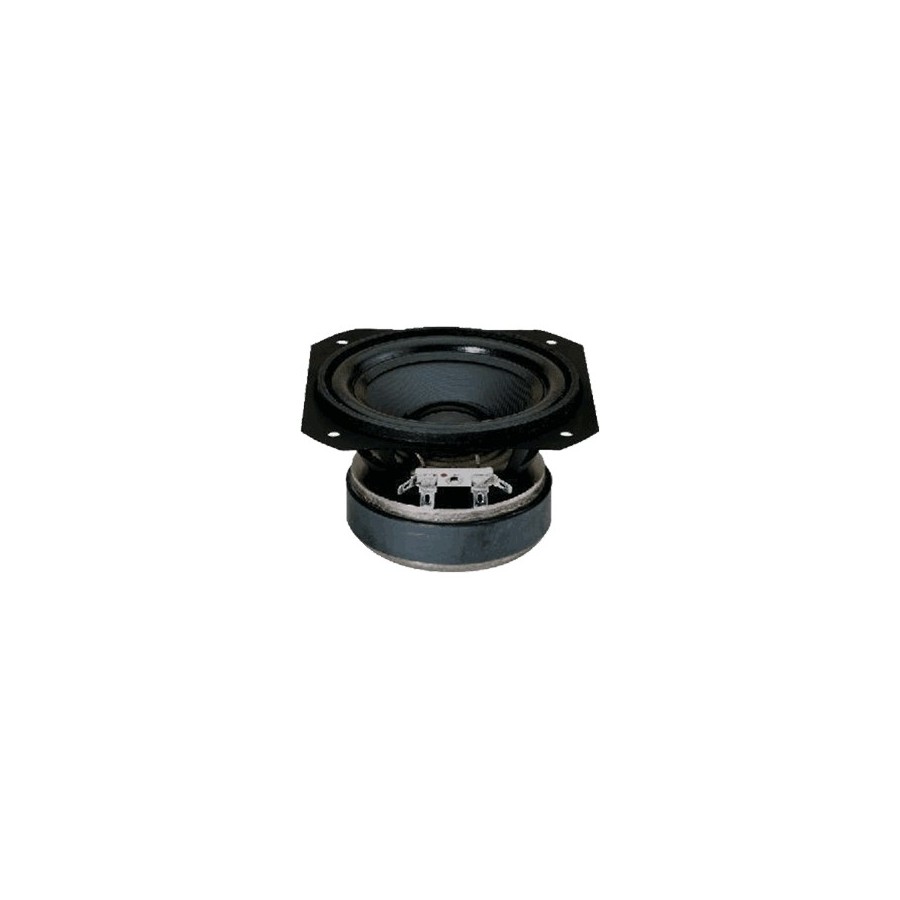

MONACOR SPP-110/8 Speaker Driver Midbass HiFi 30W 8 Ohm 90dB

Monacor SPP-110/8
No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 843
New product

16,58 €tax excl.

Including 0,25 € for green tax

- +

Shipping date: 27-09-2022.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info
Hi-Fi, 60 W MAX , 8 Ω (/ 8) Subwoofers
with PVC / Carbon membrane. Decompression and cooling by the core. For 2-way library or Appolito systems.

SPP-110/4 = 4 Ω

SPP-110/8 = 8 Ω





 Impedance (Z) 8 Ω

 Resonance frequency (fs) 55 Hz

 Maximum bandwidth f3-8000 Hz

 Maximum power 60 W MAX

  Rated power (P)  30 W RMS

 Average sound pressure (1 W / 1 m) 90 dB

 Compliance susp. (Cms) 1.89 mm / N

 Moving mass (Mms) 4.4 g

 Mechanical overvoltage. (Qms) 2.01

 Electrical overvoltage (Qes) 0.46

 Fact. total surge (Qts) 0.37

 Volume equ. (VAS) 8 l

 DC resistance. (Re) 6.5 Ω

 Force factor (BxL) 4.6 Tm

 Inductance coil (The) 0.4 mH

 Coil diameter 25.5 mm

 Coil holder Alu
 pan>
 Linear Excursion (X MAX ) ± 2 mm

 Transmitting surface (Sd)  55 cm 2

 Magnet Weight 10 oz.

 Weight 0.9 kg










Data sheet
Speaker Power (W RMS)30
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)110.0
Diaphragm typePVC
Diaphragm typeCarbon fiber
Efficiency / Sensitivity (dB)90.0
Max Linear Excursion (Xmax) (mm)2.0
Lowest frequency (Hz)N/A
Highest frequency (Hz)8000
