DAYTON AUDIO DAX66 Multiroom Amplifier 12 Cchannel
By buying this product you get 119 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

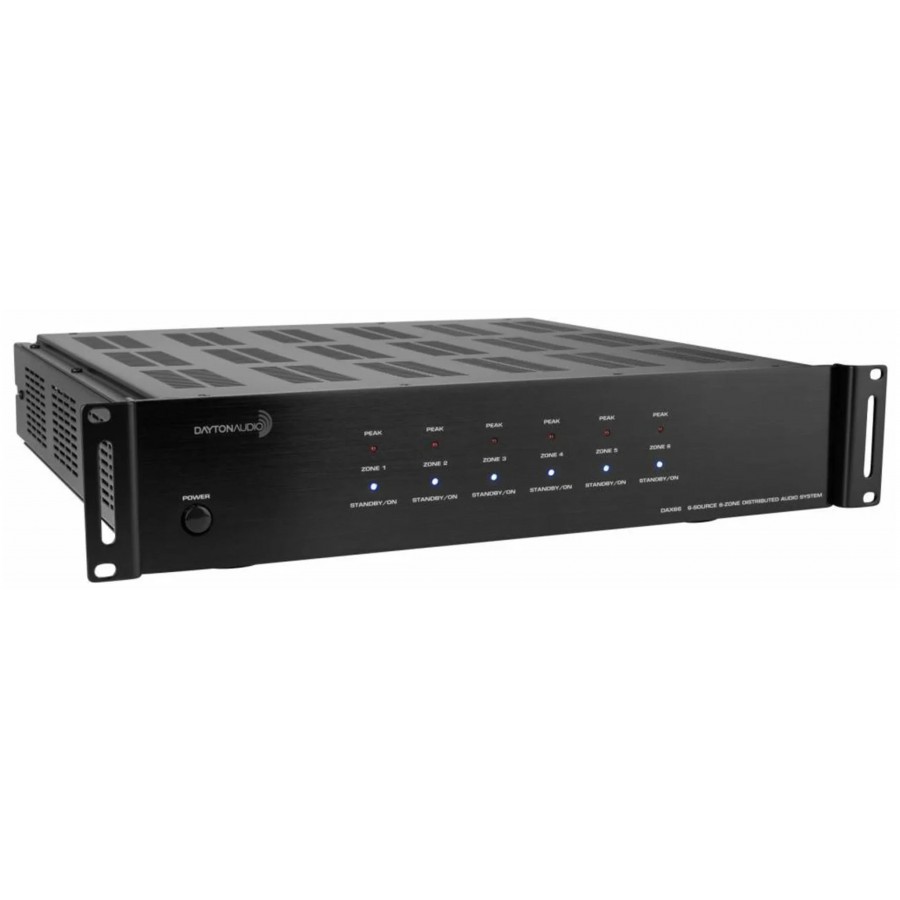

Dayton Audio DAX66 Multiroom Amplifier 12-channel Class D 12x50W @ 4 Ohm

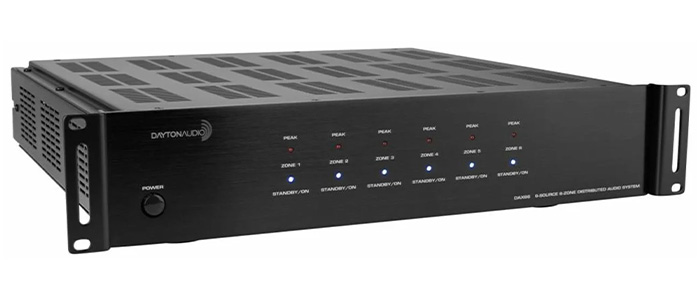

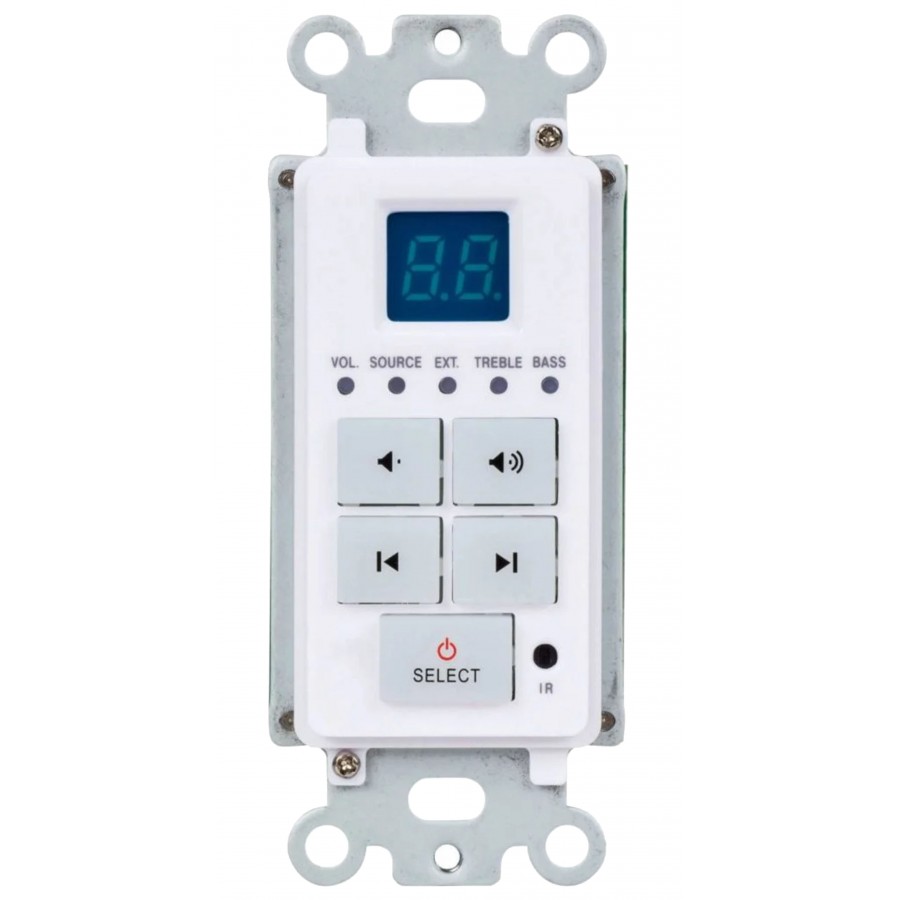

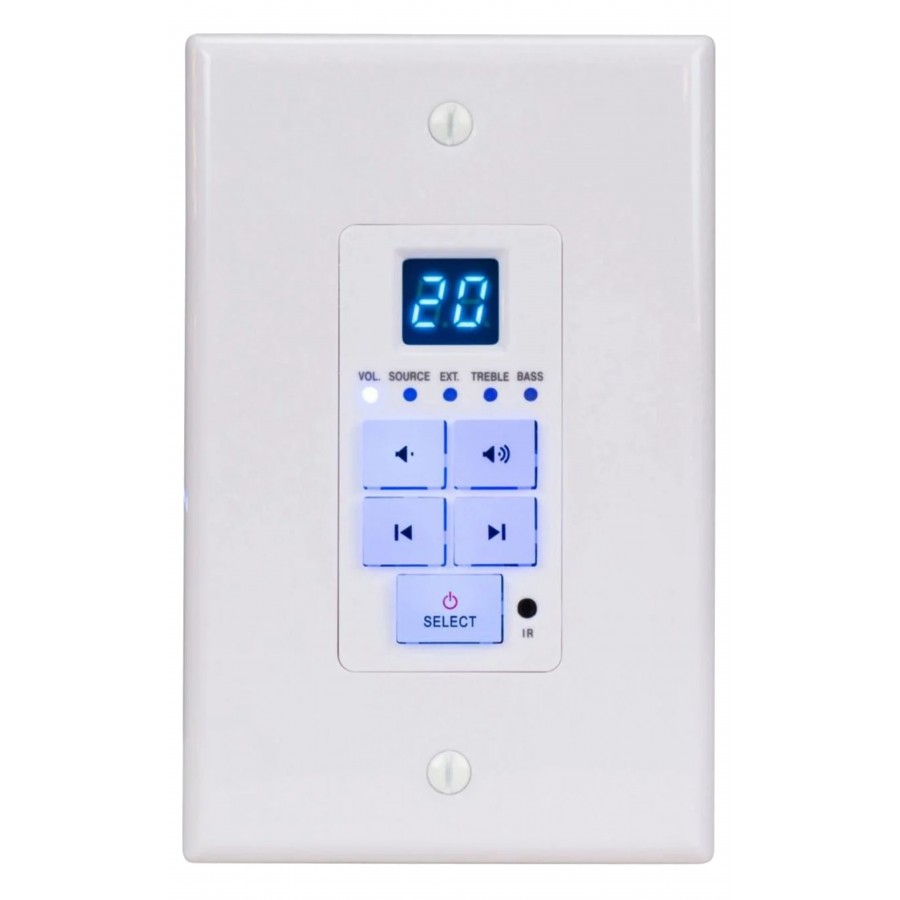

The Dayton Audio DAX66 is a 12-channel Class D multiroom amplifier. It offers considerable output power for a wide range of spaces, with 12x 50W under 4 ohm and up to 100W under 8 ohm in bridged mono mode. This amplifier also boasts numerous advantages, such as a high expansion capacity thanks to 6 preamplified RCA outputs and connectors offering the possibility of adding 2 additional interfaces for amplification of up to 18 zones in stereo. An IR remote control allows the DAX66 to be controlled remotely, but it also comes with 6 wall-mounted controllers for ultimate convenience. The Dayton Audio DAX66 is therefore ideal for multiroom use or, more simply, home cinema use.

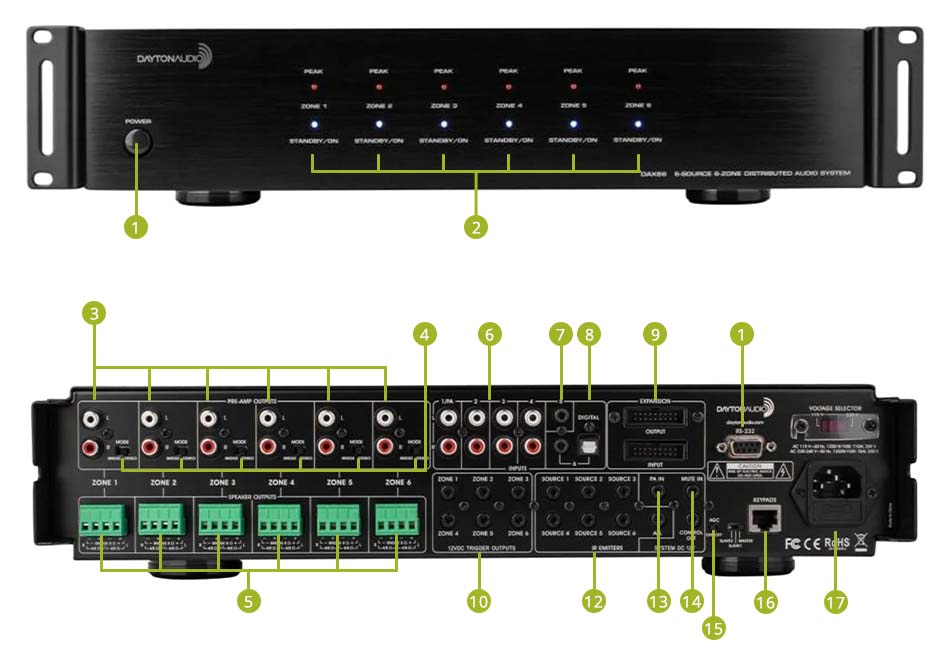

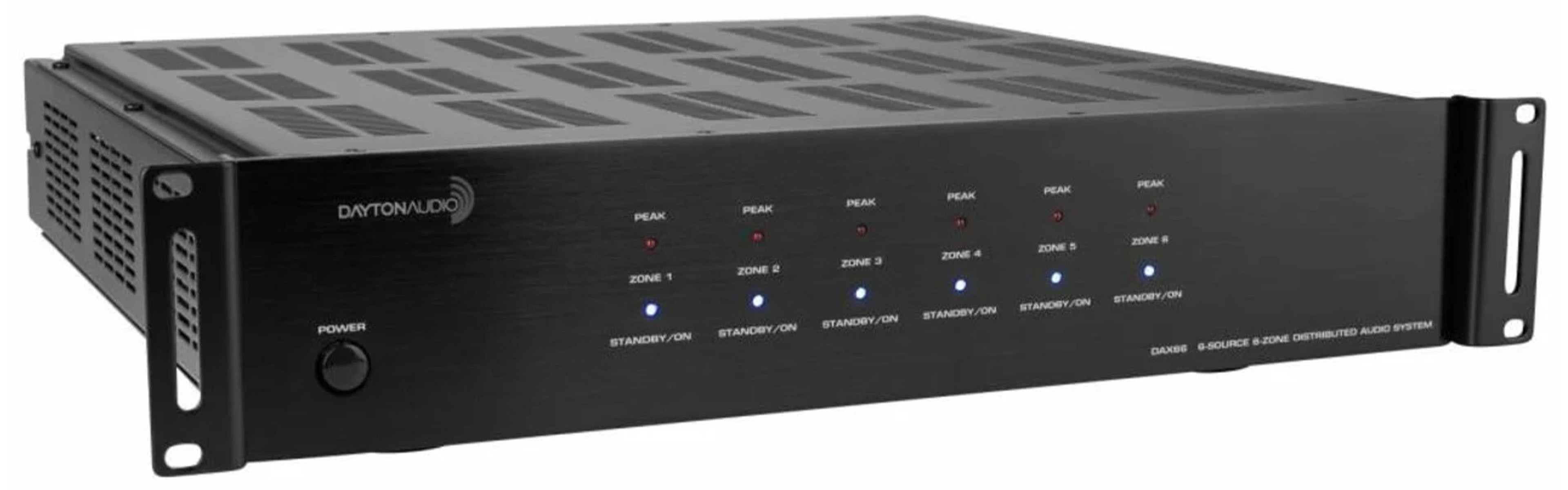

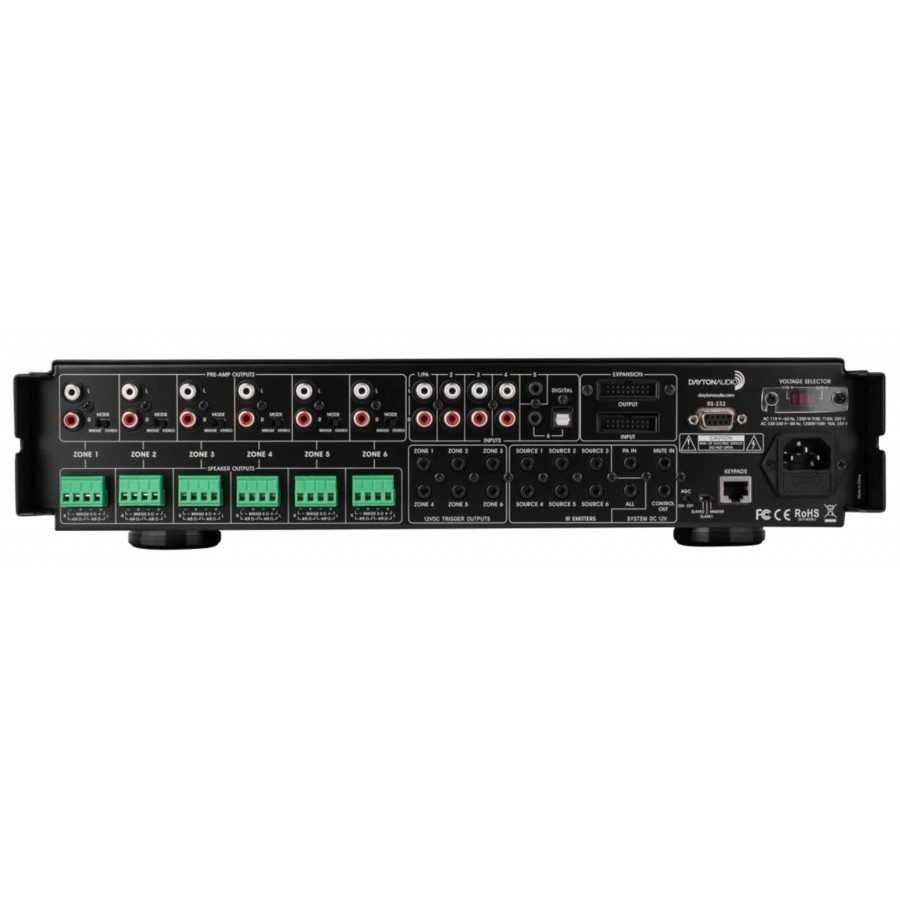

Dayton Audio DAX66 overview
| 1 | ON / OFF / Standby button |
| 2 | LED indicators per channel |
| 3 | 6x Stereo RCA line output (preamp) |
| 4 | Bridge / Stereo mode switch |
| 5 | 6x Stereo speaker output on terminal block |
| 6 | 4x RCA stereo input |
| 7 | 3.5mm stereo jack input |
| 8 | 3.5mm stereo jack or Toslink optical input |
| 9 | IN / OUT expansion connectors |
| 10 | 6x Trigger out 12VDC |
| 11 | 7x IR output (1 per channel and 1 global) |
| 12 | Trigger IN 12VDC |
| 13 | Trigger IN 12VDC for Mute function |
| 14 | RS-232 port |
| 15 | Automatic gain control |

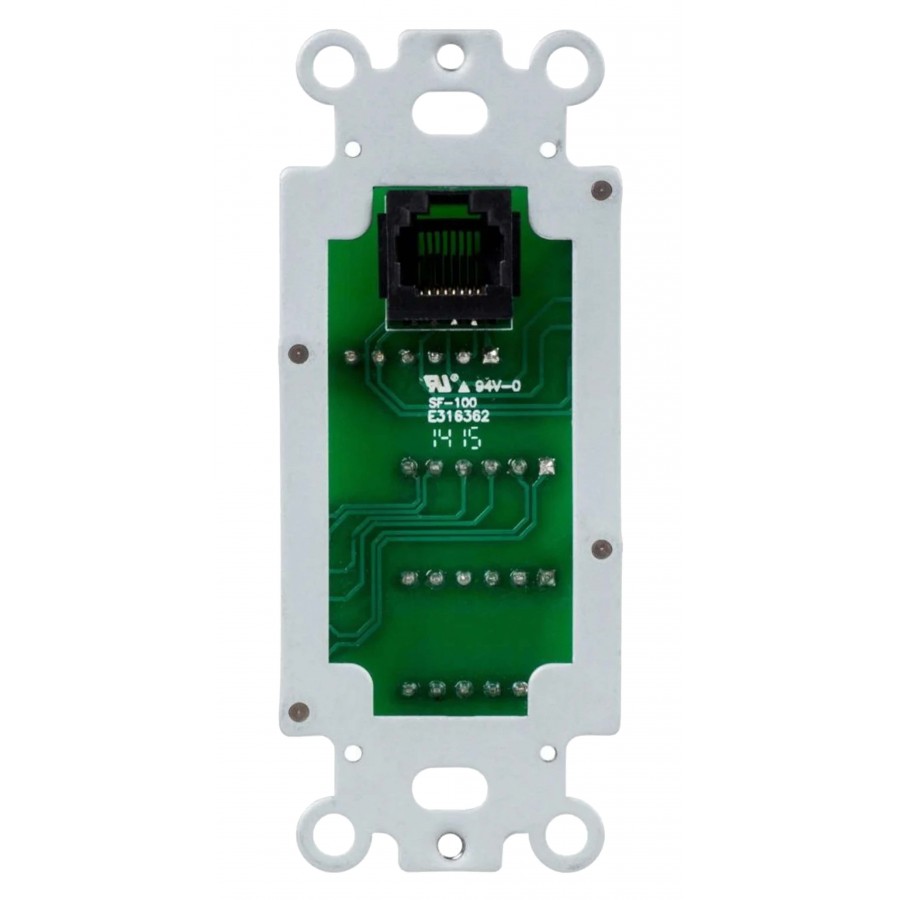

| 16 | Connectors for wall-mounted control hub |
| 17 | 110V/220V mains power selector switch |
| 18 | Power supply port |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Multiroom amplifier |
| Number of channels | 12 |
| Bridgeable | |
| Inputs | 4x RCA stereo 1x 3.5mm stereo input 1x 3.5mm stereo or optical Toslink input |
| Outputs | 6x Stereo speaker terminal output |
| Output power | 12x 25Wrms @ 8 ohm 12x 50Wrms @ 4 ohm 6x 100Wrms @ 8 ohm (bridge mode) |
| SNR | > 85dB (A-WT) |
| THD | < 0.1% |
| Frequency response | 20Hz-20kHz |
| Input impedance | > 47Kohms |
| INput sensitivity | 250mv |
| Trigger voltage | 12V DC |
| Infrared frequency | 38kHz |
| General | |
|---|---|
| Power supply | 115VAC/60Hz or 220VAC/50Hz selectable via switch |
| Dimensions | 43 x 9 x 41.7cm |
| Weight | 10.8kg |
| Color | Black |

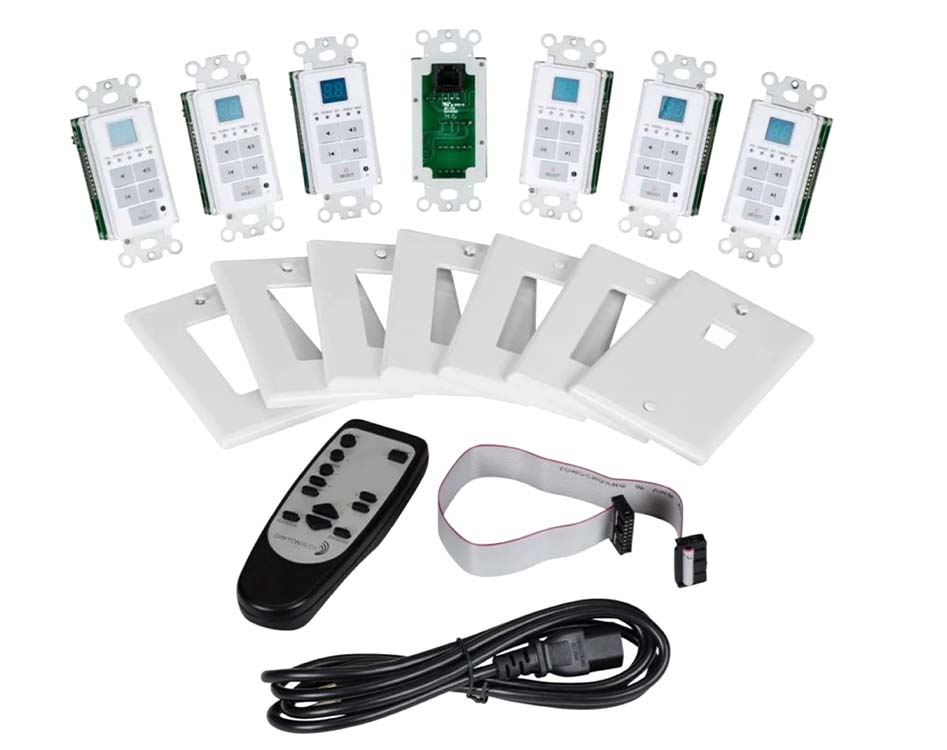

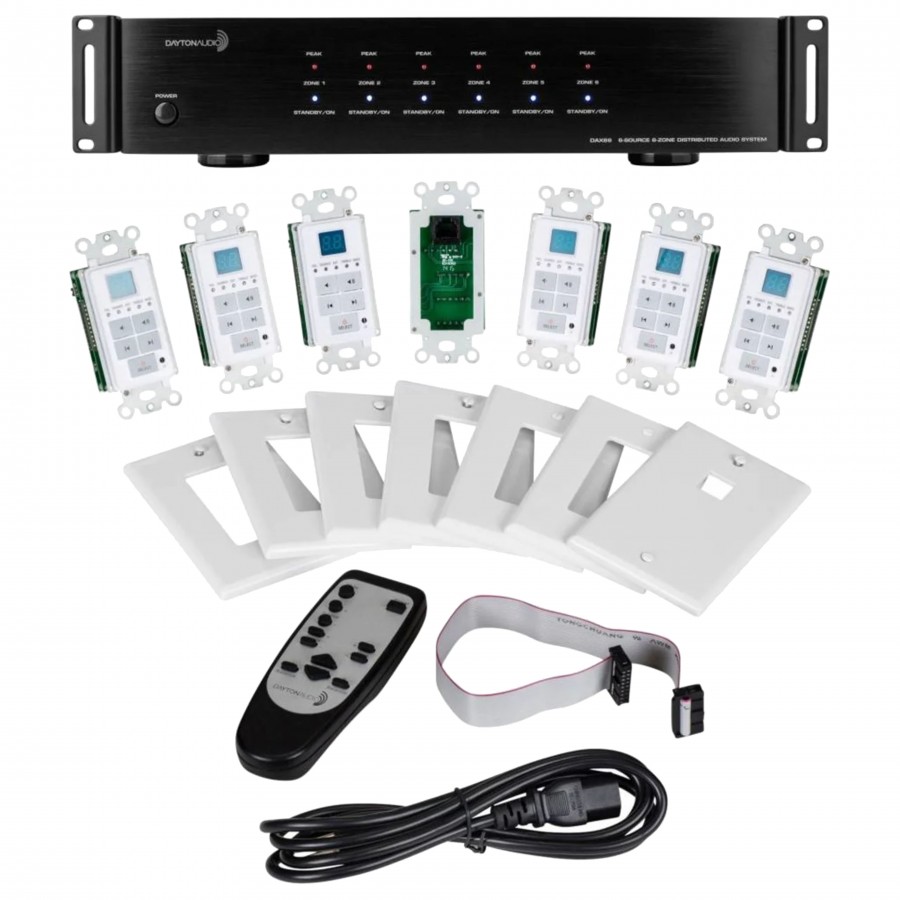

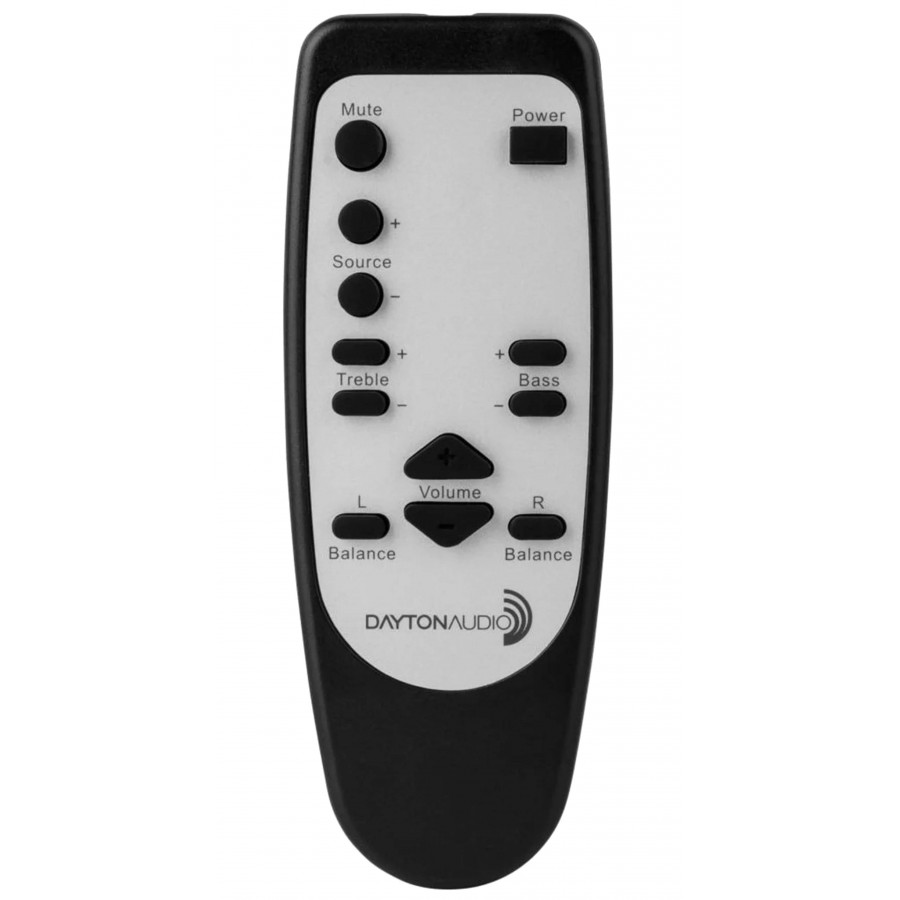

| Package | 1x Dayton Audio DAX66 1x IR remote control 6x Wall-mounted remote control 1x Hub for connecting wall-mounted remote controls 1x Expansion cable 1x Mounting rack kit 1x Mains power cable |
| Input | RCA |
| Input | Optical |
| Input | Jack 3.5mm |
| Output | Speaker terminal |
| Color | Black |
| Channel | 12 |
| Class | Class D / T |
| Amplifier chip | N/A |
| Power (W) | 50.0 |
| Remote Control | Yes |
