XDUOO LINK3 DAC Portable Headphone Amplifier DAC
By buying this product you get 23 loyalty points
![[GRADE A] ASCILAB C8C Bookshelf Speakers Cardioid 3-way 1x100W + 2x250W Black (Pair)](https://www.audiophonics.fr/71347-thumb_default/ascilab-c8c-black-sba.jpg)

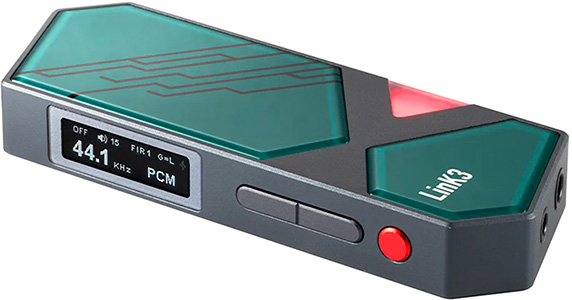

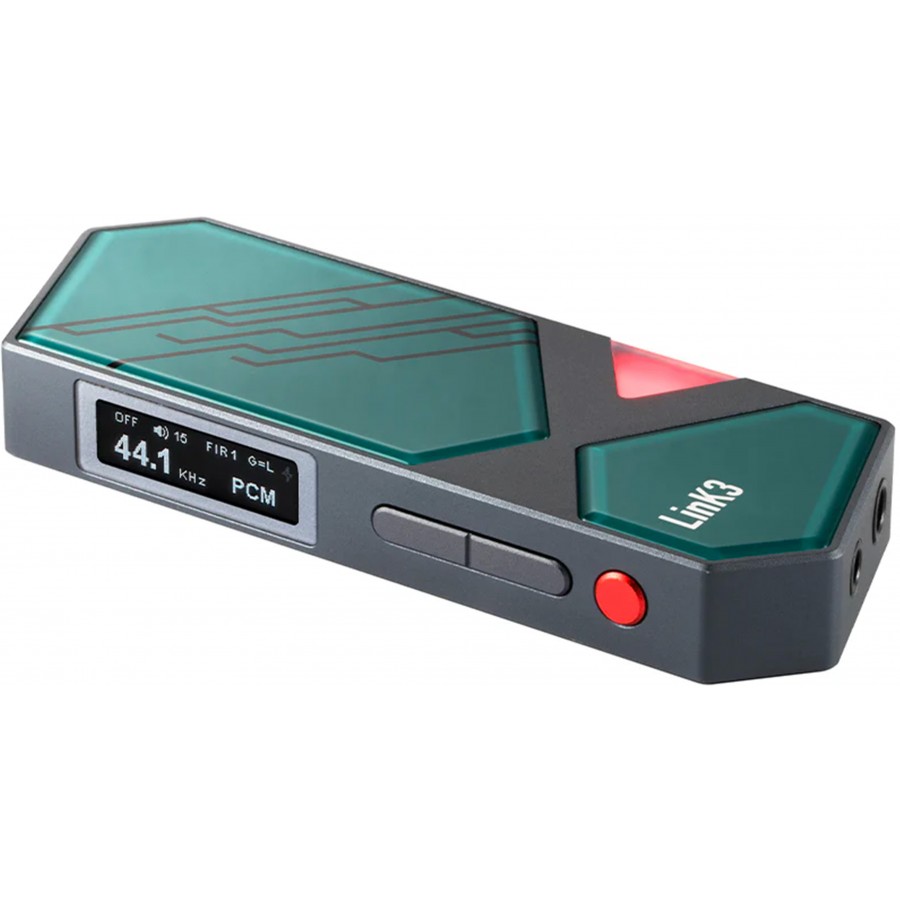

xDuoo Link3 Portable Headphone Amplifier DAC 2x ES9039Q2M 32bit 768kHz DSD512

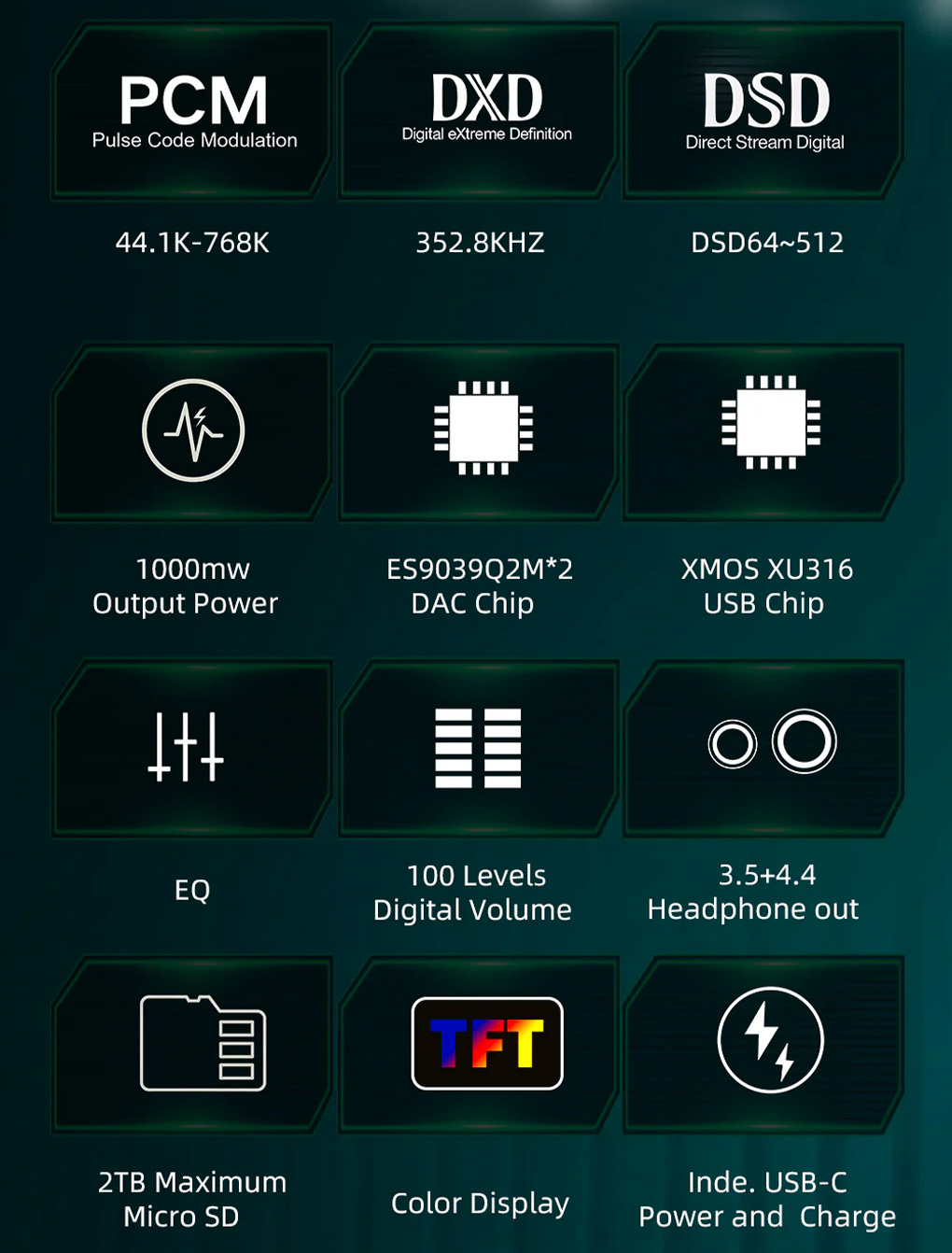

The xDuoo Link3 is a portable headphone amplifier DAC featuring a dual ES9039Q2M architecture, designed to convert and amplify high-resolution audio signals on the go. It supports streams up to 32bit 768kHz PCM and DSD512, utilising a 16-core XMOS XU316 USB interface to ensure stable, low-latency transmission, resulting in accurate reproduction with a signal-to-noise ratio of up to 130dB. This technical foundation is complemented by an amplification capacity of up to 1000mW into 32Ω via a balanced output, thereby maintaining usable dynamics with both low- and medium-impedance headphones.
xDuoo Link3: Architecture and performance

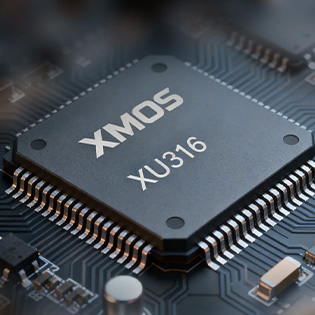

For its digital-to-analogue conversion stage, the Link3 utilises two ES9039Q2M chips to support signals up to 32bit 768kHz PCM and DSD512. Furthermore, it incorporates a 16-core XMOS XU316 USB receiver chip, which minimises latency and enables precise audio transmission. These high-quality chips ensure conversion with impressive precision, delivering a signal-to-noise ratio of nearly 130dB and a harmonic distortion figure of just -120dB.
With an output power of 700 mW at 32 Ω in standard power mode and 1000 mW at 32 Ω when powered via an external USB source, the Link3 is perfectly capable of driving both low-impedance earbuds and high-impedance headphones.
xDuoo Link3: Connections

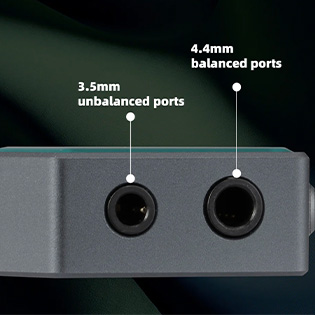

The Link 10 is equipped with two headphone jacks: a 3.5mm single-ended jack and a 4.4mm balanced jack, ensuring compatibility with the vast majority of existing headphone and earbud models. Furthermore, in the spirit of broad compatibility, the Link 10 also features UAC 1.0 mode for use with devices such as game consoles, thanks in part to its detachable 8-core USB-C cable, which eliminates interference and separates the power supply from the signal.
To expand the device’s storage capacity, the Link3 features a microSD card slot supporting cards of up to 2TB, allowing you to store an impressive amount of music.
xDuoo Link3: Aesthetics and listening comfort

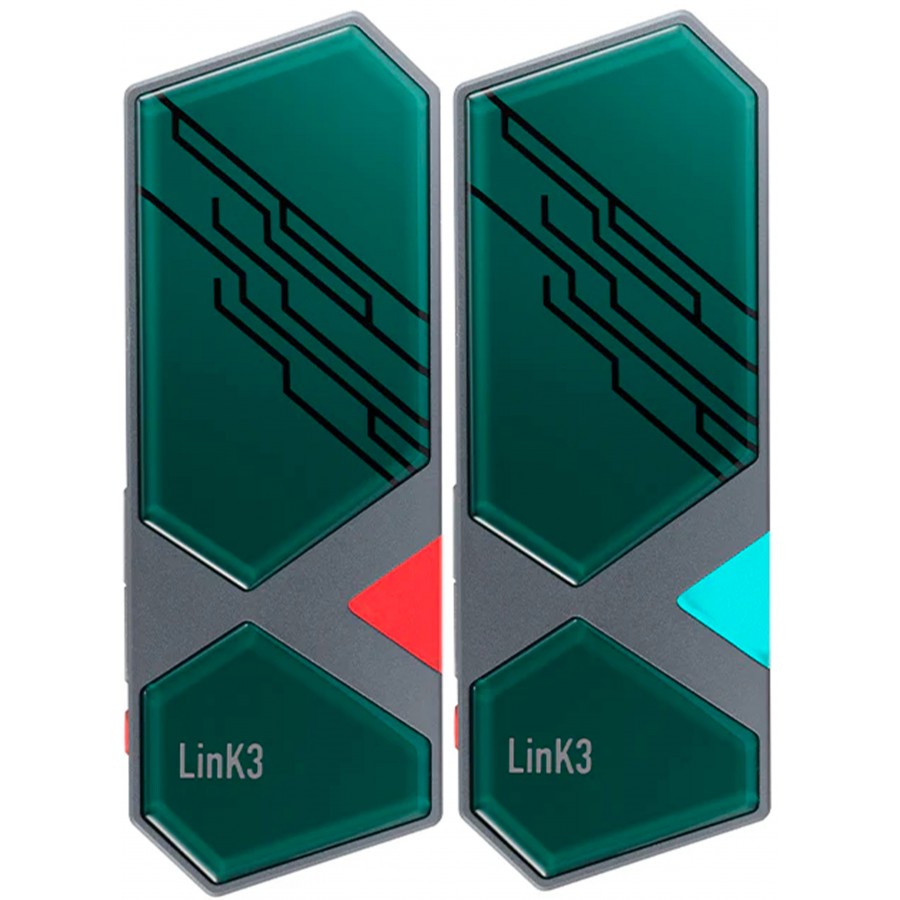

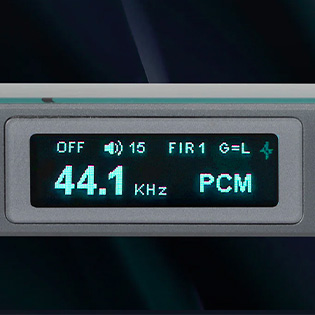

For volume control, the Link3 features precise 100-step digital adjustment, ensuring that sound quality remains consistent regardless of the impedance and sensitivity of each pair of headphones or earbuds. It also features a TFT display and an LED indicator showing the active sampling rate. Both practical and stylish, the Link3 features an anodized aluminum alloy body and glass panels.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Portable DAC |
| Inputs | 1x USB-C 1x microSD card up to 2TB (not included) |
| Outputs | 1x 3.5mm single-ended jack 1x 4.4mm balanced jack |
| Output power via 3.5mm jack (Super Power mode) | 500mW @ 32Ω 310mW @ 32Ω 160mW @ 75Ω 80mW @ 150Ω |
| Output power via 3.5mm jack (Normal power mode) | 360mW @ 32Ω 200mW @ 32Ω 100mW @ 75Ω 50mW @ 150Ω |
| Output power via 4.4mm jac (Super Power mode) | 1000mW @ 32Ω 610mW @ 32Ω 300mW @ 75Ω 150mW @ 150Ω |
| Output power via 4.4mm jack (Normal power mode) | 700mW @ 32Ω 540mW @ 32Ω 270mW @ 75Ω 130mW @ 150Ω |
| DAC chip | 2x ES9039Q2M |
| Supported sampling rates | PCM up to 32bit 768kHz DSD up to DSD512 |
| THD+N | Single-ended output : 110dB @ 1kHz Balanced output : 112dB @ 1kHz |
| SNR | Single-ended output : ≥ 120dB Balanced output : ≥ 130dB |
| Diaphonie | Single-ended output : ≥ 75dB Balanced output : ≥ 123dB |
| Frequency response | 20Hz - 20kHz (±0.5dB) |
| General | |
|---|---|
| Dimensions | 107 x 38 x15mm |
| Weight | 70g |
| Package | 1x xDuoo Link3 1x USB-C Cable |
| Input | USB |
| Input | Micro SD |
| Output | Jack 4.4mm |
| Output | Jack 3.5mm |
| DAC / ADC Chip | ES9039Q2M |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD512 |
| Color | Black |
| Networking | No |
| Remote Control | No |
