BURSON AUDIO TIMEKEEPER 3X GT Power Amplifier Class AB Balanced Discrete Dual Mono 2x 180W 4 Ohm

BURSON AUDIO TIMEKEEPER 3X GT Amplifier Class AB Dual Mono Discrete Balanced 2x 180W 4 Ohm
Burson Audio's Timekeeper 3X GT is an excellent dual mono Class AB amplifier that incorporates many advanced technologies and components to ensure pure, rich, accurate, and dynamic sound reproduction. Thanks to the patented Max Current Power Supply (MCPS) and innovative cooling, the Timekeeper 3X GT is capable of delivering a significant amount of Class A power, far greater than most Class AB amplifiers, ensuring low distortion and noise.

No customer reviews yet, login to write a review.

By buying this product you get 399 loyalty points


Yes, notify me when available !
Reference : 16863
New product

3 999,00 €tax incl.

3 332,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Burson Audio Timekeeper 3X GT

Amplificateur Class AB Double Mono Discret Symétrique 2x180W 4 Ohm

Amplificateur Class AB Double Mono Discret Symétrique 2x180W 4 Ohm

Burson Audio's Timekeeper 3X GT is an excellent dual mono Class AB amplifier that incorporates many advanced technologies and components to ensure pure, rich, accurate, and dynamic sound reproduction. Thanks to the patented Max Current Power Supply (MCPS) and innovative cooling, the Timekeeper 3X GT is capable of delivering a significant amount of Class A power, far greater than most Class AB amplifiers, ensuring low distortion and noise. With its first 30W available in pure Class A, this amplifier delivers smooth mids and sparkling highs. The rest of its 180W can accompany a wide range of speakers by providing superb dynamics.

In terms of design, the Timekeeper 3X GT is completely discrete, with no integrated circuitry on its audio circuitry. The discrete Burson Vivid amplifier gives the unit a unique, detailed and textured sound. Its direct-coupled circuitry features a fully differential input stage. By using no coupling transformers or capacitors, the Timekeeper 3X GT achieves exceptional dynamic response. In addition, its one-piece, independently powered design eliminates inter-channel interference to ensure a wide soundstage.

For its power supply, Burson Audio's amplifier comes with a 210W Super Charger AC adapter, converting the noisy 50Hz main current into a perfectly clean, direct current stream with near-zero impedance. In addition, the Timekeeper 3X GT's internal MCPS power supply stage boosts the operating frequency of the voltage beyond 170kHz, pushing any residual noise out of the range of the human ear.

Adding to this exceptional design is an innovative cooling system. With each component having a specific operating temperature range, the use of active cooling allows Burson Audio to push the Timekeeper 3X GT to its limits. In combination with a heat sink chassis, the amplifier features Noctua's quietest fan.

With its XLR and RCA inputs and two levels of gain, the Timekeeper 3X GT is a perfect match for any preamp or speaker.

Amplificateur Class AB Double Mono Discret Symétrique 2x180W 4 Ohm
xxx

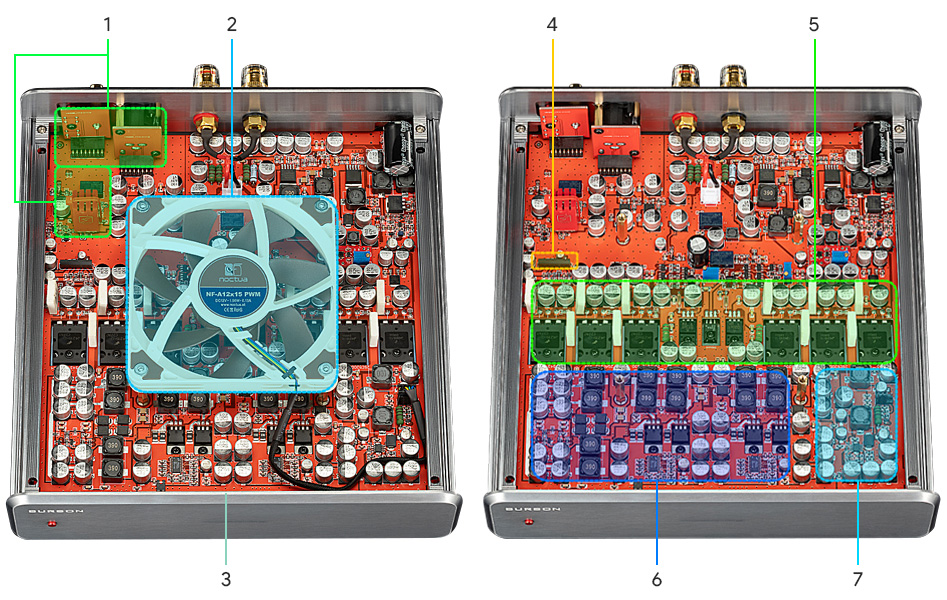

1XLR & RCA inputs, 2 gain level
2Silent Noctua fan
36mm aluminium dissipating housing
4C1237HA speaker protection
53x pairs of paired power transistors
62x Max Current power supplies
7Power supply for cooling and digital control

Technical characteristics

Specifications
Product typeDual mono amplifier
Amplification typeClass AB
Inputs1x Single-ended RCA
1x Balanced XLR
OutputSpeaker terminals
Output power180W @ High gain, 4Ω
110W @ High gain, 8Ω
55W @ Low gain, 4Ω
30W @ Low gain, 8Ω
Input impedanceSingle-ended : 100kΩ
Balanced : 200kΩ
Frequency response20Hz - 20kHz
THD< 0.03% @ 1kHz
Output impedance< 0.015Ω @ 20Hz-20kHz
SNR108dB
General
Supply voltage32V 6.5A (Burson Super Charger power adapter included)
ConsumptionStandby : > 1W
Idle : 100W
Max : 210W
Dimensions255*270*70mm
Weight~ 5kg
ColorGray
Package2x Burson Audio Timekeeper 3X GT mono
2x Burson Super Charge 32V 6.5A power adapter
12V Trigger cable
Vertical stands

Data sheet
InputXLR
InputRCA
OutputSpeaker terminal
ColorSilver
Channel2 (Stereo)
ClassClass A / AB
Amplifier chipTransistors
Power (W)180.0
Remote ControlNo
