This product has been replaced by the new version, the TONEWINNER AD-2500 PRO Power Amplifier Class AB.
Tonewinner AD-2500
Power Amplifier Stereo Class AB 2x725W 4 Ohm
With the AD-2500, Tonewinner offers a particularly powerful stereo Class AB power amplifier. This one is indeed able to develop a power of 2x725W under 4Ω while offering a great dynamic range and ensuring a low noise level for a sound reproduction as precise as musical.
A huge reserve of energy

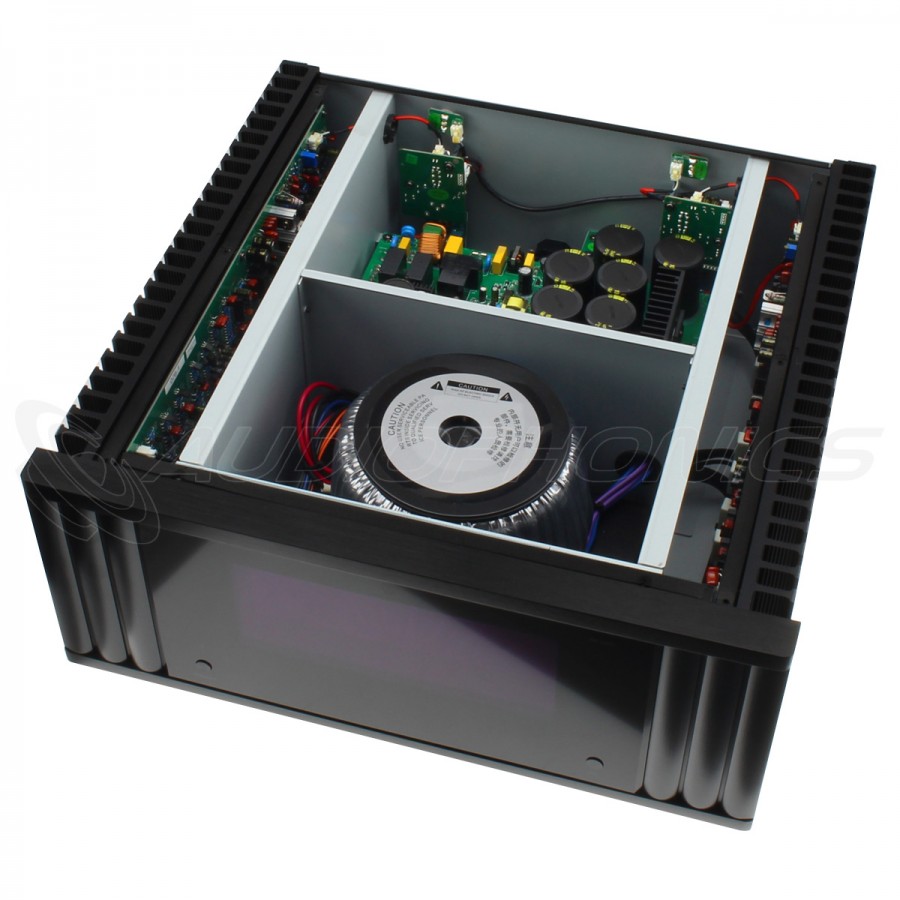

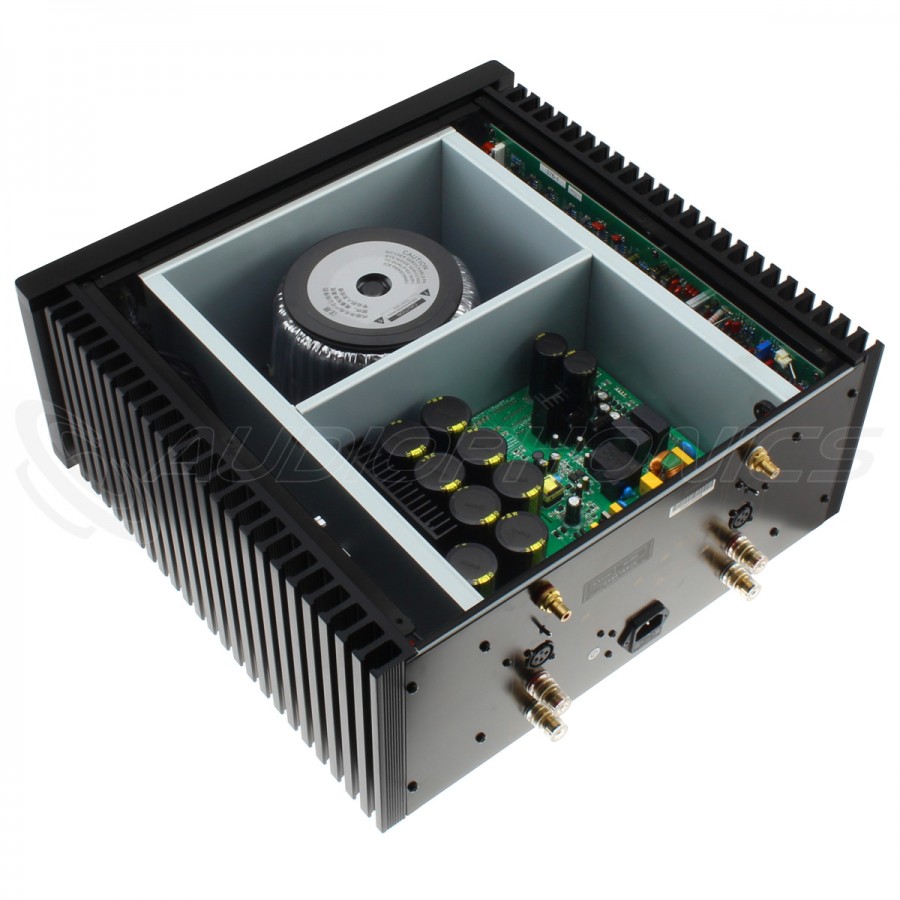

In order to develop such a power, the AD-2500 embeds within a differential circuit no less than 8 pairs of high performance transistors Onsemi NJW0281G and NJW0302G. These are integrated on independent mono amplifier modules, each dedicated to one channel, thus effectively limiting interference for pure sound reproduction. These modules are also installed on the large side-mounted heat sinks, effectively removing the heat generated by the power components.
The unit also provides a single-ended RCA input and a balanced XLR input for each channel. The selection of the input is done via a switch for each channel.
A complete protection system
Such a high power level implies the integration of a complete and efficient protection circuit. Therefore, the Tonewinner AD-2500 is equipped with protections against short-circuits, overloads, overheating, overvoltage and overcurrent.
A massive design

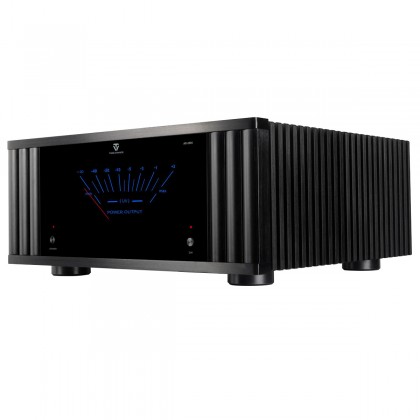

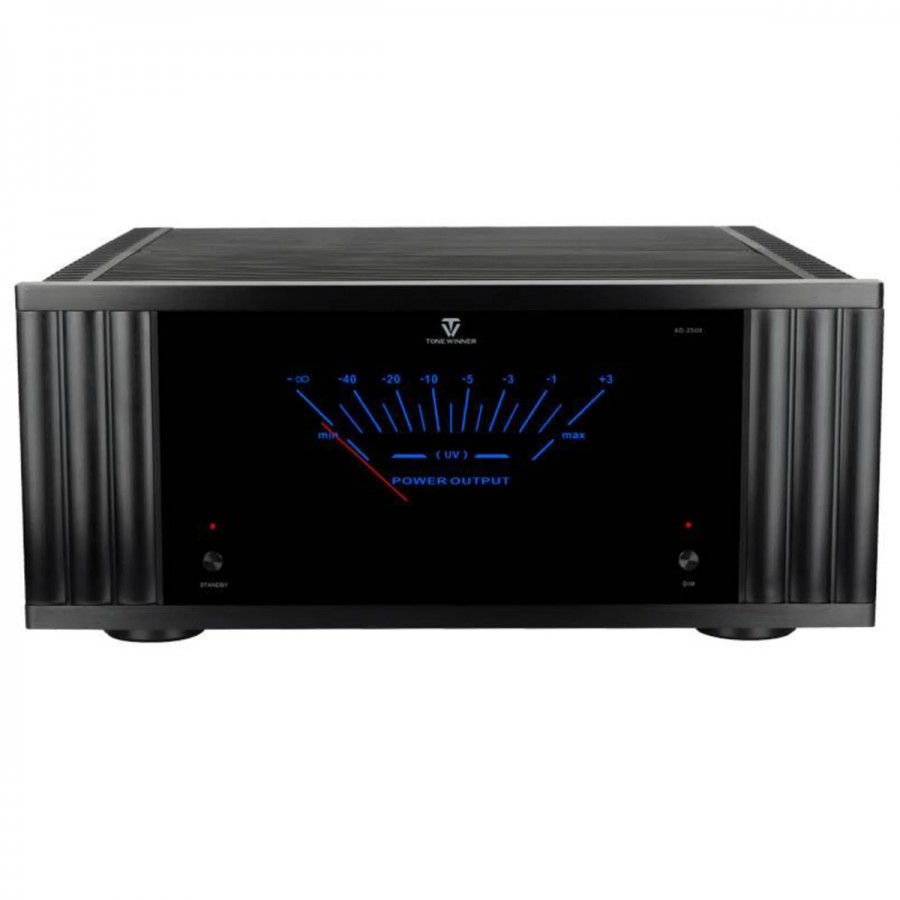

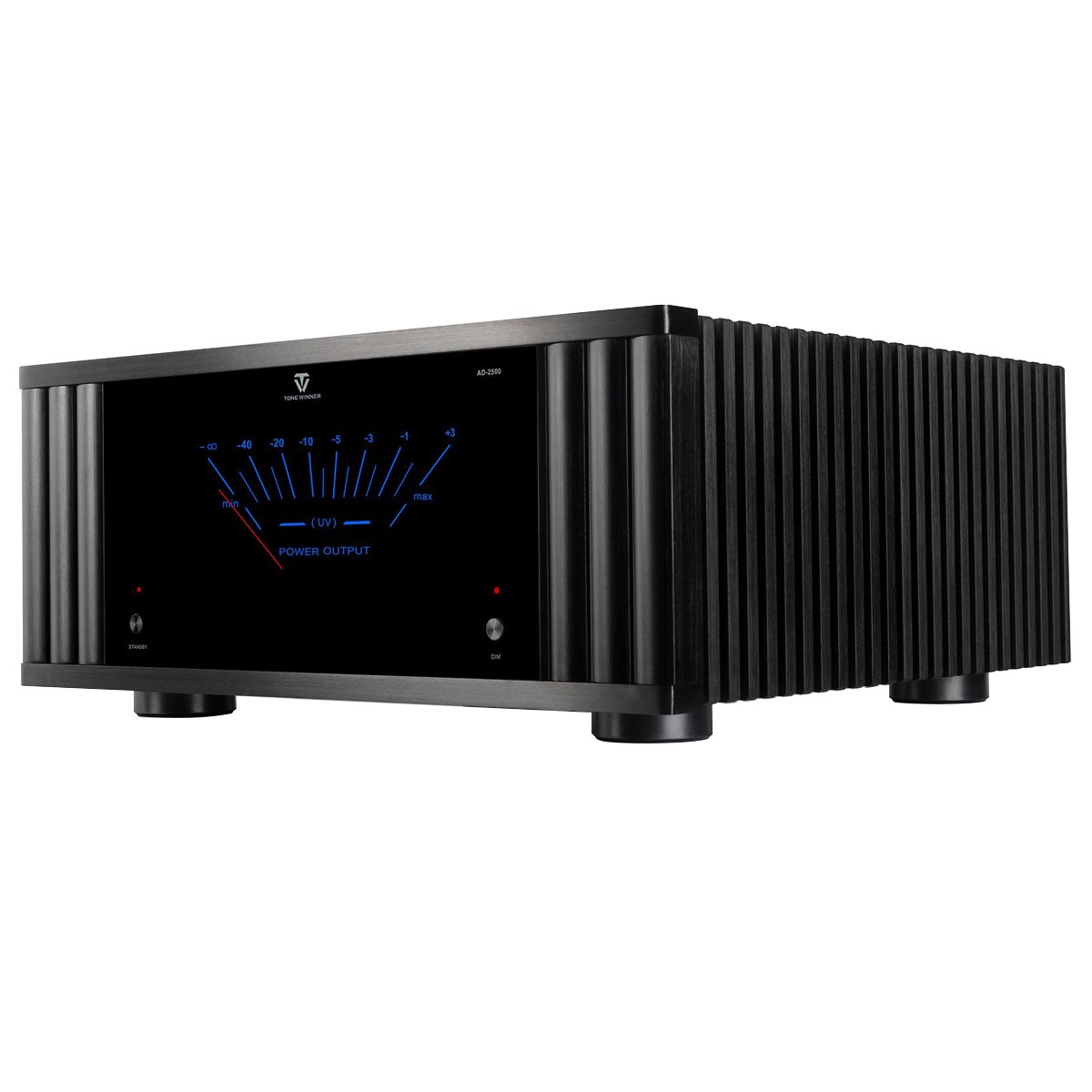

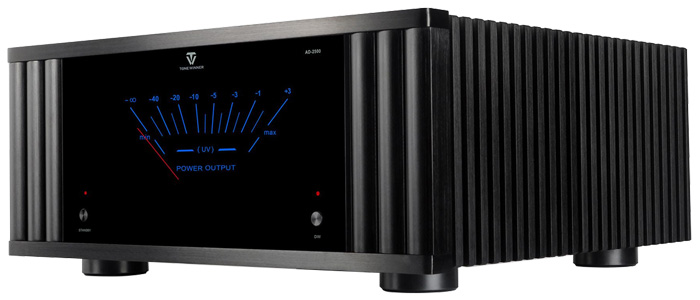

Weighing in at 23.5kg, the Tonewinner AD-2500 is a massive amplifier, clad in an aluminum chassis and two large side heatsinks. Its front panel features an impressive blue backlit vumeter with adjustable brightness.

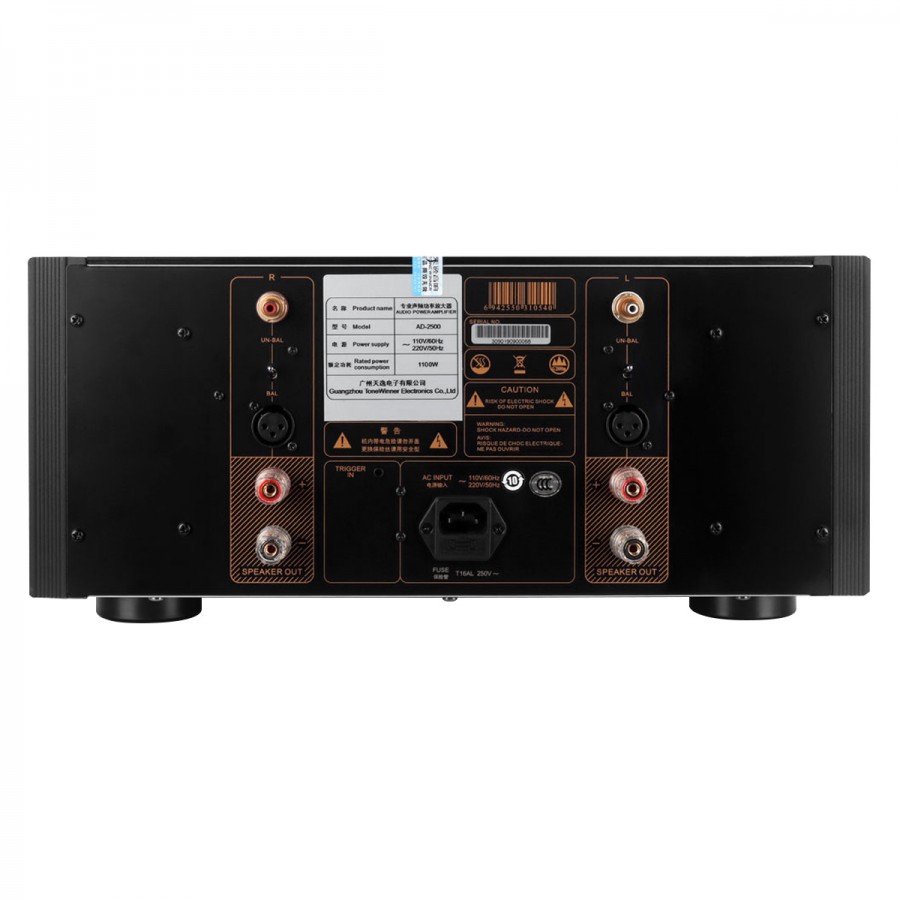

| 1 | Right channel XLR input |
| 2 | Right channel RCA input |
| 3 | Left channel XLR input |
| 4 | Left channel RCA input |
| 5 | Right channel speaker output |
| 6 | Power connector |
| 7 | Left channel speaker output |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power amplifier |
| Type d'amplification | Class AB |
| Number of channels | Stereo (2) |
| Inputs | RCA XLR |
| Outputs | Speaker terminals |
| Output power | 2* 560W @ 8Ω 2* 725W @ 4Ω |
| Rated impedance | 8Ω |
| Gain | ≥ 29dB |
| SNR | ≥ 110dB (A-Weighted) |
| THD+N | < 0.0045% @ 100W, 1kHz, 8Ω |
| Damping factor | > 121dB |
| Input sensitivity | 2.1V @ Rated power, 8Ω |
| Frequency response | 10Hz-50kHz (+1/-3dB) |
| General | |
|---|---|
| Supply voltage | 110-240V AC 50/60Hz |
| Dimensions | 440*445*197mm |
| Weight | 23.5kg |
| Color | Black |
| Input | XLR |
| Input | RCA |
| Output | Speaker terminal |
| Color | Black |
| Channel | 2 (Stereo) |
| Class | Class A / AB |
| Amplifier chip | Transistors |
| Power (W) | 725.0 |
