[GRADE A] DAYTON AUDIO RSS265-PR Passive Radiator Aluminium 19.6Hz Ø25.4cm

DAYTON AUDIO RSS265-PR Passive Radiator Aluminium Cone 19.6Hz Ø25.4cm
Produit reconditionné - Grade A

The RSS265-PR from Dayton Audio is a 25.4cm diameter passive radiator from the Reference Series range. It will allow you, combined with an active speaker, to enjoy a richer sound in the low frequencies and potentially extend the bandwidth of your speaker.

No customer reviews yet, login to write a review.

By buying this product you get 13 loyalty points


Reference : 16790
New product

139,00 €tax incl.

115,83 € tax excl.
Including 0,01 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Produit reconditionné - Grade A

Carton d'emballage abîmé / déchiré. Produit en parfait état.

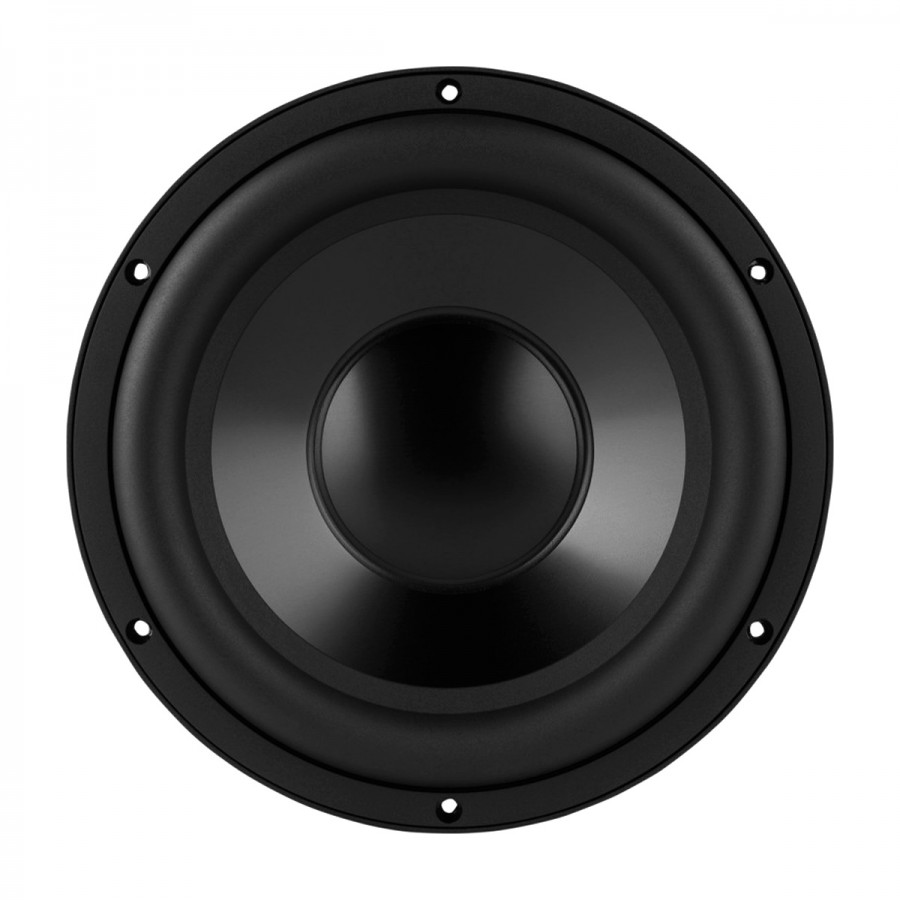

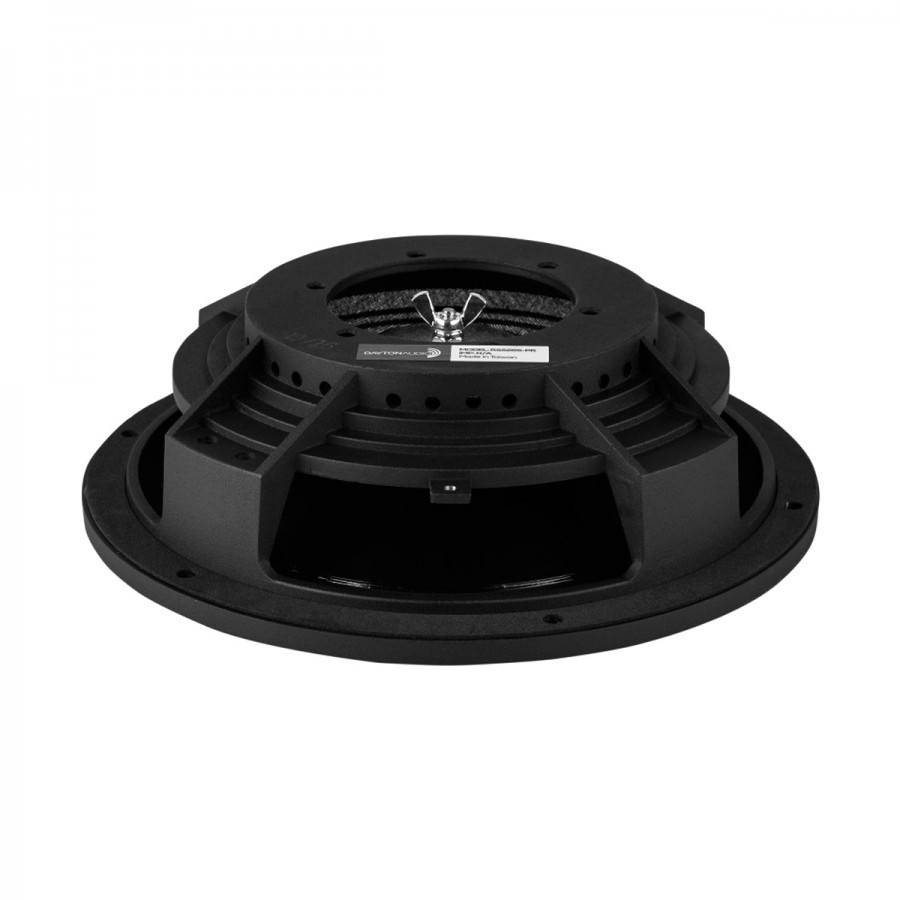

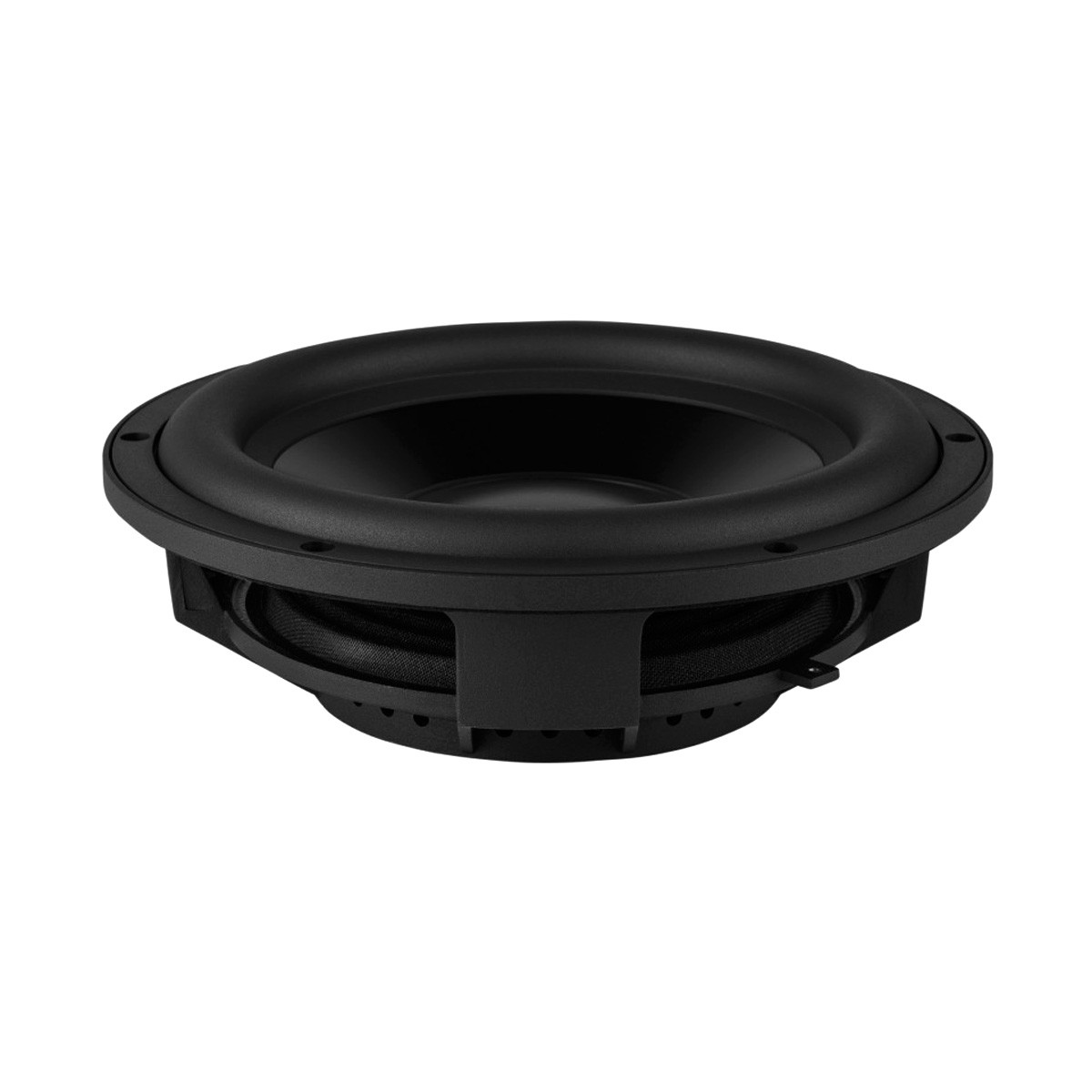

DAYTON AUDIO RSS265-PR

Passive Radiator 19.6Hz Ø 25.4cm

Dayton Audio RSS265-PR

The RSS265-PR from Dayton Audio is a 25.4cm diameter passive radiator from the Reference Series range. It will allow you, combined with an active speaker, to enjoy a richer sound in the low frequencies and potentially extend the bandwidth of your speaker.

This one has an excellent quality of manufacture, with a membrane in Anodized Aluminium and a frame in Cast iron, just like the subwoofers of the same range. Thus, they are visually similar and will integrate perfectly together.

Each passive radiator uses the unique SMS (Sandwiched Mass Structure) design to maintain the majority of the mass centered between the suspension and the spider, ensuring good linearity. The mass of the RSS265-PR can also be adjusted to suit most subwoofers, thanks to the weights supplied.

Passive radiator : How it works ?

The passive radiator must be integrated in a box with an active loudspeaker. This passive radiator, although at first it may look like a "classic" loudspeaker, does not in fact have any engine part. Thus, one will not find in its design of coil, magnet and power supply. Similarly, it will not be electrically connected to a power amplifier.

To diffuse sound, the passive radiator will use the air pressures and depressions induced by the active loudspeaker in the body to vibrate its membrane and produce sound, thus providing deep bass. Its resonance frequency is determined by its mass and the air contained in the enclosure. The resonance frequency can therefore be varied on many models and tuned to the speaker by adding mass.

principe de fonctionnement radiateur passif audio
Dayton Audio RSS265-PR

Tip : As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

Technical characteristics (without added mass)

Specifications
Speaker serieReference Series
Speaker typePassive radiator
Nominal diameter10" (25.4cm)
Resonant frequency (Fs)19.6Hz
Mechanical Q (Qms)4.92
Diaphragm Mass Inc. Airload (Mms)200g
Mechanical compliance of suspension (Cms)0.33mm/N
Surface area of cone (Sd)356.3cm²
Compliance equivalent volume (Vas)59.7l
Maximum linear excursion (Xmax)24mm
Driver's mechanical losses (Rms)11.02kg/s
Overall outside diameter266mm
Total depth77mm
Baffle cutout diameter235mm
Package1x Passive Radiator RSS265-PR
5x 75g Disk weights
1x Wing nut
1x Lock nut
Dayton Audio RSS265-PR

Data sheet
Speaker Power (W RMS)NC
Speaker TypePassive Radiator
Impedance (Ω)NC
Loudspeaker diameter (mm)254.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)N/A
Max Linear Excursion (Xmax) (mm)24.0
Lowest frequency (Hz)N/A
Highest frequency (Hz)N/A
Refurbished GradeGrade A
