[GRADE B] TOPPING PA3 TDA7498E Class D Amplifier 2x100W 4 Ohm Silver

TOPPING PA3 TDA7498E Class D Amplifier 2x80W 4 Ohm Silver
Refurbished product - Grade B

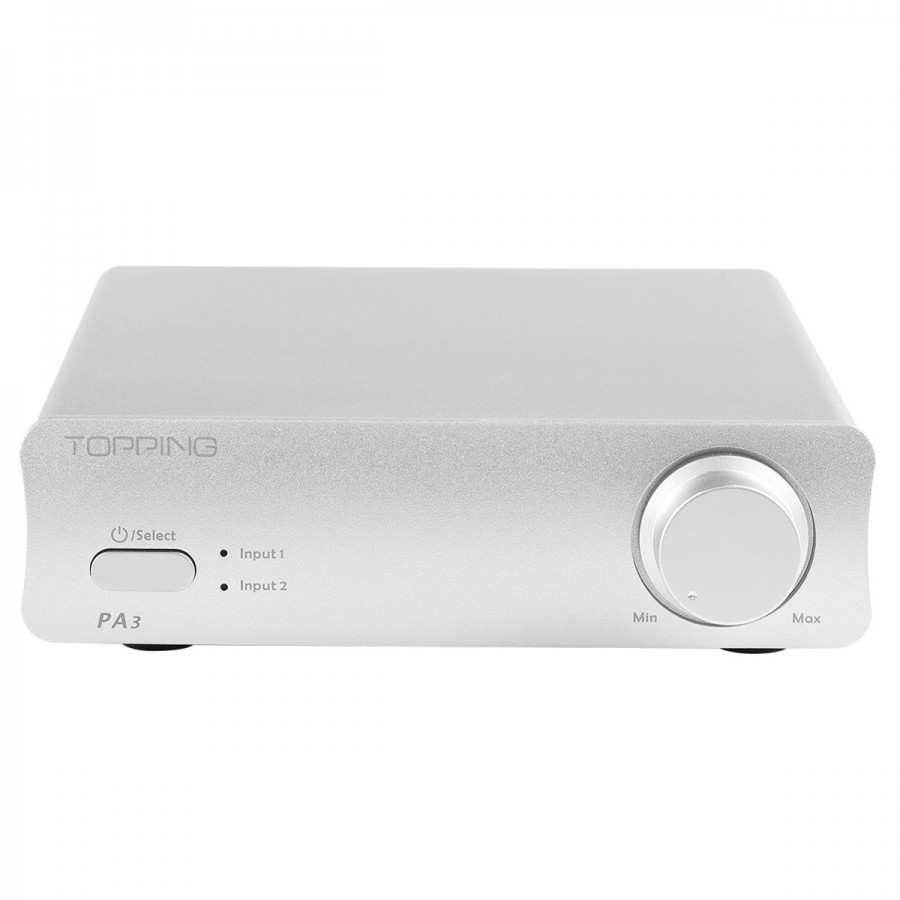

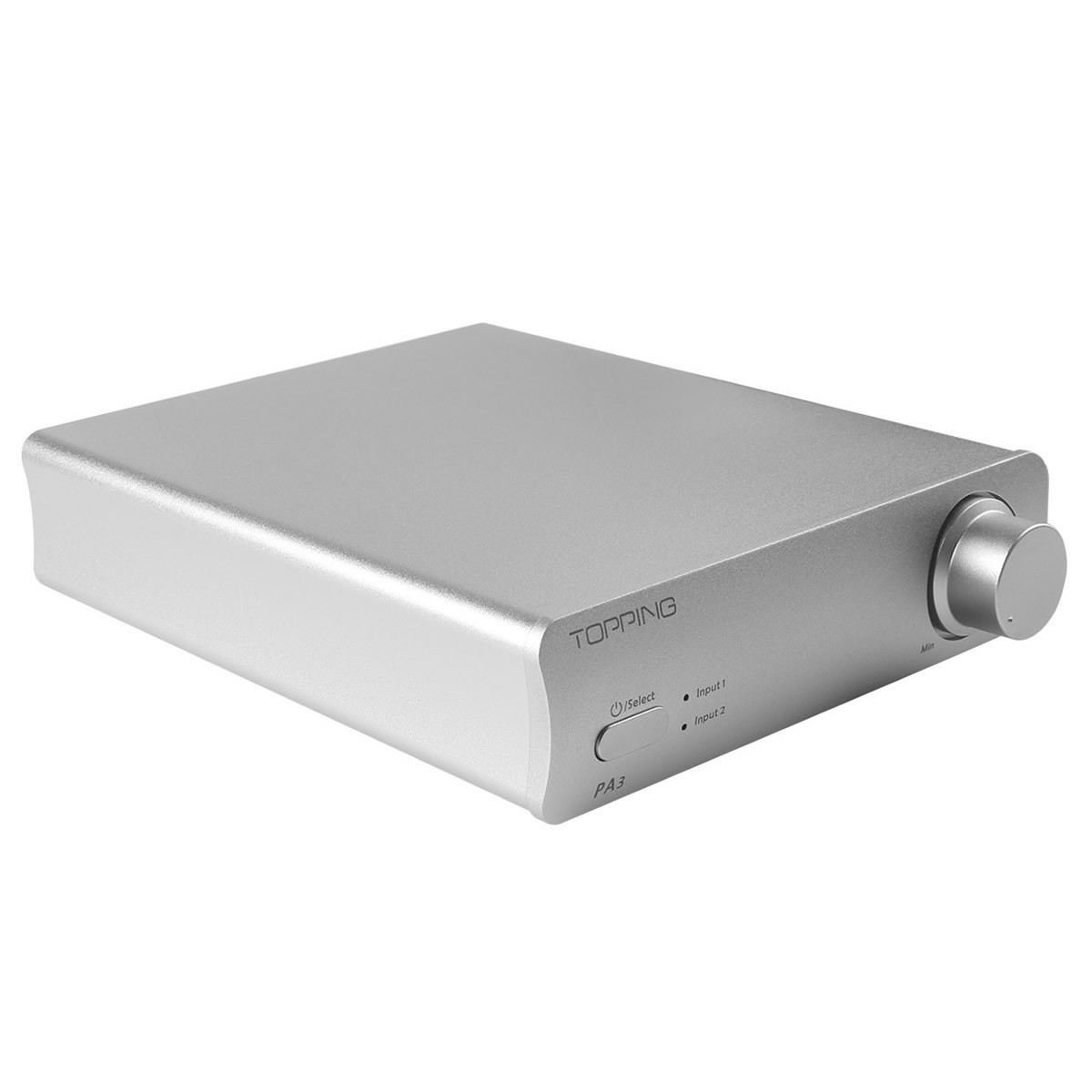

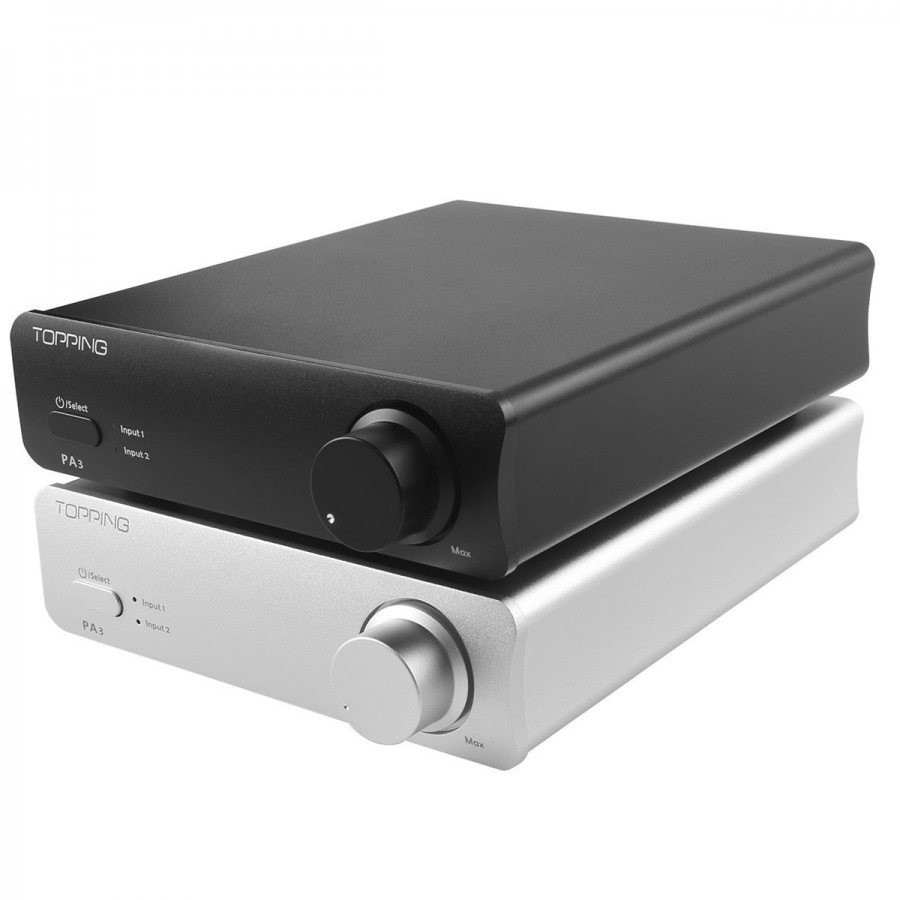

The Topping PA3 2x100W (@ 32V / 4Ohm) is the ideal integrated amplifier for a desktop sound amplifier system. It offers great musicality and has a lot of power reserve thanks to a Texas TDA7498E chip. It is a simple and elegant solution with two stereo input and a volume knob on its front plate.

No customer reviews yet, login to write a review.

By buying this product you get 11 loyalty points


Reference : 16406
Refurbished

119,00 €tax incl.

99,16 € tax excl.
Including 0,01 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Refurbished product - Grade S

Product reconditioned by the manufacturer. Traces on the left side of the chassis.

TOPPING PA3 class D 2x100W Silver

High Fidelity desktop amplifer

topping PA3 2x80W 4 ohm Silver

Compact and powerful

The Topping PA3 2x100W (@ 32V / 4Ohm) is the ideal integrated amplifier for a desktop sound amplifier system. It offers great musicality and has a lot of power reserve thanks to a Texas TDA7498E chip. It is a simple and elegant solution with two stereo input and a volume knob on its front plate.


topping PA3 2x80W 4 ohms

Intelligent Control Monitoring

TDA7498E is backed by a MCU processor to avoid over / under voltage / charge to offer a real protection to the speakers connected to Topping PA3.


topping PA3 2x80W 4 ohms

Audiophile grade components

The passive components of the Topping PA3 are first-class using Nichicon capacitors known for their reliability and fidelity as well as plastic film Epcos capacitors at strategic locations on the pre-amplifying part. The potentiometer is a model from ALPS Japanese brand recognized worldwide for the seriousness of its achievements.

topping PA3 2x80W 4 ohms

Technical caracteristics

SPECIFICATIONS

  • SNR : 90dB
  • Gain : 29.3dB
  • Input sensitivity : 0.6Vrms (4Ohms) 0.9Vrms (8Ohms)
  • Noise level : 0.5mV ponderation A
  • Maximum power  : 2x50W 8 Ohms / 2x100W (4 Ohms 32V)
  • THD : 0.04%
  • Frequency response : 20Hz - 20kHz (-0.2dB)

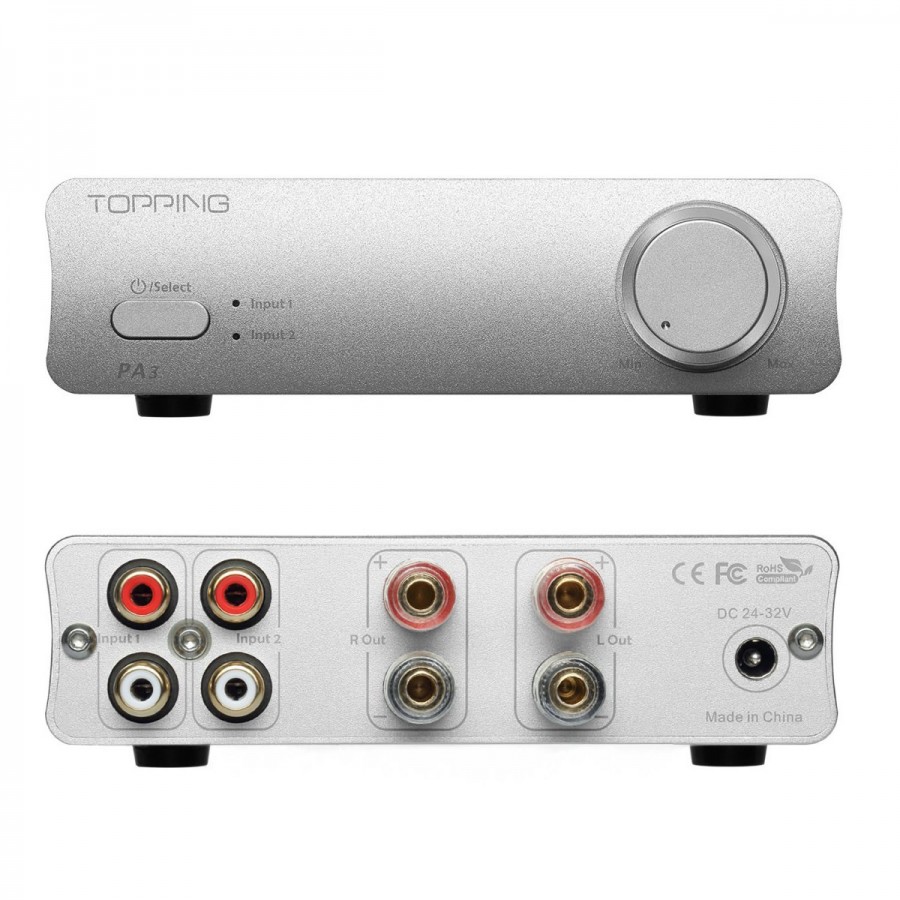

Connectivity

Inputs :

  • 2x RCA

Outputs :

  • Gold plated speaker terminals

MISC

  • Weight : 515g
  • Dimensions : 168 x 120 x 37 mm
  • Package content : power chord and power supply adapter
  • Silver color
Dimensions Topping PA3

Data sheet
InputRCA
OutputSpeaker terminal
ColorSilver
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTDA7498E
Power (W)80.0
Refurbished GradeGrade B
