USTARS AUDIO C19 Streamer Digital Interface

New
The Ustars Audio C19 is a high-performance receiver streamer capable of transforming a conventional audio system into a connected audio system. To do this, it incorporates a Raspberry Pi Compute Module 4, offering numerous functions while being optimized for audio. It also incorporates an OCXO clock for optimal signal processing.

No customer reviews yet, login to write a review.

By buying this product you get 44 loyalty points


Yes, notify me when available !
Reference : 20733
New product

449,00 €tax incl.

374,17 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Ustars Audio C19 Network Player Digital Interface UPnUP DLNA ROON Airplay PCM 32bit 768kHz DSD512

Ustars Audio C19 picture

The Ustars Audio C19 is a high-performance receiver streamer capable of transforming a conventional audio system into a connected audio system. To do this, it incorporates a Raspberry Pi Compute Module 4, offering numerous functions while being optimized for audio. It also incorporates an OCXO clock for optimal signal processing.
On the software side, the C19 integrates the RoPieee solution, enabling the use of numerous services such as NAA (HQPLayer), UPnP, LMS and Roon. However, you can also replace this OS with piCorePlayer, Volumio or Moode. Once connected to the network via its RJ45 Ethernet port, the C19 can access numerous streaming and web radio services. It is also compatible with other network protocols such as AirPlay 2, Spotify Connect, Tidal Connect and Squeezelite. The included connectors offer a wide range of possibilities for routing the signal to a DAC.

Connection diagram and interior of the Ustars Audio C19

Ustars C19 overview

Ustars C19 overview
16V DC power supply via 5.5/2.1mm DC jack
2USB-A output
3RJ45 Ethernet port

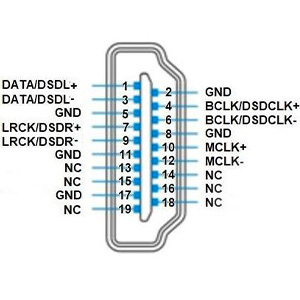

4I2S output via HDMI
5Toslink optical output
6AES/EBU output
7Coaxial output

Technical characteristics

Specifications
Product typeStreamer / Receiver
ProcessorRaspberry Pi Compute Module 4
InputPort Ethernet RJ45
Outputs1x USB-A
1x I2S via HDMI
1x Toslink optical
1x AES/EBU
1x Coaxial
Max. sampling rate per outputUSB-A: PCM up to 32bit 768kHz, DSD up to DSD512
I2S via HDMI: PCM up to 32bit 384kHz, DSD up to DSD128
Optical Toslink: PCM up to 24bit 192kHz, DSD DoP64
AES/EBU: PCM up to 24bit 384kHz, DSD DoP128
Coaxial: 24bit 384kHz
Compatible streaming servicesSpotify
Deezer
Qobuz
Tidal
Webradios
Supported network protocols and servicesAirPlay 2
Spotify Connect
Tidal Connect
HQPlayer NAA
UPnP
Squeezelite
General
Power supply6V DC via DC 5.5/2.1mm jack
(100/240V AC to 6V DC power adapter included)
Dimensions160 x 45 x 140mm
Weight1kg
Package1x Ustars Audio C19
1x USB cable
1x Mains adapter

Data sheet
InputRJ45
OutputCoaxial SPDIF
OutputUSB
OutputI2S LVDS via HDMI
OutputAES/EBU
OutputOptical Toslink
DAC / ADC ChipNC
Max sampling rateDSD512
Max sampling rate768kHz
ColorSilver
Remote ControlNo
Streaming services & Network protocolsSpotify
Streaming services & Network protocolsRoon / Roon Bridge / Roon Ready
Streaming services & Network protocolsQobuz
Streaming services & Network protocolsUpnP
Streaming services & Network protocolsWeb radios
Streaming services & Network protocolsAirPlay
Streaming services & Network protocolsTidal Connect
Streaming services & Network protocolsDeezer
Streaming services & Network protocolsHQPlayer NAA
Streaming services & Network protocolsTidal
Streaming services & Network protocolsDLNA
Streaming services & Network protocolsSpotify Connect
