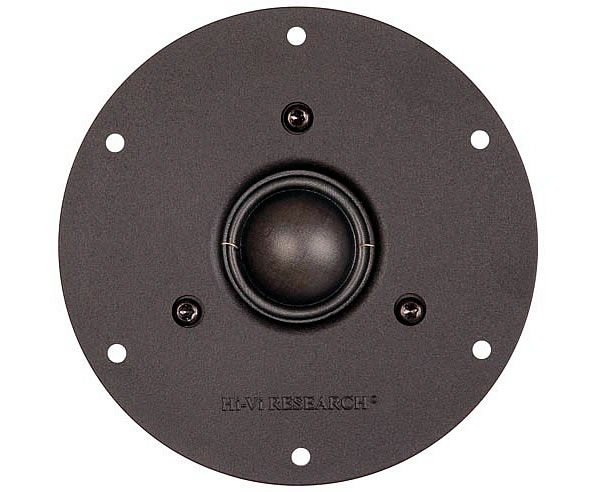

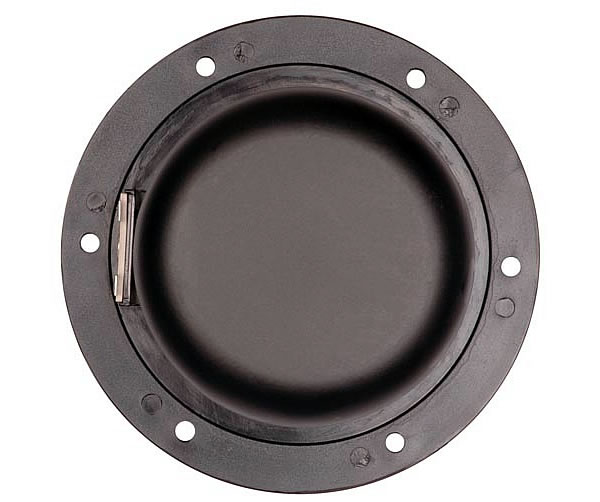

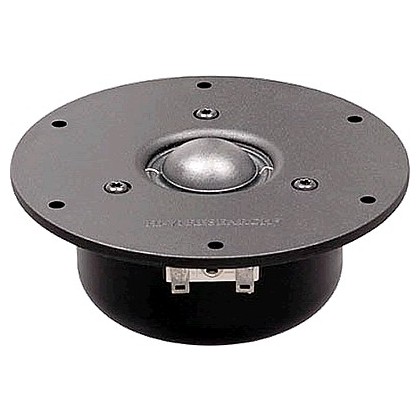

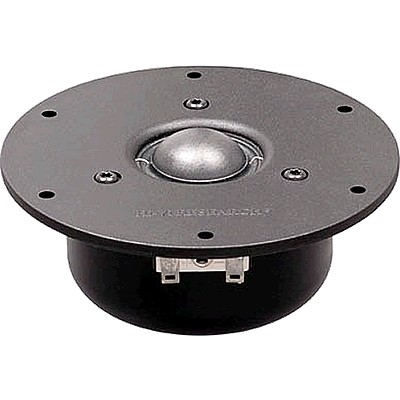

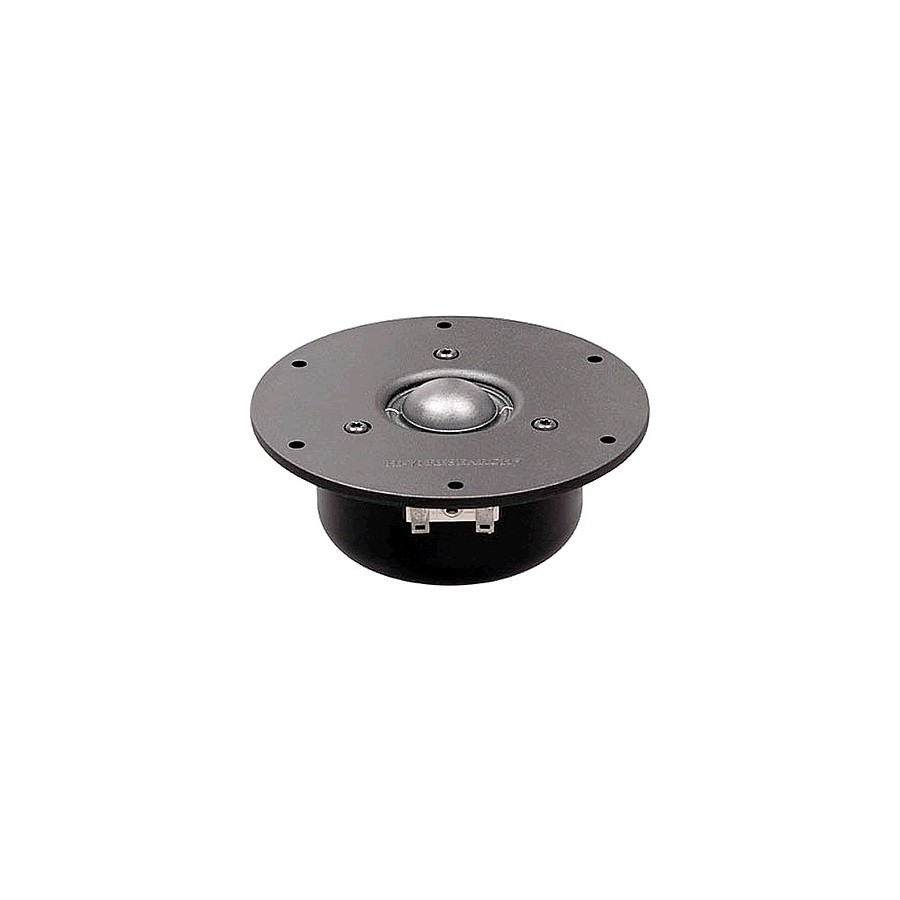

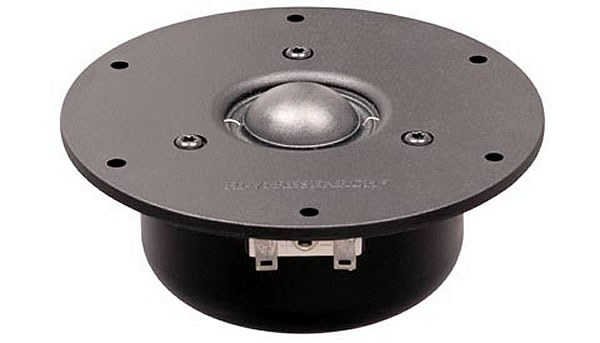

HiVi Q1r Dome Tweeter 28mm
Viewed products
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
Updated version of the Q1 model of the brand, Q1r further improves the natural reproduction
Dôme in natural fiberscovered with damping material
Voice coil 28mm coiled with copper-plated aluminum wire and cooled with ferrofluidfor better power handling
Fully double ferrite magnetic circuit armored allowing the unit to be used in a Multimedia or Home Theater configuration
Specifications:
- Nominal Impedance: 6Ω
- Resonant Frequency: 1000Hz
- Rated Power:15W
- Sensitivity(2.83v / 1m):89dB
- Resistance DC:/ Strong>5.3Ω
- Diameter Coil: 28mm
- Mounting Type:Aluminum
- Number of Layers:2
- Composition Magnetic Circuit: Double Ferrites
- Magnetic Shielding:/ Strong>Yes
- Recommended Cut-Off Frequency -3dB: 2500Hz
- Weight:0.8Kg

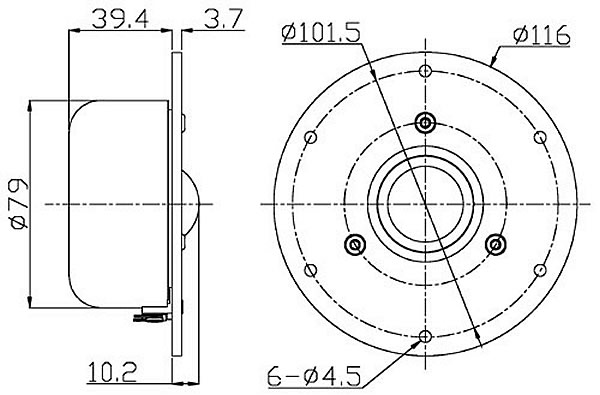

HiVi Q1r:Dimensions

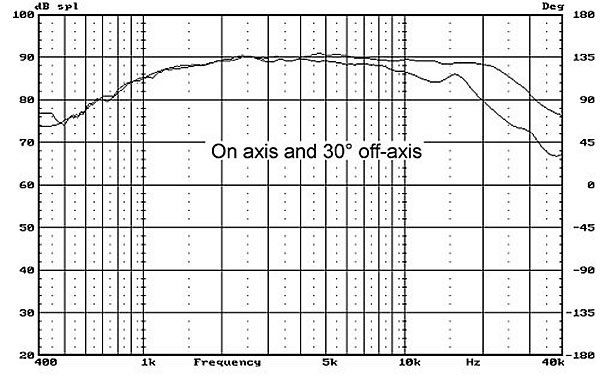

HiVi Q1r:Frequency Response

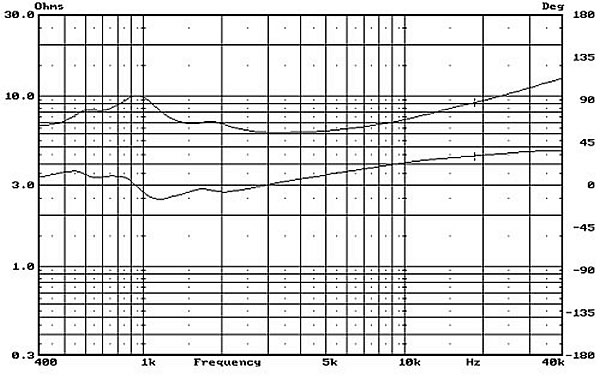

HiVi Q1r:Impedance Curve
