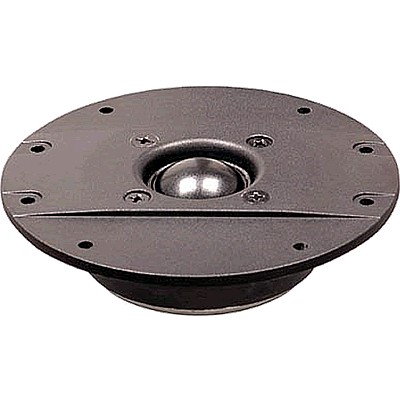

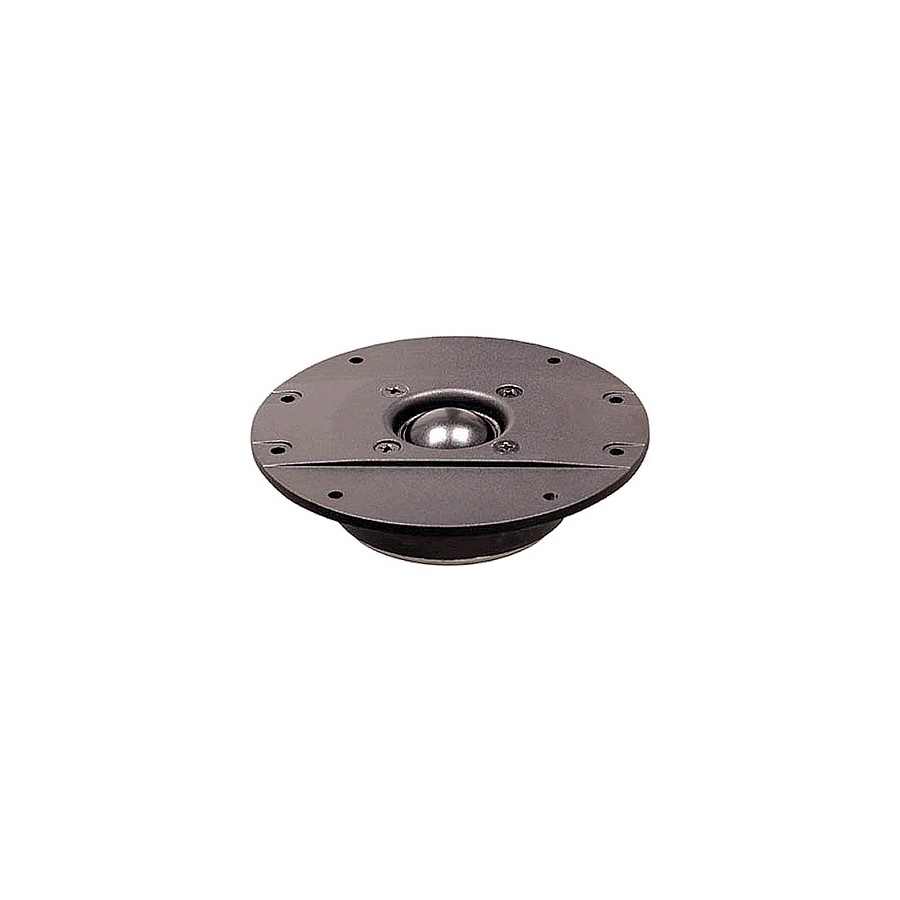

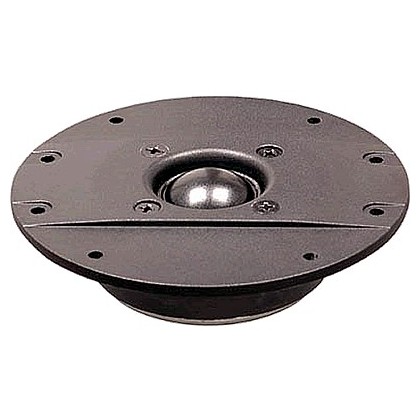

HiVi X1-A Speaker Driver Dome Tweeter 15W 4 Ohm 91dB Ø2.5cm
![[GRADE B] AUDIOPHONICS HPA-S500ET Power Amplifier Class D Stereo Purifi 1ET7040SA 2x500W 4 Ohm](https://www.audiophonics.fr/68112-thumb_default/audiophonics-hpa-s500et-stockb.jpg)
Dôme in natural fiberscovered with damping material.
Moving coil of25mm diameter cooled with ferrofluid
Double magnetic circuit mounted symmetrically
Aluminum front
Specifications:
- Nominal Impedance:4Ω
- Resonant Frequency: 1600Hz
- Rated Power:15W
- Sensitivity (2.83v / 1m): 91dB
- Resistance DC:/ B>3.5Ω
- Diameter Coil: 25mm
- Mounting Type:Aluminum
- Number of Layers:2
- Composition Magnetic Circuit: Ferrite
- Recommended Cut-Off Frequency -3dB: 2000Hz
- Weight:0.6kg

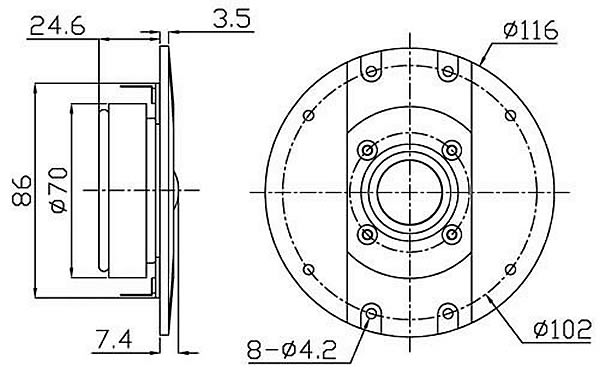

HiVi X1-A:Dimensions

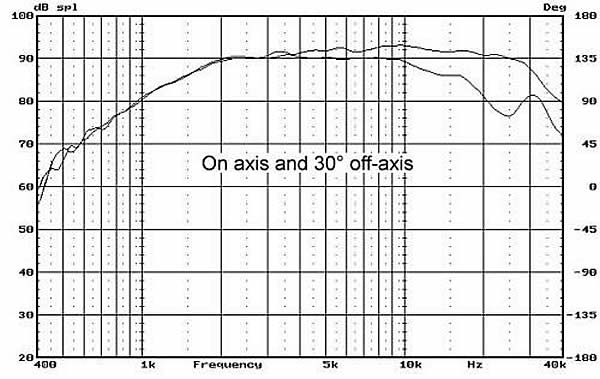

HiVi X1-AT :Frequency Response

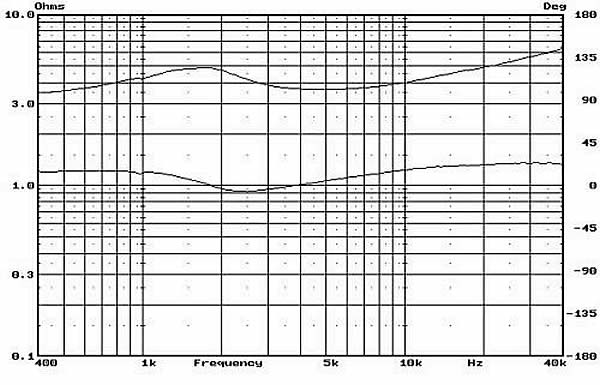

HiVi X1-A:Impedance Curve
| Speaker Power (W RMS) | 15.0 |
| Speaker Type | Dome tweeter |
| Impedance (Ω) | 4 |
| Loudspeaker diameter (mm) | 25.0 |
| Efficiency / Sensitivity (dB) | 91.0 |
