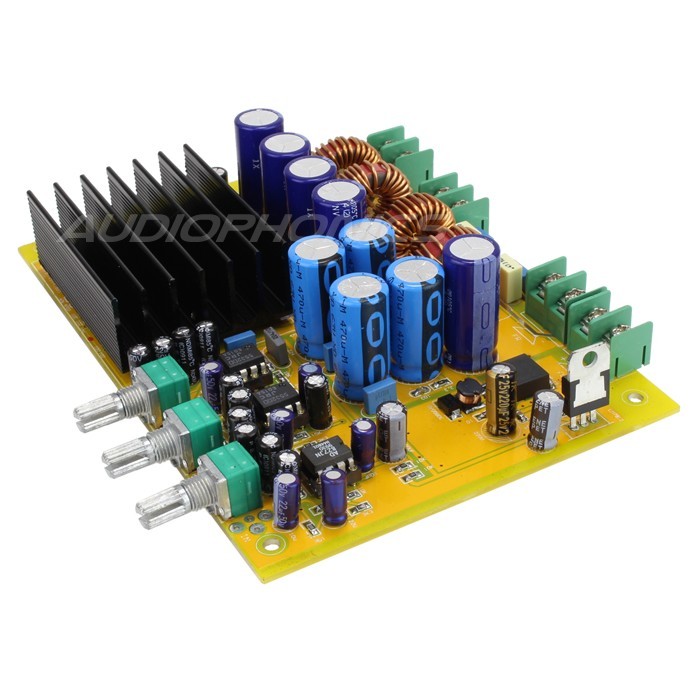

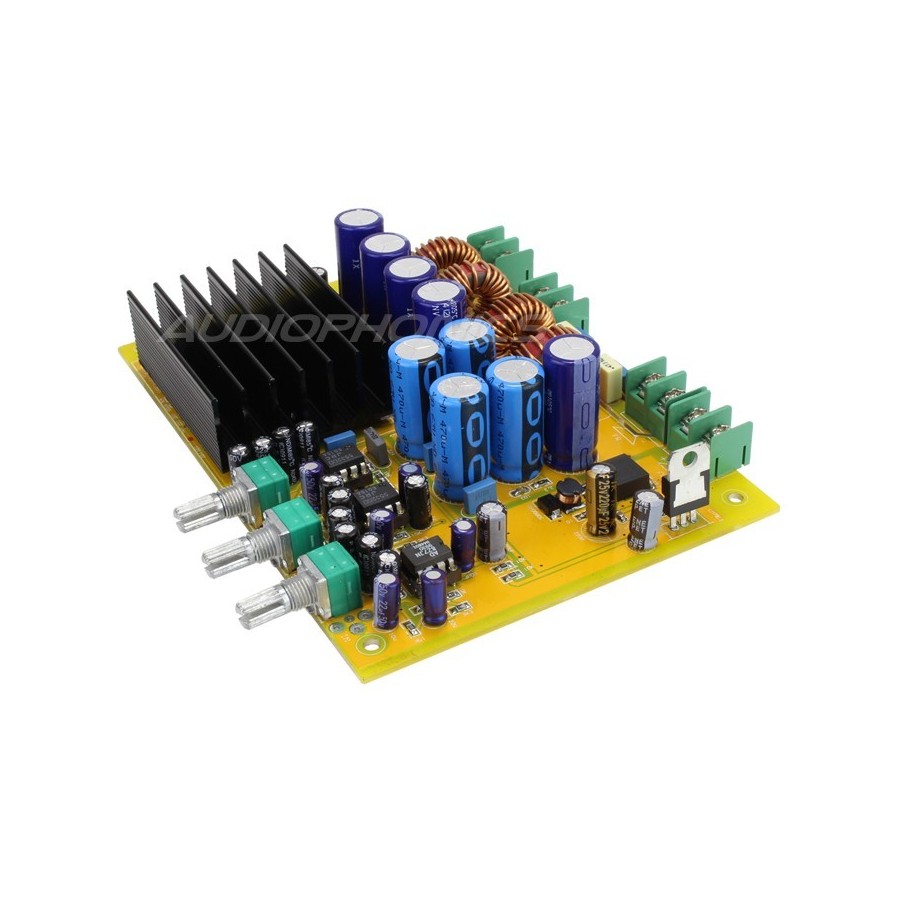

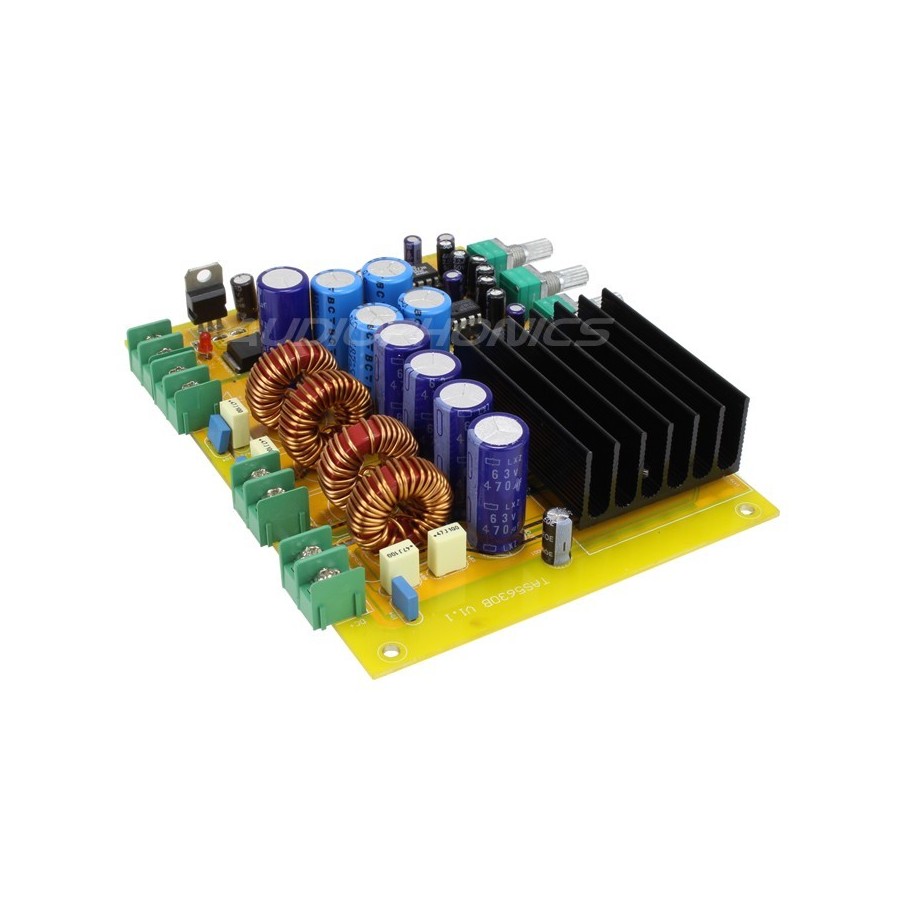

MA-TA03 Class D Amplifier 2.1 board TAS5630B 2x 150W + 1x 300W / 4 Ohm

Class D Amplifier 2.1 board Kit TAS5630B 2x 150W + 1x 300W

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points

Reference : 9948
New product

49,92 €tax excl.

- +

Shipping date: 30-11-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

More info

Based on a Class D architecture, this 2.1 TAS5630B PurePath ™ HD amplification module is characterized by a high quality reproduction for a very compact product.

It delivers 2x 150Watts + 300W at 4Ω, a power that does not sacrifice the accuracy of this circuit to the power and musical qualities noticed.

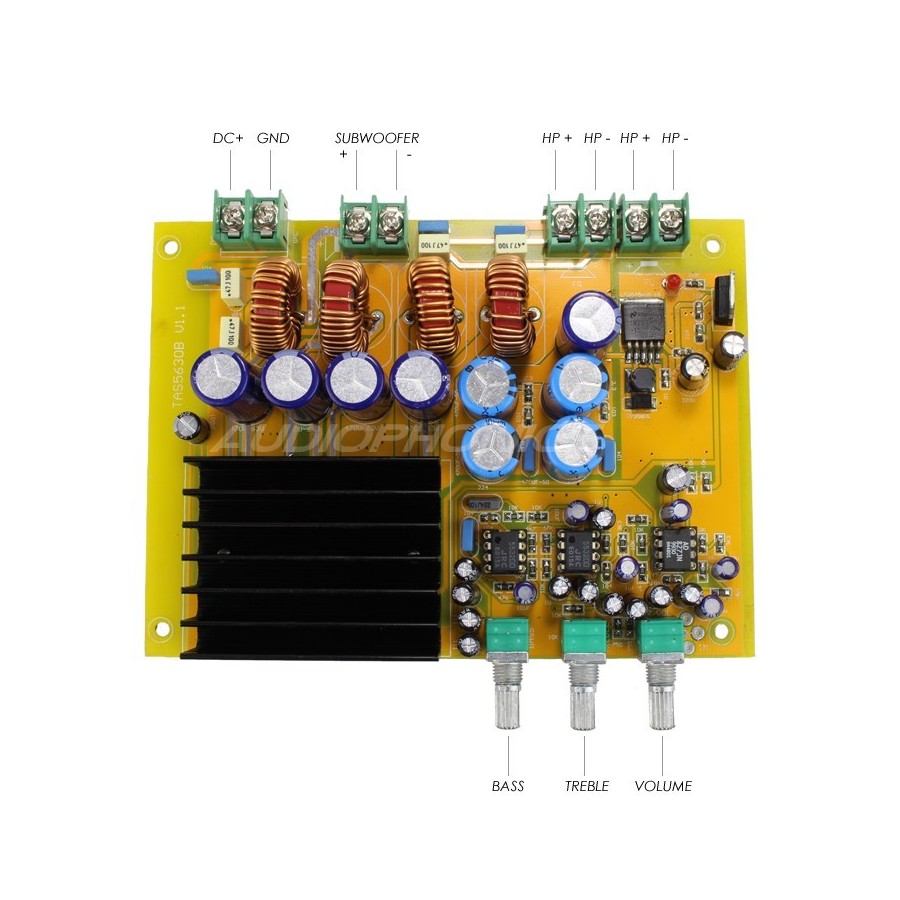

It is equipped with interchangeable PDOs on DIP8 supports dedicated to the bass, treble and volume control of which it is equipped.

Characteristics :

  • Naked, assembled and ready to power
  • Voltage range: 20V min. - 50V DC max.
  • Bass and Treble Adjustments via AOP JRC E015A
  • Volume control via AOP AD 827JN
  • Output power: 2x 150W + 1x300W under 4 Ohm (1% THD)
  • Switching Frequency: 180Hz
  • Frequency response: 20Hz - 20kHz
  • THD + N: <0.1%
  • Noise Ratio: 100dB
  • Input impedance: 20 KOhm
  • Dimensions: 140x102x33mm
  • Spacing: 90mm
  • Weight: 240g

Data sheet
ClassClass D / T
