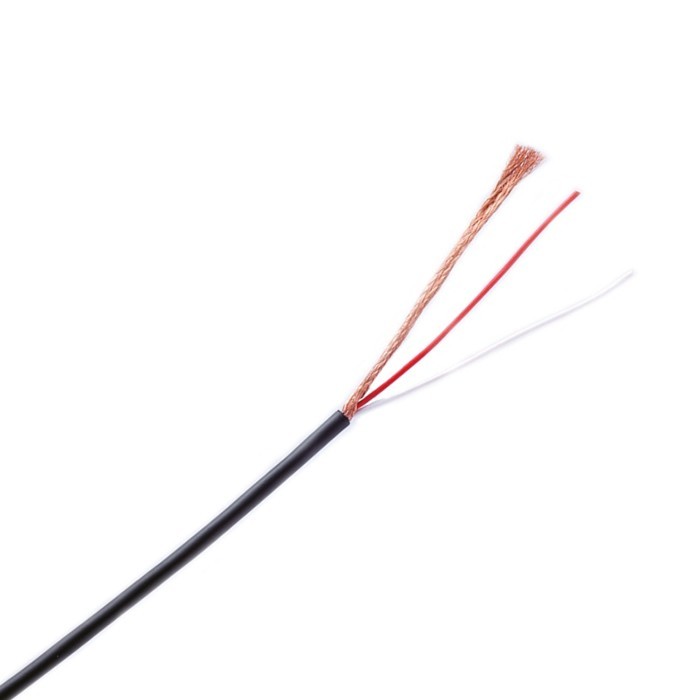

MOGAMI 3031 Balanced interconnect cable 2x0.08mm² Ø2.8mm

MOGAMI 3031 Balanced cable for microphone Ø 2.8mm
No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 9535
New product

1,90 €tax incl.

1,58 € tax excl.
Available

- +

Shipping date: 26-06-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

Le câble MOGAMI 3031 est conçu pour être résistant et souple à la fois.
Ainsi, il est particulièrement adapté à la scène et au studio.

Caractéristiques :

  • Conducteur Cuivre 0.08mm²
  • Isolation PVC
  • Blindage Cuivre tréssé
  • Gaine PVC flexible
  • Diamètre externe : 2.8mm
SPECIFICATIONS
Configurationdiagram cable w2697diagram cable w3031diagram cable w2901
Part No.W2697W3031W2901
No. of Conductor2
ConductorDetails16/0.08 A <T1000D*1>43/0.04 Cu-Sn
Size(mm²)0.08mm² (#28 AWG)0.054mm² (#30 AWG)
InsulationOv. Dia.(mm)0.85Ø (0.033")0.6Ø (0.0236")
MaterialPVCPolyester
ColorsRed / WhiteBlack / Red
Filler Thread-Polypropylene
ShieldServed Shield
Approx. 60/0.08A
Braided Shield
Approx. 16/6/0.08A
Double Served Shield
Approx. 35/0.08A,
Approx. 40/0.08A
JacketOv. Dia.(mm)2.5Ø (0.098")2.8Ø (0.110")2.16Ø (0.085")
MaterialFlexible PVC
ColorsBlackBlack / WhiteBlack
Roll Sizes50m (164 Ft)
100m (328Ft)
200m (656Ft)
200m (656Ft)
(on spool)
305m (1000Ft)
Weight1.8kg / 200m2.5kg / 200m2.7kg / 305m

ELECTRICAL & MECHANICAL CHARACTERISTICS
Part No.W2697W3031W2901
DC Resistance at 20°CInner Cond.0.23Ω/m(0.070Ω/Ft)0.41Ω/m(0.125Ω/Ft)
Shield0.065Ω/m(0.020Ω/Ft)0.038Ω/m(0.0116Ω/Ft)0.07Ω/m(0.0214Ω/Ft)
Capacitance at 1kHz, 20°C
(Partial C. Value)
See below figure*
K0300pF/m(92pF/Ft)290pF/m(88pF/Ft)176pF/m(54pF/Ft)
K157pF/m(17pF/Ft)70pF/m(21pF/Ft)32pF/m(9.8pF/Ft)
Inductance between conductors at 1kHz. 20°C0.8µH/m(0.24µH/Ft)
Electrostatic Noise**50mV Max.200mV Max.1mV Max.
Electromagnetic Noise**0.15mV Max.
Microphonics at 50KΩ Load**300mV Max.150mV Max.40mV Max.
Voltage BreakdownMust withstand at DC 500V/15sec.
Insulation Resistance100000 MΩ × m Min. at DC 125V, 20°C
Flex Life**49,000 cycles26,000 cycles177,000 cycles
Tensile Strength294N313N176N
EmigrationNon-emigrant to ABS
Applicable Temperature-20°C‾ +70°C(-4°F‾ +158°F)

Data sheet
Diameter2.80
Numéro de Conducteur2
Matériaux IsolationPVC
BlindageOui
Section0.08
