MALATA MH-SD08 CD Player with Tubes Bluetooth 5.2
By buying this product you get 44 loyalty points

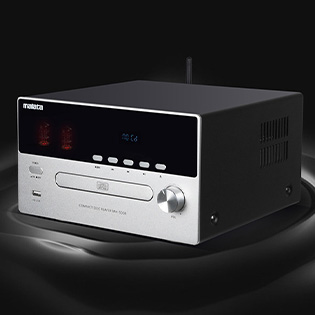

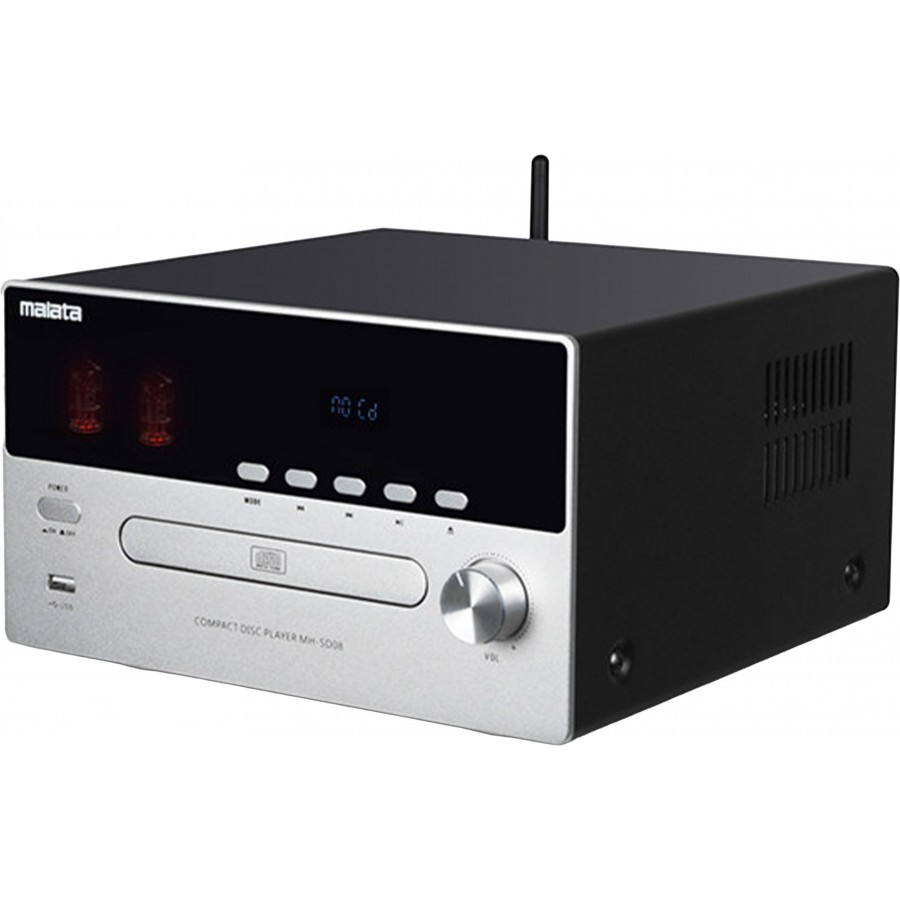

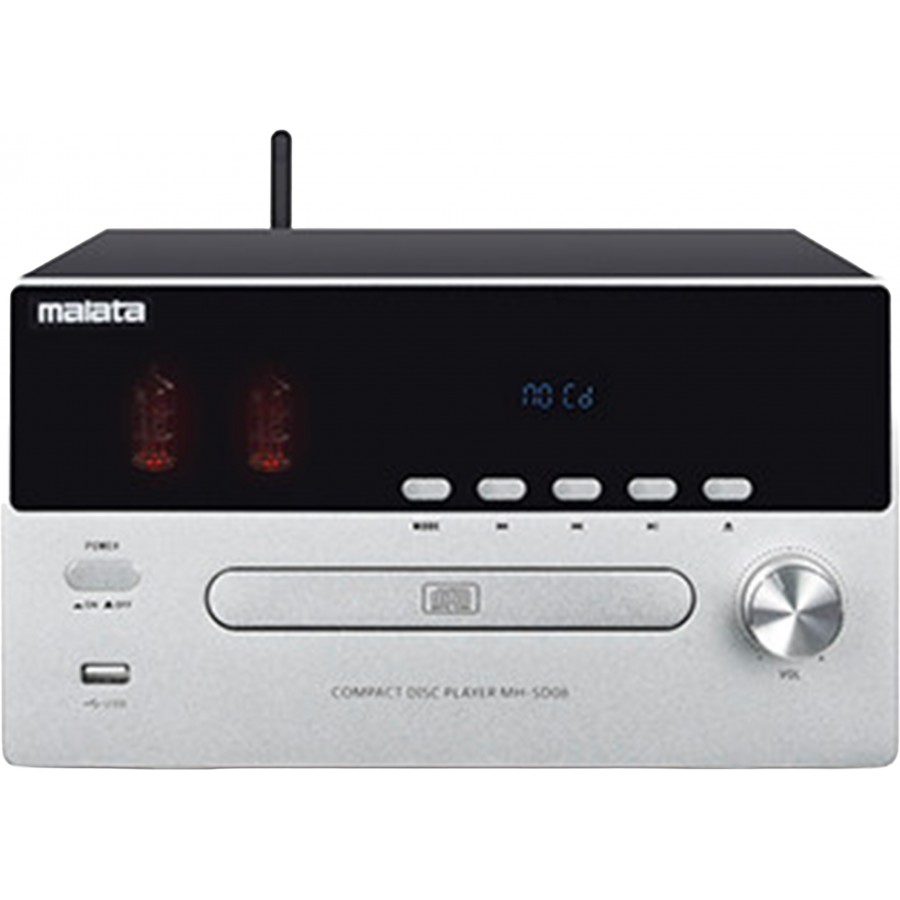

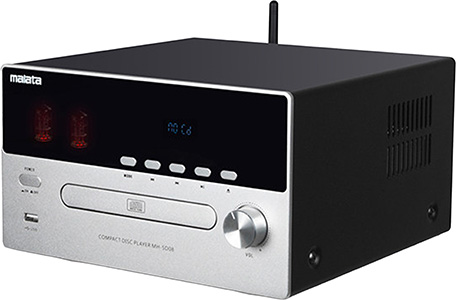

Malata MH-SD08 CD Player with Tubes Bluetooth 5.2
The Malata MH-SD08 is a CD player with a built-in amplifier featuring a hybrid design, engineered to handle both physical and digital sources as well as to drive passive speakers directly. It delivers 50W per channel, utilising Class D amplification combined with a tubes preamplifier to achieve both energy efficiency and harmonic signal shaping.
Designed for a compact hi-fi system, it combines CD playback, USB compatibility and digital and wireless connectivity, allowing you to centralise various sources within a single device. This approach enables it to act as the heart of the system, whilst delivering a well-defined and stable sound for home use with 4Ω speakers.
Malata MH-SD08: Audio Architecture and Sound Reproduction

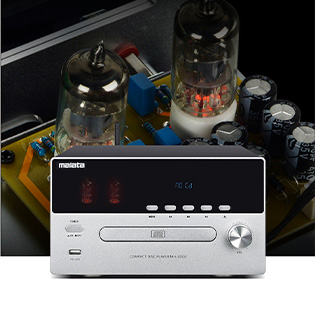

The Malata MH-SD08 features a Class D amplifier delivering 50W per channel, enabling it to drive high-efficiency speakers whilst minimising power loss, whilst the Class 5 tubes preamplifier shapes the sound reproduction by introducing a more gradual harmonic signature. This design offers a frequency response of 20Hz to 20kHz, with distortion of less than 1% and a signal-to-noise ratio of 65dB, ensuring consistent signal reproduction on 4Ω speakers.
Malata MH-SD08: Playback and Audio Formats
The Malata MH-SD08 features a CD mechanism fitted with a Sanyo optical unit, ensuring stable disc playback whilst maintaining compatibility with CD, HDCD, HQCD, CD-R/RW and MP3-CD formats. This capability is extended via a USB interface supporting up to 128 GB, allowing access to FLAC, WAV, APE, MP3 and WMA files, with playback quality of up to 16-bit/44.1 kHz.
Malata MH-SD08: Connectors and Interfaces
The Malata MH-SD08 features optical and coaxial digital inputs, allowing you to connect external sources whilst maintaining signal integrity, whilst the speaker terminals enable a direct connection to passive speakers. This interface is complemented by a Bluetooth 5.2 module, enabling wireless transmission at up to 980 kbps.
Malata MH-SD08: Power Supply and Integration
The Malata MH-SD08 operates on a 220V/50Hz power supply with a power consumption of 120W, ensuring that the playback and amplification stages can operate simultaneously without any noticeable variation. Its dimensions of 239x135x242mm, combined with an aluminium alloy front panel, allow for easy integration into a domestic environment whilst maintaining a mechanically stable structure.

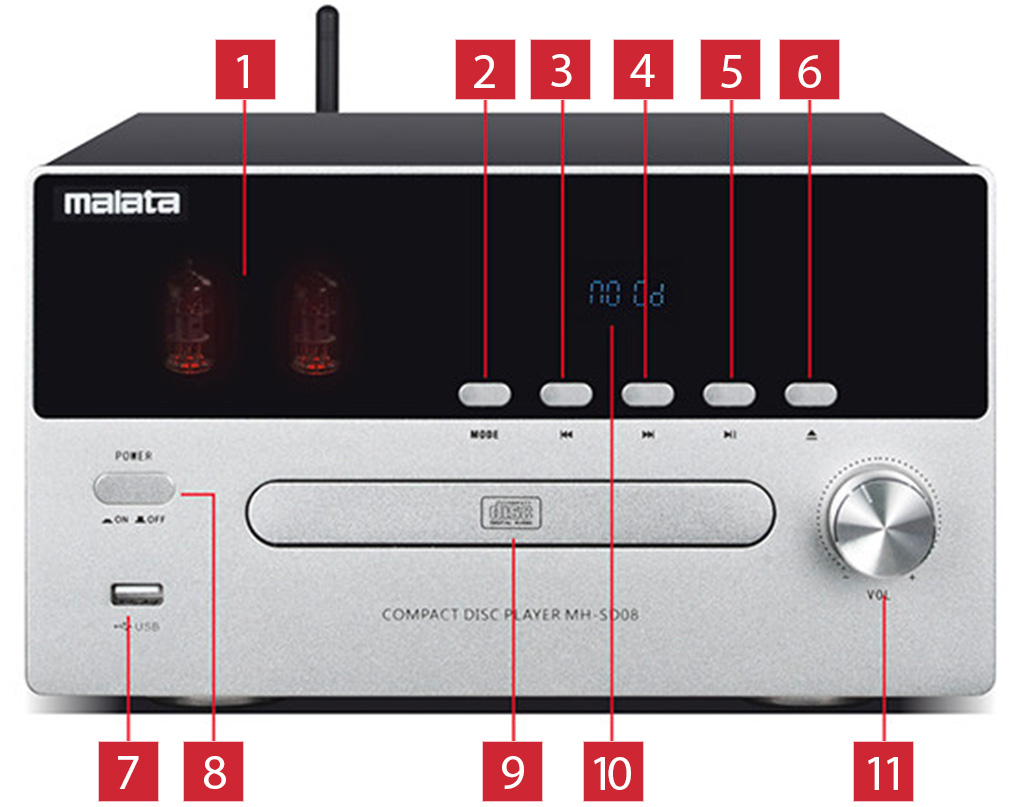

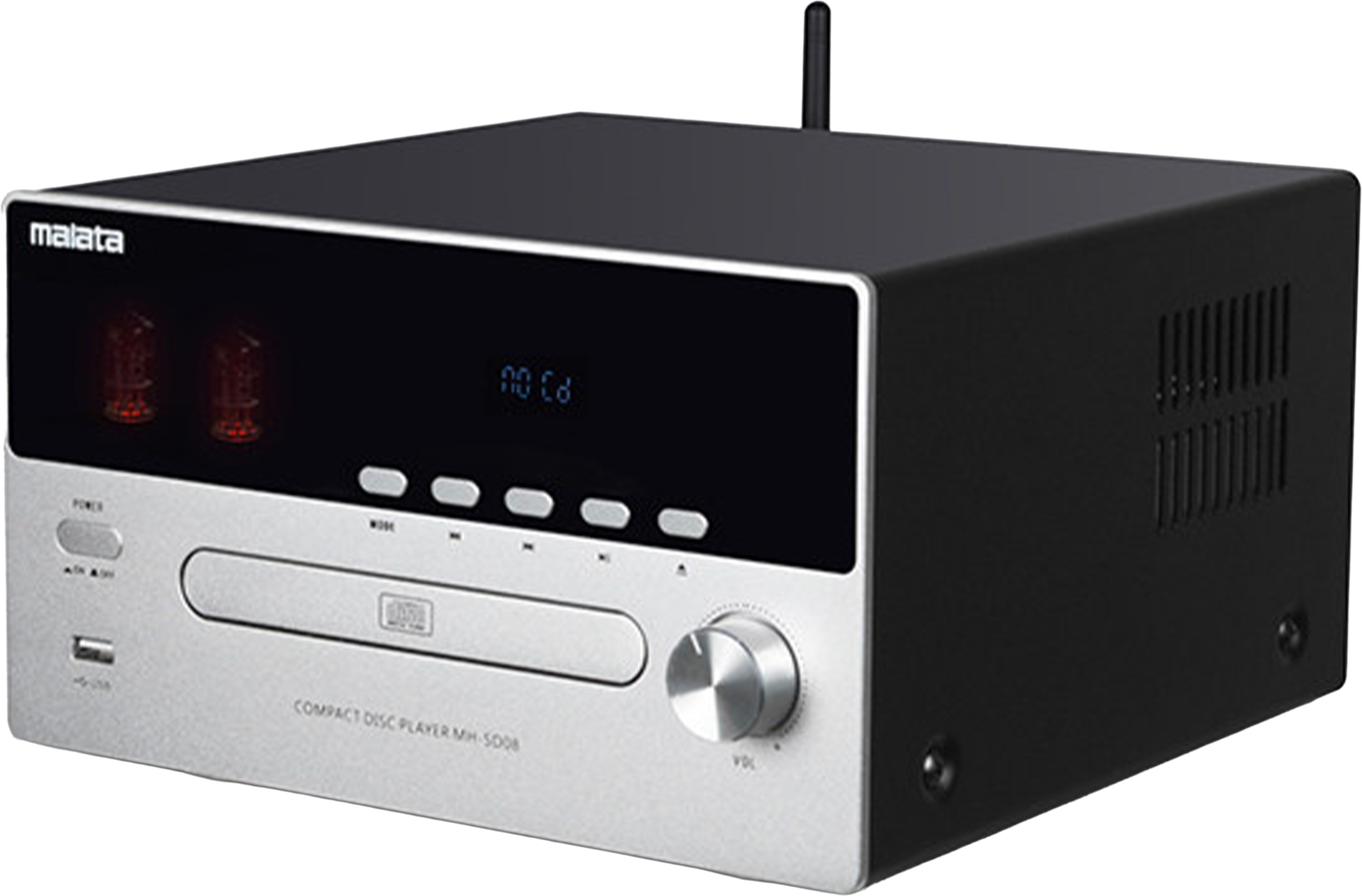

Overview of the front panel of the Malata MH-SD08
| 1 | Electronic tubes |
| 2 | Selecting the mode |
| 3 | Previous track |
| 4 | Next track |
| 5 | Play / Pause |

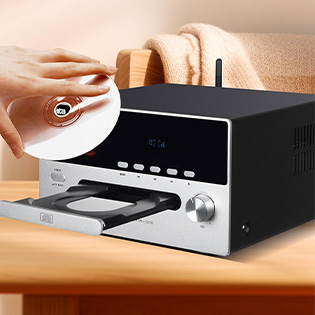

| 6 | Opening / closing the tray |
| 7 | USB port |
| 8 | On/Off switch |
| 9 | CD tray |
| 10 | Screen |
| 11 | Volume control |

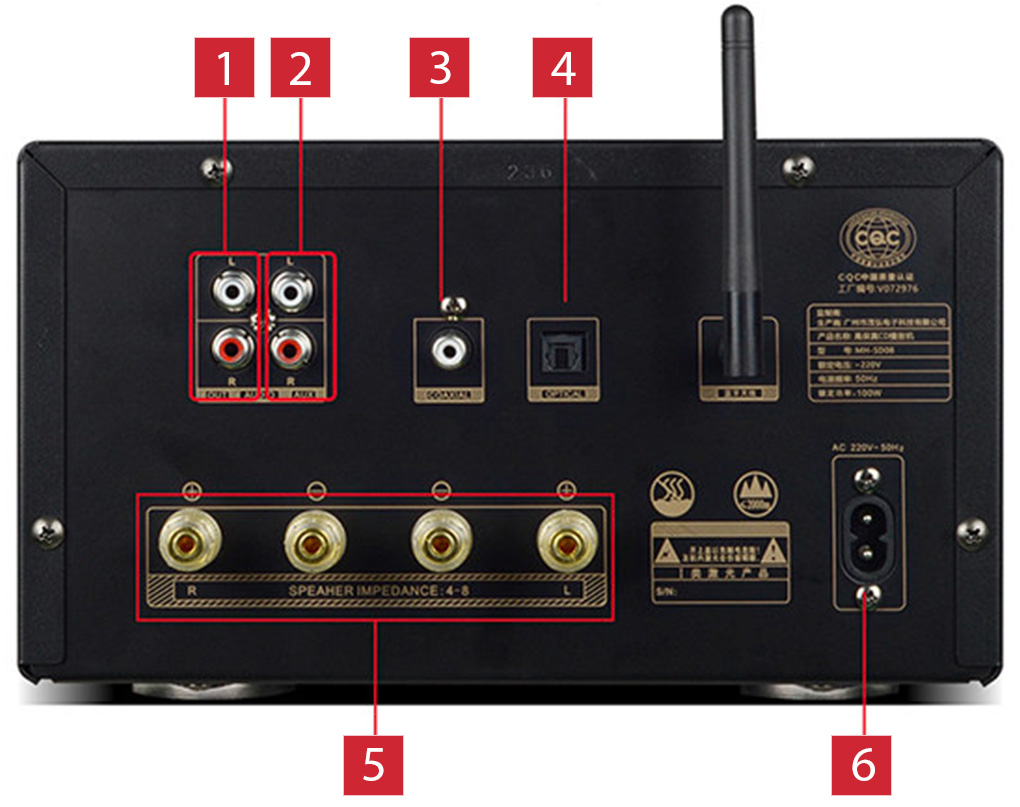

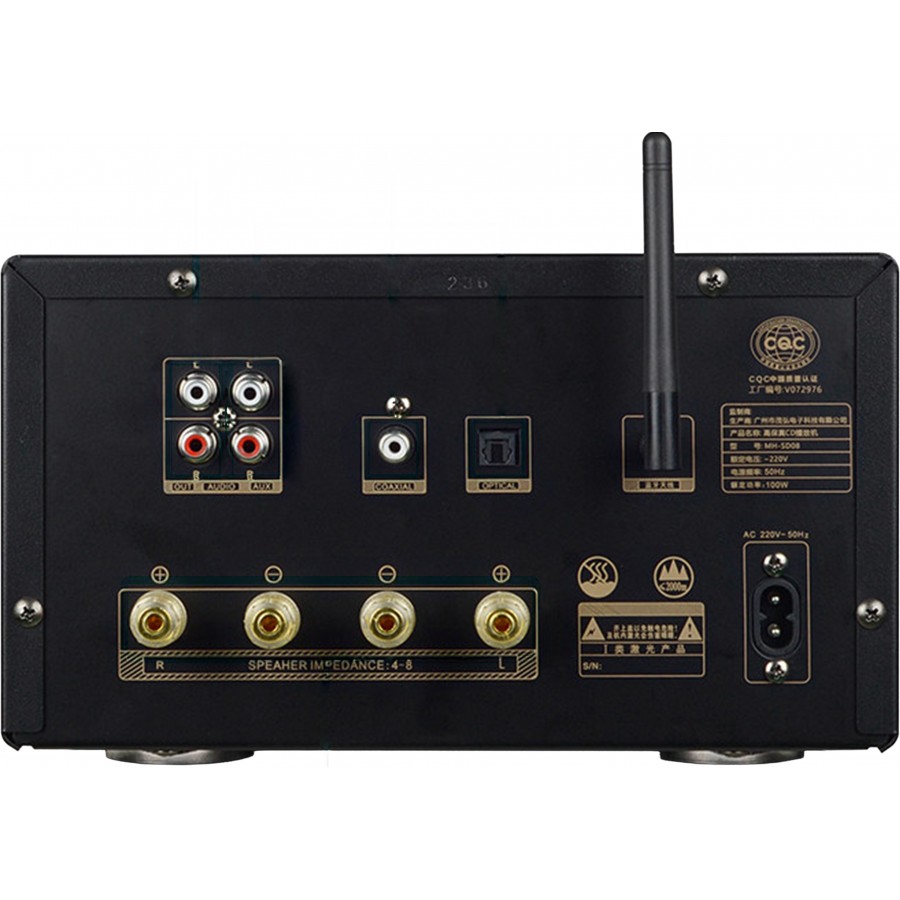

Back view of the Malata MH-SD08
| 1 | RCA audio output |
| 2 | RCA audio input |
| 3 | Coaxial input |
| 4 | Optical input |
| 5 | Speaker terminal blocks |
| 6 | Power input |
Technical characteristics
| Specifications | |
|---|---|
| Product type | CD player |
| Inputs | CD player 1x USB-A (flash drive up to 128GB) Bluetooth 5.2 1x RCA 1x Coaxial 1x Toslink optical connection |
| Output | 1x Aux RCA 2x speaker terminals |
| Formats supported via USB | APE, WAV, FLAC (16bits), WMA, MP3 |
| Supported CD formats | CD, HDCD, HQCD, DSD, MP3-CD, HQII, CD-R/RW, WMA, AAC |
| Frequency response | 20Hz-20kHz (±6dB) |
| Signal-to-noise ratio (SNR) | ≥65dB |
| Impedance | 4Ω |
| Distortion | ≤ 1% (1kHz, 1W) |
| Nominal power | 2x 50W |
| General | |
|---|---|
| Supply voltage | 220V~50Hz |
| Consumption | 120W |
| Dimensions | 239x135x242mm |
| Frame material | Aluminium |
| Color | Grey and Black |
| Packaging | 1x Malata MH-SD08 1x Bluetooth antenna 1x Power cable |
| Input | Optical |
| Input | CD |
| Input | USB |
| Input | SPDIF |
| Input | Bluetooth |
| Input | RCA |
| Output | Speaker terminal |
| Output | RCA |
| DAC / ADC Chip | NC |
| Max sampling rate | NC |
| Color | Gray |
| Color | Black |
| Networking | No |
| Remote Control | No |
