Oberon Audio Armature

DAC / Balanced 24/192 Headphone Amplifier

Oberon Audio Armature

Performance and richness of the audio message

The DAC Armature Oberon is a mix of advanced technologies and classicism with its custom digital floor and analog outputs in pure class A. The purpose is only music with innate ease of use in a beautiful aluminum case.

Face Armature Audio Oberon

A true Double Mono diagram
Balanced XLR outputs and high quality volume

The Oberon Armature has all the functions and connections with a USB XMOS U8 input, it also opens up to the professional world with an XLR AES / EBU 110 Ohm input and true balanced analogue outputs in class A.

Its LED display will indicate each state with great readability. The Oberon is a real digital HUB with 4 digital inputs and a digital preamplifier without loss of quality

This DAC also features a high quality headphone amplification capable offeed references like the Sennheiser HD800.

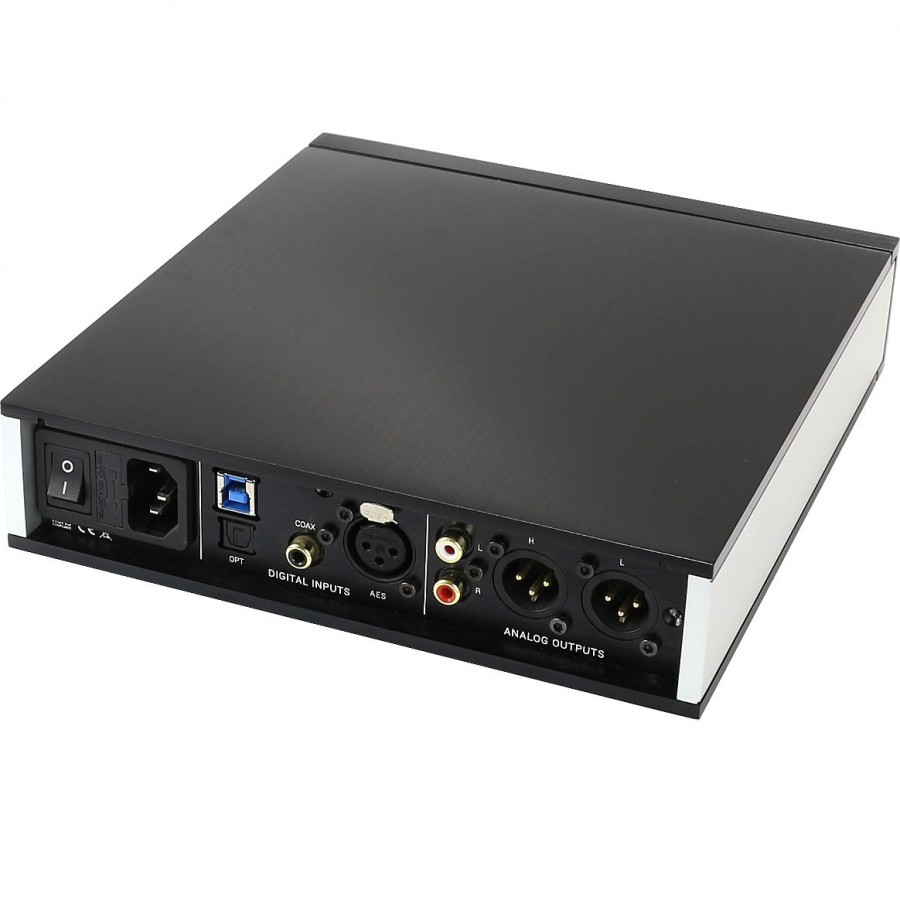

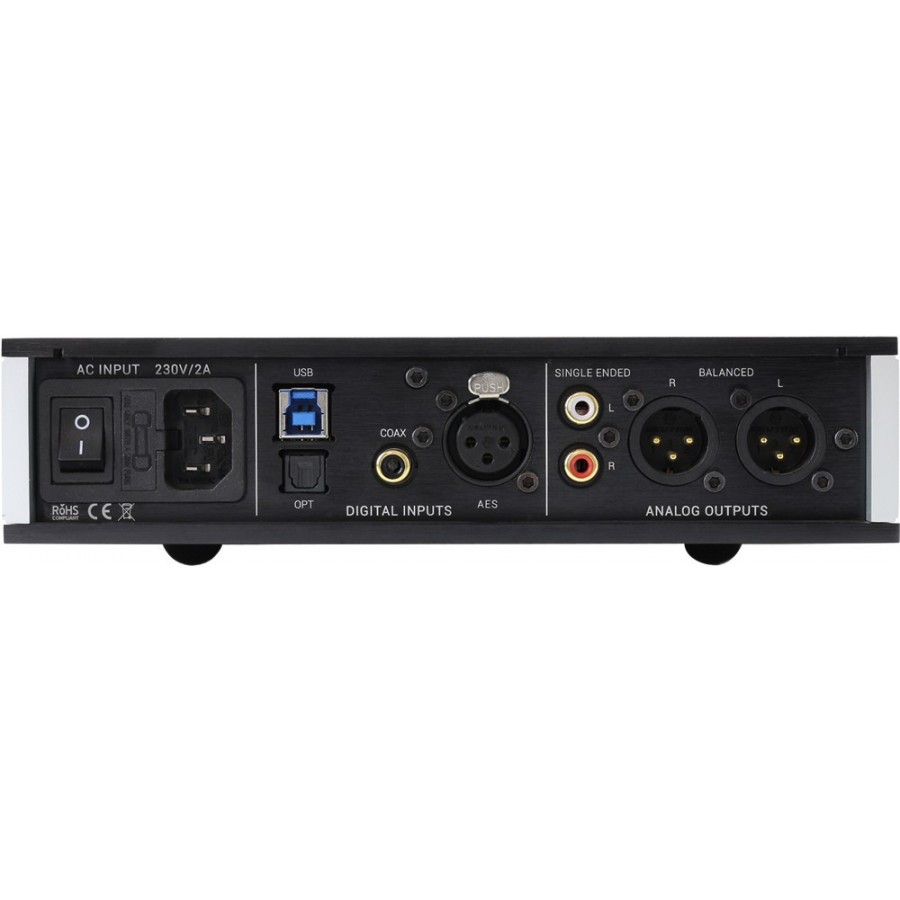

Back Oberon Audio Armature

Galvanic Insulation / Double Clocks / Double DAC

The Oberon DAC technology is based on a USB 3.0 XMOS U8 input with double galvanic isolation and two very low drift clocks. Any USB source is isolated from unwanted noise harmful to the jitter.

The sound is so natural, without clenching, with a real quality of timbre, the antipodes of a cold sound thanks to its pure class A power supplies. The double mono conversion using 2 DAC 24 bit 192khz and DSD64 original AKM offers a high resolution and high definition digital preamplifier, even at low volume.

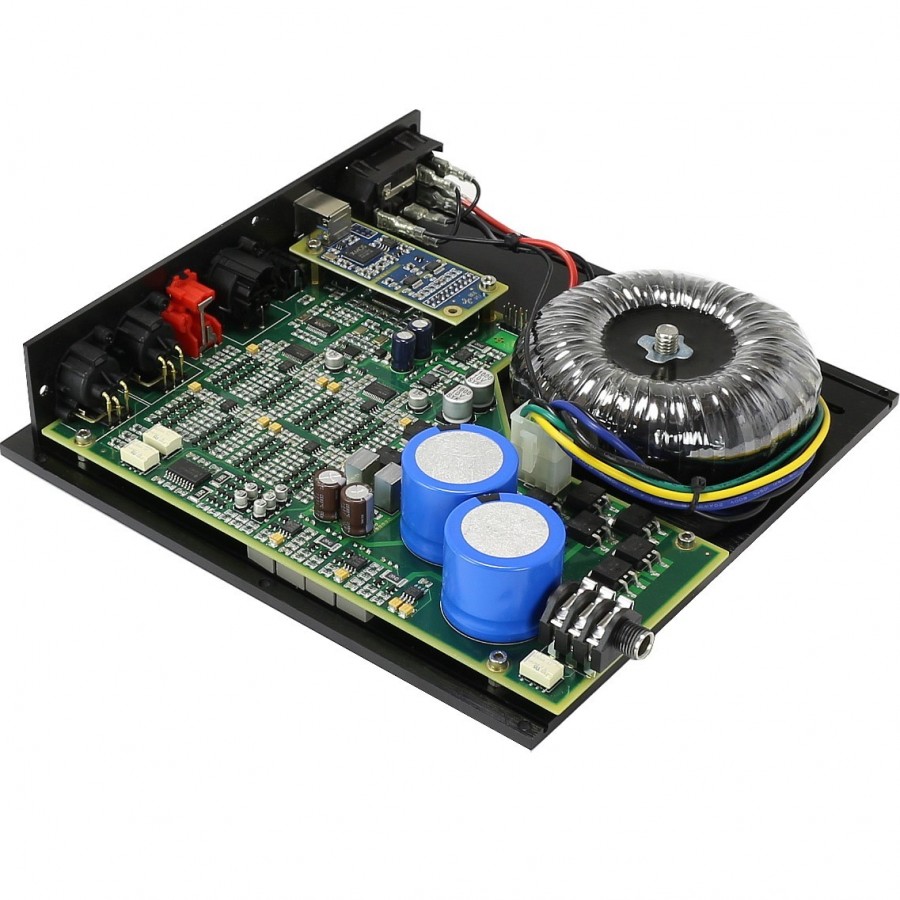

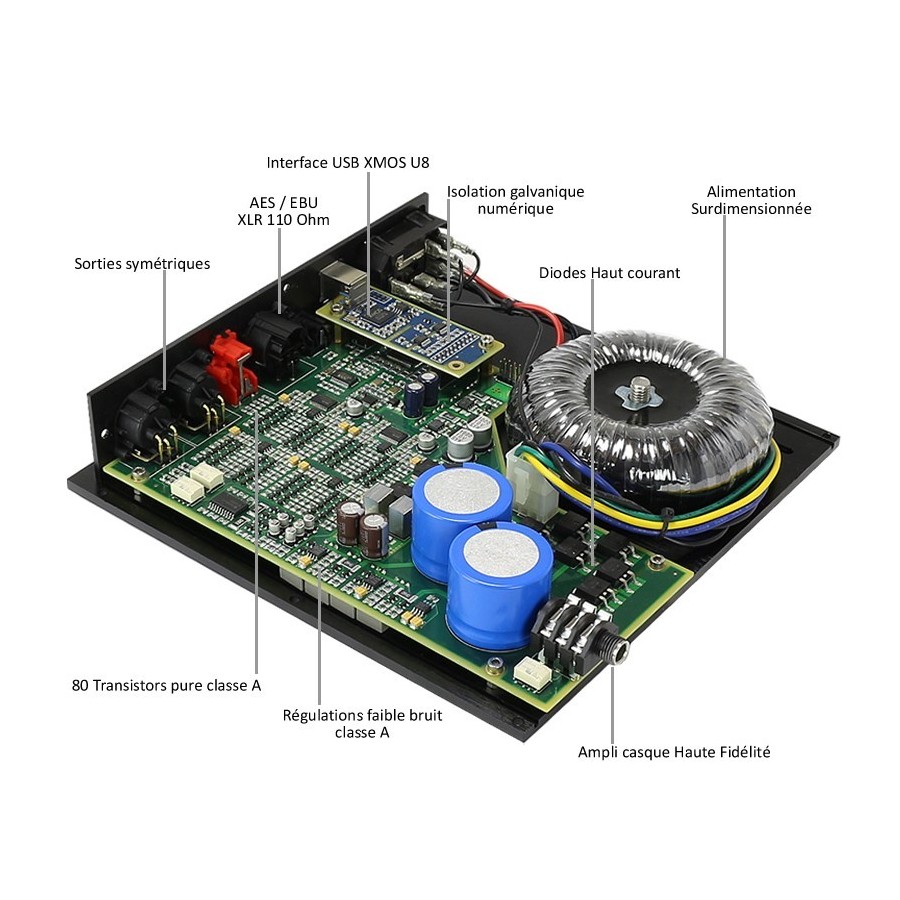

Oberon Armature components
Food class A Armature Cronos

Class A power supply

All the Oberon power supply is based on 10 high-current diodest and semi-discrete regulations polarized in class A for a very fast rise time. Micro information appears in the open and offers a complete replay of your favorite music.

Output in pure Class A

The analog part of the Oberon Armature is a true technological work of art. It relies on 80 transistors (40 per channel) in class A, reducing distortion and background noise at the lowest level. Due to its symmetrical design with a converter per side, the Oberon DAC offers a real separation of physical channels with insignificant crosstalk. Coupled with its class A diet, L'Oberon provides long hours of musical pleasure in very High Definition.

Class A output
Oberon frame and helmet

The Oberon helmet section is a mix of classic and modern solutions. Based on an innovative integrated circuit supported on 8 discrete SMD transistors, this amplification is capable of driving a large number of high-end headphones even at high impedance.

This circuittherefore benefits from the linearity of the Texas Instrument integrated circuit and the current capacity of the discrete transistors. Here is the best of both worlds implanted in a 24bit DAC with digital volume.

Discover the DAC Symétrique OBERON on the official website of the brand by clicking on the following logo

Armature Logo

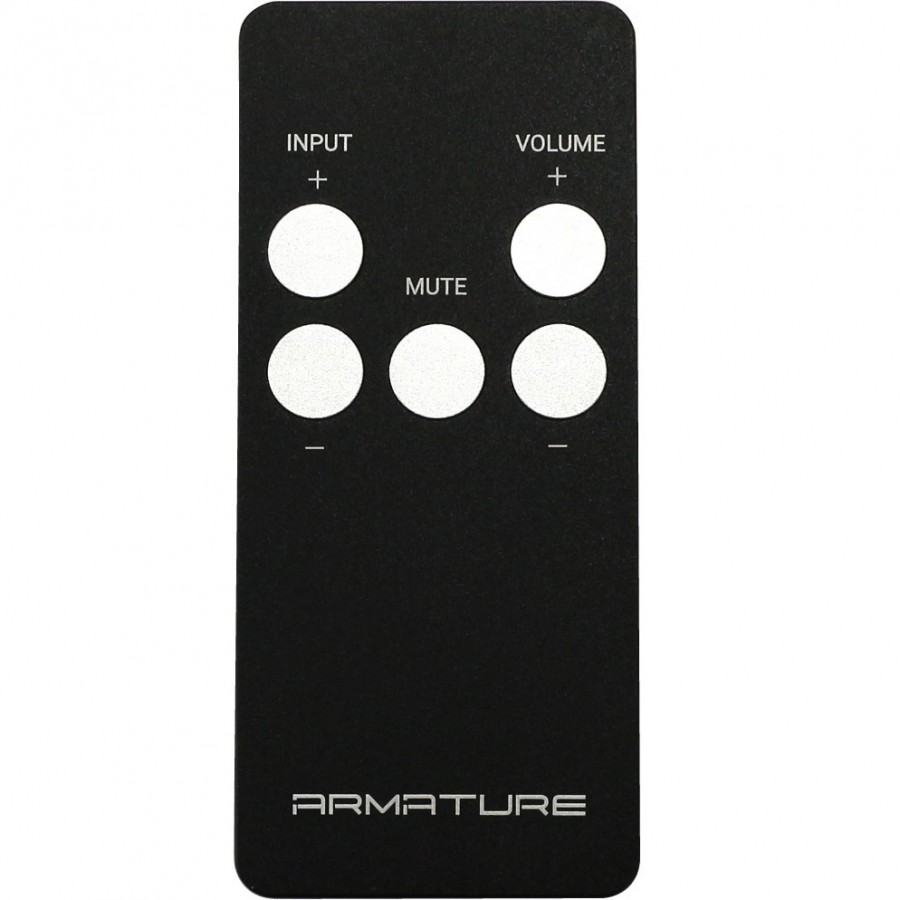

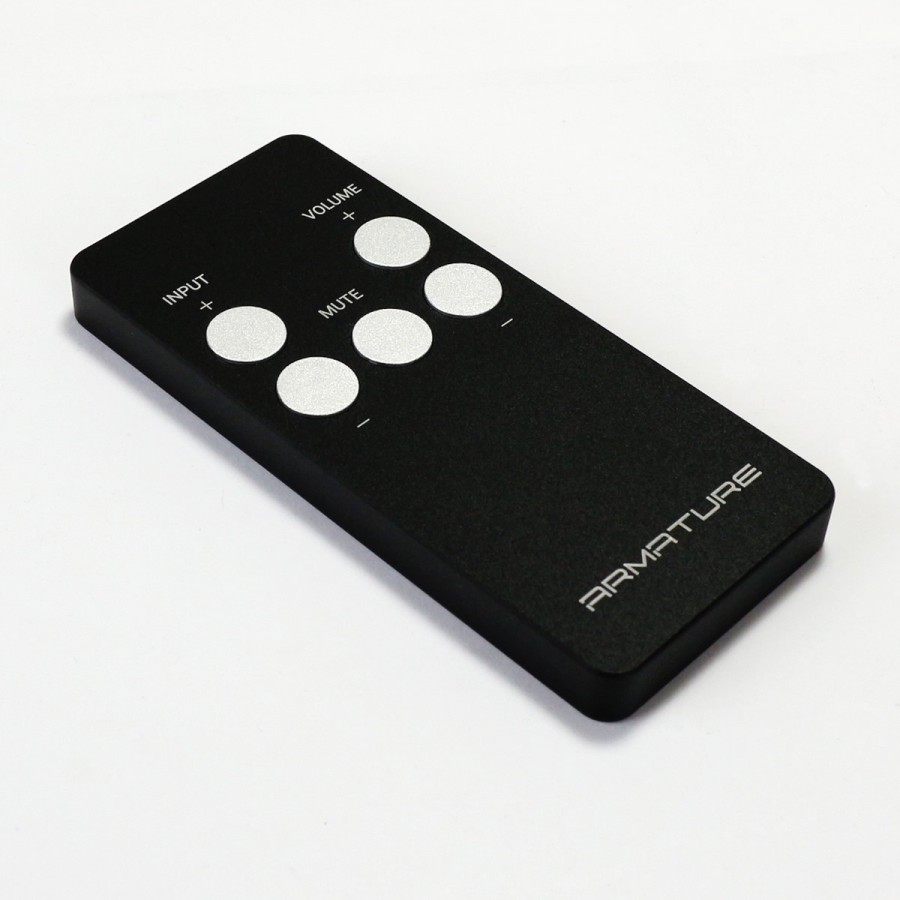

A sober and ergonomic remote control

The Oberon Armature offers a remote control that represents a real plus in terms of ergonomics. Indeed, this one will allow you to simply select the entry, the volume or to pass the DAC in mute mode, since your sofa. In addition, its black aluminum case is both sober and elegant.

remote control Oberon

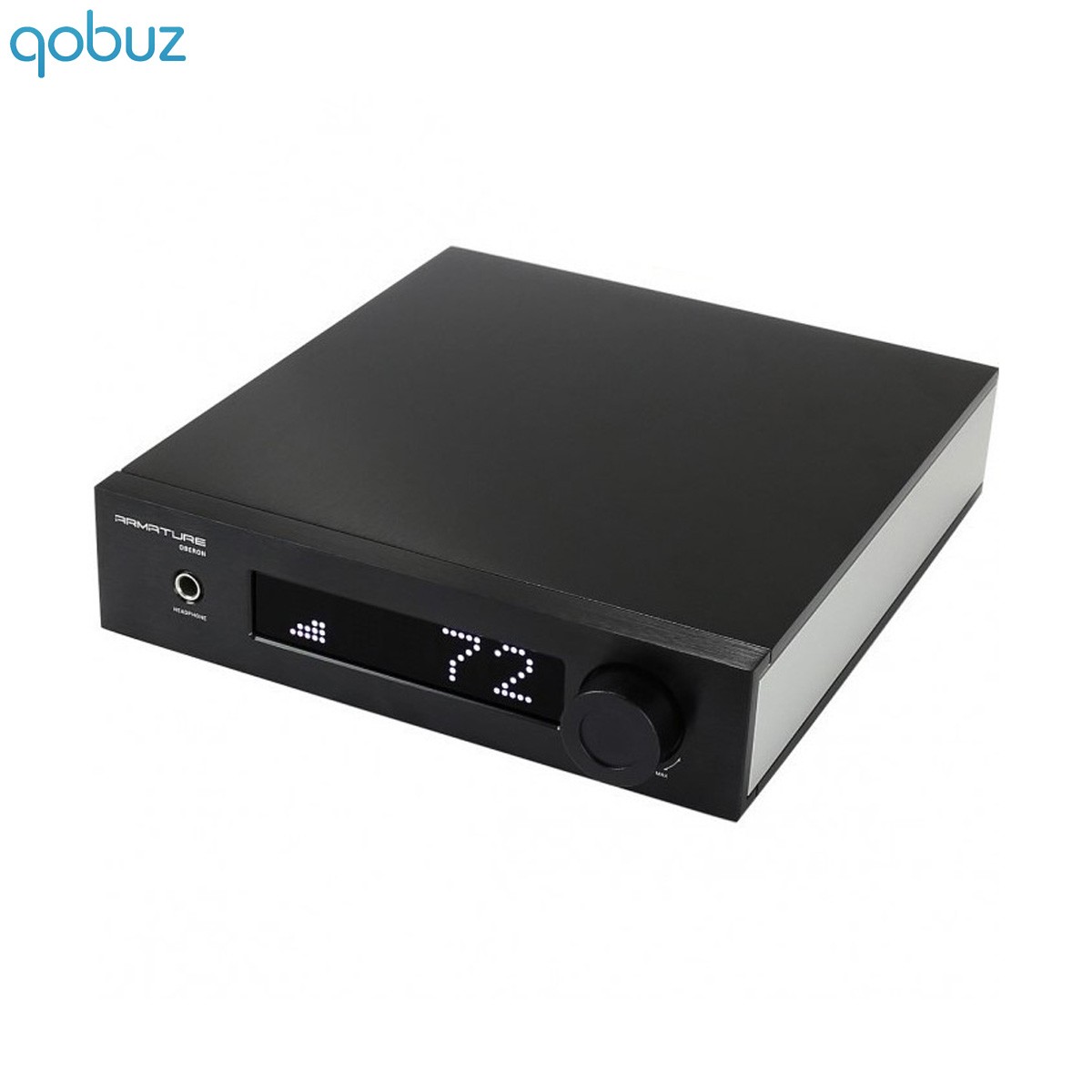

Armature Oberon review by Qobuz

" This DAC Armature Audio Oberon is a very beautiful device, very seriously designed and built, and offering very beautiful sound results. A high quality project in a classic but chic design at a reasonable price! "
Test Qobuz
SNR> 115dB
Frequency response20Hz - 20kHz (at -0.5dB)
Max output level
Input sensitivity0.5Vp-p (Coaxial, 75Ω) / 19dBm (Optical)
Sampling rate supported on 24 bitUSB up to 192kHz and DSD64 / Coaxial up to 192kHz / Optical up to 96kHz
Entries exits
inputsRCA SPDIF / Optics Toslink / AES / EBU 110Ω
ExitsBalanced RCA / XLR
Dimensions232 x 214 x 50mm
Frame material100% Aluminum
ColorBlack & Silver
AccessoriesPower Cable / XMOS Driver / Remote Control / Manual
Data sheet
DAC / ADC ChipAK4396
Max sampling rateDSD64
Max sampling rate192kHz
Channel2 (Stereo)
