SMSL DL400 DAC ES9039MSPRO
By buying this product you get 49 loyalty points
![[GRADE A] ASCILAB C8C Bookshelf Speakers Cardioid 3-way 1x100W + 2x250W Black (Pair)](https://www.audiophonics.fr/71347-thumb_default/ascilab-c8c-black-sba.jpg)

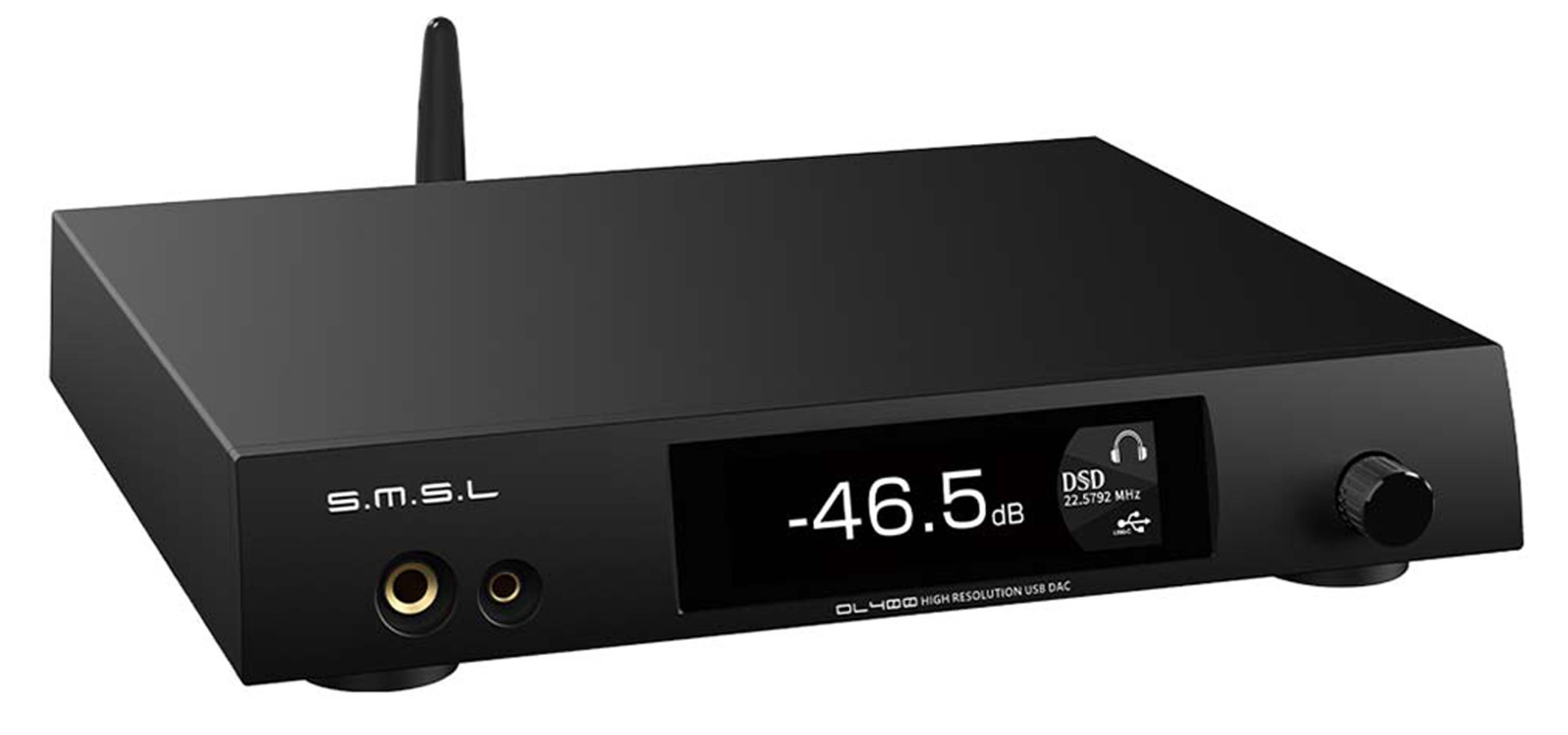

SMSL DL400 DAC ES9039MSPRO XMOS XU316 I2S Bluetooth 5.1 LDAC aptX HD 32bit 768kHz DSD512

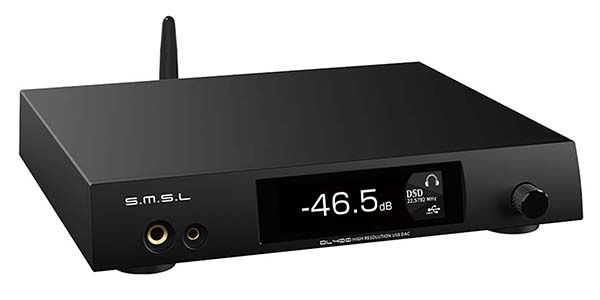

The SMSL DL400 is a DAC and headphone amplifier designed to deliver very high-level audio performance in a compact form factor. Thanks to high-quality components such as an ESS ES9039MSPRO DAC chip, as well as a balanced headphone amplification architecture featuring a PLFC (Precision Linear Feedback Circuit), impressive headphone amplification power, and extensive compatibility with Hi-Res formats, it is ideal for both discerning audiophiles and studio professionals.
SMSL DL400: Next-generation digital-to-analog conversion

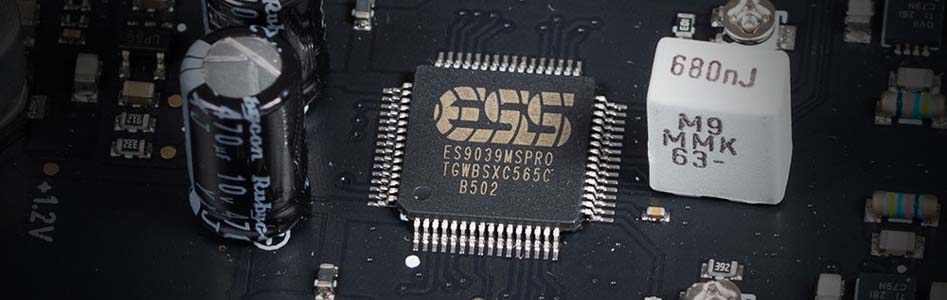

The DL400 is based on the ESS ES9039MSPRO DAC chip, a flagship model from the American manufacturer ESS, featuring hardware decoding of MQA and MQA-CD. This architecture enables extremely precise sound reproduction, with a high level of detail, wide dynamic range, and ultra-low distortion.
Combined with the third-generation XMOS XU-316 processor, the DL400 supports high-resolution streams up to PCM 32bit 768kHz and DSD512, ensuring full compatibility with the most demanding audio files.

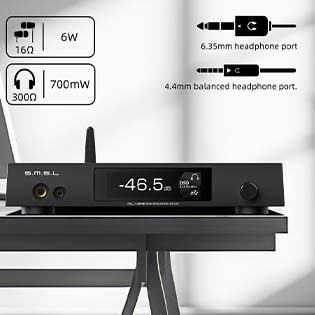

SMSL DL400: Balanced headphone amplification
The DL400 features a fully balanced headphone amplification stage based on 4 PLFC (Precision Linear Feedback Circuit) circuits with very low distortion. This design delivers impressive power:
- 2 x 6000mW at 16Ω
- 2 x 3000mW at 32Ω
- 2x 700mW at 300Ω
This power reserve allows it to drive both high-impedance headphones and sensitive IEMs with precision and control via the DL400’s single-ended 6.35mm jack and balanced 4.4mm jack outputs.
SMSL DL400: Bluetooth LDAC
Equipped with a Qualcomm Bluetooth 5.1 chip, the DL400 supports AAC, ABC, aptX, aptX-HD and LDAC (24bit/96kHz) codecs. This enables high-quality wireless streaming, close to wired listening.

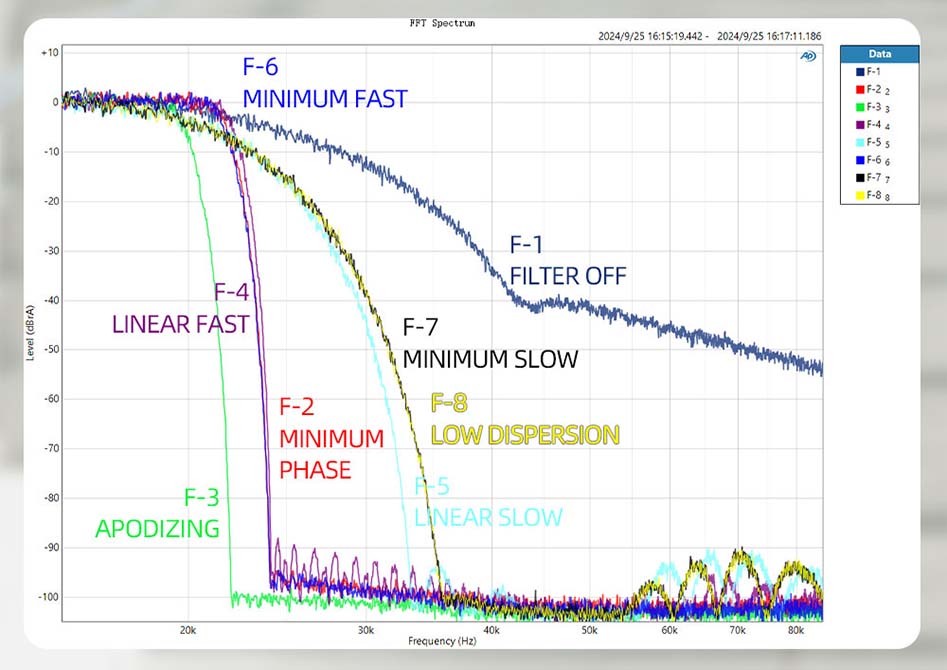

SMSL DL400: Advanced sound customization
To suit each user’s preferences, the DL400 offers 8 PCM filters and 9 “sound color” modes. These options allow fine adjustment of the sound signature according to your headphones or audio system.

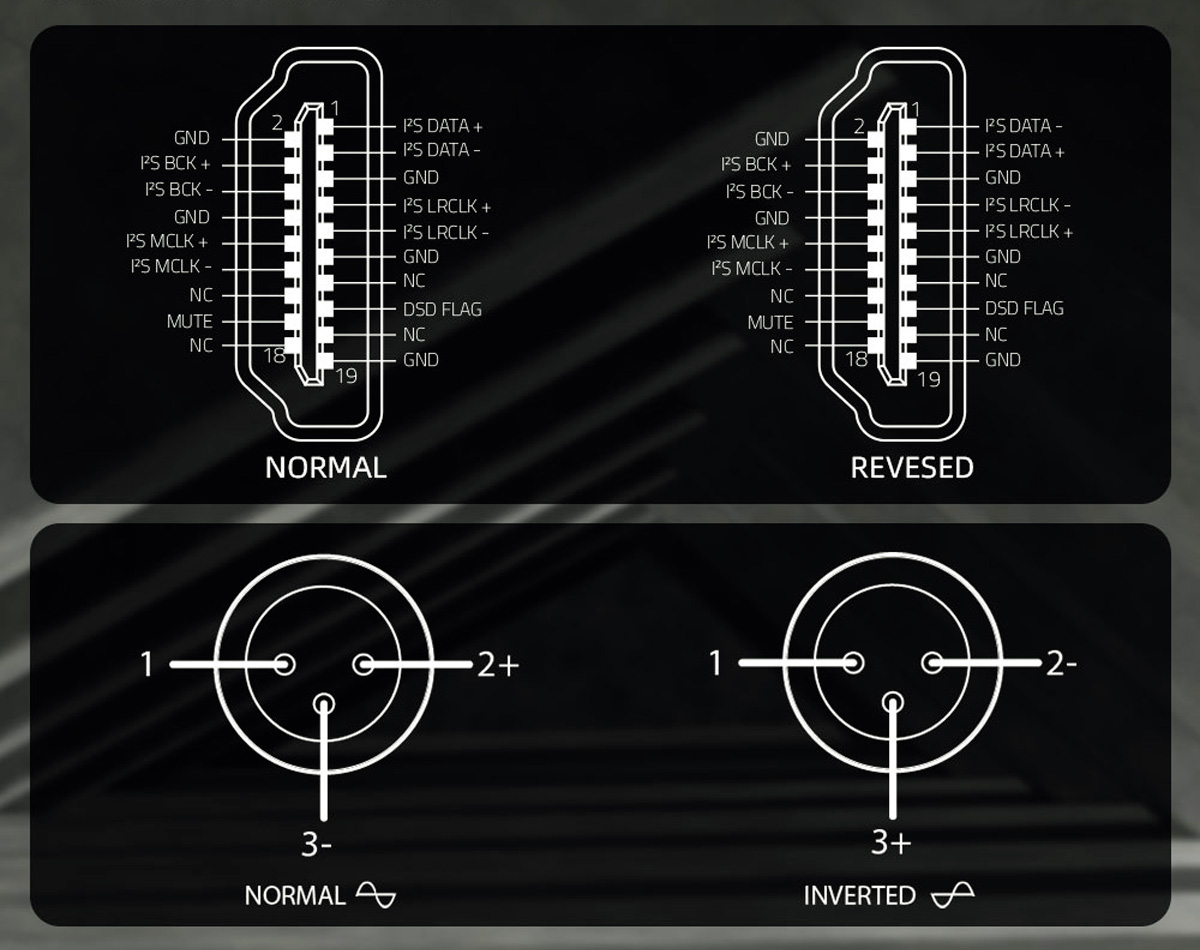

SMSL DL400: I2S interface
The SMSL DL400 features an I2S interface that is ideal for high-resolution audio connections. The pinout can be adapted depending on the source being used.

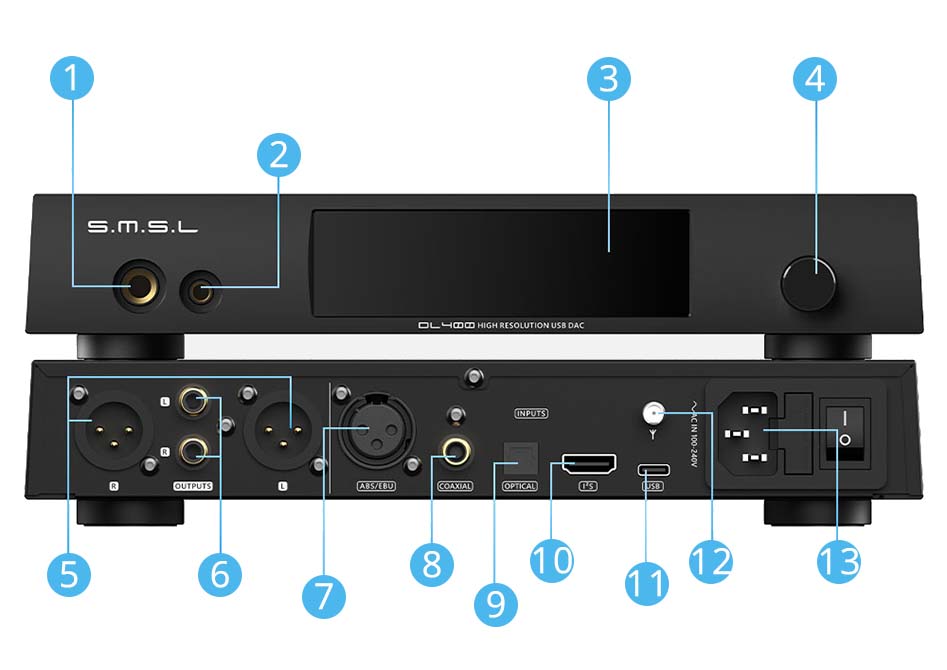

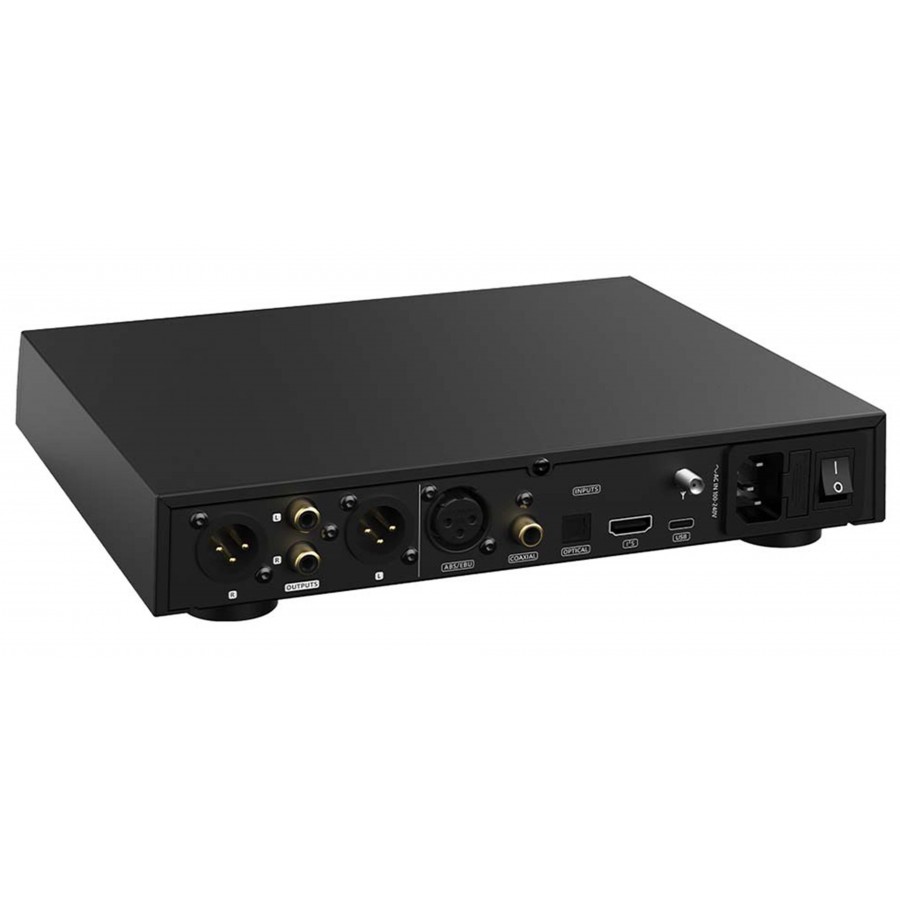

Overview of the SMSL DL400
| 1 | Single-ended 6.35mm headphone output |
| 2 | Balanced 4.4mm headphone output |
| 3 | Display |
| 4 | Multifunction button |
| 5 | Balanced XLR output |
| 6 | Single-ended RCA output |
| 7 | AES/EBU input |
| 8 | Coaxial input |
| 9 | Optical Toslink input |
| 10 | I2S input via HDMI |
| 11 | USB-C input |
| 12 | Bluetooth antenna |
| 13 | IEC mains power input |
Technical Specifications
| Specifications | |
|---|---|
| Product type | DAC |
| DAC chip | ES9039MSPRO |
| USB interface | XMOS XU316 |
| Op-amps | OPA1612 |
| Bluetooth chip | QCC5125 |
| Input | 1x USB-C 1x I2S via HDMI 1x Optical Toslink 1x Coaxial 1x AES/EBU Bluetooth |
| Output | 1x Balanced XLR 1x Single-ended RCA 1x Single-ended 6.35mm headphone output 1x Balanced 4.4mm headphone output |
| Supported sampling rates | USB: PCM up to 32bit 768kHz, DSD DoP256, DSD512, MQA I2S via HDMI: PCM up to 32bit 768kHz, DSD512, MQA Optical Toslink, Coaxial: PCM up to 24bit 192kHz, DSD DoP64, MQA-CD AES/EBU: PCM up to 24bit 192kHz, MQA-CD |
| Supported Bluetooth codecs | SBC, AAC, aptX, aptX-HD, LDAC |
| USB transmission | Asynchronous |
| USB compatibility | Windows 7/8/8.1/10/11 (with driver) Mac OSX 10.6 or later, Linux (driverless) |
| Line output level | RCA: 2.5Vrms XLR: 5Vrms |
| Headphone output power | 2x 6000mW @ 16 ohm 2x 3000mW @ 32 ohm 2x 700mW @ 300 ohm |
| Output impedance | XLR/RCA: 100 ohm HPA: close to 0 ohm |
| Dynamic range | XLR: 133dB HPA: 127dB |
| SNR | XLR: 133dB HPA: 127dB |
| THD+N | 0.00005% (-125dB)(UN-WTD) HPA: 0.00009% (-120dB)(UN-WTD) |
| HPA Gain | Single-ended: +9.5dB Balanced: +15.5dB |
| General | |
|---|---|
| Power supply | Mains power |
| Power consumption | < 40W Standby: < 0.5W |
| Dimensions | 250 x 47 x 240mm |
| Weight | 1.74kg |
| Color | Black |

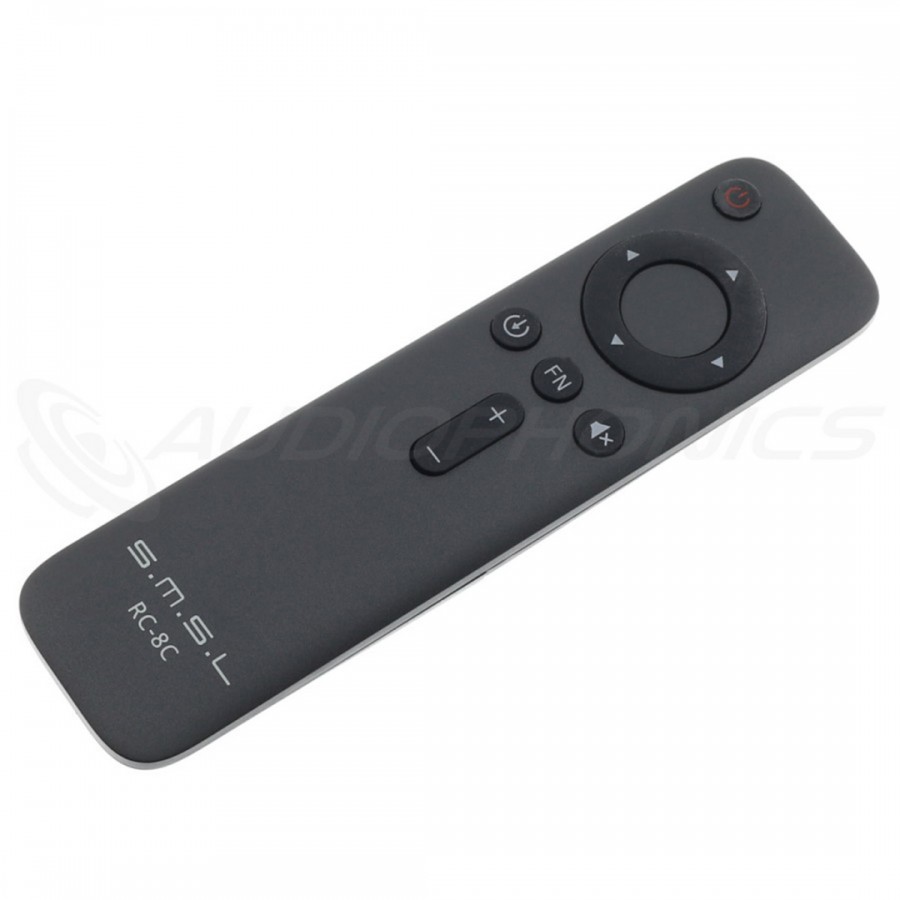

| Package contents | 1x SMSL DL400 DAC 1x IR remote control 1x Bluetooth antenna |
