The SMSL M9 is a high-fidelity USB DAC 32bit in the right line of the best sellerhref = "http://www.audiophonics.com/en/dac-sans-volume/smsl-m8-dac-usb-es9018k2m-32bit-384khz-dsd-xmos-p-9723.html" target = "_ blank" >SMSL M8. This compact DAC in a machined CNC aluminum case integrates the best of current technology on a single circuit reducing the maximum welding contacts.

A double DAC 32bit:

This DAC includes two AK4490 converters. The result is a lower crosstalk taking advantage of true High Definition, increased dynamics. It is therefore able to support PCM audio files up to 32bit 768kHz as well as DSD64, DSD128 and DSD512 files.

Fully lined design:

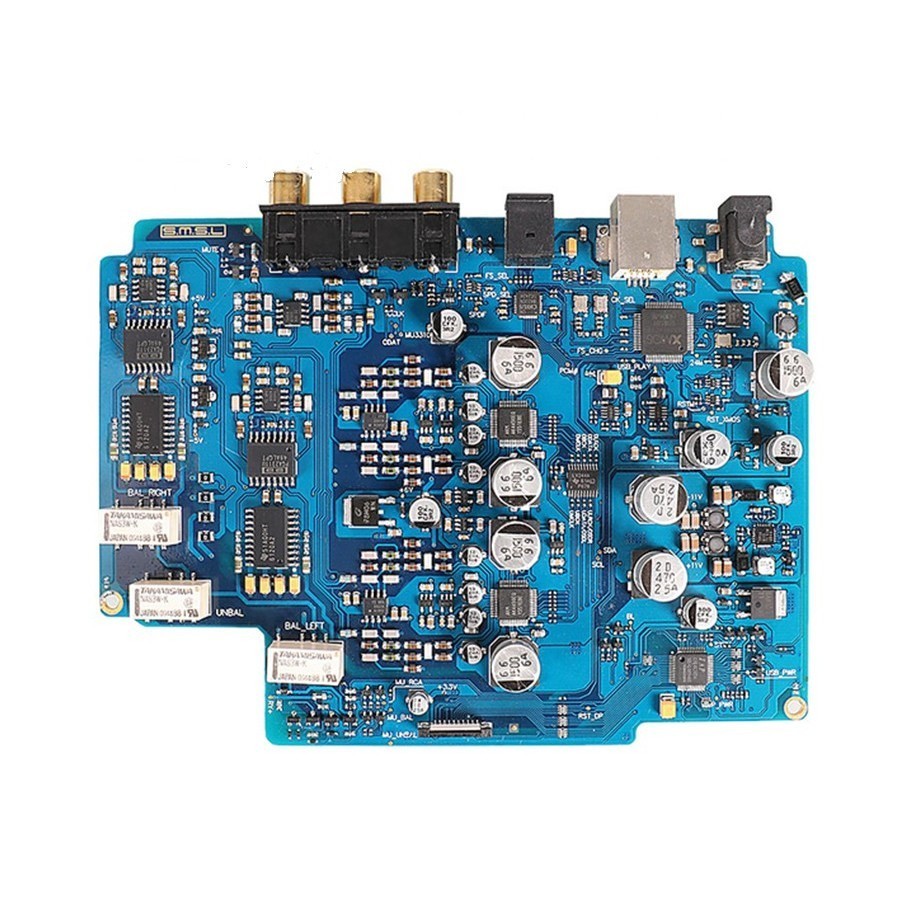

The M9 SMSL is designed to offer the maximum separation between the left and right channels from analog digital conversion. This CAD therefore has two CADs AK4490EQ, 5 operational amplifiers OPA 1612of high precision. The audio result is of real acuity in terms of sound accuracy. This DAC features on its CINCH RCA a variable output controlled by two analog volume controls PGA2311.

dac smsl m9 ak4490

One USB hrange:

The USB digital input of the SMSL M9 includes the latest chip generation XMOS 32bit XCORE 200. The M9 SMSL has a computing power that far exceeds the scope of digital audio with more than 1000 Mipson an instruction structureDSP 64bit.

The M9 SMSL offers 32 bit audio playback capability rarely achieved in this product range. The conventional digital part on SPDIF optical and coaxial asynchronous input also includes a high quality processing.

The input interface on DIR CS8422 with FIFOincludes a high-quality ASRC system coupled with two separate very low drift clocks. This audio converter incorporates the latest generation of LDO T controllersI TPS65131sure8 levels of regulation . Thus the background noise is retreated to its lowest level to reach the dynamic that demands the 32bit High Definition.

A very high level balanced headphone output:

This DAC now incorporates two amplifiers TPA 6120A2enabling the most demanding headsets, even at high impedance. So we take advantage of the high resolution of this exceptional DAC on a standard 6.35 jack output but also an output on 2.5mm jack type actually symmetrical .

A simple and readable interfacen 1.44 ":

Its quality display is an advantage providing a not inconsiderable comfort with regard to the source selection and the type of files being decoded.
It allows you to configure the sound at your convenience via a selection of 4 different filtering modes including the famous Short Delay Slow Roll-Off. There are of course conventional DSD filters.

dac smsl m9 ak4490

dac smsl m9 ak4490

test test of SMSL M9 DAC AK4490

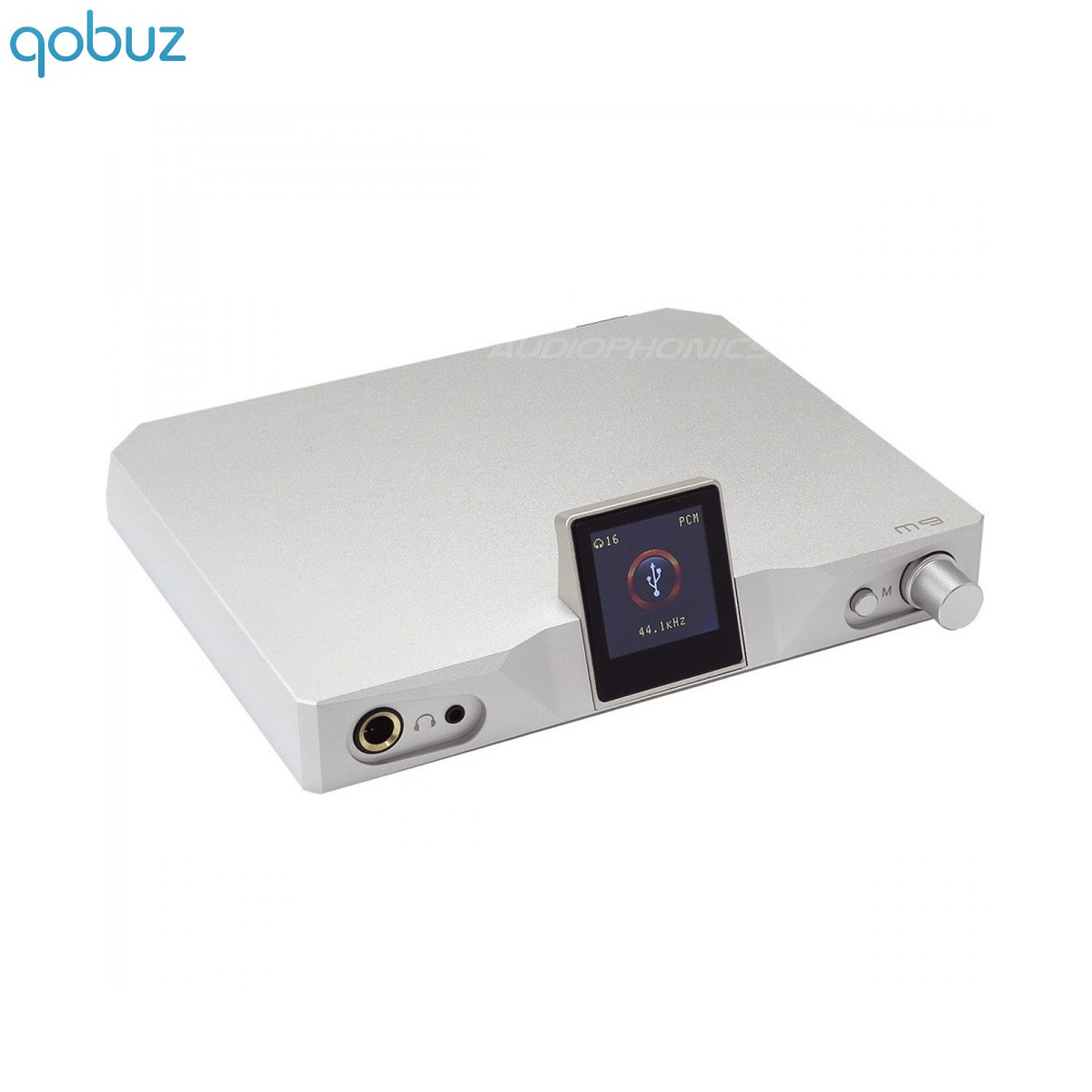

SMSL M9 review by Qobuz

" The DAC S.MS.L M9 is an attractive device all along the line, aimed at lovers of beautiful objects offering a beautiful sound reproduction that can be modified in a sensitive but realistic way. "
Test Qobuz

Main Features:

  • USB interface: XMOS xCORE200 XU208
  • DAC: AK4490 x 2
  • Analog volume control: PGA2311 x 2 (variable outputs on stereo RCA)
  • Headphone amplifier: TPA6120A2 x 2
  • Output Amplifier: OPA1612 x 5
  • Asynchronous input interface: CS8422
  • Resolution DAC: 16 to 32bit PCM from 44.1Khz to 768KHZ, DSD64, DSD128, DSD512 (on USB input)
  • USB Transmission Mode: Asynchronous
  • Decoding native DSD and DOp according to resolution (Thesycon driver)
  • Double separate clocks for multiple frequency sampling 44.1kHZ and 48kHZ
  • High precision CNC aluminum shell

Technical specification:

  • Analog output: Headphone jack 6,35 and 2,5mm / RCA stereo plated Gold
  • Digital input: USB sampling rate 44.1 to 768 kHz
  • SPDIF digital input: / optical / coaxial sampling rate: 44.1 to 192 KHZ
  • RCA output level: 2 Vrms
  • Dynamic range: 115 dB
  • Analog Output Signal Ratio: 105 dB
  • Channel separation: 110 dB
  • Harmonic distortion RCA output: + N: 0.0004%
  • Harmonic distortion headphone output: + N: 0.001%

Headphone Output Power (2.5mm jack):

  • Headphone output power over 32Ω: 108mW (@ THD + N 0.1%) Out of 64Ω: 104mW, 150Ω: 86mW, 300Ω: 57MW

Headphone output power (unbalanced 6.35mm jack):

  • Output of the headphone output over 32Ω: 56mW (@ THD + N 0.1%) Out of 64Ω: 45mW, 150Ω: 28mW, 300Ω: 16MW
  • Supply Voltage Supply: 5V
  • Power consumption: 5 W

USB Compatibility :

  • Windows 7/8 / 8.1 / 10 compatible with ASIO. Mac OSX10.6 and above. Support OTG

Recommended reading software:

  • PC: Foobar2000
  • MAC: Audirvana

Dimensions and Weight / Package:

  • Weight: 397g
  • Size: 160x130x22mm

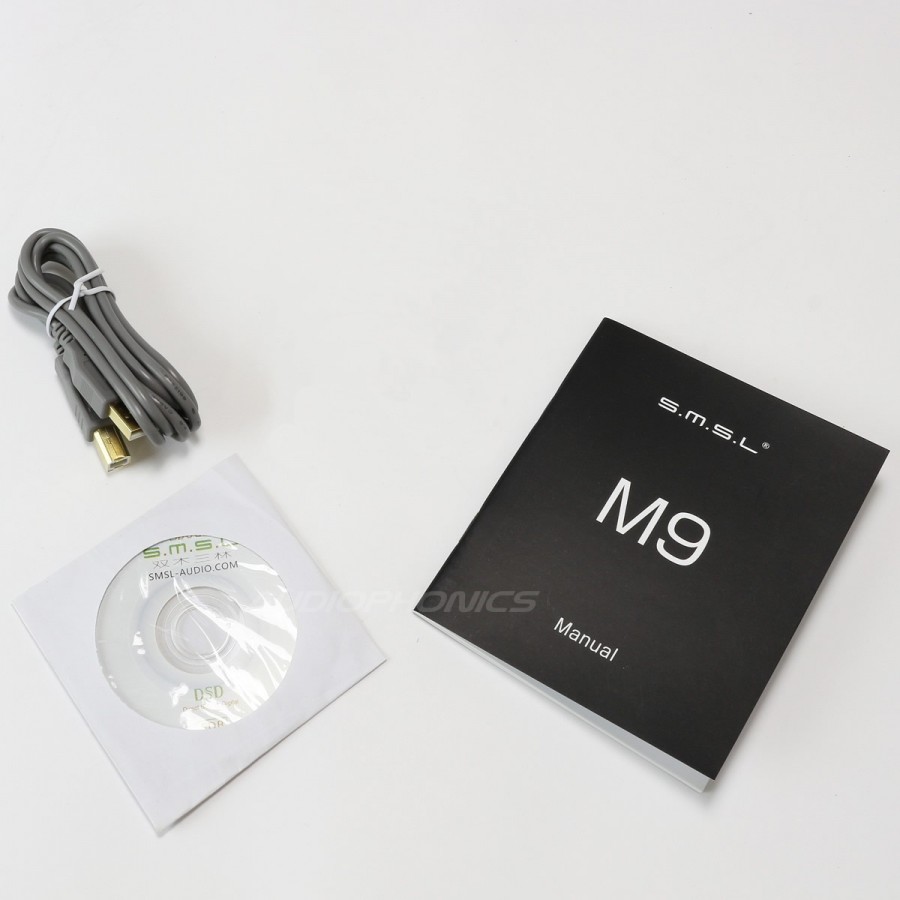

  • AC Adapter / USB-B to USB-A Cable / User's Guide / Driver CD

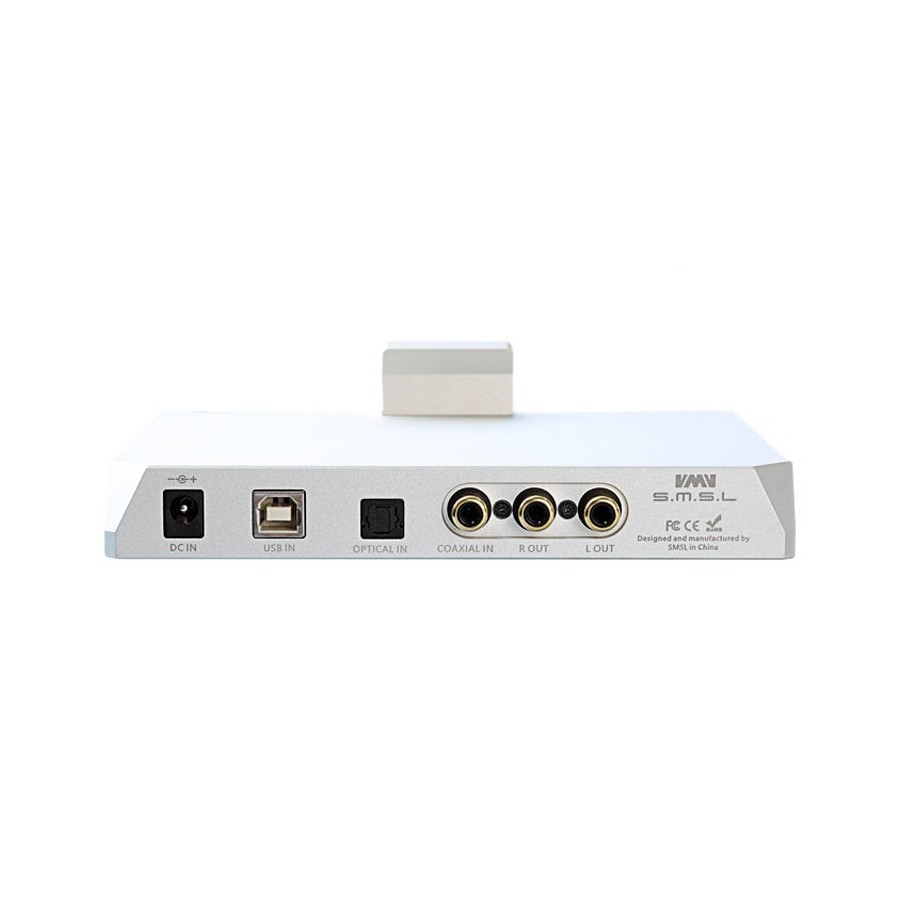

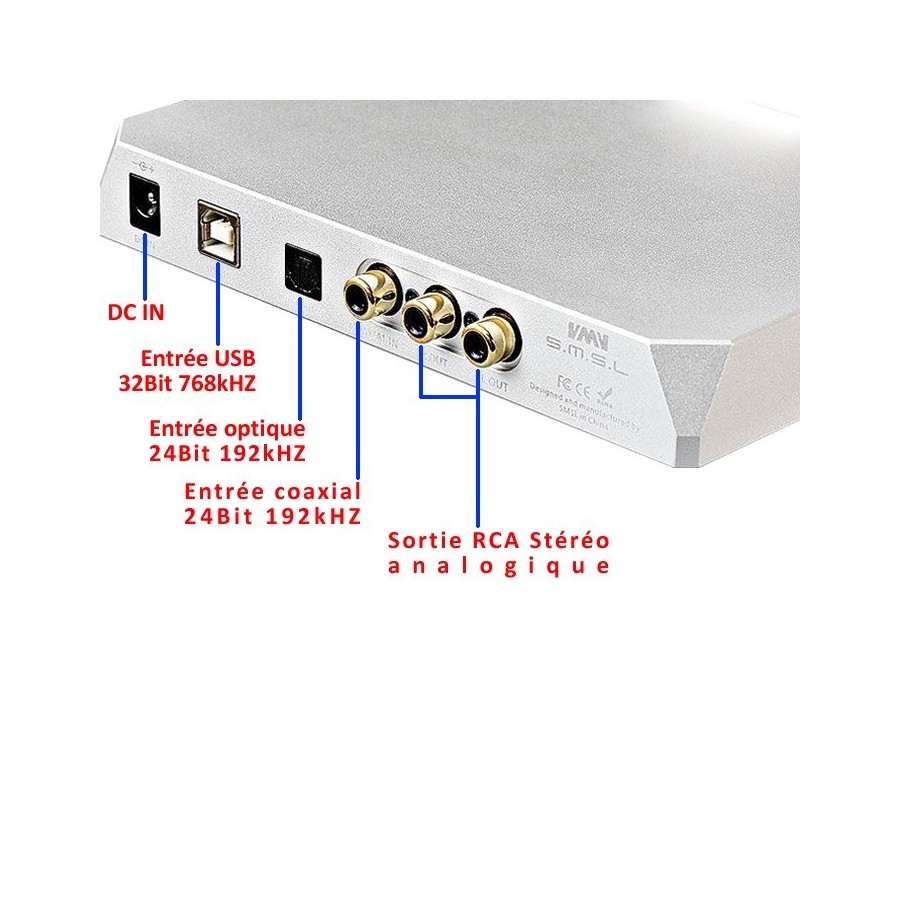

Inputs and outputs SMSL M9 DAC

dac smsl m9 ak4490Type and function of the digital filters

dac smsl m9 ak4490

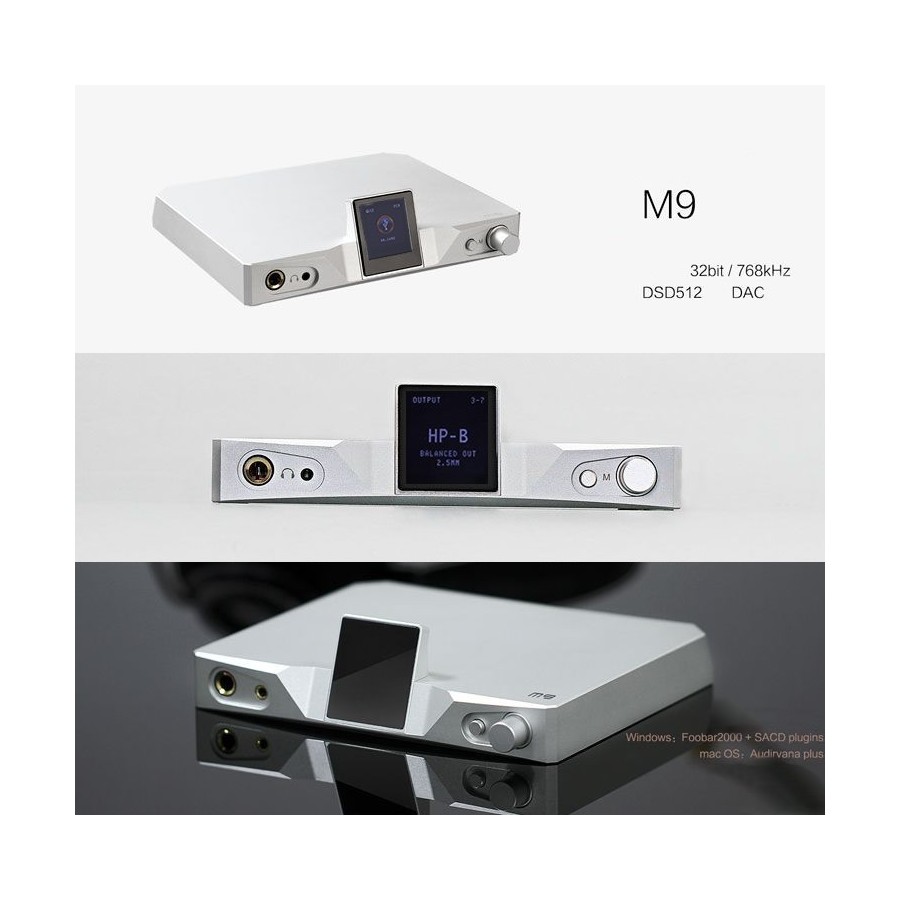

SMSL M9 DAC DISPLAY

dac smsl m9 ak4490

Headphone outputs asymmetrical 6.35mm and symmetrical 2.5mm

dac smsl m9 ak4490

dac smsl m9 ak4490


Data sheet
InputSPDIF
InputOptical
OutputRCA
OutputJack 2.5mm
OutputJack 6.35mm
DAC / ADC ChipAK4490
Max sampling rate768kHz
ColorSilver
NetworkingNo
Remote ControlNo
