FOSI AUDIO GR70 Tube Headphone Amplifier

The Fosi Audio GR70 is a headphone amplifier based on a combination of 2 x 564AW and 2 x 6AC7 tubes. As a result, it delivers a smooth, warm and authentic sound. Thanks to its LOW/HIGH gain control, it can drive headphones with impedances ranging from 16 ohms to 300 ohms.

Average votes for this product
5.0 / 5

By buying this product you get 18 loyalty points


Yes, notify me when available !
Reference : 20958
New product

189,00 €tax incl.

157,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Fosi Audio GR70 Tube Headphone Amplifier 5654W /  6AC7

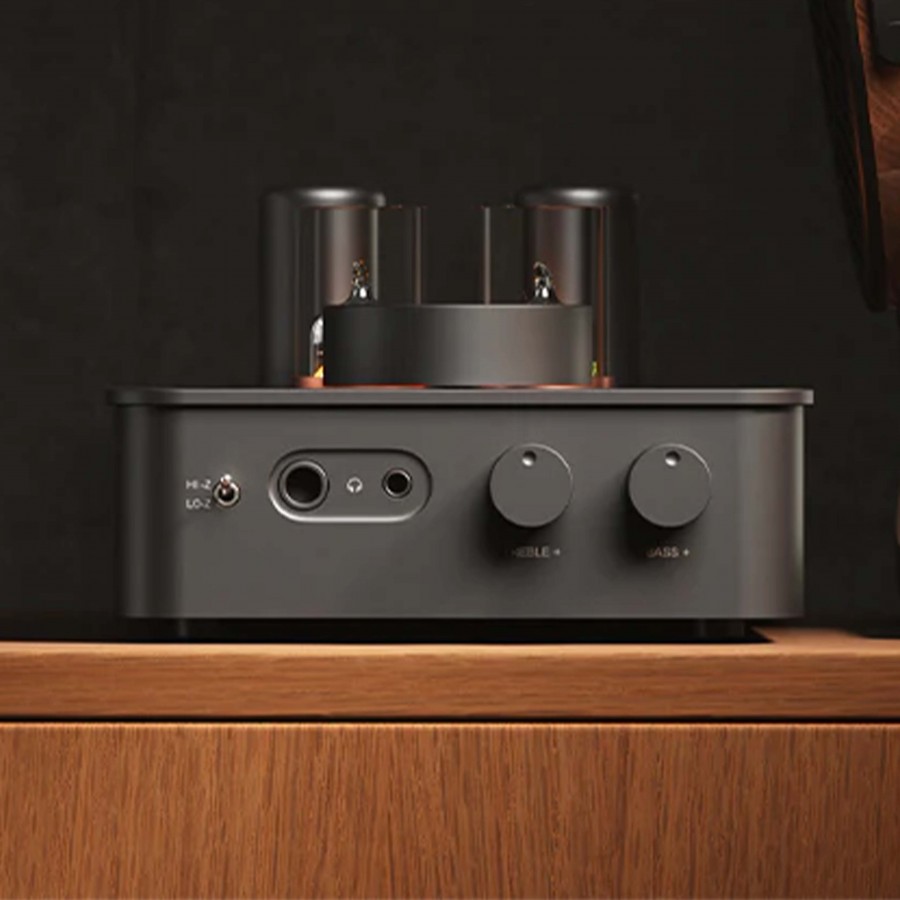

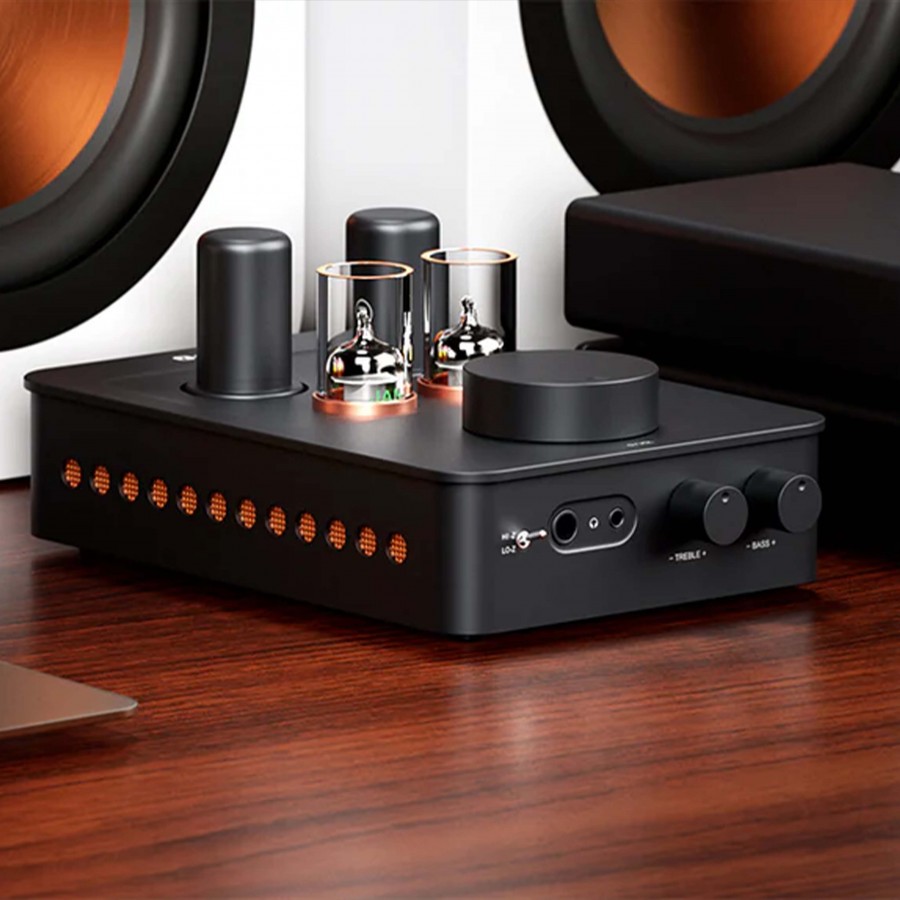

FOSI AUDIO GR70 picture

The Fosi Audio GR70 is a headphone amplifier based on a combination of two 564AW and two 6AC7 tubes. As a result, it delivers a smooth, warm and authentic sound. Thanks to its Low / High gain control, it can drive headphones with impedances ranging from 16 ohms to 300 ohms. In fact, it delivers up to 300mW of power at 32 ohms on its 3.5mm jack and 6.35mm jack headphone outputs. There's also a volume control, a tone control and an RCA output for use as a preamplifier. The GR70 is supplied with 12V 3A via DC jack.

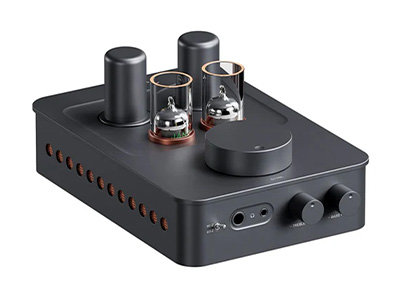

Fosi Audio GR70: Tube amplification

Within the Fosi Audio, 5654W tubes increase voltage while 6AC7s take care of power amplification. This configuration delivers the smooth, warm rendering so appreciated by tube aficionados. The GR70 delivers up to 300mW of power on its headphone outputs. Furthermore, the LO-Z setting accommodates low-impedance headphones from 16Ω to 120Ω, while the HI-Z setting drives headphones from 120Ω to 300Ω.

FOSI AUDIO GR70 tube amplification

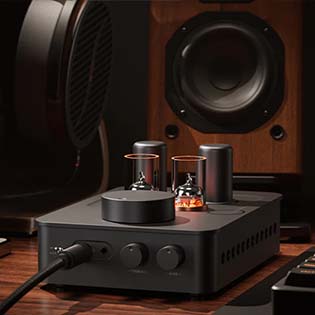

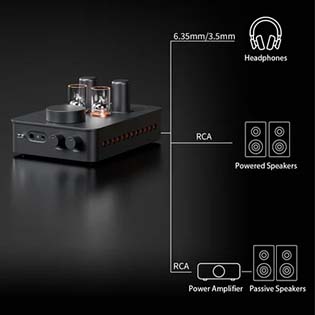

The pre-amplifier function of the FOSI AUDIO GR70

Fosi Audio GR70: Preamplifier feature

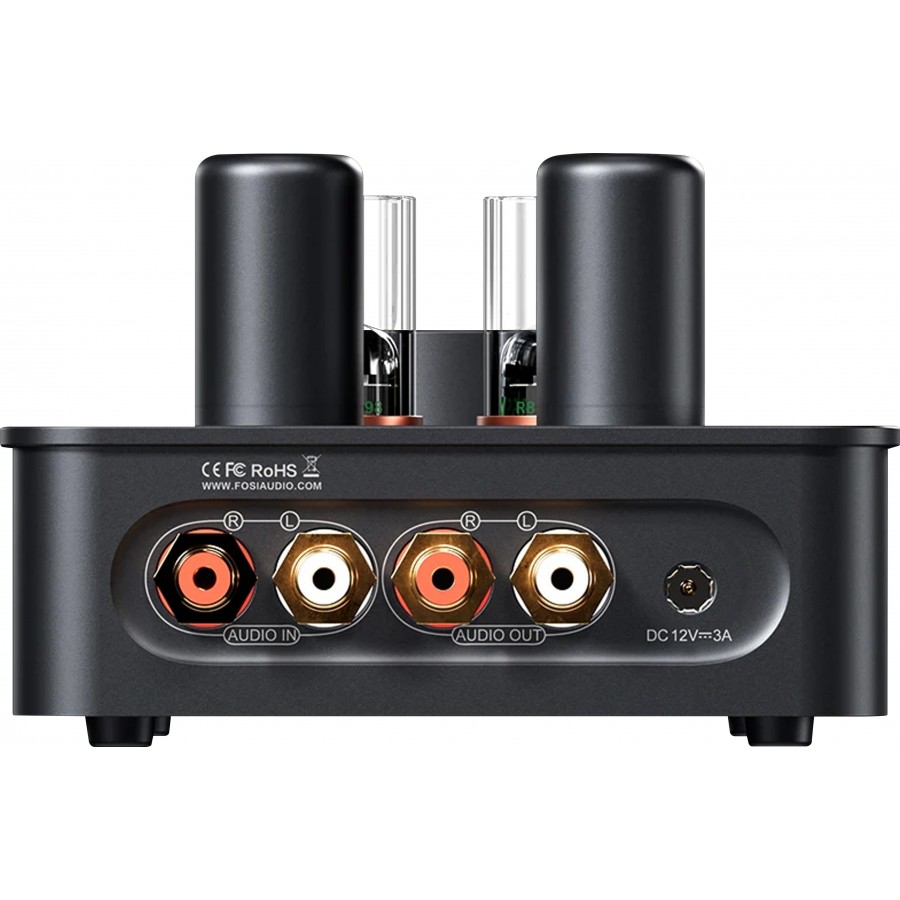

Fosi Audio has equipped its GR70 with an RCA output, enabling it to be used as a preamplifier with active speakers or a power amplifier, for example. This makes it easy to integrate the GR70 into a more complete Hi-Fi system.

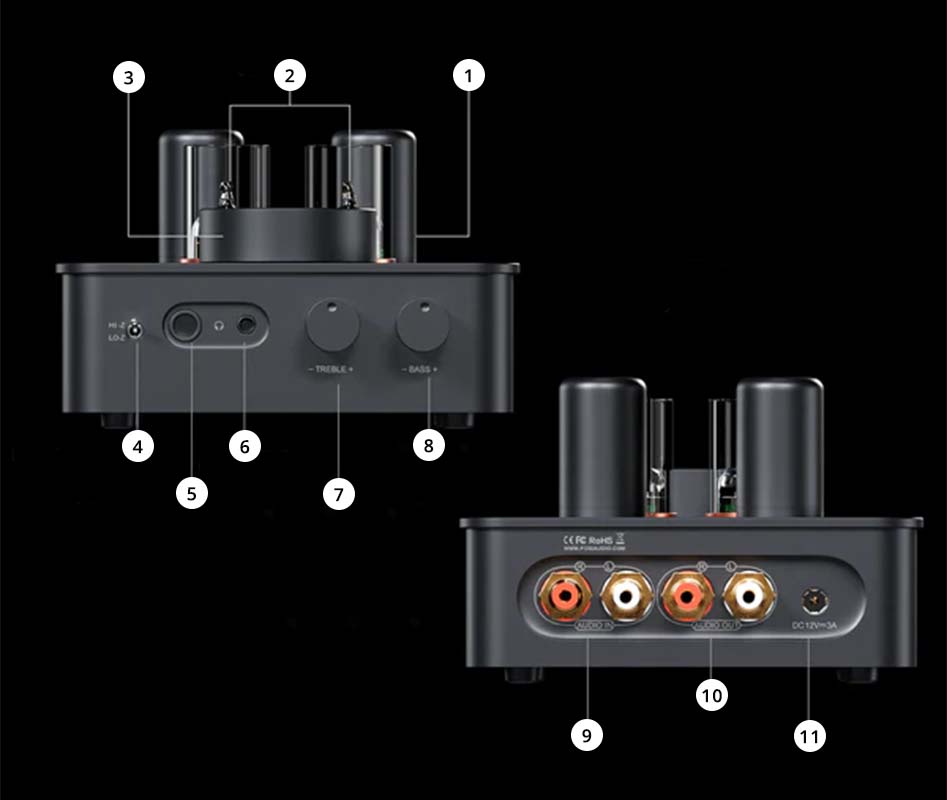

Fosi Audio GR70 overview

Fosi Audio GR70 overview
16AC7 tubes
25654W tubes
3Volume control
4Impedance setting
56.35mm headphone output
63.5mm headphone output
7Treble tone setting
8Low tone setting
9RCA input
10RCA output
1112V 3A power supply via DC jack

Technical characteristics

Specifications
Product typeHeadphone amplifier
Tubes2x 5654W
2x 6AC7
Inputs1x RCA line input
Outputs1x 3.5mm headphone output
1x 6.35mm headphone output

1x RCA output
Headphone output powerUp to 300mW @ 32 ohm
Headphone impedanceLO-Z mode: 16Ω-120Ω
HI-Z mode: 120Ω-300Ω
Frequency response20Hz-20kHz (+/-1dB)
SNR≥ 97dB
Dynamic range≥ 97dB
THD+NHeadphone output: ≤0.5%
RCA output: ≤0.26%
General
Power supply12V 3A via jack DC
Dimensions1x 46 x 192 x 129mm
Weight900g
Package1x Fosi Audio GR70
2x 5654W tubes
2x 6A7C tubes
2x Tube protector
1x Mains adapter 12V 3A

Data sheet
InputRCA
OutputRCA
OutputJack 6.35mm
OutputJack 3.5mm
ColorBlack
ClassTube amp
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Excellent ! 100% Tube Vraie Classe A ! Prix ridicule par rapport à ses performances
Après une semaine de rodage et avoir testé pleins de configuration de casques différentes (planar: Oppo 1PM, ETHERC by Dan Clark, FT1 pro; hybrides : Mezze Liric ; dynamiques : FiiO FT1, DT700, FOCAL BATHYS, FOSTEX TH600,.. ) ainsi plusieurs IEM de différentes sensibilités et d’impédance voici mon avis sur cette petite merveille


Basses
La réponse dans le grave est ample, ronde mais bien contrôlée. Le GR70 donne du poids aux basses, notamment en mode impédance haut, mais ne noie jamais le reste du spectre. Les amateurs de basses profondes pourront affiner encore ce registre grâce aux réglages de tonalité physiques.

Médiums
le médium est riche, vivant, très légèrement en avant. Les voix, en particulier féminines, gagnent en chaleur sans exagération. Les instruments acoustiques bénéficient d’une restitution texturée et nuancée, rendant l’écoute très “humaine”.

Aigus
Les aigus sont doux, non agressifs, avec une extension convenable et beaucoup d’air, mais sans brillance excessive. On relève une absence totale de sibilance et aucun effet de projection artificielle : la restitution garde une belle fluidité et ne fatigue pas à l’écoute longue.

Scène sonore et image stéréo
Le GR70 propose une scène large et profonde “juste ce qu’il faut”, sans surjouer l’effet. L’imagerie stéréo est précise, avec une bonne localistation des instruments. Sur des enregistrements binauraux ou des musiques complexes, l’espace sonore paraît réaliste et immersif

Pour ceux qui veulent encore augmenter l’espace sonore et avoir encore plus de FUN , je conseille un changement de tube préamplificateur RCA d’origine par des une paire de Voskhod Rocket 6J1P-EV ! L’espace sonore est exceptionnel voire holographique ! Les aigus sont plus précis, aucune sibilance.

Ces tubes de l’ère soviétique sont plus musicaux que la monté d’origine , plus chaleureux tout en étant plus précis et plein de bonne harmoniques paires et confèrent au son cette texture douce, pleine et tridimensionnelle !
