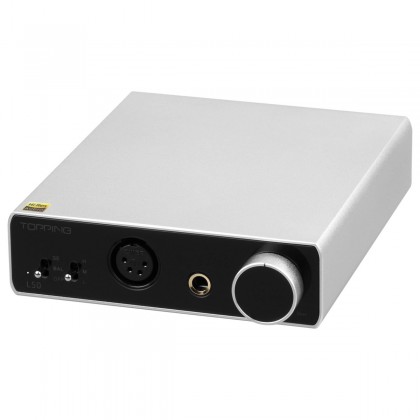

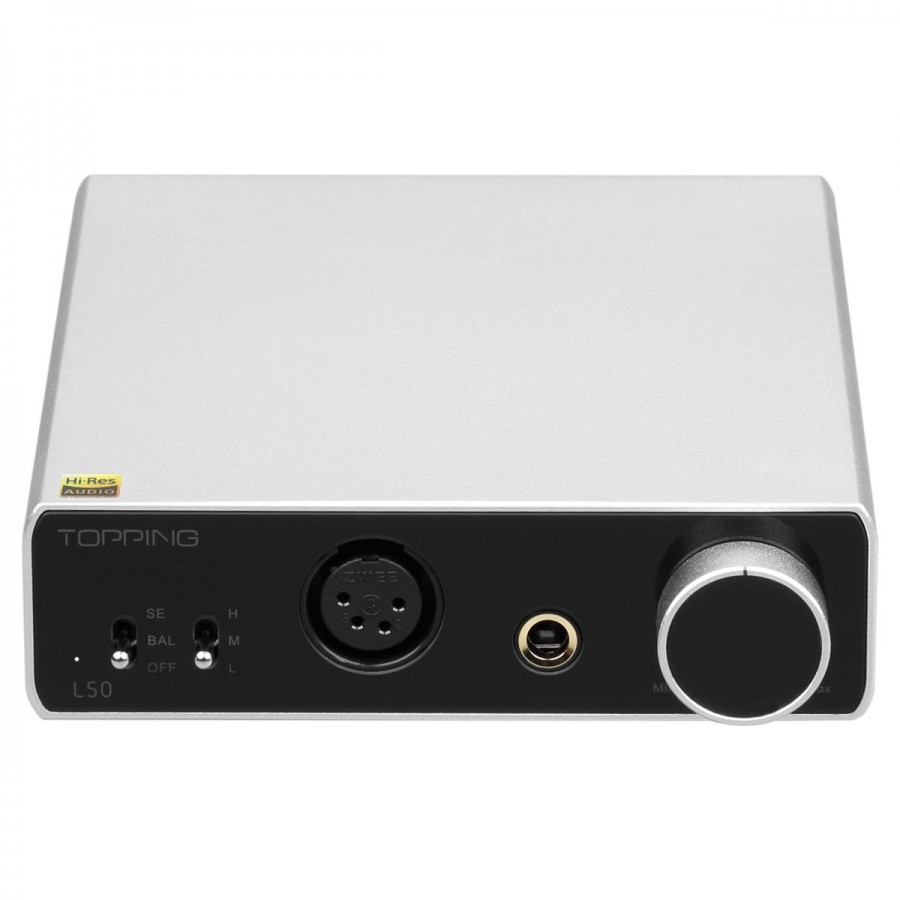

TOPPING L50 Balanced Headphone Amplifier NFCA Silver

TOPPING L50 Headphone Amplifier / Preamplifier Balanced NFCA Silver
The Topping L50 is a desktop headphone amplifier with an architecture optimized for incredible sound performance. It features a new generation NFCA circuit, based on the one used in the excellent A30 Pro. Versatile, it has a good power reserve and offers a gain control to adapt to all types of headphones.

No customer reviews yet, login to write a review.

By buying this product you get 16 loyalty points


Reference : 15590
New product

169,00 €tax incl.

140,83 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 27-02-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

Topping L50

Balanced Headphone Amplifier Preamplifier NFCA Silver

Topping L50 Amplificateur Casque Préamplificateur Symétrique NFCA

The Topping L50 is a desktop headphone amplifier with an architecture optimized for incredible sound performance. It features a new generation NFCA circuit, based on the one used in the excellent A30 Pro. Versatile, it has a good power reserve and offers a gain control to adapt to all types of headphones.

Topping L50 Amplificateur Casque Préamplificateur Symétrique NFCA
Topping L50 Amplificateur Casque Préamplificateur Symétrique NFCA

NFCA Circuit

The L50's NFCA circuitry allows it to develop considerable power, twice that of the L30 at 300Ω impedance. This design also achieves a very low noise level of only 0.3µV, a dynamic range of 145dB and a THD+N of 0.00006%.

Single-ended & Balanced

The Topping L50 has both single-ended and balanced connectors to adapt to your listening equipment. It offers single-ended RCA and balanced 6.35mm TRS jacks as inputs. In the same way, at the output, we find a balanced XLR 4 poles and a single-ended 6.35mm jack.

Topping L50 Amplificateur Casque Préamplificateur Symétrique NFCA

Pass-through function

When the L50 is switched off, the input signal goes directly to the RCA and TRS outputs, without amplification. It can thus work with active speakers, if the DAC has a preamplification function.

Technical characteristics

Specifications
Product typeHeadphone amplifier
Inputs1x Balanced stereo Jack 6.35mm TRS
1x Single-ended stereo RCA
Outputs1x Balanced XLR 4 poles headphone output
1x Single-ended Jack 6.35mm headphone output
1x Balanced stereo Jack 6.35mm TRS
1x Single-ended stereo RCA
Measurements
Single-endedBalanced
THD+N @ 1kHz, A-Weighting< 0.00006% @ 780mW, 32Ω< 0.00006% @ 780mW, 32Ω
< 0.00006% @ 333mW, 300Ω< 0.00006% @ 333mW, 300Ω
THD @ 20Hz-20kHz, 90kBW< 0.00008% @ 780mW, 32Ω< 0.0001% @ 780mW, 32Ω
< 0.00008% @ 76mW, 300Ω< 0.0001% @ 76mW, 300Ω
SNR @ Max Out, 1kHz, A-Weighting145dB140dB
SNR @ 50mV, 1kHz104dB104dB
Dynamic range @ 1kHz, A-Weighting145dB140dB
Frequency response20Hz - 40kHz (±0.05dB)20Hz - 40kHz (±0.1dB)
Output level35Vpp @ G=L6.6Vpp @ G=L
35Vpp @ G=M35Vpp @ G=M
37Vpp @ G=H37Vpp @ G=H
Measured noise level @ A-Weighting< 0.7µVrms @ G=L< 0.7µVrms @ G=L
< 0.7µVrms @ G=M< 0.7µVrms @ G=M
< 1.2µVrms @ G=H< 1.2µVrms @ G=H
Crosstalk @ 1kHz-119dB-113dB
Input sensitivity60Vrms @ G=L12.7Vrms @ G=L
12Vrms @ G=M12Vrms @ G=M
2.7Vrms @ G=H2.7Vrms @ G=H
Gain-14.3dB @ G=L-14.5dB @ G=L
-0.1dB @ G=M-0.3dB @ G=M
13.9dB @ G=H13.7dB @ G=H
Output impedance< 0.1Ω< 0.1Ω
Output power2x 3500mW @ 16Ω, THD+N < 0.1%
2x 2800mW @ 32Ω, THD+N < 0.1%
2x 2000mW @ 64Ω, THD+N < 0.1%
2x 540mW @ 300Ω, THD+N < 0.1%
2x 290mW @ 600Ω, THD+N < 0.1%
Adapter impedance> 8Ω
General
Power supply15V AC via Jack DC (included)
Dimensions129 x 166 x 41mm
ColorSilver
Package1x Topping L50 Silver
1x Jack 6.35mm to Jack 3.5mm adapter
1x Power supply 15V AC
Topping L50 Amplificateur Casque Symétrique NFCA Topping L50 Amplificateur Casque Symétrique NFCA

Data sheet
InputRCA
InputJack 6.35mm
OutputRCA
OutputJack 6.35mm
OutputXLR
ColorSilver
ClassN/A
Remote ControlNo
