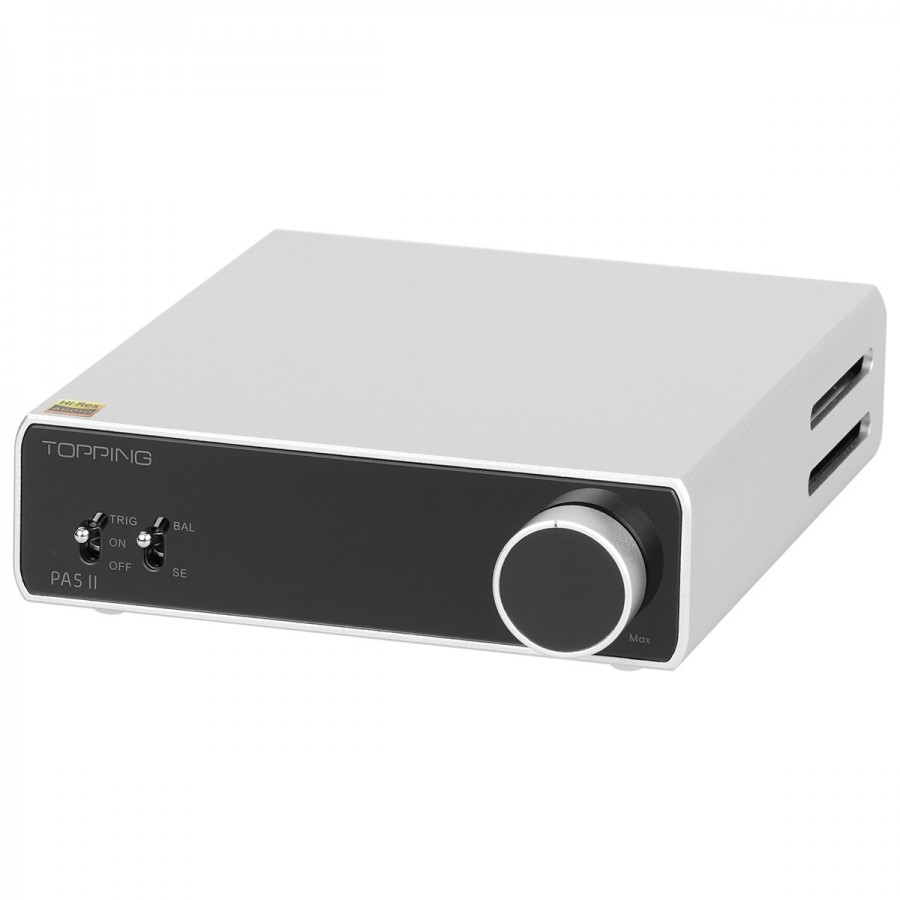

TOPPING PA5 II Class D Amplifier Balanced 2x100W 4 Ohm Silver

TOPPING PA5 II Class D Amplifier Balanced 2x100W 4 Ohm Silver
Topping's PA5 II amplifier is a compact and powerful model, adopting a totally balanced structure and an innovative Class D amplifier circuit, enabling it to develop a significant power of 2x100W under 4Ω with a low level of distortion. The excellent parameterisation carried out by the brand's engineers ensures clear, clean and deep sound reproduction, with no background noise. At 5W and 4Ω, THD+N is measured at less than 0.0004%.

No customer reviews yet, login to write a review.

By buying this product you get 24 loyalty points


Reference : 18003
New product

249,00 €tax incl.

207,50 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 02-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Topping PA5 II

Class D Amplifier Balanced 2x100W 4 Ohm Silver

Topping PA5 II Class D Amplifier Balanced 2x100W 4 Ohm Silver

Topping's PA5 II amplifier is a compact and powerful model, adopting a totally balanced structure and an innovative Class D amplifier circuit, enabling it to develop a significant power of 2x100W under 4Ω with a low level of distortion. The excellent parameterisation carried out by the brand's engineers ensures clear, clean and deep sound reproduction, with no background noise. At 5W and 4Ω, THD+N is measured at less than 0.0004%.

The PA5 II also incorporates an effective and comprehensive protection circuit, acting against overvoltage, undervoltage, short-circuit, overcurrent and overheating.

On the input side, there is a choice of single-ended stereo RCA or two 6.35mm TRS jacks for balanced input. Output is via conventional speaker terminals that accept banana plugs. There's also a 12V trigger on the rear of the unit, enabling the PA5 II to be connected to other devices for automatic on/off.

To use the 12V trigger function, it must be activated using the switch on the front of the device.

Topping PA5 II Class D Amplifier Balanced 2x100W 4 Ohm Silver
Topping PA5 II Class D Amplifier Balanced 2x100W 4 Ohm Silver
1ON-OFF / Trigger switch
2ON/OFF LED indicator
3Input switch
4Volume button
5Balanced Jack 6.35mm TRS left channel input
6Single-ended RCA left channel input
7Speaker R+ output
8Speaker L+ output
9Power input
10Balanced Jack 6.35mm TRS right channel input
11Single-ended RCA right channel input
12Trigger 12V Jack 3.5mm input
13Speaker HP output
14Speaker HP output

Technical characteristics

Specifications
Product typeAmplifier
Amplification typeClass D
InputsSingle-ended stereo RCA
Balanced Jack 6.35mm TRS
OutputSpeaker terminals
Trigger12V
Balanced input measurements
THD+N (@ 1kHz, A-Weighted)< 0.0004% @ 4Ω 5W
< 0.0003% @ 8Ω 5W
THD+N (@ No-Weighted, 20kBW)< 0.0015% @ 4Ω 5W
< 0.0006% @ 8Ω 5W
SNR124dB (@ max out, 1kHz, A-Weighted)
Dynamic range124dB (@ 1kHz, A-Weighted)
Frequency response20Hz - 40kHz (±0.3dB)
Output level65Vpp @ 4Ω
68Vpp @ 8Ω
Noise< 15µVrms (@ A-Weighted)
Crosstalk-106dB (@ 1kHz)
Input sensitivity2.6Vrms
Gain19.2dB
Channel balance0.1dB
Output power2x100W @ 4Ω, THD+N < 10%
2x100W @ 4Ω THD+N < 1%
2x85W @ 8Ω, THD+N < 10%
2x65W @ 8Ω, THD+N <1%
Single-ended input measurements
THD+N (@ 1kHz, A-Weighted)< 0.0005% @ 4Ω 5W
< 0.0004% @ 8Ω 5W
THD+N (@ No-Weighted, 20kBW)< 0.0015% @ 4Ω 5W
< 0.0006% @ 8Ω 5W
SNR121dB (@ sortie max, 1kHz, A-Weighted)
Dynamic range121dB (@ 1kHz, A-Weighted)
Frequency response20Hz - 40kHz (±0.3dB)
Output level65Vpp @ 4Ω
68Vpp @ 8Ω
Noise< 15µVrms (@ A-Weighted)
Crosstalk-90dB (@ 1kHz)
Input sensitivity1.3Vrms
Gain25dB
Channel balanced0.1dB
Output power2x100W @ 4Ω, THD+N < 10%
2x100W @ 4Ω THD+N < 1%
2x85W @ 8Ω, THD+N < 10%
2x65W @ 8Ω, THD+N <1%
General
Supply voltage38VDC 3A
Power consumption< 0.5W
Dimensions (W*D*H)129*166*41mm
Weight680g
ColorSilver
Package1* Topping PA5 II
1* Power supply

Data sheet
InputJack 6.35mm
OutputSpeaker terminal
ColorBlack
Channel2 (Stereo)
ClassClass D / T
Amplifier chipN/A
Power (W)125.0
Remote ControlNo
