HDMI I2S LVDS to I2S Input Module HDMI I2S LVDS to I2S Output

I2S to HDMI Module

Average votes for this product
5.0 / 5

By buying this product you get 2 loyalty points

Reference : 12422
New product

24,90 €tax incl.

20,75 € tax excl.
Including 0,01 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

More info

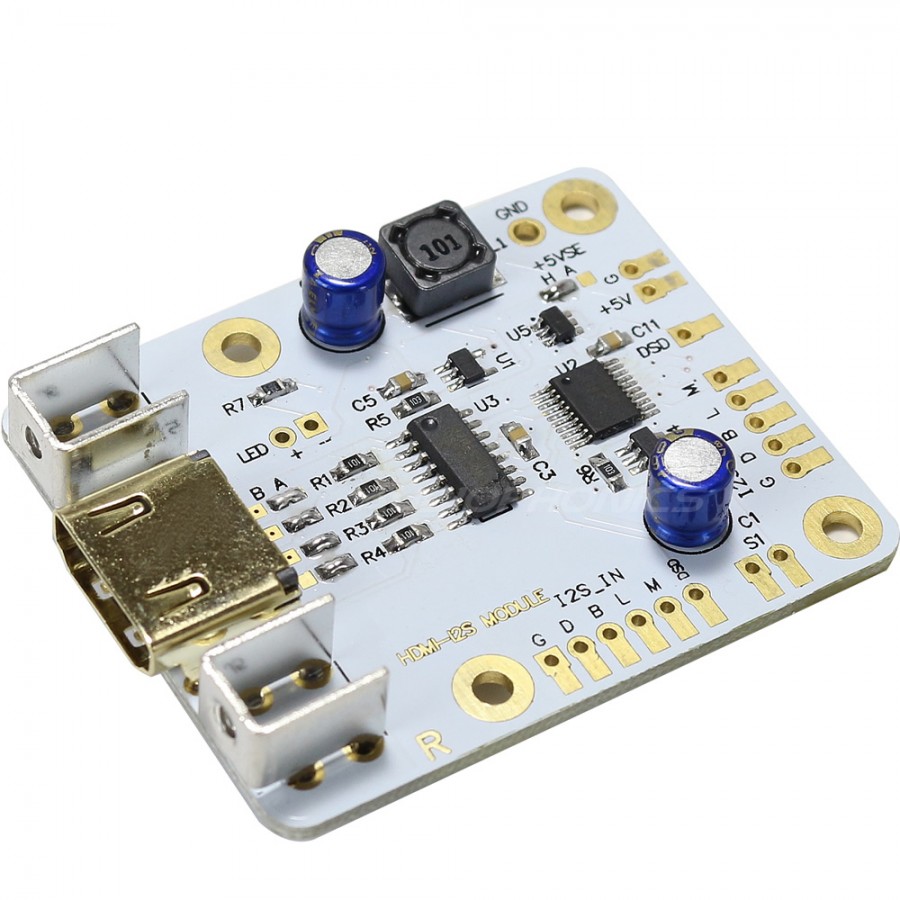

This HDMI LVDS I2S to I2S output HDMI LVDS input module is of high quality electronic design. With LDO ADP150 controllers, a high speed low jitter RS422 logic gate and a native DSD on mode, it is ideal for the design of DAC, audioophile level streamer.

The circuit board provides an HDMI LVDS input and a classic TTL I2S TTL input that can be selected by means of an optional push-button switch ("S1" on the circuit board).



High speed Logical door typeTexas Instrument DS90LV048A 3V QUAD
Voltage DC5V


Dimensions, poids, divers
DimensionsWidth 45mm, Length 55mm, Height 10mm
Mounting Frame screwsM3 Screws type

Mapping I2S / LVDS
A synthesis of main IIS on LVDS pinouts mapping is available here.

Data sheet
InputI2S via HDMI
Max sampling rateNC
Interface chipNC

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
Date :
It works O.K. but...
...But you will have to cut the solder between the ''H'' and the center point at the power-Supply section and solder the ''A'' point to the center point. This is necessary to use this board Power-supply which will deliver the 3.3 V DC to the ICs. Initially, using the ''H'' to center point connection you will use the HDMI cable voltage provided by the Source, in my case it didn't work because the Source provided only 1 V DC. I hope it helps. Enjoy!
This review has been posted for HDMI I2S LVDS to I2S Input Module HDMI I2S LVDS to I2S Output
