It is used for the manufacture of high-end power strip
Allows connection of 6 Schuko sockets and polarity reversal
Aluminum Power Supply
A solid foundation for powering your HiFi system
With brass rails of very large section (about 6 mm ²).
This power strip is supplied without mains cable.
Note that for most high-end power cables the input of the power strip will have to be enlarged, as the input diameter is 9mm.
Characteristics :
- Body in Aluminum
- Made in Germany
- Supplied without mains cable
- Length 380mm, width 60mm, height 45mm.




Having had several requests on the connection of the cables on the power strip here is the method:

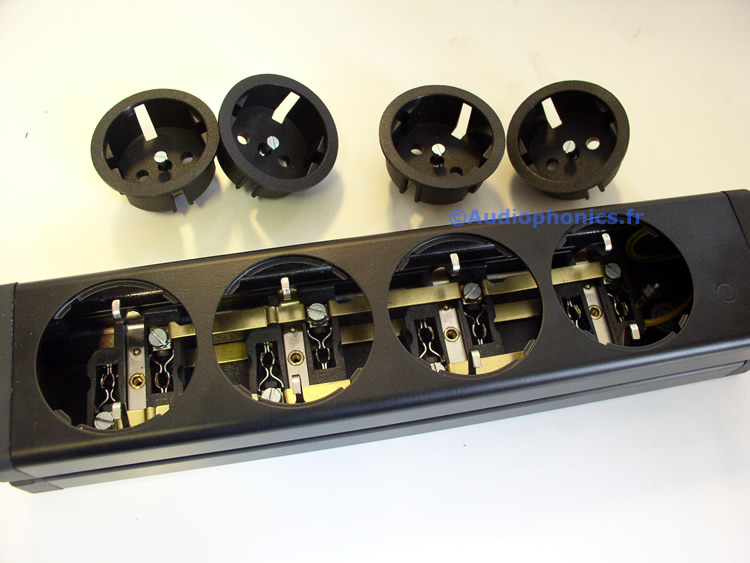

Remove the 6 SCHUKO bases
Open the power strip in 2
Unscrew the ground nut on the inside so that the bases can be slid.

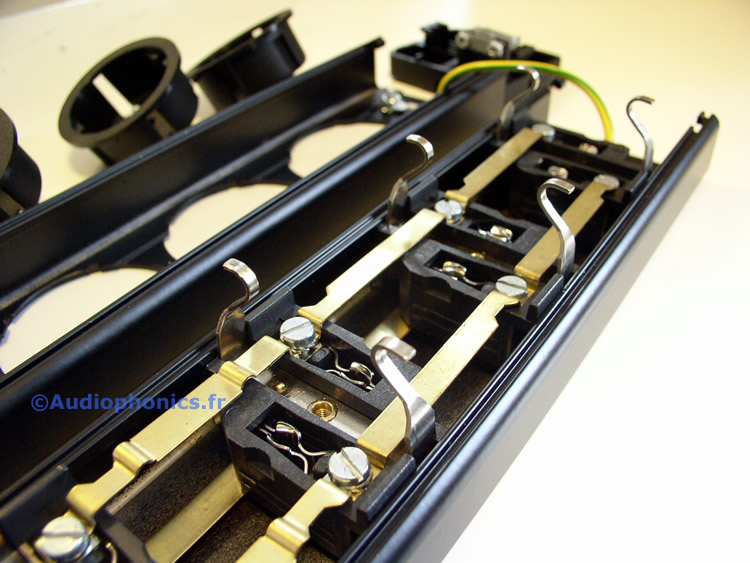

Once the first socket outlet you will discover a terminal block actuated by the screw present on the top of the "rails"
