FIIO KA1 Portable DAC ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA

FIIO KA1 Portable DAC ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA

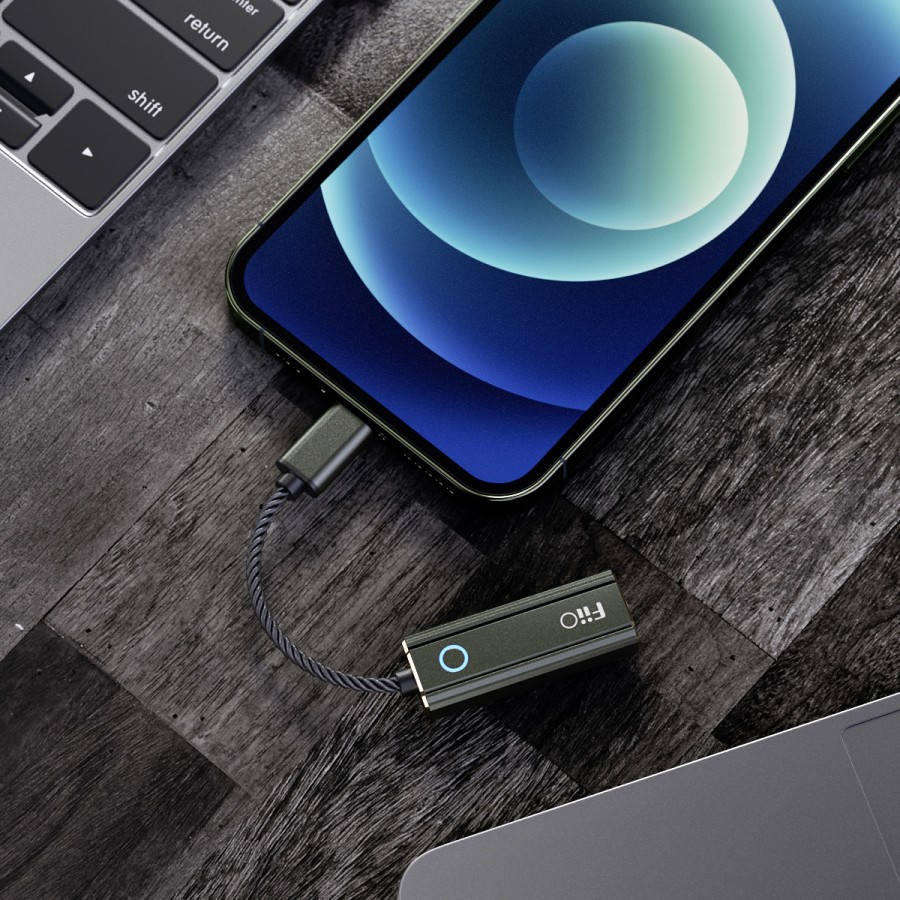

This small FiiO KA1 portable DAC is small only in size. It offers excellent audio performance, thanks to high quality components that allow it to support high sampling rates while revealing a rich, detailed and dynamic sound. An ideal companion for anyone who wants to improve the sound quality of a smartphone or even a computer.

No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points


Reference : 16520
New product

54,90 €tax incl.

45,75 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 16-10-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

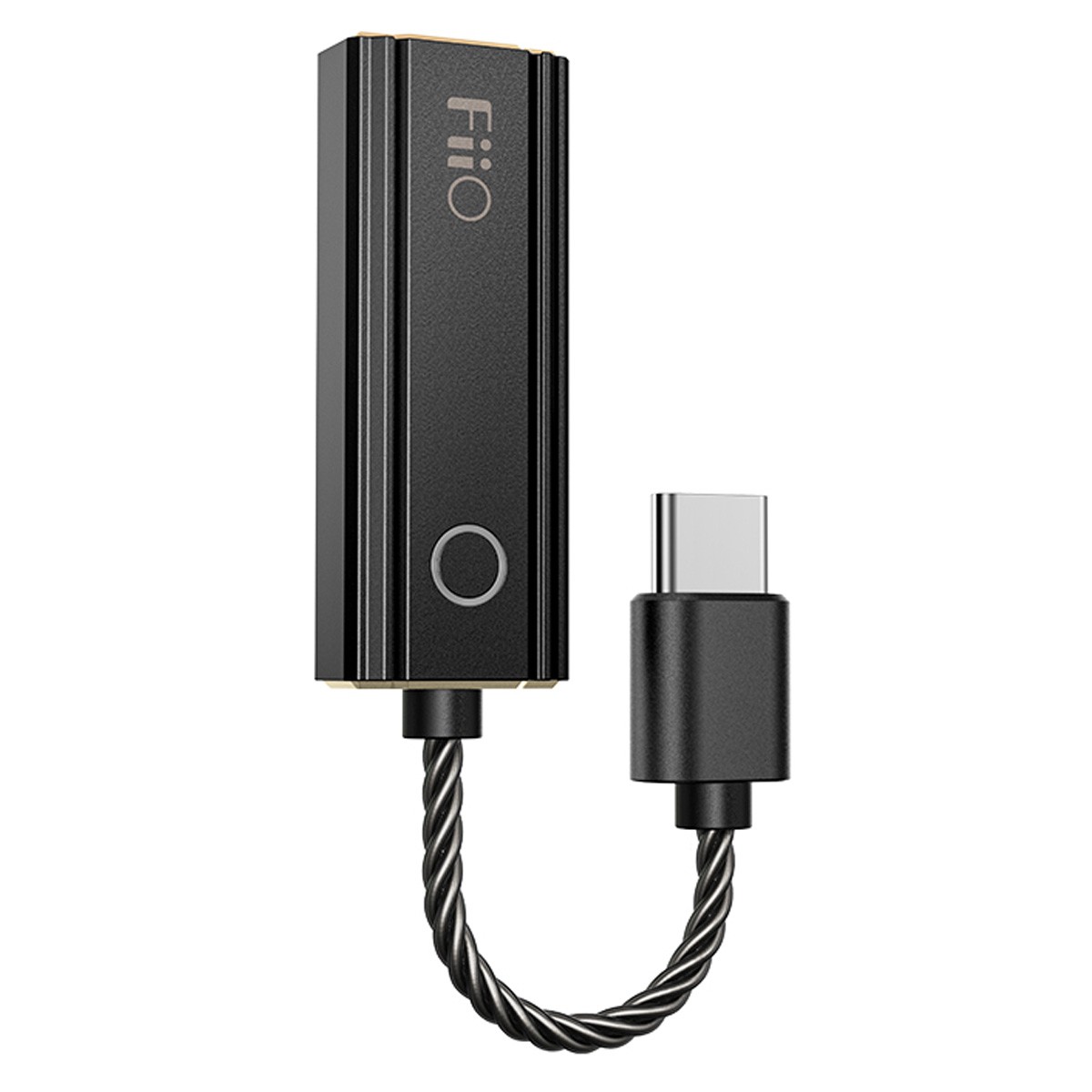

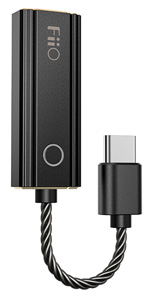

FiiO KA1

Portable DAC ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA

FiiO KA1 DAC Portable ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA

This small FiiO KA1 portable DAC is small only in size. It offers excellent audio performance, thanks to high quality components that allow it to support high sampling rates while revealing a rich, detailed and dynamic sound. An ideal companion for anyone who wants to improve the sound quality of a smartphone or even a computer.

FiiO KA1 DAC Portable ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA

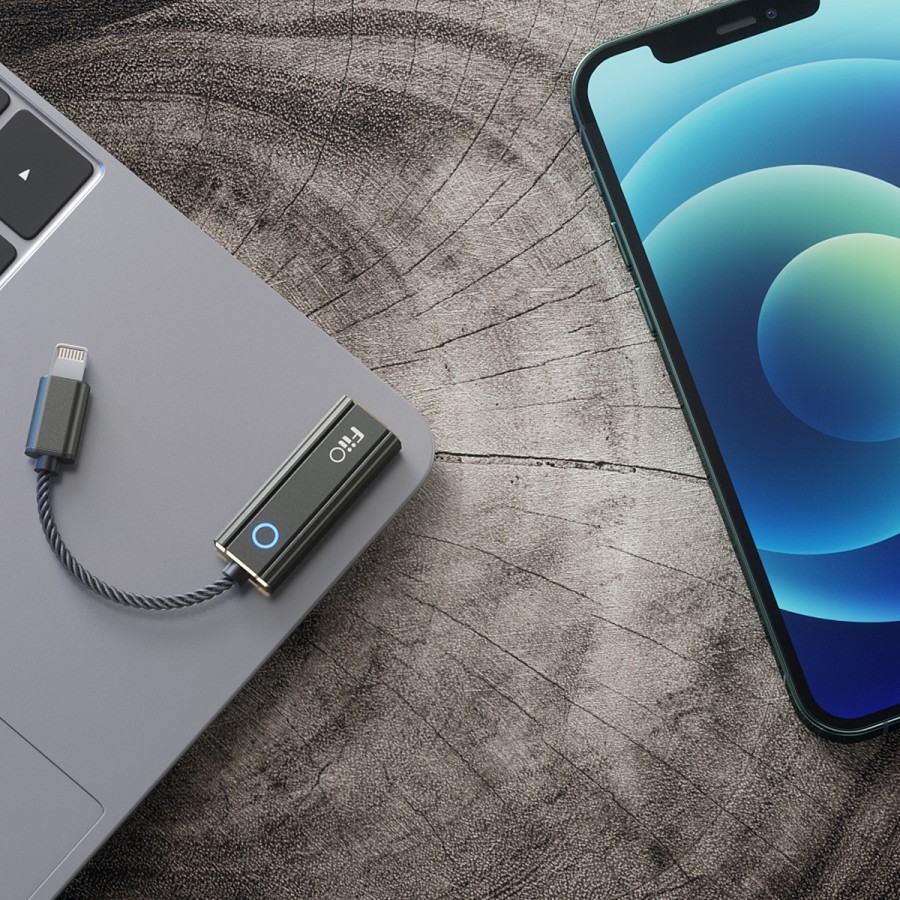

Compact & Powerful

With dimensions of only 40x15x8mm, one might think that the available space is quite meager to offer a quality audio device. For the FiiO KA1 not only integrates a high-end DAC, but also embeds a powerful amplification circuit, each element being meticulously optimized by the brand's engineers. The KA1 is thus able to reproduce your music with great fidelity.

FiiO KA1 DAC Portable ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA
FiiO KA1 DAC Portable ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA

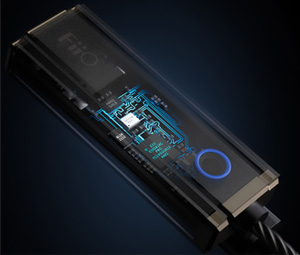

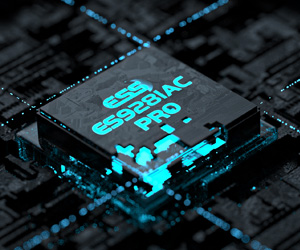

ESS ES9281AC Pro DAC

At the heart of the KA1 is an ESS ES9281AC Pro digital-to-analog conversion chip, combining a USB audio interface, DAC and amplifier in a single chipset. Combined with a gold-plated multi-layer HDI PCB, the result is very low crosstalk, high efficiency with low power consumption and pure sound reproduction.

High-end decoding

The intelligent design of the FiiO KA1 allows it to support high sampling rates for the most detailed sound reproduction possible. It supports PCM streams up to 32bit 384kHz, native DSD up to DSD256 and DSD DoP up to DoP128.

FiiO KA1 DAC Portable ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA
FiiO KA1 DAC Portable ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA

MQA Rendering

The FiiO KA1 is also officially MQA (Master Quality Authenticated) certified. It is therefore fully capable of rendering this type of file, allowing to enjoy a sound as close as possible to the original studio recording, while keeping a limited file size. This is particularly good news for owners of a TIDAL account, the famous streaming platform offering this format for audiophile listening.

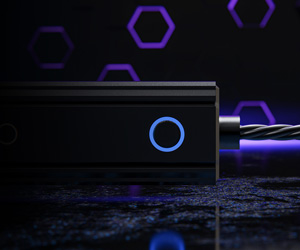

Status indicator

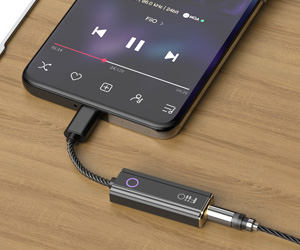

On the front panel, the KA1 displays a circular RGB LED indicator. This one displays in real time the type of file being played, according to the following color code:

  • Blue : 48kHz or below
  • Jaune : greater than  48kHz
  • Vert : DSD
  • Magenta : MQA
FiiO KA1 DAC Portable ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA
FiiO KA1 DAC Portable ES9281AC Pro USB-C 32bit 384kHz DSD256 MQA

Technical characteristics

Specifications
Product typePortable DAC
DAC ChipESS ES9281AC Pro
Input1x Male USB-C
Output1x Female Jack 3.5mm
Supported sampling ratesPCM up to 32bit 384kHz
Native DSD up to DSD256
DSD DoP up to DoP128
MQA
Channel balance< 0.05dB (32Ω, THD+N < 1%)
Output power43mW @ 16Ω, THD+N < 1%
45mW @ 32Ω, THD+N < 1%
13mW @ 300Ω, THD+N < 1%
6.8mW @ 600Ω, THD+N < 1%
Output amplitude1.2V @ 32Ω, THD+N < 1%
Channel separation≥ 73dB @ 1kHz, 32Ω
Output impedance< 1.5Ω
Frequency response20Hz - 20kHz (amplitude curve varying by 0.1dB)
20Hz - 50kHz (amplitude curve varying by 0.3dB)
SNR≥ 114dB @ 32Ω, A-Weighted
THD+N0.0005%
General

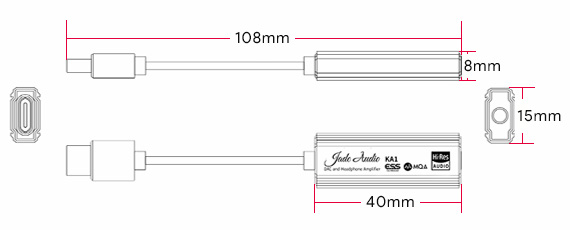

Dimensions40 x 15 x 8mm
Cable length~ 70mm
Weight10g
ColorBlack
Package1x FiiO KA1
1x Female USB-C to male USB-A adapter

Data sheet
InputUSB
OutputJack 3.5mm
DAC / ADC ChipES9281AC
Max sampling rateMQA
Max sampling rateDSD256
Max sampling rate384kHz
ColorBlack
NetworkingNo
Remote ControlNo
