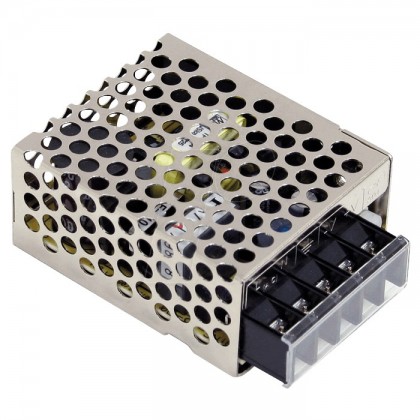

MEAN WELL RS-15-15 SMPS 15W 15V Switching Power Supply Module

Meanwell RS-15-15 Switching Power Supply SMPS 15W 15V 1A

Characteristics:

• Power Rating: 15W
• Voltage Rating: 15
• Tension adj. range: 13.5 ... 16.5 V
• Current Rating: 1A
• Efficiency: 81%
• Ripple and Noise: 120 mV
• AC input range 115V / 230V selectable by switch
• Protections: Short circuit / over load / overvoltage
• Input voltage: 88 ... 132/176 ... 264 V AC (47 .. .63 Hz), 248 ... 373 V DC
• Input Current Max: 65 A
• Max Leakage Current: 2 mA
• Output voltage adjustment: +10 / -5%
• More load protection:> 105%
• Operating Temperature Range: -25 ... +70 ° C
• Input Voltage 88 to 264 VAC
• Input voltage 248 to 373 VDC
• Efficiency: 81%
• Short Circuit Protection: Yes
• Overload protection: Yes
• Weight: 130 g
• Dimensions: 62.5 mm x 51 mm x 28 mm

• Download Datasheet RS-15 as PDF
