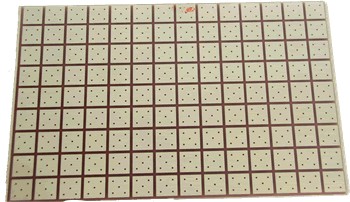

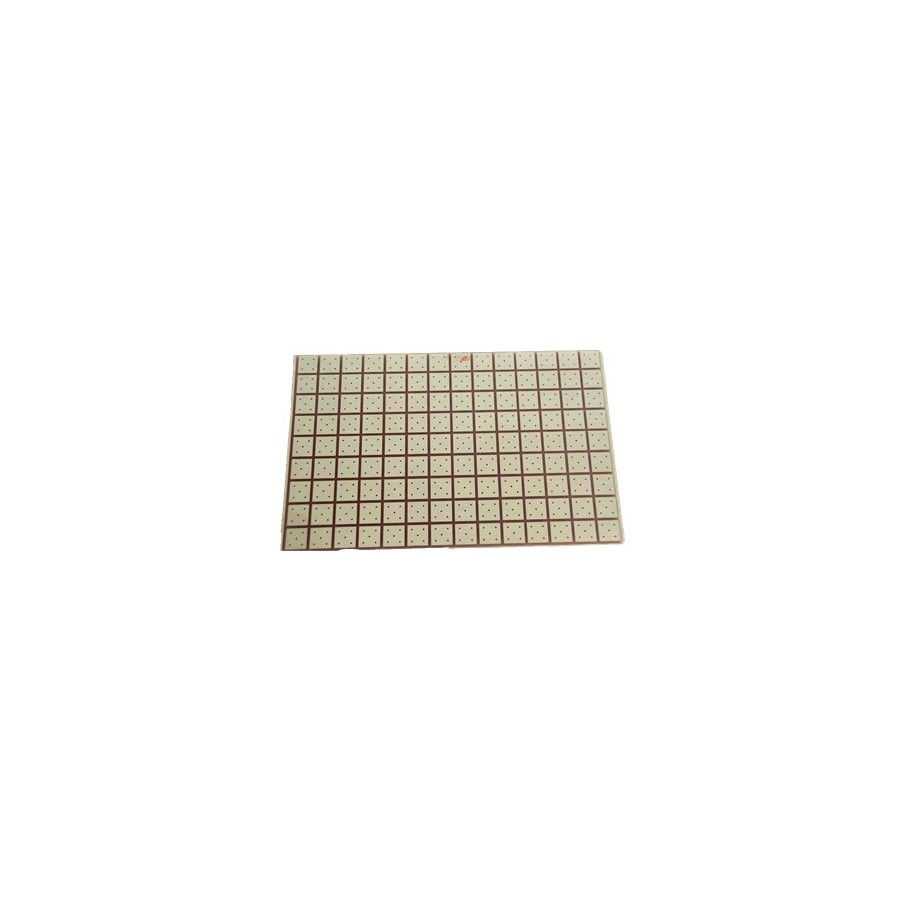

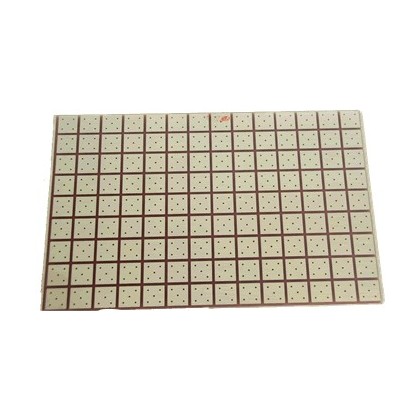

Universal mounting plate 283 x 182 mm

Universal Circuit Board

The Multiboard is a card developed for quick and easy construction using different parts and prototypes.
The welded side is divided into different copper zones, each measuring approximately 10 x 10 millimeters.

The components are glued directly to the side of the weld and the connecting wires are welded to the copper surface.
the connection between the components is made by using the connection wires of the components with the uninsulated copper or the silver wire or with the brass bands./ P>

Since the cards are almost an A4 size in their basic format, complex crossover components can also be assembled quickly and can be clearly arranged.
