HiVi S1 Medium Coaxial Ribbon Tweeter
![[GRADE B] MATRIX ELEMENT P2 Power Amplifier Class D Stereo 2x230W / Mono 1x850W 4 Ohm](https://www.audiophonics.fr/62087-thumb_default/matrix-element-p2-power-amplifier-class-d-stereo-2x230w-mono-1x850w-4-ohm.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)

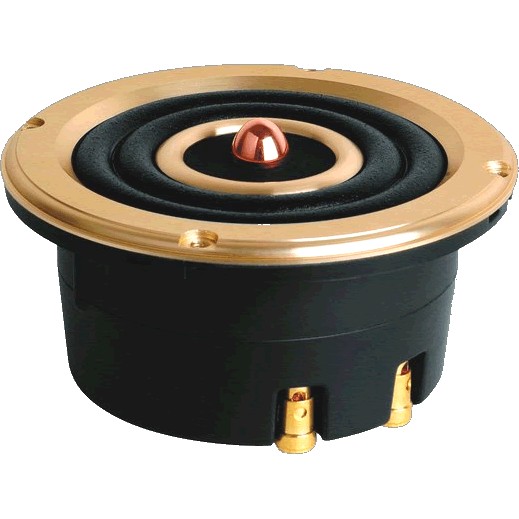

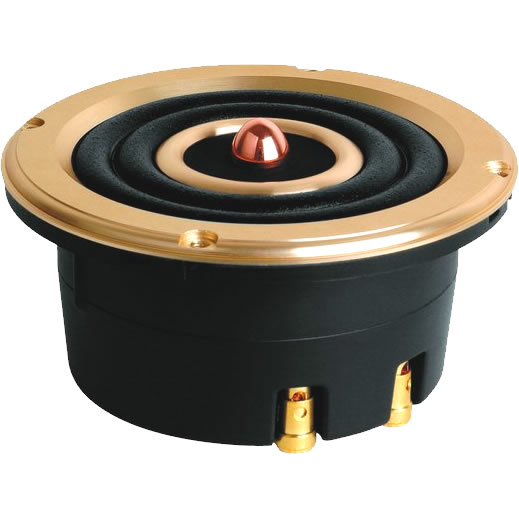

HiVi S1 Medium Coaxial Ribbon Tweeter
2-way coaxial speaker
Tweeter with circular ribbon
Medium double concentric ring
Scattering surface studied
Covers a range from 500Hz to 20kHz
| Midrange | |
| General Data | |
| Nominal Power Handling (Pnom) (W) | 15 |
| Max Power Handling (Pmax) (W) | 30 |
| Sensitivity (2.83v / 1m) (dB) | |
| Weight (M) (Kg) | 0.93 |
| Electrical Data | |
| Nominal Impedance (Z) (Ω) | 6 |
| DC (Re) (Ω) | 5.1 |
| Voice Coil and Magnet Parameters | |
| VC Diameter (mm) | 65.5 |
| VC Length (H) (mm) | 4.2 |
| VC Former | CCAW |
| VC Frame | AL |
| Magnet System | Shielded |
| Magnet Former | Neodymium |
| Tweeter | |
| General Data | |
| Nominal Power Handling (Pnom) (W) | 6 |
| Max Power Handling (Pmax) (W) | 15 |
| Sensitivity (2.83v / 1m) (dB) | 88 |
| Electrical Data | |
| Nominal Impedance (Z) (Ω) | 4 |
| DC (Re) (Ω) | 4 |
We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :
Only registered users can post a review. Log in or create an account .
No reviews at this time.
