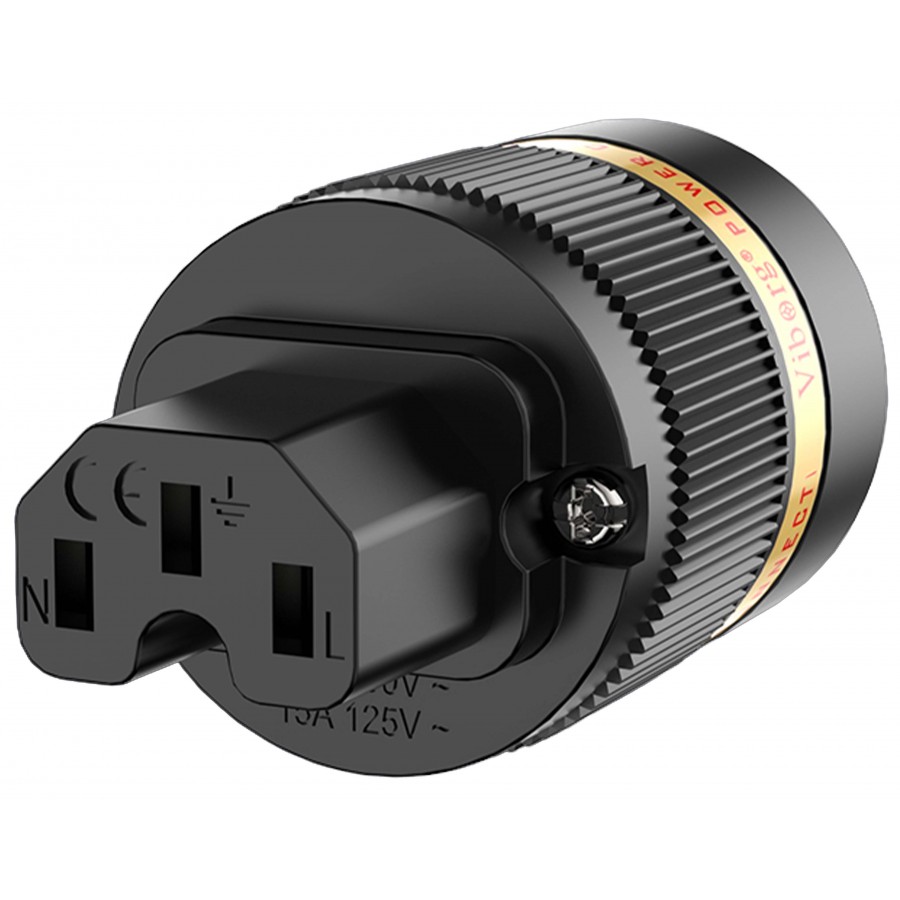

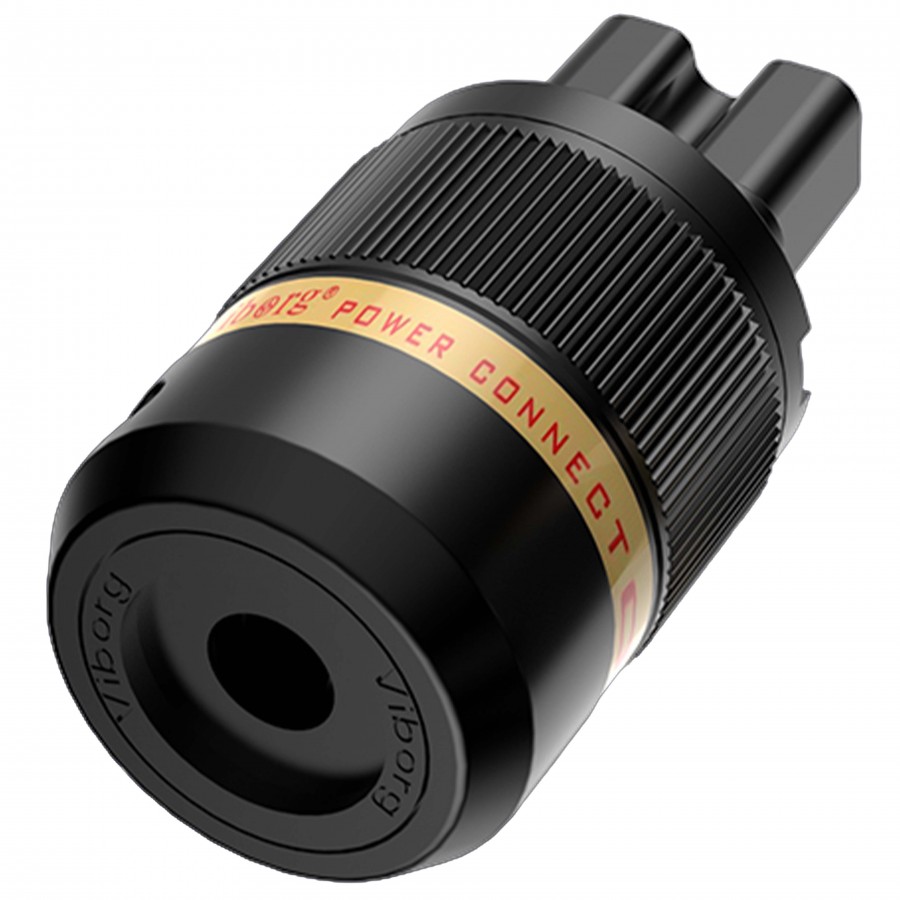

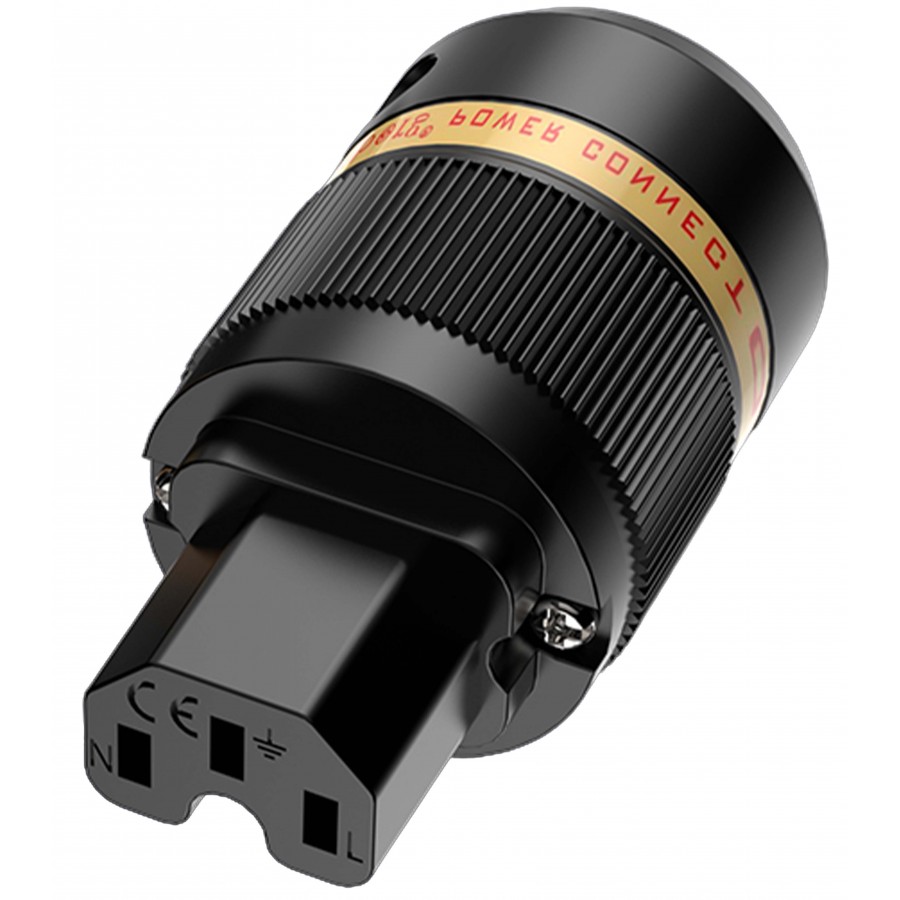

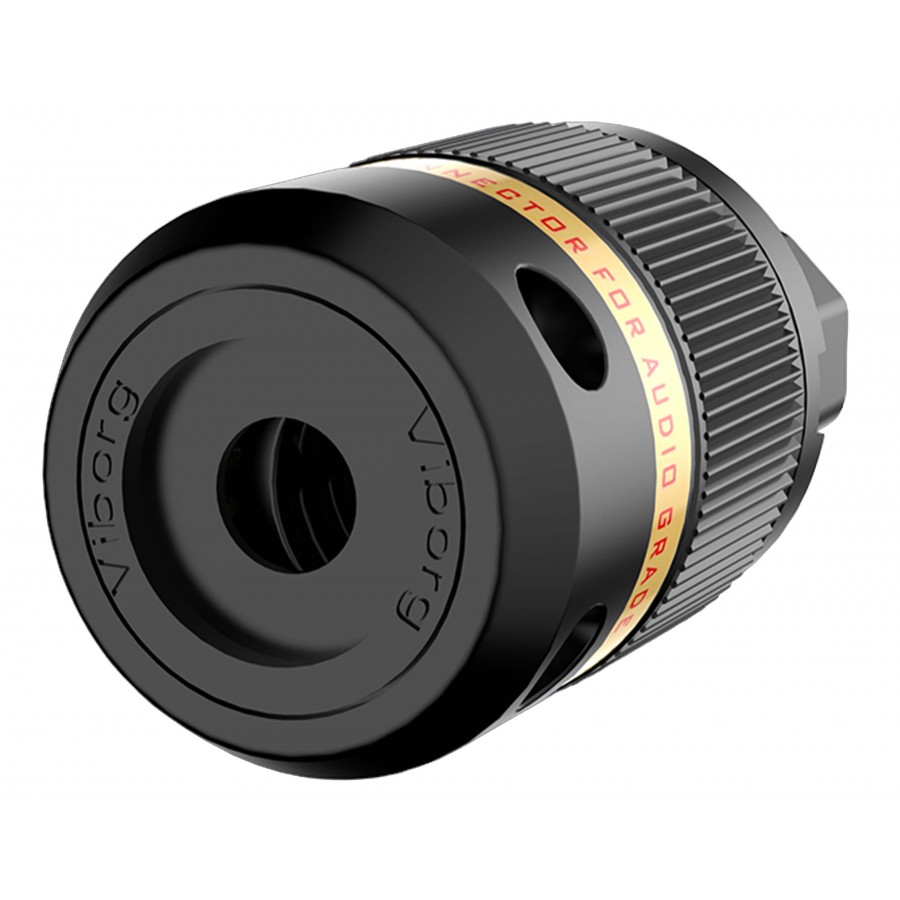

VIBORG VF501R IEC C15 Connector
By buying this product you get 2 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

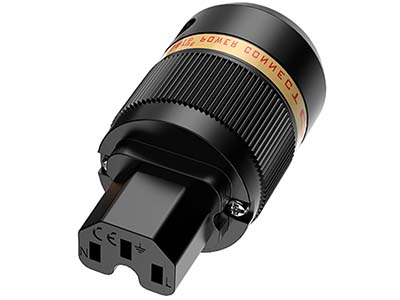

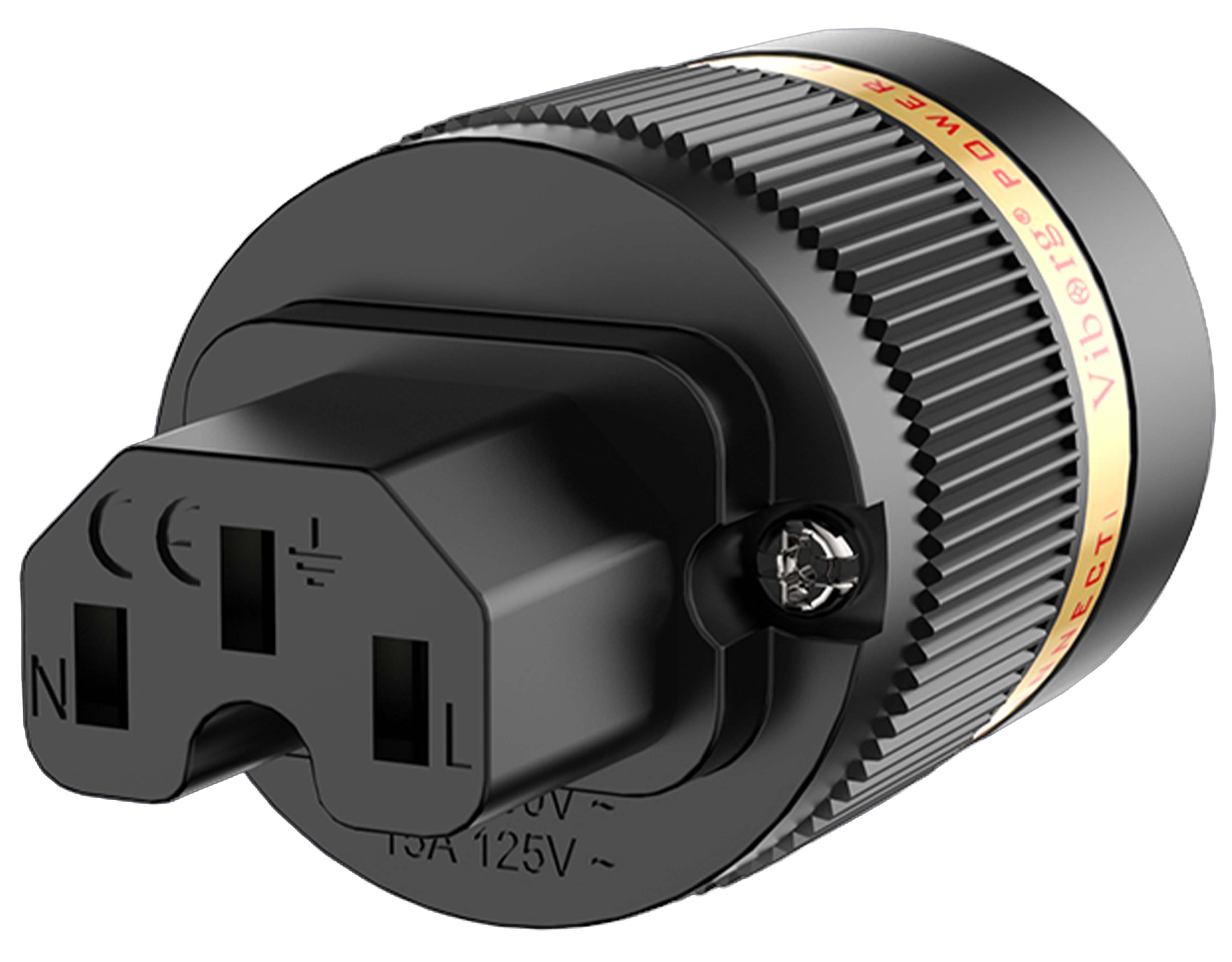

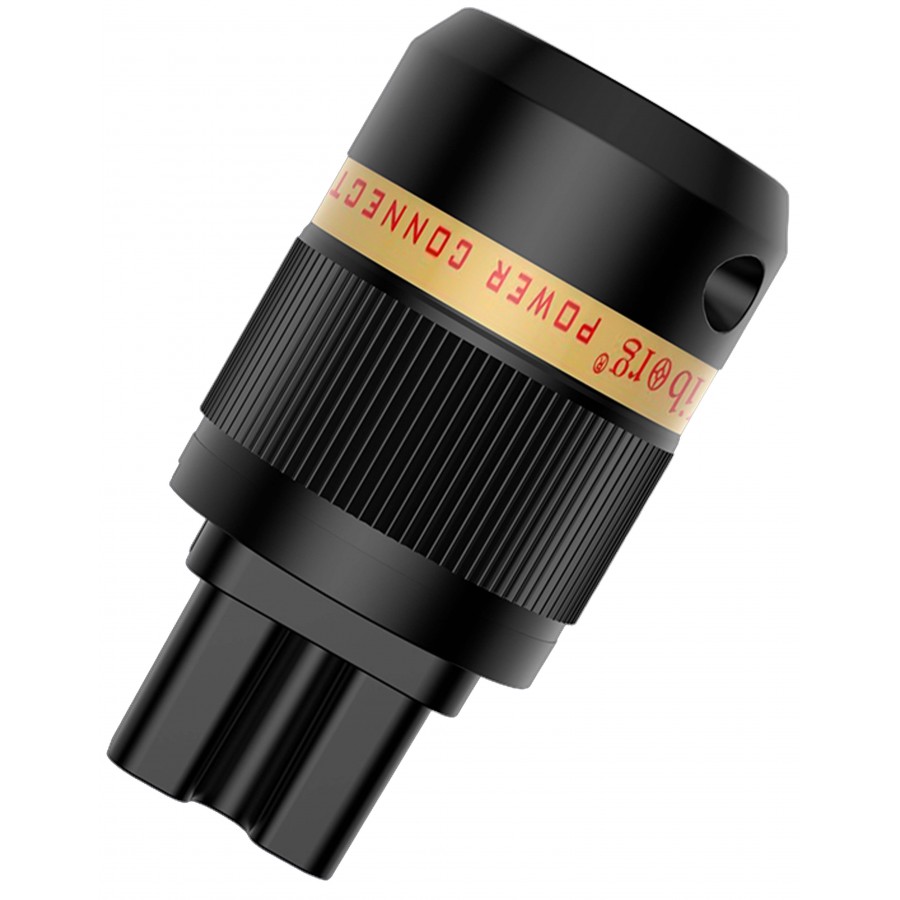

Viborg VF501R IEC C15 Connector Pure Copper OFC Copper / Silver / Rhodium Plated Ø19mm Black
This Viborg VF501R IEC C15 connector is ideal for designing and upgrading high-performance, high-quality power cables. Its pure copper contacts with OFC copper / silver / rodhium plating ensure very high conductivity and excellent resistance to oxidation. The insulation is made of nylon and fiberglass, robust and lightweight materials that are also electromagnetically neutral. Assembly is very simple thanks to a screw-lock system.
Technical Specifications
| Specifications | |
|---|---|
| Product type | IEC C15 Connector |
| Contact material | Pure Copper |
| Contact plating | OFC Copper / Silver / Rhodium |
| Insulation | Nylon and fiberglass |

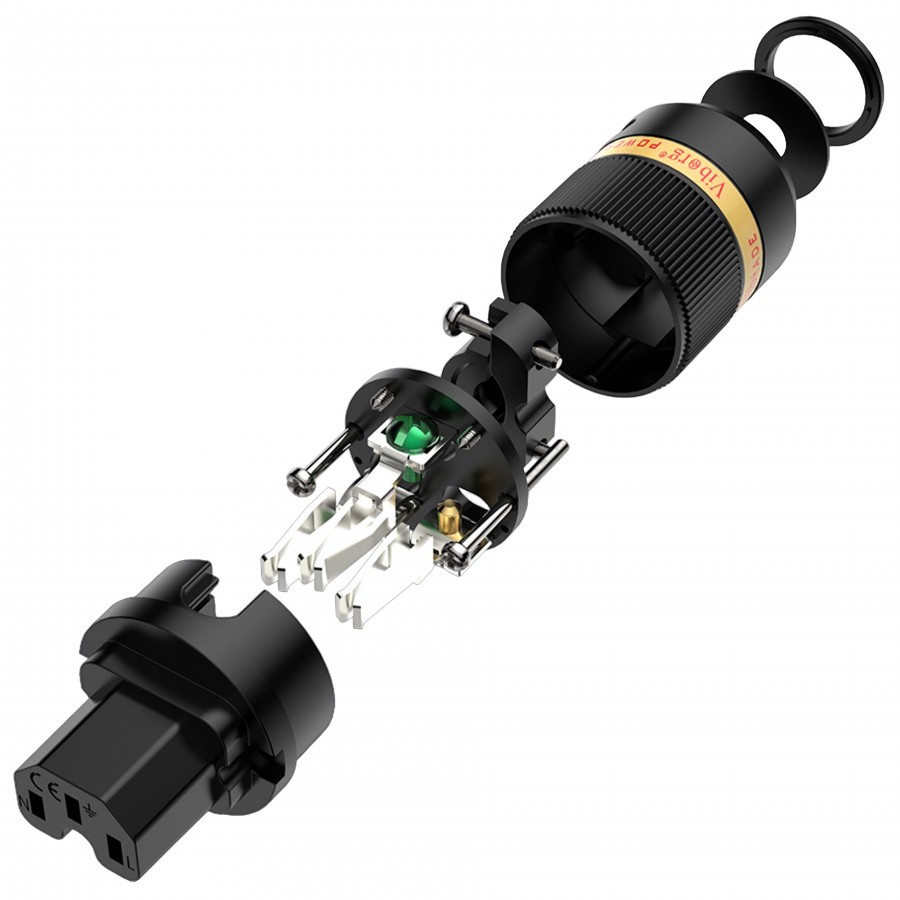

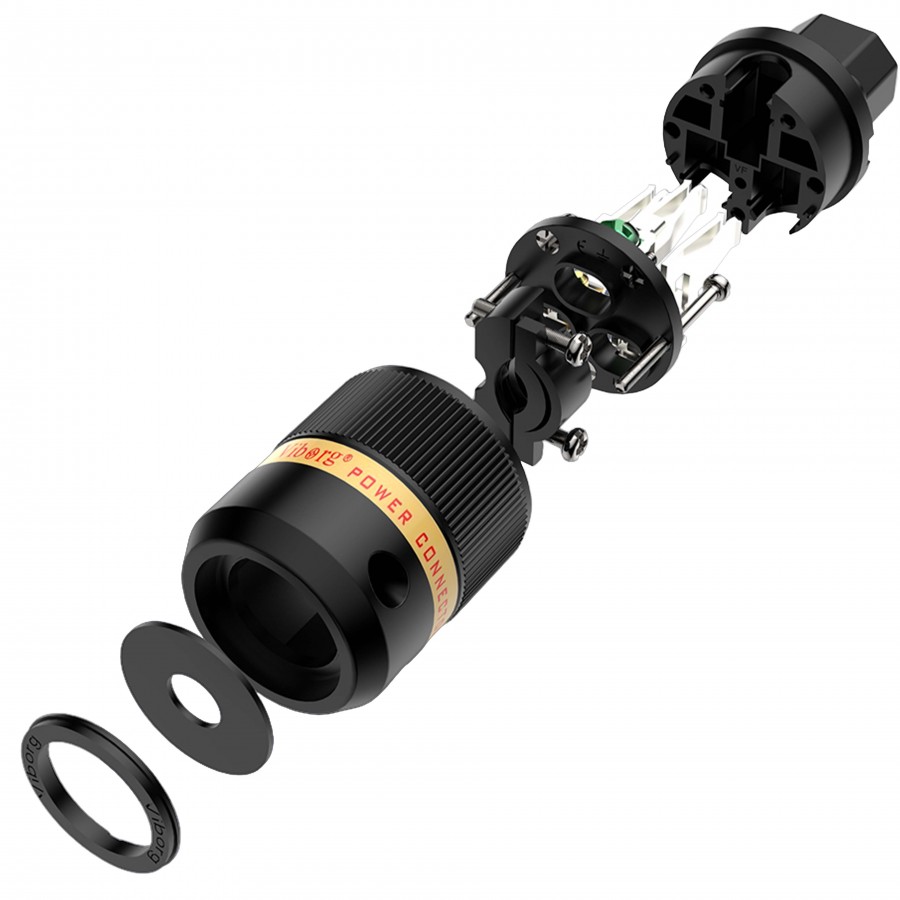

| Assembly | Screw-lock |
| Compatible cable diameter | Ø6-19mm |
| Maximum conductor diameter / cross-section | Ø8mm / 50mm² |
| Voltage / Current | 250VAC 10A / 125VAC 15A |
| Dimensions | Height: 49mm Diameter: Ø33mm Length: 72mm |
| Color | Black |
| General | |
|---|---|
| Package | 1x VIBORG VF501R IEC C15 Connector |
| Max cable diameter (mm) | 19.0 |
| Mounting type | To screw |
| Connectic | Male |
| Connector | PLug CEE 7/7 |
| Contacts Material (Connector) | Copper |
| Contacts Plating (Connector) | Rhodium |
| Contacts Plating (Connector) | Silver |
| Contacts Plating (Connector) | Copper |
| Rated current (A) | 16.0 |
