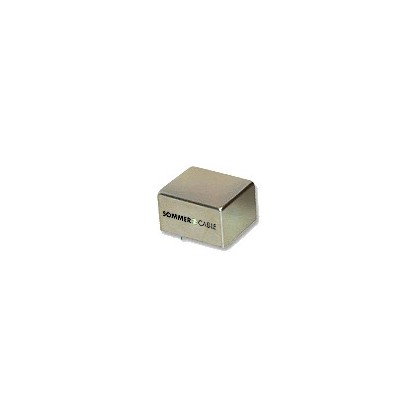

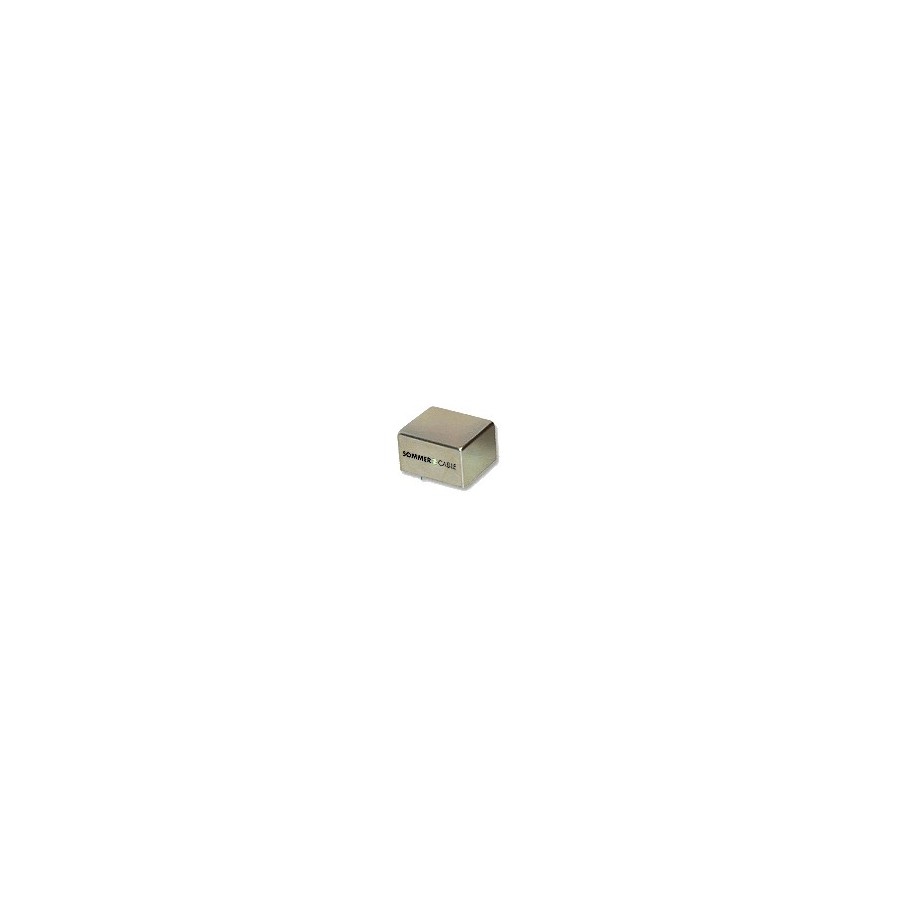

Sommercable Line Isolation Transformer - Split 1: 1
The "Line" or "Split" transfer units, manufactured in Germany, are specially designed for SOMMER CABLE and are characterized by their linearity, low tendency to vibration and low ohmic value.
Theenclosures are suitable for PCB mounting and are equipped with a special metal screen for optimum protection against interference.
ForWe also offer a printed circuit board for self-assembly.
This is prepared for the use of the SPLIT 1: 1 or the SPLIT 1: 1 + 1, in conjunction with a NEUTRIK NC3FDH connector.
This allows flexible use, ranging from line separation to a channel to the multichannel divider system.
For very complex and demanding configurations, we offer a transfer block from LUNDAHL, a renowned Swedish company.
The LL1570 is frequently used in SYSBOXX (see SYSBOXX chapter).
This transfer case conforms to the guidelines listed in the specifications of the broadcasting offices and thus meets the most stringent requirements.
P>
Strong>
Characteris. techn. Span> | Split 1: 1 |
Application : | Transfer of microphone |
Translator, type: | 1: 1 |
Enclosure screen: | metal MU Span> |
L x W x H (approx.): | 28 x 23 x 17 mm |
Input / origin: Span> | 600 Ohm |
Output / load: | 10 kOhm |
Max. Span> | +12 dB |
Coefficient of distortion. : | <1.0% @ 40 Hz |
Frequency range </ Span>: | 40 - 15,000 Hz (+/- 0.5 dB) |
Test voltage spire / turn: | 500 V |
Test voltage spire/heart: | 500 V |
