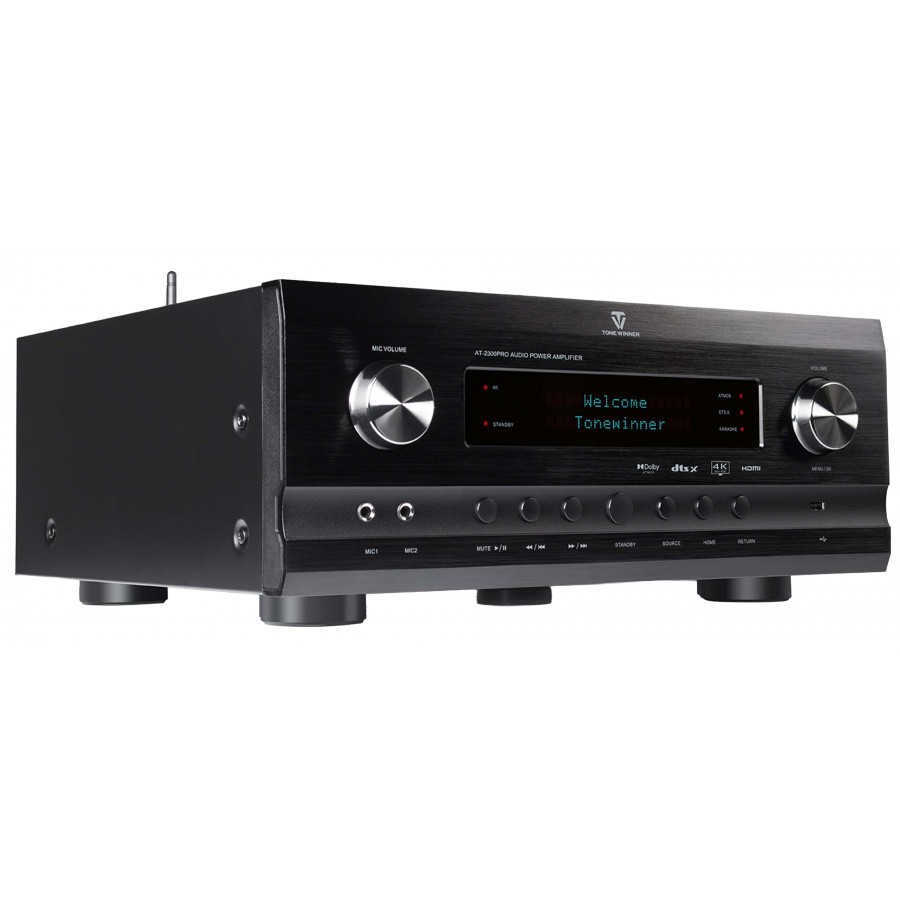

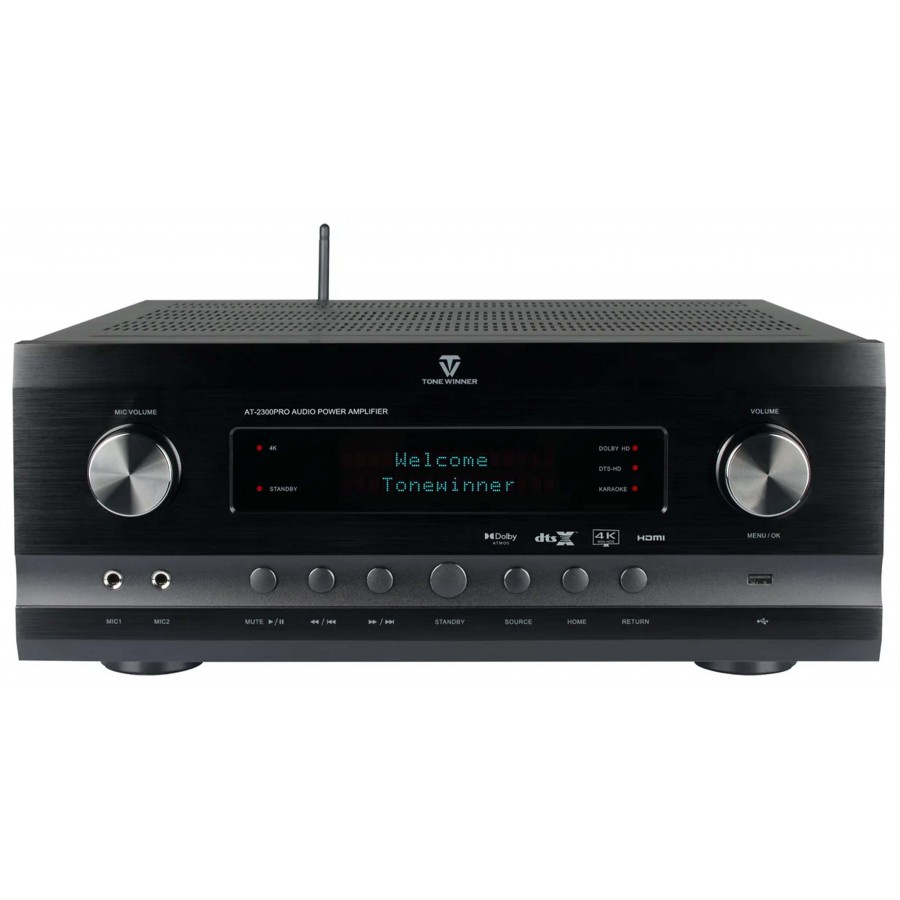

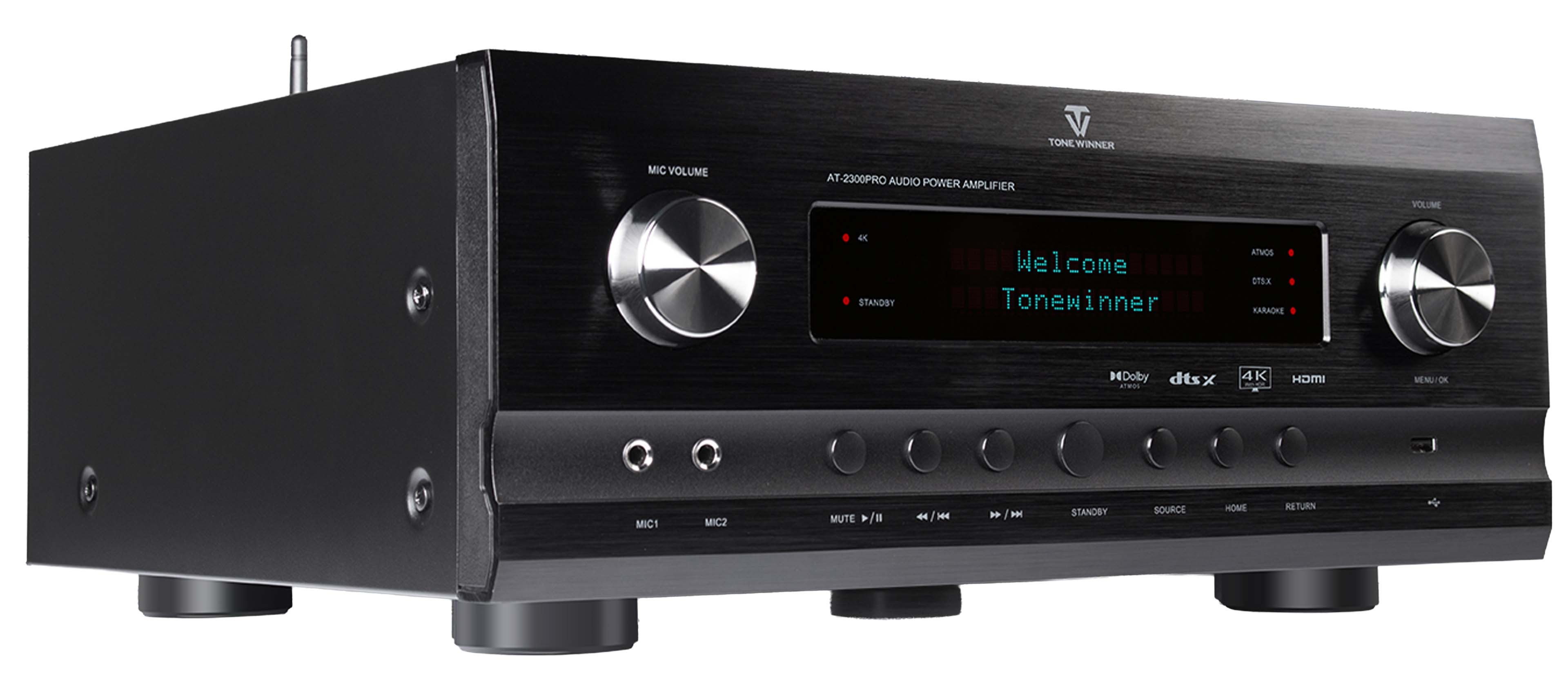

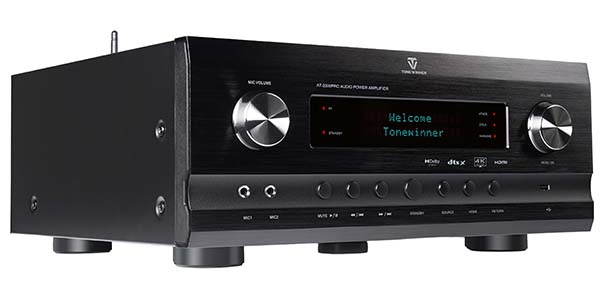

TONEWINNER AT-2300PRO AV Processor Home-Theater Amplifier Dolby Atmos DTS:X 7 Channels

The Tonewinner AT-2300PRO is a audio-video processor and home theater amplifier high-end device featuring powerful multichannel amplification and a complete audio-video processing section dedicated to immersive installations. Designed around a 7-channel amplification architecture with an extensive preamplification section (configuration up to 5.3.2/11.3), it integrates amplification capable of delivering up to 230W under 8 ohms for the 3 front channels and 120W under 8Ω for the other channels, relying on a robust power supply and Hi-Fi circuitry ensuring stability and dynamics. Compatible with 3D audio formats Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD, it also supports modern video standards such as 4K, HDR10, Dolby Vision, HLG and 3D, with full HDMI signal management (HDMI 2.1, ARC, CEC, HDCP2.2).

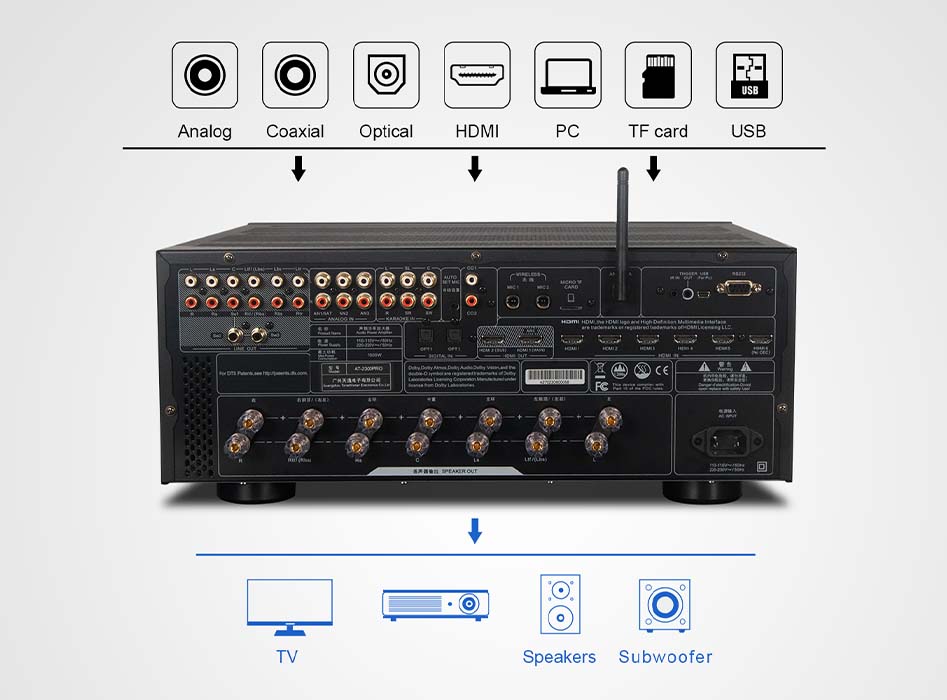

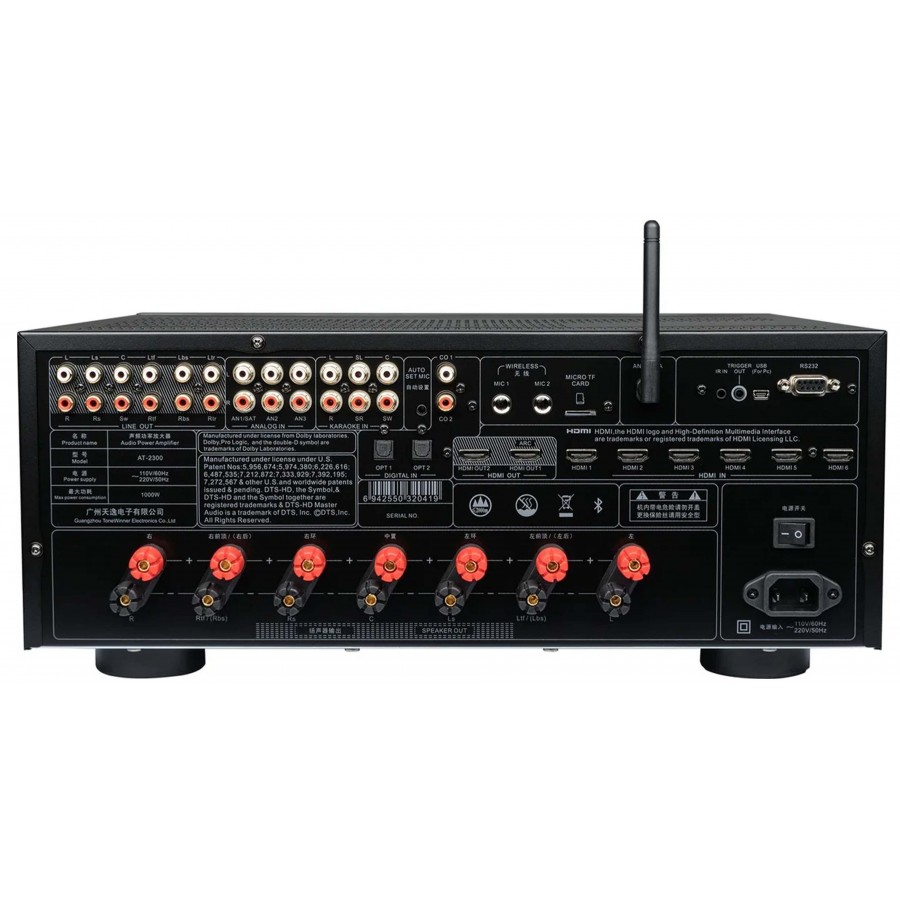

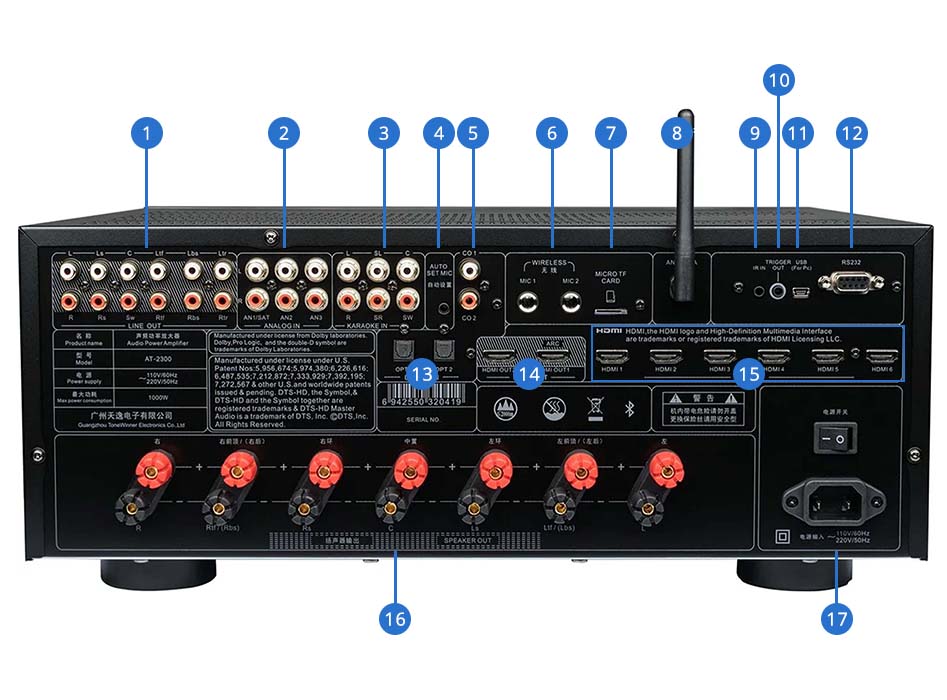

Designed as a true audiovisual hub, the AT-2300PRO offers numerous features: audio playback via USB, TF card, Bluetooth, mobile app control, automatic calibration with room equalization, as well as advanced DSP for audio processing. Its comprehensive connectivity includes 6 HDMI inputs and 2 HDMI outputs, optical, coaxial and analog inputs, as well as dual subwoofer outputs. It integrates seamlessly into both home theater systems and advanced Hi-Fi or multimedia setups.

Tonewinner AT-2300PRO : powerful and immersive 7-channel amplification

The Tonewinner AT-2300PRO relies on internal amplification capable of directly powering a complete immersive setup. With 7 amplified channels and a power output of 230W RMS under 8 ohms for the 3 front channels (LCR) and 120W RMS under 8 ohms for the other channels , it provides substantial power reserves to drive demanding speakers, even in large rooms.

This power is complemented by a refined design with controlled distortion (≤0.05%) and a high signal-to-noise ratio (≈98 dB), ensuring clear, dynamic and controlled sound reproduction, both for cinema and music listening.

Tonewinner AT-2300PRO : Tonewinner mobile app & music streaming

The Tonewinner AT-2300PRO relies on a dedicated mobile application allowing easy control of the device and access to its multimedia features. This app enables remote control of audio settings, sources, volume and certain advanced parameters, with an interface adapted depending on the type of device connected via Bluetooth.

On the streaming side, the AT-2300PRO offers great flexibility. Thanks to its built-in Bluetooth receiver, it allows wireless music streaming from a smartphone, tablet or computer, with a stable and fast connection. It also supports direct playback of audio files stored on USB drives or micro SD cards, including high-resolution formats.

The Tonewinner app also provides easy access to popular music streaming services such as Spotify, Apple Music or Pandora, acting as a control interface to launch and manage playback from a mobile device.
