The Ramm Audio Elite-XTRA Premium interconnect cable is a high-end RCA interconnect cable made from audiophile-grade materials. It features 2 single-crystal OCC copper conductors and an OFC copper drain wire for ground. The conductors are cryogenically treated for enhanced signal conductivity. Ramm Audio doesn't stop there: these modulation cables also feature a particulate design, thanks to NBU (Noise Bypass Unit) technology, to obtain a floating ground consisting of the separation of the shield ground from the signal ground, making Elite-XTRA Premium cables extremely quiet thanks to reduced noise. The shielding ground, connected on one side only, acts like a Faraday cage, protecting the conductors from surrounding waves and interference.

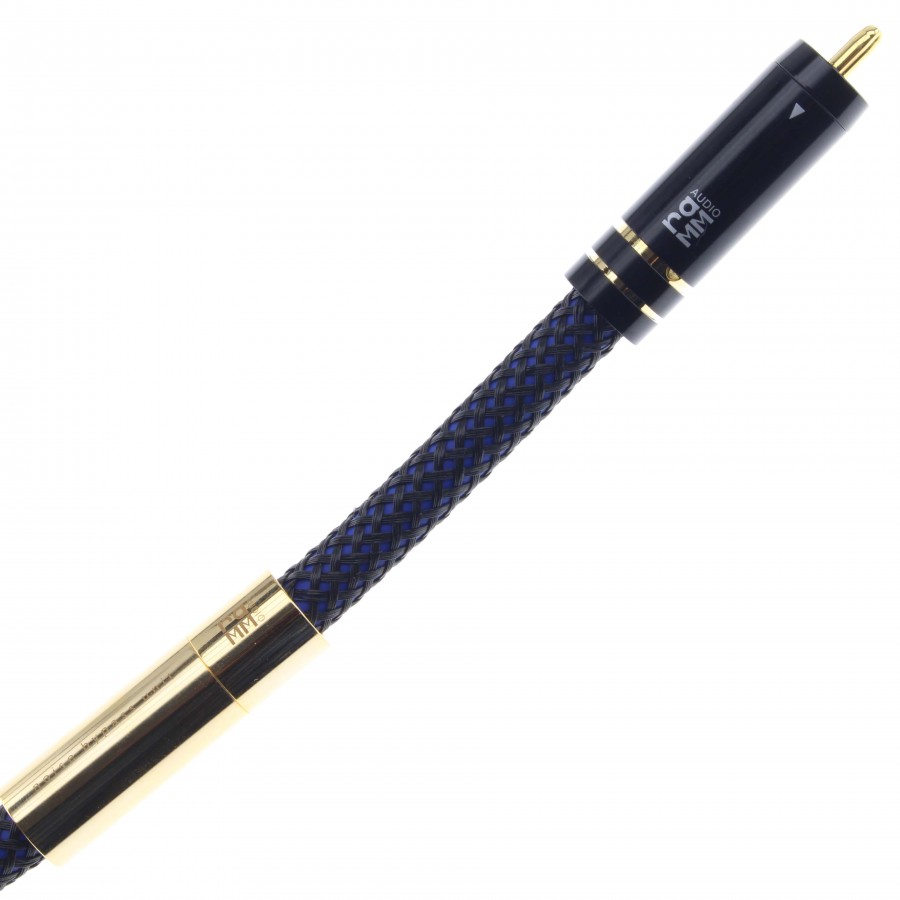

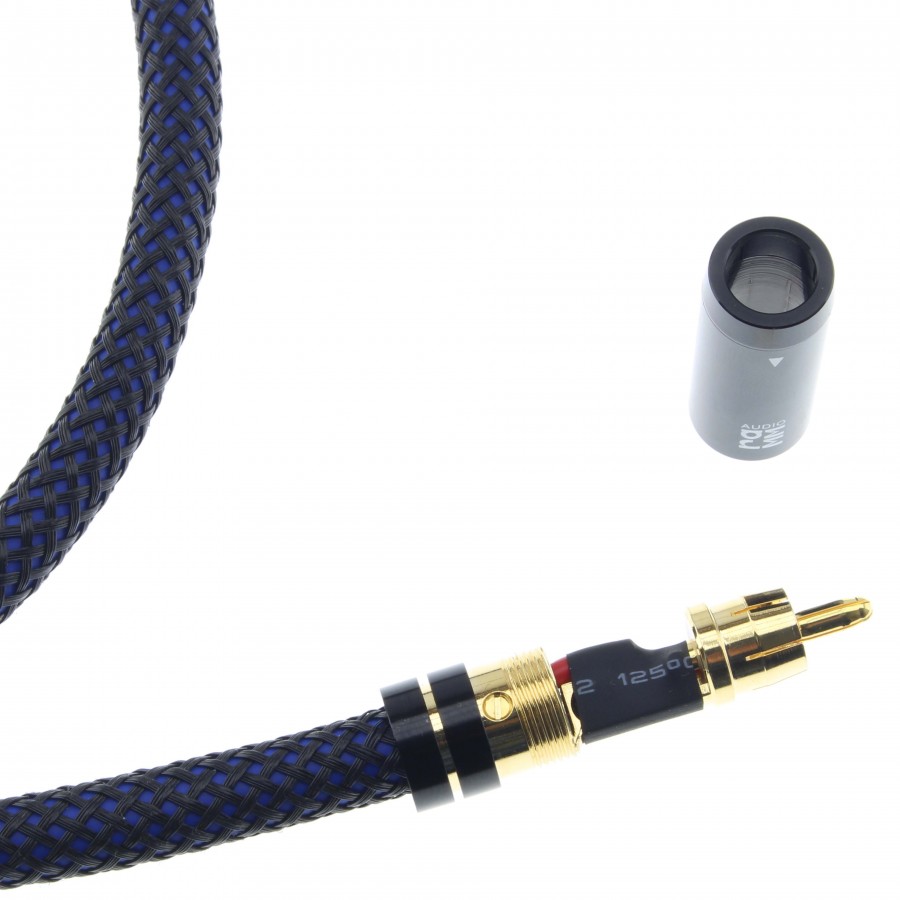

On the connector side, reference 30891GT RCA connectors with gold-plated Tellurium copper contacts provide enhanced conductivity, as well as resistance to corrosion and oxidation.
Finally, the cable's structure is completed by AirInside© Geometry technology and several layers of shielding for lower distortion and more effective protection against EMI/RFI interference. A black braided nylon sheath covers the entire cable for a high-end appearance and enhanced resistance to mechanical stress.

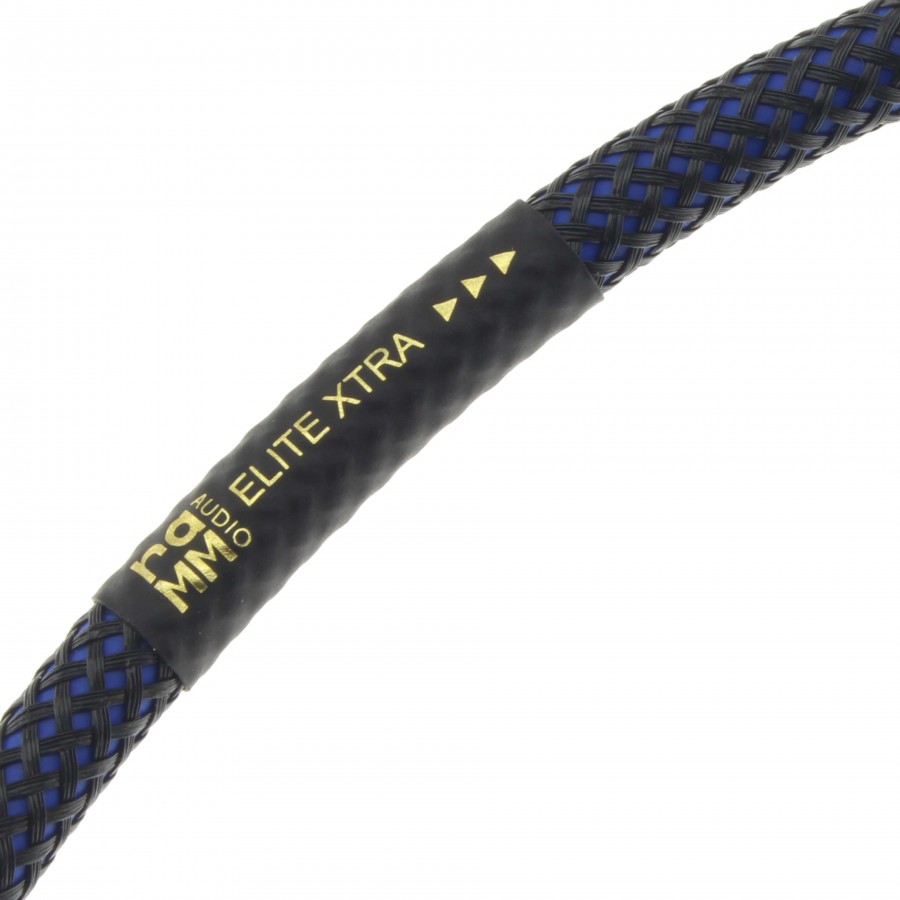

As these cables are mounted in floating ground, they have a connection direction that must be respected in order to benefit from their advantages and avoid generating noise. The direction of connection is indicated by 3 arrows on the cable.
1 | PVC outer sheath |
2 | Cotton Filler |
3 | Polypropylene sheath |
4 | Al Mylar |
5 | 0.5mm OCC copper conductor with polypropylene sheath |
6 | Polypropylene rod |
7 | 0.5mm OCC copper conductor |
8 | Al Mylar |
9 | 3x 0.5mm OFC copper conductor (drain wire) |
10 | Nylon braid |
Elite 8
Elite-XTRA
Elite 72 (E72)
Mozart2
Cable geometry
Air-Inside© geometry with multi-layer shielding for excellent transparency and resolution, with less distortion and noise
Air-Inside© geometry with multi-layer shielding for excellent transparency and resolution, with less distortion and noise
Air-Inside© geometry with multi-layer shielding for excellent transparency and resolution, with less distortion and noise
Air-Inside© geometry with multi-layer shielding for excellent transparency and resolution, with less distortion and noise
Conductors
Single-core OCC copper
Single-core OCC copper
Single-core OCC copper
Single-core OCC copper
Number of conductors
3 individually shielded conductors
2 individually shielded conductors
2 individually shielded conductors
2 individually shielded conductors
Conductor composition
3 wires of 0.65mm, 0.60mm and 0.55mm individually wrapped in silk thread
2 x 0.5mm PP-insulated wires
3 x 0.5mm bare wires
3 x 0.5mm bare wires
2 x 0.5mm PP-insulated wires
1 x 0.6mm bare wire
Drain wire
3 x 0.6mm OFC monocrystalline copper strands
3 x 0.5mm OFC monocrystalline copper strands
3 x 0.5mm OFC monocrystalline copper strands
1 x 0.65mm OFC monocrystalline copper wire
Dielectric
Cotton filling
PP rods
Cotton filling
PP rods
Cotton filling
PP rods
Cotton filling
Conductors shielded by copper foil
Capacitance (pF/m)
140
203.51
203
155
Resistance (Ω/m)
0.024
0.03274
0.033
0.028
Inductance (µH/m)
1.4
1.31394
1.32
1.25
Characteristics
Natural, pure and transparent sound with smooth musicality and exceptional sound image. Quiet, excellent noise and interference rejection
Clean, natural signal transfer for dynamic performance with better-defined deep bass and smoother highs
Musical, transparent and smooth with excellent sound image
Sound image with highlighted voices. Natural sound with low distortion and noise
Connectors
Balanced connection, usually XLR
Single-ended connectors, usually RCA
Single-ended connectors, usually RCA
Single-ended connectors, usually RCA
Outer diameter
9.2mm
9.2mm
8.2mm
9mm
Technical characteristics
Specifications | |
---|---|
Product type | RCA interconnect cable |
Connectors | Ramm Audio 30891GT |
Length | 1.5m |
Cable conductor material | OCC Cryo copper |
Floating mass | |
Drain wire conductive material | OFC copper |
Connector contact material | Tellurium copper |
Contact plating of connectors | Gold |
Cable diameter | Ø9.20mm |
Technical characteristics | |
---|---|
Inductance | 1.39μh/m per conductors |
Resistance | 0.022Ω/m per conductors |
Capacitance | 223.30pF/m per conductors |
General | |
---|---|
Weight | 190g/cable |
Package | Sold by pair |
Length (m) | 1.5 |
Shielding | Yes |
Section (mm²) | N/A |
Connector | RCA |
Conductors material (Cable) | Copper |
Conductors Plating (Cable) | None |
