FX-AUDIO D01 DAC Headphone Amplifier Bluetooth 5.0 ES9038Q2M TPA6120A2 XMOS CSR8675 32bit 768kHz DSD512

FX-AUDIO D01 DAC Headphone Amplifier Bluetooth 5.0 ES9038Q2M TPA6120A2 XMOS CSR8675 32bit 768kHz DSD512
Featuring an excellent 32-bit ES9038Q2M digital-to-analog conversion chip, the DAC FX-Audio D01 offers excellent audio performance with a wide dynamic range, low distortion, and jitter reduction. The USB interface uses a second-generation XMOS XU208 chip, supporting high sample rates up to 32bit 768kHz PCM and DSD512 with a custom Thesycon driver.

Average votes for this product
5.0 / 5

By buying this product you get 12 loyalty points


Reference : 15164
New product

124,17 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 27-05-2022.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

FX-Audio D01

DAC Amplificateur Casque ES9038Q2M XMOS Bluetooth 5.0 CSR8675 32bit 768kHz DSD512

FX-Audio D01 DAC Amplificateur Casque ES9038Q2M XMOS Bluetooth 5.0 CSR8675 32bit 768kHz DSD512

Featuring an excellent 32-bit ES9038Q2M digital-to-analog conversion chip, the DAC FX-Audio D01 offers excellent audio performance with a wide dynamic range, low distortion, and jitter reduction. The USB interface uses a second-generation XMOS XU208 chip, supporting high sample rates up to 32bit 768kHz PCM and DSD512 with a custom Thesycon driver.

The headphone amplification stage is entrusted to a TI TPA6120A2 chip, perfectly stable and also ensuring low distortion. Its power allows it to accompany headphones with impedance ranging from 16 to 300Ω.

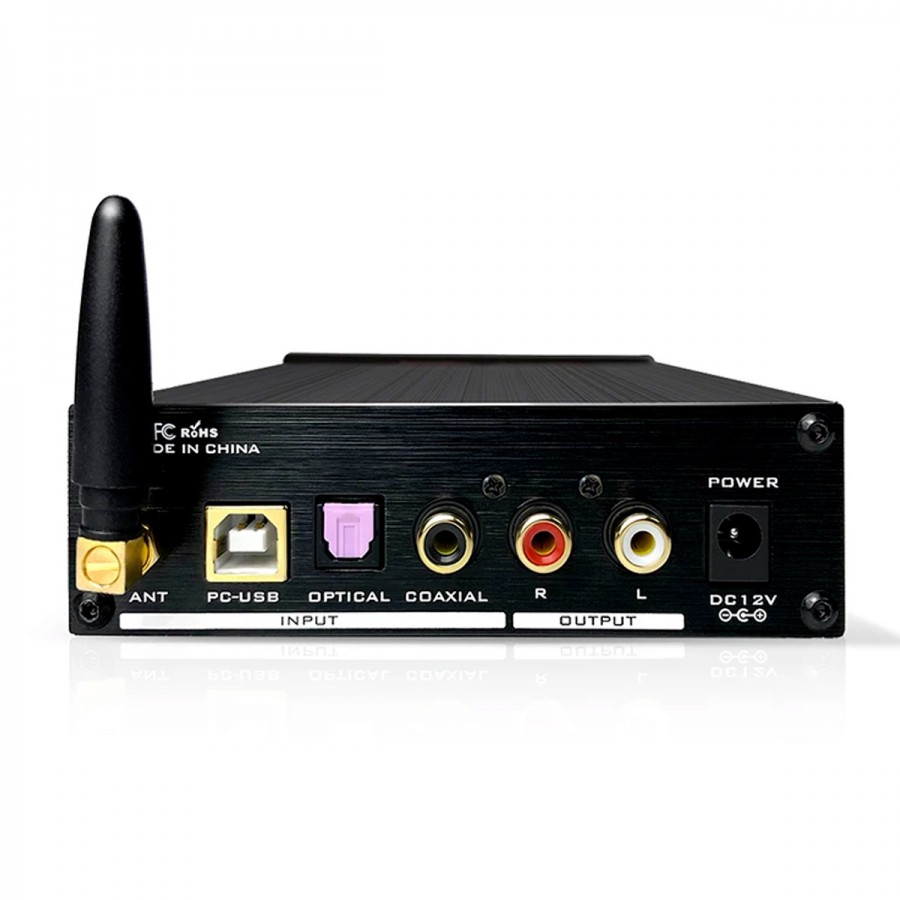

Finally, in terms of connectors, the D01 benefits from a complete panel of inputs to adapt to all audio systems. USB-B, Toslink Optics, Coaxial but also Bluetooth connectivity allowing you to broadcast your music remotely, from your smartphone for example. The headphone output on the front of the device is in 6.35mm jack format and the rear provides a stereo RCA line output.

Technical characteristics

Specifications
Product typeDAC
Headphone amplifier
InputsBluetooth 5.0
1x USB-B
1x Optical
1x Coaxial
Outputs1x Jack 6.35mm Headphone output
1x Stereo RCA line output
MicrocontrollerSTM32
DAC ChipES9038Q2M
USB InterfaceXMOS XU208
Amplification chiipTPA6120ADWPR
AOPLME49720NA
Bluetooth chipCSR8675
Line output level2Vrms @ 0dBFS
Distortion< 0.002% @ 1kHz
SNR115dB @ 1kHz
Dynamic range115dB @ 1kHz
Sampling ratesUSB : PCM up to 32bit 768kHz, DSD up to DSD512
Coaxial / optical : PCM up to 24bit 192kHz
Bluetooth : PCM up to 24bit 96kHz
Power output2x 400mW @ 32Ω, THD+N < 1%
2x 90mW @ 300Ω, THD+N < 1%
Headphone amp distortion< 0.004% @ 1kHz
Headphone amp SNR> 110dB @ 1kHz
Frequency response20Hz - 20kHz @ +0, -0.5dB
Amp impedance16-300Ω
General
Power supply12VDC 1A (included)
Body materialAluminum
ColorBlack
Dimensions114 x 178 x 33mm
Weight470g
Package1x x D01
1x Power Adapter
1x USB-A to USB-B cable
1x Bluetooth antenna

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
OutputJack 6.35mm
OutputRCA
DAC / ADC ChipES9038Q2M
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
ClassClass D / T
NetworkingNo
Remote ControlNo
