MUSE HIFI MUSE300 DAC Headphone Amplifier

New
The Muse HiFi Muse300 is a high-end DAC and desktop headphone amplifier designed to deliver high-fidelity audio performance combined with an innovative user experience.

No customer reviews yet, login to write a review.

By buying this product you get 43 loyalty points


Yes, notify me when available !
Reference : 22300
New product

439,90 €tax incl.

366,58 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

MUSE HIFI MUSE300 DAC Headphone Amplifier ES9039 TPA6120AX2 Bluetooth 5.4 QCC3095 aptX-HD LDAC 32bit 384kHz DSD256

MUSE HIFI MUSE300

The Muse HiFi Muse300 is a high-end DAC and desktop headphone amplifier designed to deliver high-fidelity audio performance combined with an innovative user experience. Presented as the first desktop DAC/headphone amplifier equipped with the proprietary Muse OS operating system, it features an ESS ES9039 Ultra digital-to-analog converter based on the HyperStream IV architecture, a Qualcomm QCC3095 Bluetooth chip supporting Bluetooth 5.4, as well as an analog section composed of two OPA1612 operational amplifiers and two ES9603Q I/V conversion stages. Compatible with PCM streams up to 32bit / 384kHz and DSD256 via USB, the Muse300 also supports high-resolution Bluetooth codecs including aptX HD, aptX Adaptive, aptX Lossless, LDAC, AAC, and SBC. Its headphone amplification stage is based on two Texas Instruments TPA6120A2 circuits delivering up to 2200mW into 32Ω through its balanced 4.4mm output and up to 1100mW into 32Ω through its single-ended headphone output. Connectivity includes USB, Optical Toslink, Coaxial S/PDIF, and Bluetooth inputs, along with side-mounted 6.35mm and 4.4mm headphone outputs, complemented by rear-panel RCA and XLR analog outputs. Its large 5-inch color display, three customizable graphical interfaces, three dedicated sound modes, and fully balanced design make it a particularly comprehensive solution for demanding audiophiles.

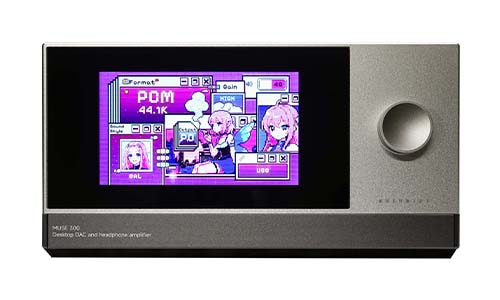

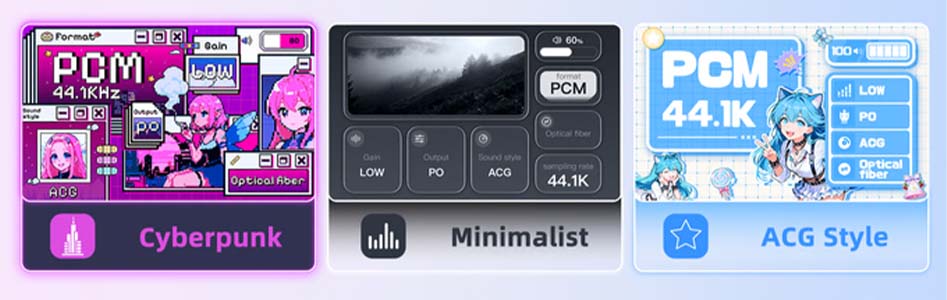

MUSE HIFI MUSE300: Muse OS and 5-Inch Color Display

The Muse300 stands out with the integration of Muse OS, a proprietary operating system specifically developed for high-fidelity audio. Combined with a 32-bit microcontroller and a large 5-inch color display, it provides a smooth, responsive, and intuitive user interface. Three distinct graphical themes allow display customization, while a single rotary control simplifies navigation and everyday adjustments.

MUSE HIFI MUSE300: Muse OS and 5-Inch Color Display

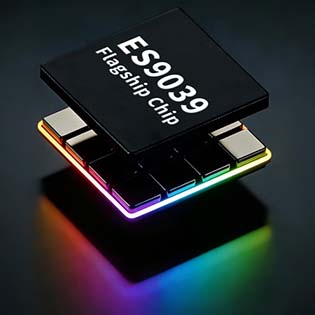

MUSE HIFI MUSE300: ES9039 Ultra DAC and Balanced Audio Architecture

At the heart of the Muse300 is an ESS ES9039 Ultra DAC paired with two ES9603Q I/V converters and two OPA1612 operational amplifiers. This fully balanced architecture ensures precise signal conversion with extremely low distortion. Compatible with PCM 32bit / 384kHz and DSD256, the Muse300 allows users to fully enjoy high-resolution audio files while offering several dedicated sound profiles to tailor playback according to personal preferences.

MUSE HIFI MUSE300: ES9039 Ultra DAC and Balanced Audio Architecture

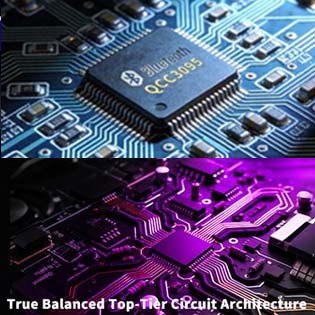

MUSE HIFI MUSE300: High-Resolution Bluetooth 5.4 and Powerful Amplification

MUSE HIFI MUSE300: High-Resolution Bluetooth 5.4 and Powerful Amplification

Thanks to its Qualcomm QCC3095 chip, the Muse300 supports high-definition Bluetooth codecs including aptX HD, aptX Adaptive, aptX Lossless, LDAC, AAC, and SBC for high-quality wireless audio streaming. Its headphone amplification stage, based on two Texas Instruments TPA6120A2 circuits, delivers up to 2200mW into 32Ω via the balanced 4.4mm output and up to 1100mW into 32Ω via the single-ended output, making it suitable for both sensitive IEMs and more demanding audiophile headphones. Balanced XLR and RCA outputs complete the package for easy integration into a HiFi system or desktop setup.

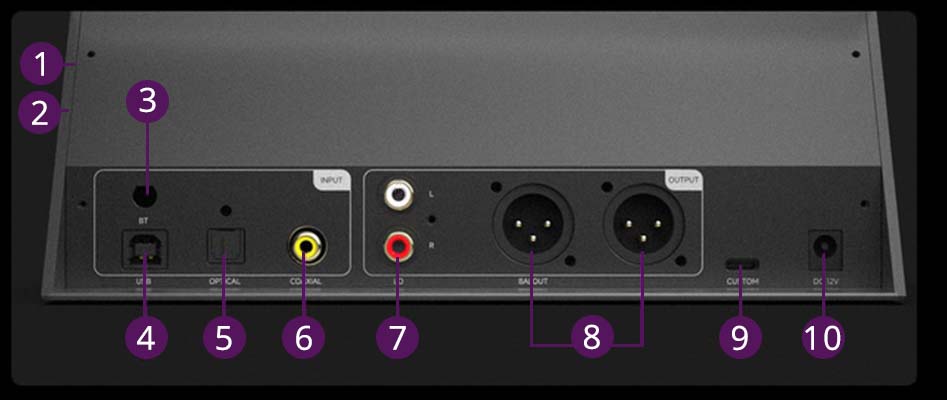

MUSE HIFI MUSE300 Overview

MUSE HIFI MUSE300 Overview
16.35mm Headphone Jack Output
24.4mm Headphone Jack Output
3Bluetooth Antenna
4USB-B Input
5Optical Toslink Input
6Coaxial S/PDIF Input
7RCA Output
8XLR Output
9USB (CUSTOM)
1012V DC Power Input via DC Jack

Technical Specifications

Specifications
Product TypeDAC Headphone Amplifier
DAC ChipES9039 Ultra
I/VES9603QX2
USB InterfaceSA9137L
Coaxial InterfaceAK4118
LPFOPA1612X2
Amplification ChipNE5532A
Inputs1x USB-B
1x Coaxial S/PDIF
1x Optical Toslink
Bluetooth
Outputs1x RCA Output
1x Balanced XLR Output
1x Balanced 4.4mm Headphone Jack Output
1x 6.35mm Headphone Jack Output
Display5" IPS (480x854 IPS)
SNR129dB
THD+N0.0006%
Headphone Output Power6.35mm Jack: 1.1W @ 32 ohms
4.4mm Jack: 2.2W @ 32 ohms
Supported Bluetooth CodecsaptX HD, aptX Adaptive, aptX Lossless, LDAC, AAC and SBC
General
Power Supply12V DC
Package Contents1x MUSE HIFI MUSE300
1x Power Supply
1x Bluetooth Antenna
1x 3.5mm to 6.35mm Jack Adapter
1x USB-A to USB-B Cable

Data sheet
InputUSB
InputOptical
InputSPDIF
InputBluetooth
OutputXLR
OutputJack 4.4mm
OutputRCA
OutputJack 6.35mm
DAC / ADC ChipES9039SPRO
Max sampling rate384kHz
Max sampling rateDSD256
ColorSilver
ClassClass D / T
NetworkingNo
Remote ControlNo
