TOPPING D50 DAC ES9038Q2M x2 32bit/768kHz DSD512 XMOS U208

TOPPING D50 DAC ES9038Q2M x2 32bit/768kHz DSD512 XMOS U208

The DAC TOPPING D50 includes all the finest components to play high quality dematerialized music. Featuring a USB XMOS U208 input, two ESS ES9038Q2M SABRE DAC, 2 SPDIF Coaxial and Optical inputs, it offers great benefits and a lot of possibilities at affordable prices.

Average votes for this product
4.9 / 5

By buying this product you get 20 loyalty points


Reference : 12604
New product

209,00 €tax incl.

174,17 € tax excl.
Including 0,01 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

This model has been replaced by the new Topping D50S.

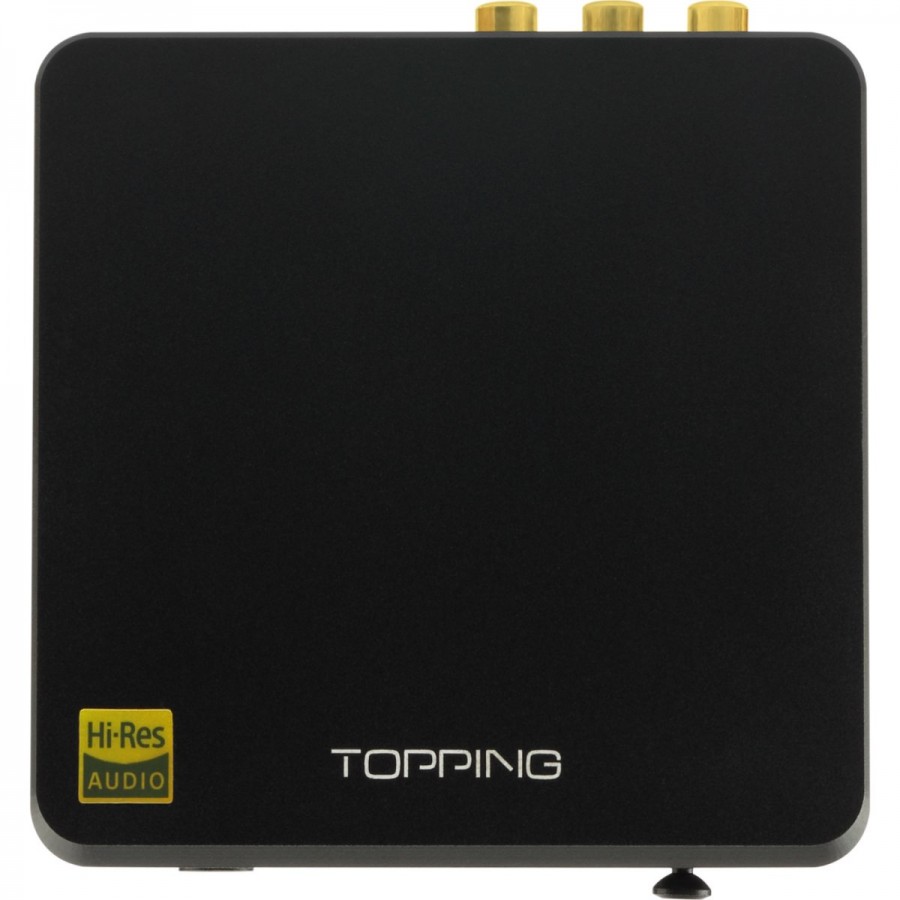

Topping D50
32bit 768kHz 2xES9038Q2M DAC

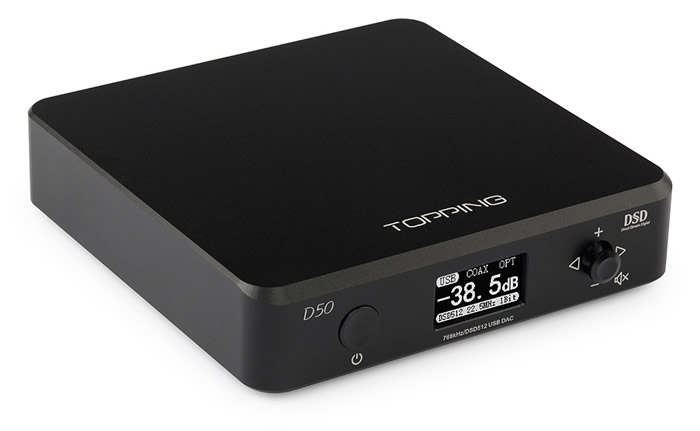

DAC Topping D50 DSD512

The DAC D50 combines all the know-how of Topping in an aluminum case with precise finishes. Its design and operation reflect and evolve a proven circuit architecture that is known for its efficiency.

IIncorporating advanced components, such as two ES9038Qm chips, a latest-generation XMOS U208 module and OP1612 Operational Amplifiers, it's a quality material whose design seeks to reach excellence

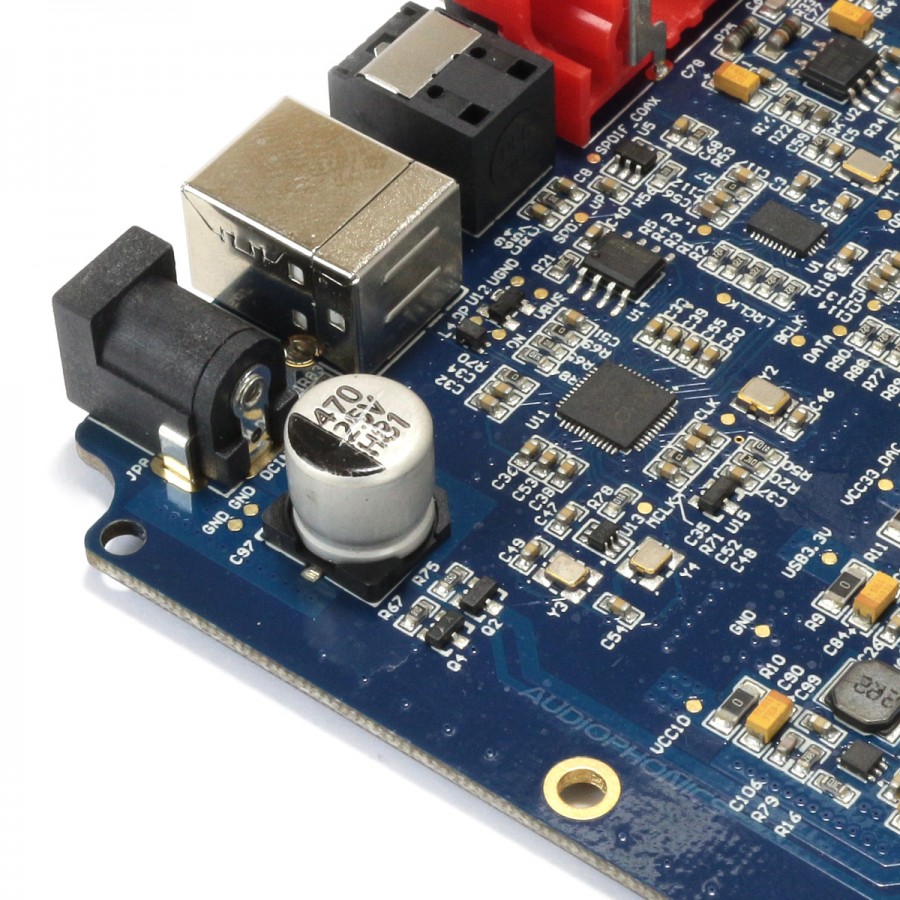

USB XMOS U208 and 2xES9038Q2M - a great duo

The D50 is among the best components on the market for high quality rendering and advanced audio experience. A USB XMOS U208 chip, an ES9038Q2M chipset duo running in parallel so that all the channels benefit from a detailed signal and processed with precision.

The D50 DAC has optimized THESYCON driver drivers for Windows that offer native DSD support (from DSD64 to DSD512). It is therefore an obvious choice for high-definition music lovers.



AOP TI OPA1612 SoundPlus High performance


The D50 benefits from state-of-the-art sound processing thanks to a trio of OPA1612 operational amplifiers. These allow the D50 to take advantage of a pre-amplifier function to maintain a clear and lossless signal.

Pre-amp fonction

In addition to a very low rate of distortion (0.0004%) and a noise almost zero, these AOP have a generous headroom. Experienced audiophiles will appreciate this comfortable margin to find the optimal level of amplification according to the specificities of their installation.



7  PCM filters available


If the DAC 50 is native DSD512, processing of PCM messages is not left behind since the device is able to work with resolutions up to 24bit / 192kHz on its Coaxial and Optical inputs. The user can choose from 7 filter profiles to get the most out of his PCM encoded files. Seeall filters here.



Mobile & Tablet support

Dac Topping D50 connexion telephone, smartphone et tablette

Whether via a Lightning port (with a Lightning> USB adapter) or directly with a USB-A / Micro-USB cable equipped for data (OTG), the D50 is equipped to function as a lossless drive to take advantage of all the qualities of this DAC on all your digital sources.



State of the art ergonomy

Contrary to what its capabilities might suggest, the DAC 50 is a relatively easy to use device with a fairly intuitive handling. A single selector with a single button is enough to control all the functions of the DAC50 (Power on / off, volume, mute, source, auto standby, screen brightness and activation of PCM filters.)

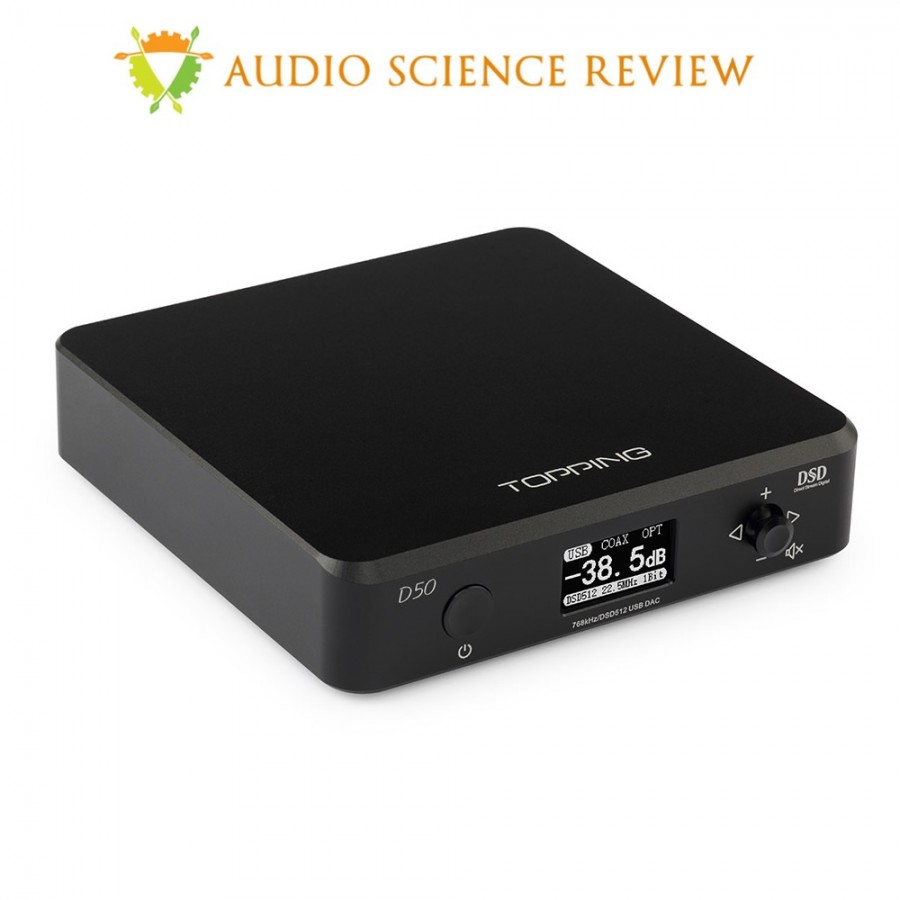

Test Audio Science Review



The Topping D50 was the subject of a detailed comparative analysis by the Audio Science Review platform.

Click here to access the Topping Review.


Specifications

Specifications
DAC2x ESS SABRE ES9038Q2M
Max sample rate32Bit / 768Khz / DSD512 Natif
THD< 0,0004% à 1kHz / < 0,0005% à 20Hz-20kHz
SNR> 122dB
Frequency Response20Hz - 20kHz
sample rate / inputs
USB InputPCM 44.1kHz-384kHz 16-32bits
Sample USB DSDDSD64 à DSD512 (DOP - Natif)
SPDIF Coaxial Input24bits max / 44.1kHz - 192kHz
SPDIF Optical Input24bits max / 44.1kHz - 192kHz
USB Software supportWindows 7, 8, 8.1, 10 (driver needed) Mac OS 10 & Linux
General
Power SupplyThrough USB 5V
Dimensions146 x 103 x 37mm
Weight407g
ColorBlack
Accessories1x USB cable
pcm filters
Mode 1Apodizing fast roll-off filter
Mode 2Minimum phase slow roll-off filter
Mode 3Minimum phase fast roll-off filter
Mode 4Linear phase slow roll-off filter
Mode 5Linear phase fast roll-off filter
Mode 6Brick wall filter
Mode 7Correction minimum phase fast roll-off filter
Package Content
1xD50
1xCable USB-A / USB-B
1xCable Alim USB / Jack DC (Adapter is available here)
1xUser Manual
1xWarranty Card

Data sheet
InputOptical
InputSPDIF
OutputRCA
DAC / ADC ChipES9038Q2M
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
NetworkingNo
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.9 / 5
7 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
ottimo dac economico
Ho avuto molti dac sui miei 3 impianti, in due impianti hi end uso dac costosi dalle 10 alle 20 volte questo D50.
Lo sto provvisoriamente alimentando con un carica batteria samsung s5. Quindi nulla di degno. Aggiungo che il dac suona in modo ottimale specie per la spesa. Ha battuto diversi dac sulla fascia di prezzo 300-1500 euro già con una alimentazione non adeguata. La frizzantezza sugl'alti la noto pur io però solo a volumi elevatissimi, vicino ai meno 20 db misurati da fonometro. Il dac ha bisogno di molto rodaggio per predere asprezza ed enfatizzazioni, direi almeno 100 ore e suona bene e musicale dopo un bel po di tempo. Prima di far ascolti importanti di valutazione l'impianto era ben caldo, 2 ore direi. I primi 30 minuti suona sempre tutto più duro.
Per quanto riguarda l'enfatizzazione sulle altre, ho provato il topping d50 nel mio impianto migliore. Costituito da krell preamplificazione up-gradato e rifatto in modo importante e finale bartolomeo aloia st2000. Cavi rca in argento oro al teflon, cavi potenza argento oro, cavi alimentazione furutech da 180 euro al metro e schuko iec furutech da 300 euro cad'una. Ciabatta in alluminio pieno con schuko furuteck oro e cavi rame 7n.
In questo impianto che così composto arriva a quasi 40 mila euro tutto compreso l'enfatizzazione delle alte frequenze è nulla. Solo si fa sentire quando nei picchi il fonometro segna meno 10-20db. Volumi che preoccupano i muri di casa.
Starei attento a quali elettroniche abbiamo in casa ed i cavi segnale usati. negl'ultimi anni per far sembrare suonar bene gl'impianti e creare sound stage sia la sorgente, che i preamplificatori che i finali che i cavi enfatizzano le alte. Se associamo il topping d50 la cosa potrebbe farsi sentire. ma ciò non succede in un impianto ottimo.
Lo consiglio vivamente. E' un best buy.
ora lo tengo nel mio impianto minore ed ho ordinato la sua alimentazione topping. spero arrivi presto e aggiornerò.
 (1)
 (1)
This review has been posted for TOPPING D50 DAC 2x ES9038Q2M 32bit/768kHz DSD512 XMOS U208 Black
Note :
 4/5
Date :
Bon rapport qualité prix
Acheté pour éventuellement remplacer un audio gd 19.
Devant les critiques et valeurs excellentes d'audio science review, je me suis posé la question de remplacer un dac 19 dsp1 qui n'avait pas une bonne note sur le même site (certes c'est un modèle sans DSP qui est testé).
La différence entre les 2 dacs n'est pas évidente et nécessite de la concentration et un fort volume.
Le D50 est eut être un peu plus contrasté et un poil excessif dans le haut du spectre à mon gout comparativement au 19 qui reste un poil plus doux et qui ne manque en tout cas pas de détail contrairement à ce que pourrait laisser penser les chiffres.
En tout cas pour le prix le D50 s'en tire de très belle manière!
 (1)
 (0)
This review has been posted for TOPPING D50 DAC 2x ES9038Q2M 32bit/768kHz DSD512 XMOS U208 Black
Note :
 5/5
Date :
Petit mais costaud
Donne de une profondeur musicale incroyable avec une fidélité et une précision remarquable.
A choisir sans hésité pour ça qualité et son prix contenu.
Merci à l'équipe d'Audiophonics pour les conseils techniques.
 (0)
 (0)
This review has been posted for TOPPING D50 DAC 2x ES9038Q2M 32bit/768kHz DSD512 XMOS U208 Black
Note :
 5/5
Date :
KP
This is an excellent dac for a very good price.
I don,t think that you need any better.
It delivers clean, dynamic sound.

And very good service from audiophonics.

 (0)
 (0)
This review has been posted for TOPPING D50 DAC 2x ES9038Q2M 32bit/768kHz DSD512 XMOS U208 Black
Note :
 5/5
Date :
Unbelievable value for money
I have replaced a Schiit Modi 2 with Topping D50. It's an impressing sound comming out of this little box. I would consider this little DAC to be the best buy overall, if you want to get good sound from your computer to your HI-Fi system.
 (2)
 (0)
This review has been posted for TOPPING D50 DAC 2x ES9038Q2M 32bit/768kHz DSD512 XMOS U208 Black
