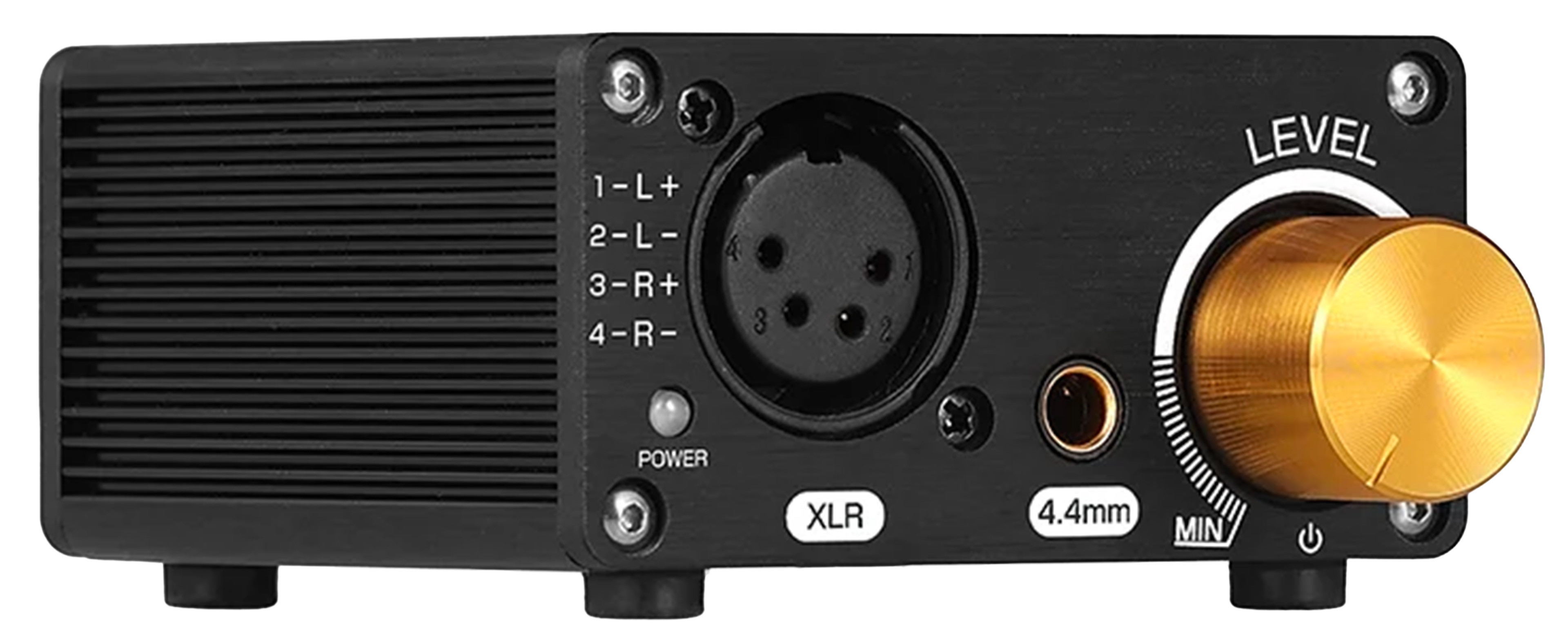

DOUK AUDIO U5 Balanced Headphone Amplifier JRC4580

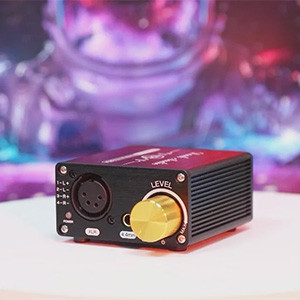

The Douk Audio U5 is a compact headphone amplifier with a fully balanced architecture, designed to deliver a precise analog signal with power up to 1400 mW into 32 Ω. It relies on XLR connectivity and a low-distortion design to efficiently drive headphones from 18 to 600 Ω.
Intended for fixed Hi-Fi setups, it combines balanced inputs and outputs, 5 V power supply and an integrated volume control. This design allows it to easily integrate with various analog sources, while maintaining a stable output with low- or high-impedance headphones.
Douk Audio U5: Balanced headphone amplification

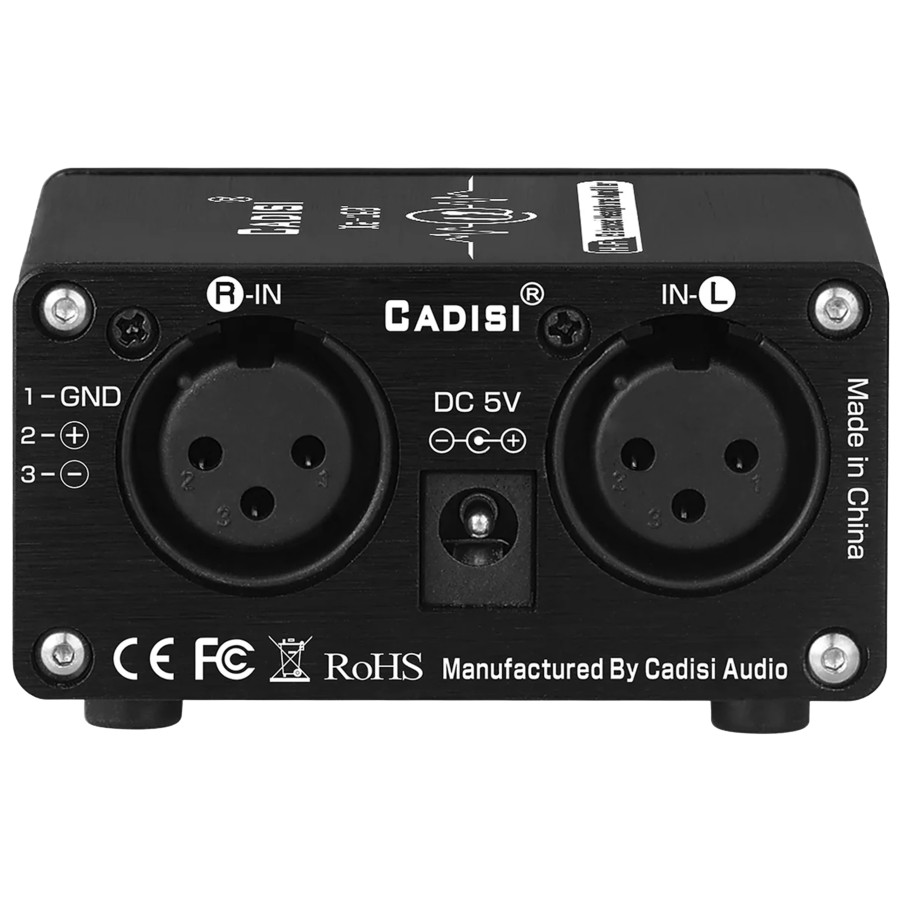

The Douk Audio U5 is a compact headphone amplifier with a fully balanced design, developed to deliver the analog signal with low distortion and a wide frequency response. Its stereo XLR input allows the use of a balanced connection, while its power reaches 1400 mW into 32 Ω, enabling the use of headphones with an impedance between 18 and 600 Ω.
Douk Audio U5: Connectivity and power supply

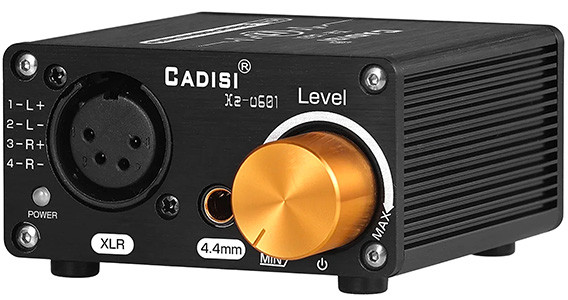

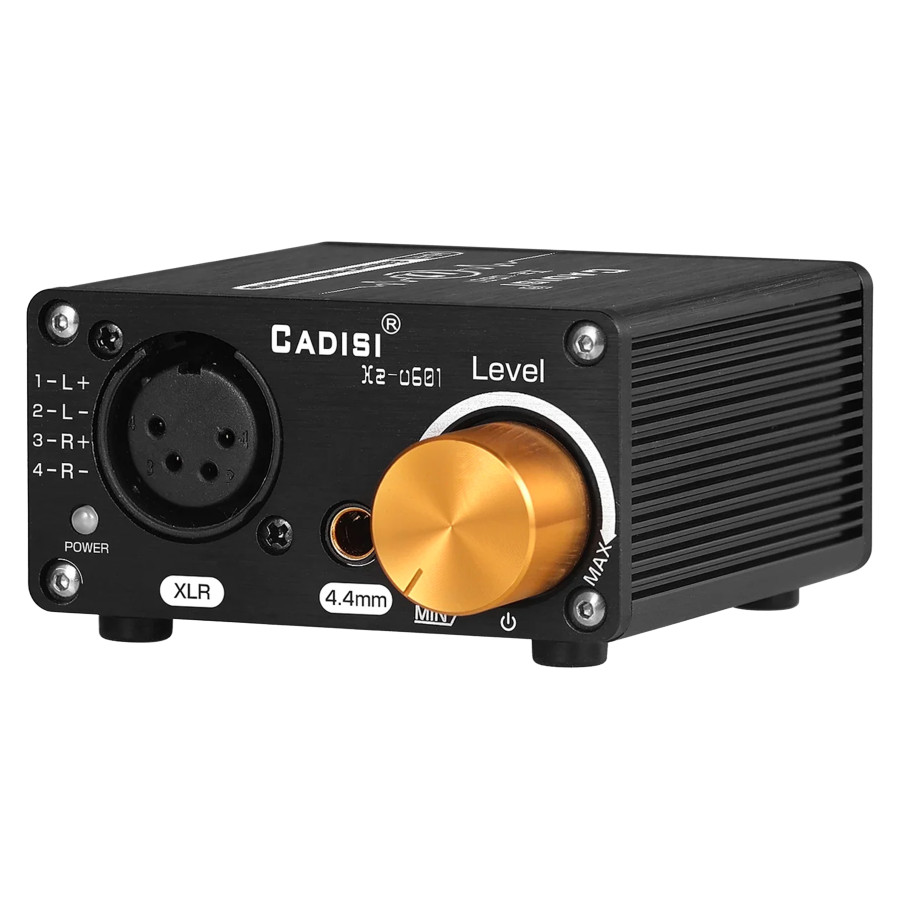

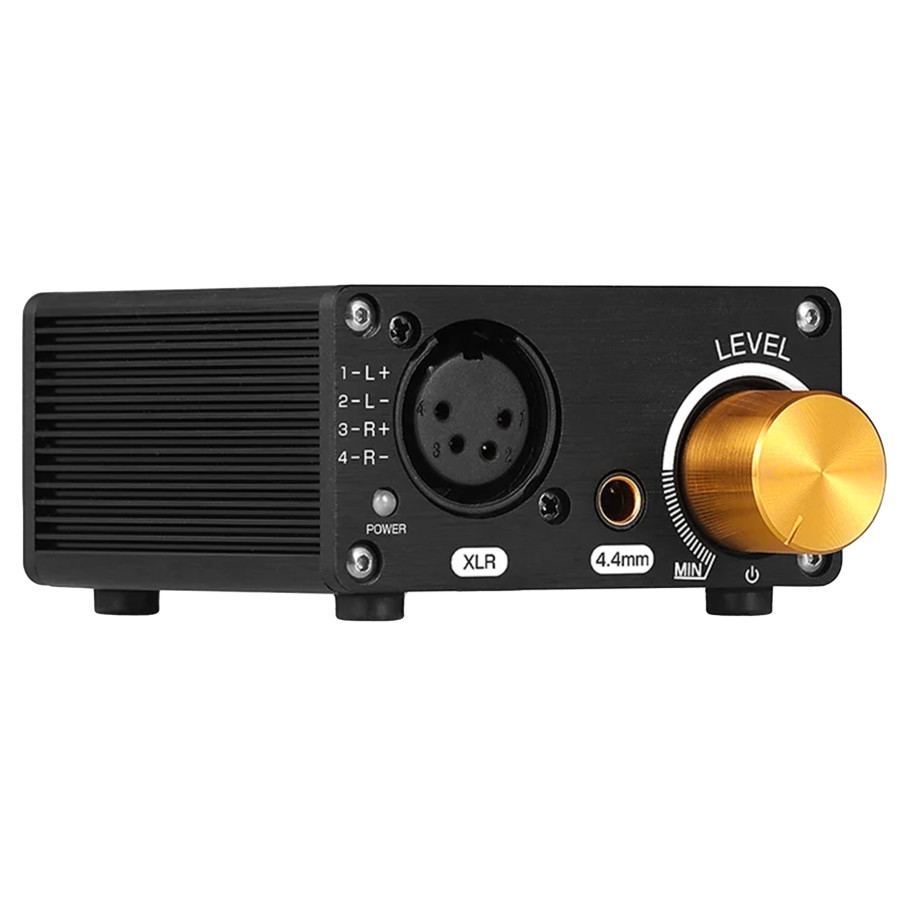

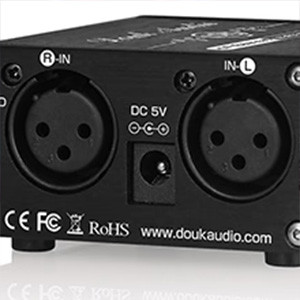

This versatility is extended by two balanced headphone outputs, in XLR and 4.4 mm jack, in order to adapt to different listening configurations. Its 5 V DC power supply allows the use of both a phone charger and an external battery, facilitating its integration into a fixed or mobile setup.
Douk Audio U5: Replaceable op-amp

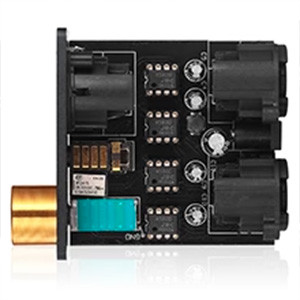

The U5 adopts an analog architecture based on 4 JRC4580 operational amplifiers, mounted on DIP8 to allow their replacement with a compatible model. The integrated potentiometer provides progressive volume adjustment without unwanted noise or imbalance between channels, while the power switch brings the essential functions together in a compact format.
Technical specifications
| Specifications | |
|---|---|
| Product type | Headphone amplifier |
| Inputs | 1x stereo XLR |
| Outputs | 1x XLR 4 pins 1x Jack 4.4mm |
| Output power | ≥1400mW @32Ω |
| Frequency response | 20Hz-30KHz |
| SNR | ≥110DB |
| Total harmonic distortion (THD) | 0.005% |
| Compatible headphone impedance | 18-600Ω |
| General | |
|---|---|
| Supply voltage | 5V |
| Dimensions | 68 x 69 x 28mm |
| Weight | 149g |
| Color | Black |
| Package | 1x Douk Audio U5 1x USB-A to DC Jack cable |
