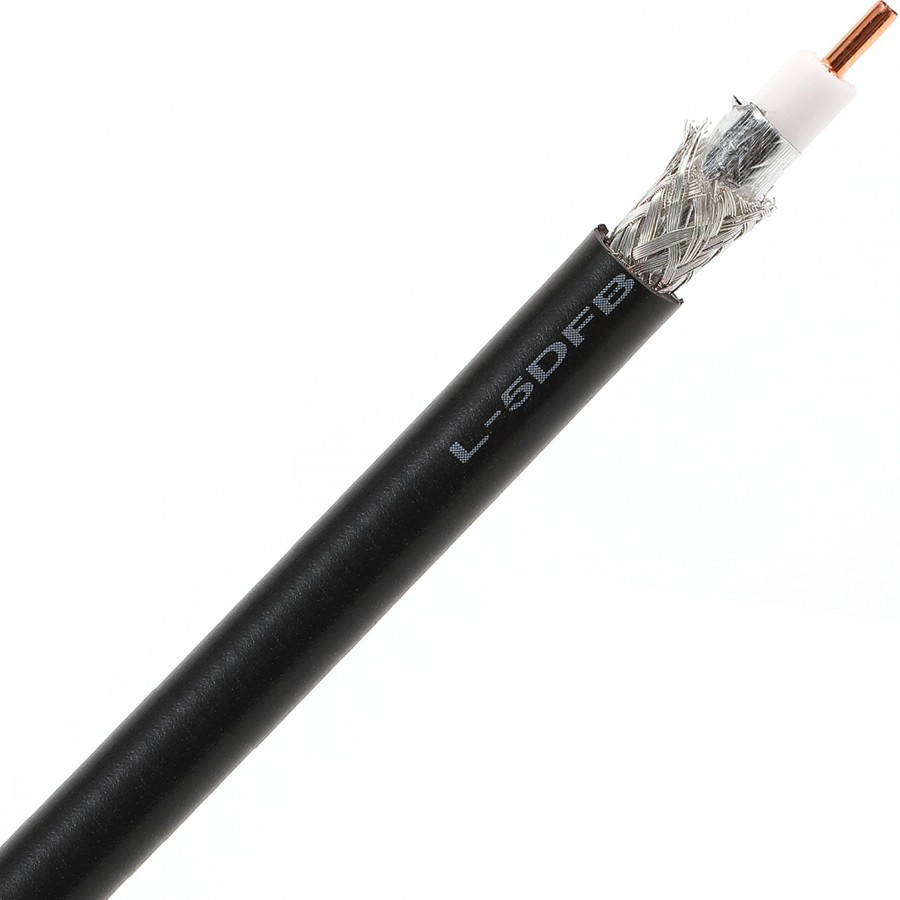

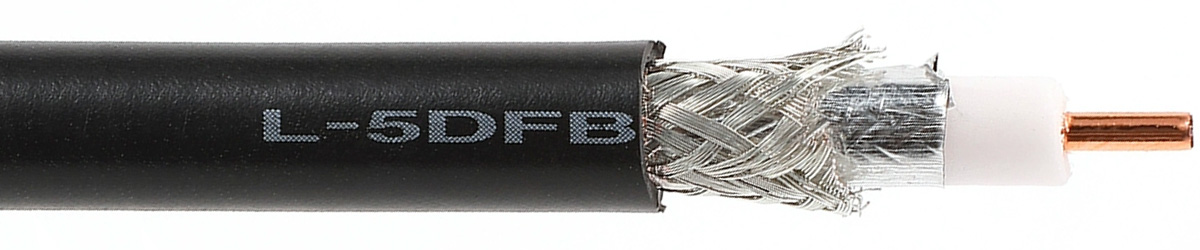

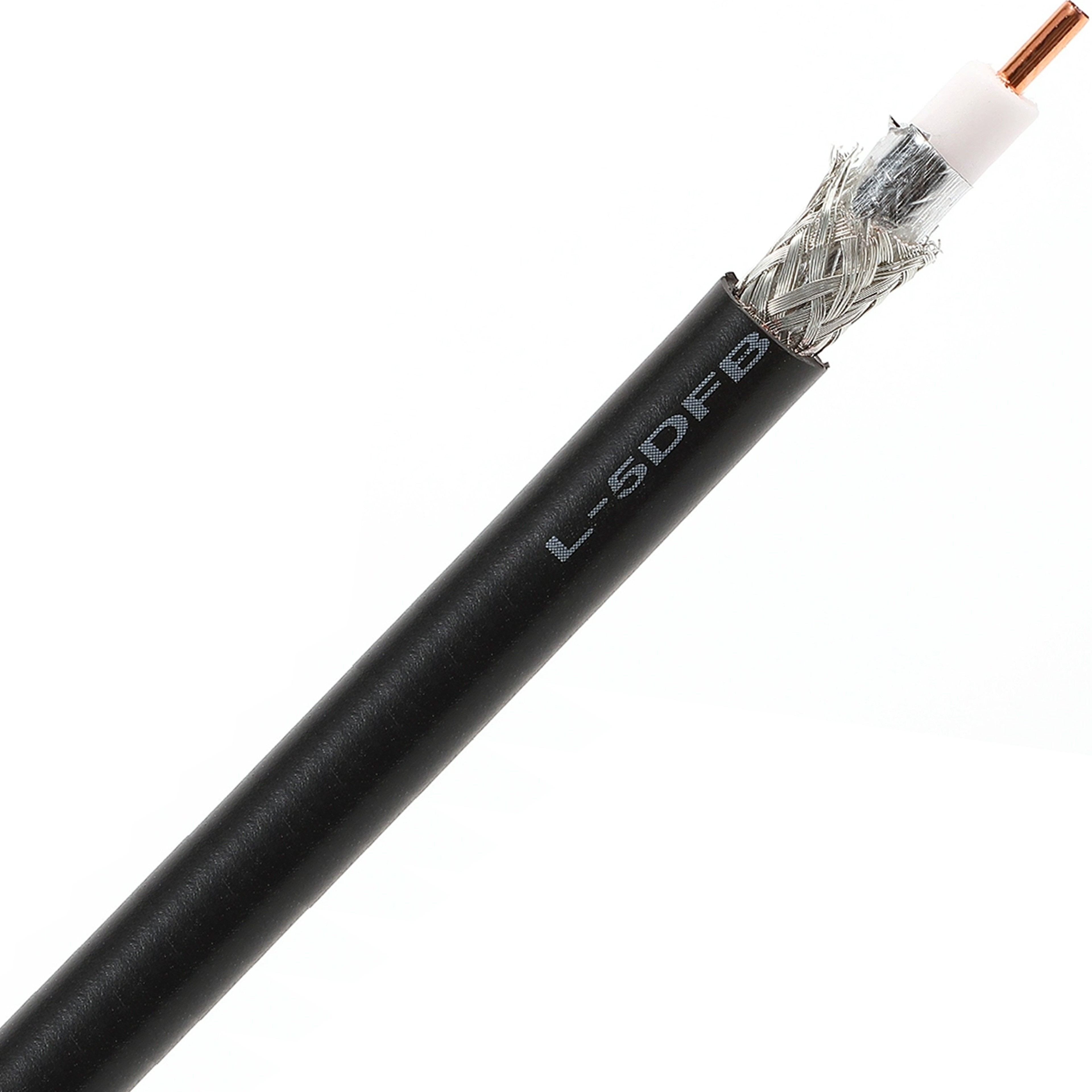

This professional-quality Canare L-5DFB coaxial cable has an impedance of 50Ω. It features a 2.082mm² (14AWG) copper center conductor and a double shield of aluminum foil and tin-plated copper braid. The whole assembly is covered by a black PVC sheath.
Technical characteristics
Specifications | |
---|---|
Product type | Coaxial cable |
Outer diameter | Ø7.6mm |
Weight | 8.5kg/100m |
Conductor material | Copper |
Conductor section | 2.082mm² (14AWG) |
Conductor diameter | Ø1.8mm |
Insulation diameter | Ø5mm |
Shielding material | Aluminum foil Tinned copper braid |
Conductor resistance | 0.7Ω/100m |
Shielding resistance | 1.1Ω/100m |
Static capacity | 84pF/m |
Impedance | 50Ω |
Attenuation | 2.5dB/100m (10MHz) |
Outer sheath material | PVC |
General | |
---|---|
Color | Black |
Length | Sold by the metre |
Diameter (mm) | 7.6 |
Number of conductors | 1 |
Insulation material | NC |
Shielding | Yes |
Section (mm²) | 2.08 |
Conductors material (Cable) | Copper |
Conductors Plating (Cable) | None |
Ground / Shielding | Yes |
