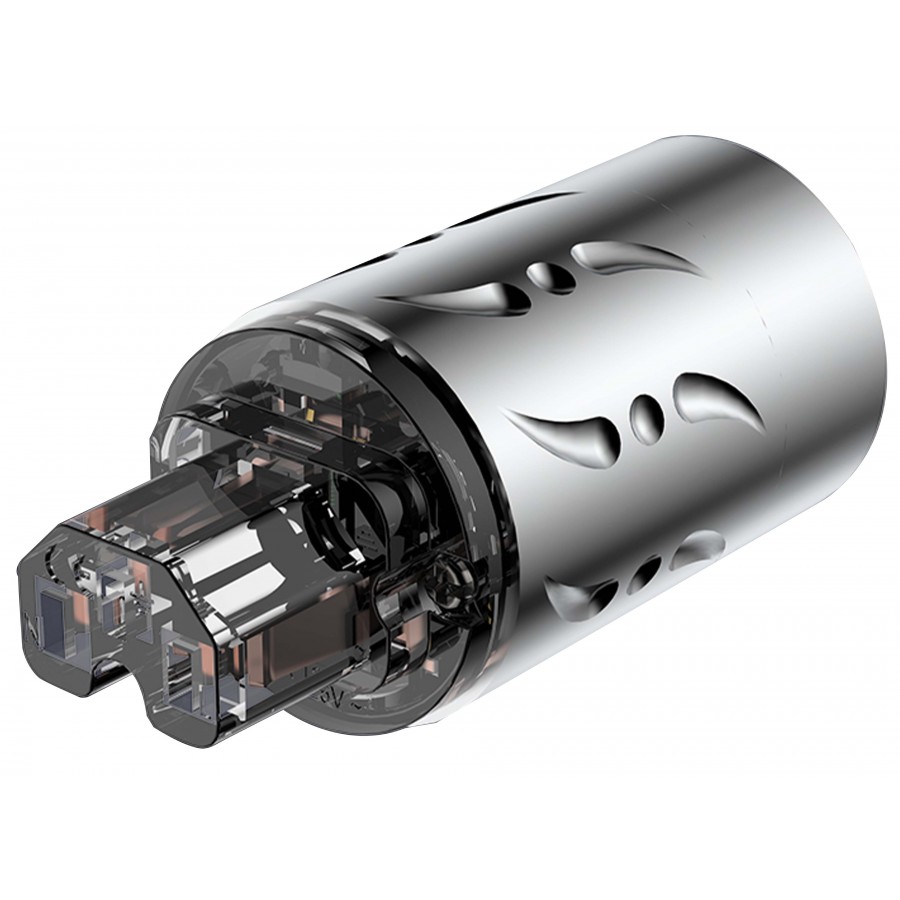

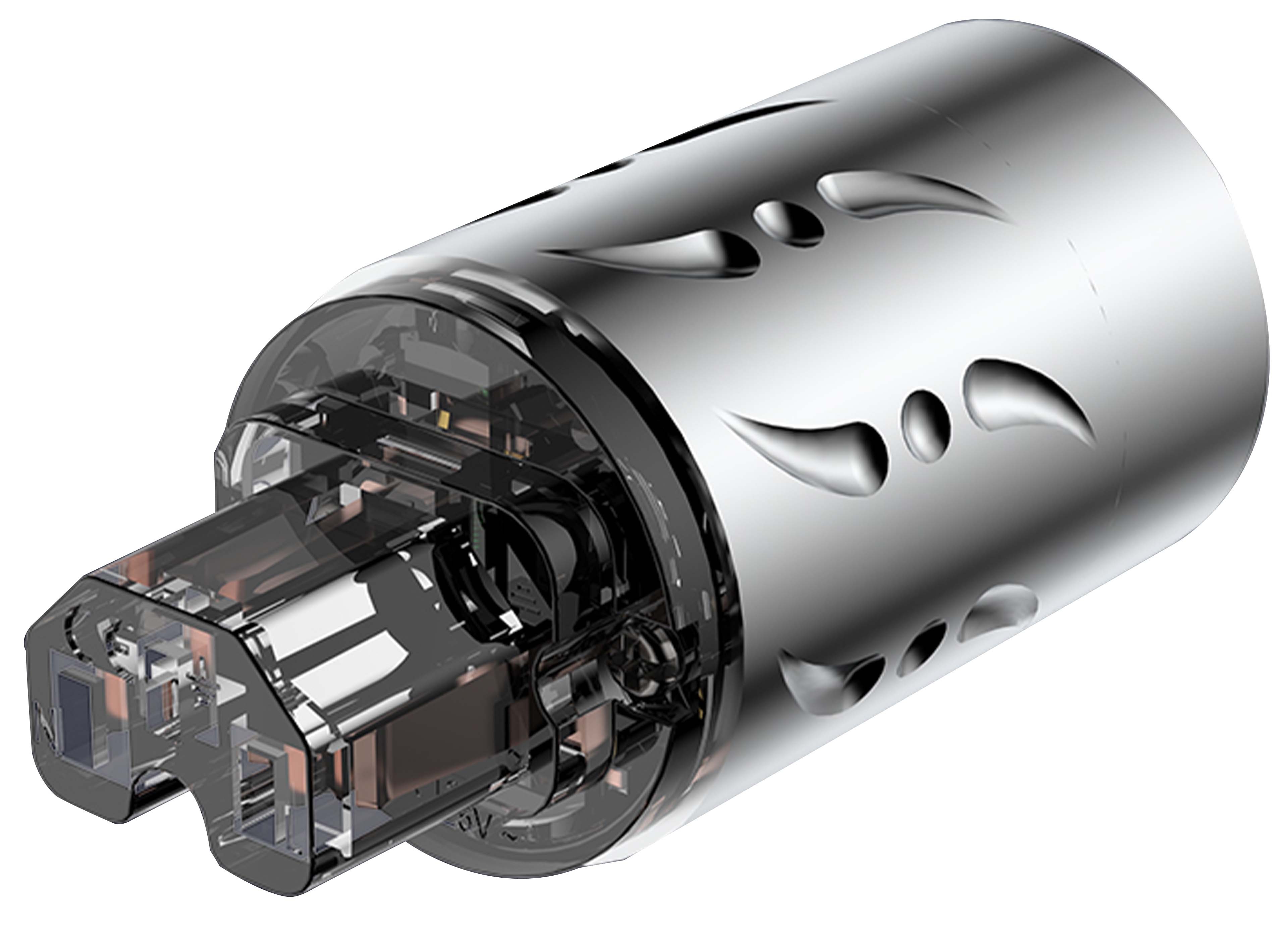

VIBORG VF512 Connector IEC C13 Pure Copper Plated Ø18mm

VIBORG VF512 Connector IEC C13 Pure Copper Plated Ø18mm
The VE512 serie power connectors are designed to for high quality power cables assembly.

They have a robust clamping system which ensures great stability from 6 to 18mm⌀ and are therefore quite suitable for HiFi cables with a large diameter.

No customer reviews yet, login to write a review.

By buying this product you get 3 loyalty points


Reference : 17498
New product

39,90 €tax incl.

33,25 € tax excl.
Including 0,01 € for green tax

- +

Shipping date: 30-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

VIBORG VE512

Connector IEC C13 Pure Copper Ø18mm

VIBORG VF512R Connector IEC C13 Pure Copper Silver / Rhodium Plated Ø18mm
VIBORG VF512R Connector IEC C13 Pure Copper Silver / Rhodium Plated Ø18mm


The VE512 serie power connectors are designed to for high quality power cables assembly.

They have a robust clamping system which ensures great stability from 6 to 18mm⌀ and are therefore quite suitable for HiFi cables with a large diameter.

A pure copper conductor (OFC Copper) ensures superior conductivity that will enhance the qualities of a well-built power-supply, benefiting all subsequent elements of the installation.

Finally, the assembly is protected by a lightweight aluminum housing with a elegant design. This material also limit any EMI / RFI interference that might impair the signal.

Technical characteristics

Specifications
Connector TypeIEC C13
Contact materialsPure copper
Max cable diameter6-18mmØ
Plating contactsOFC copper
Max conductors dimensionsDiameter: 5.5mm
Section: 22mm²
AWG: 4
Voltage / Current125V AC/ 15A - 250V AC / 10A
Dimensions63.7x40mm / Length 81.5mm
ScrewScrews provided
ColorSilver

Data sheet
Max cable diameter (mm)18.0
Mounting typeTo screw
ConnecticFemale
ConnectorIEC C13
Contacts Material (Connector)Copper
Contacts Plating (Connector)None
Rated current (A)10.0
