Pack Topping DAC E50 ES9068AS + Balanced Amplifier PA5 + Jack 6.35mm Cables TCT1 Black

Pack Topping DAC E50 ES9068AS + Balanced Amplifier PA5 + Jack 6.35mm Cables TCT1

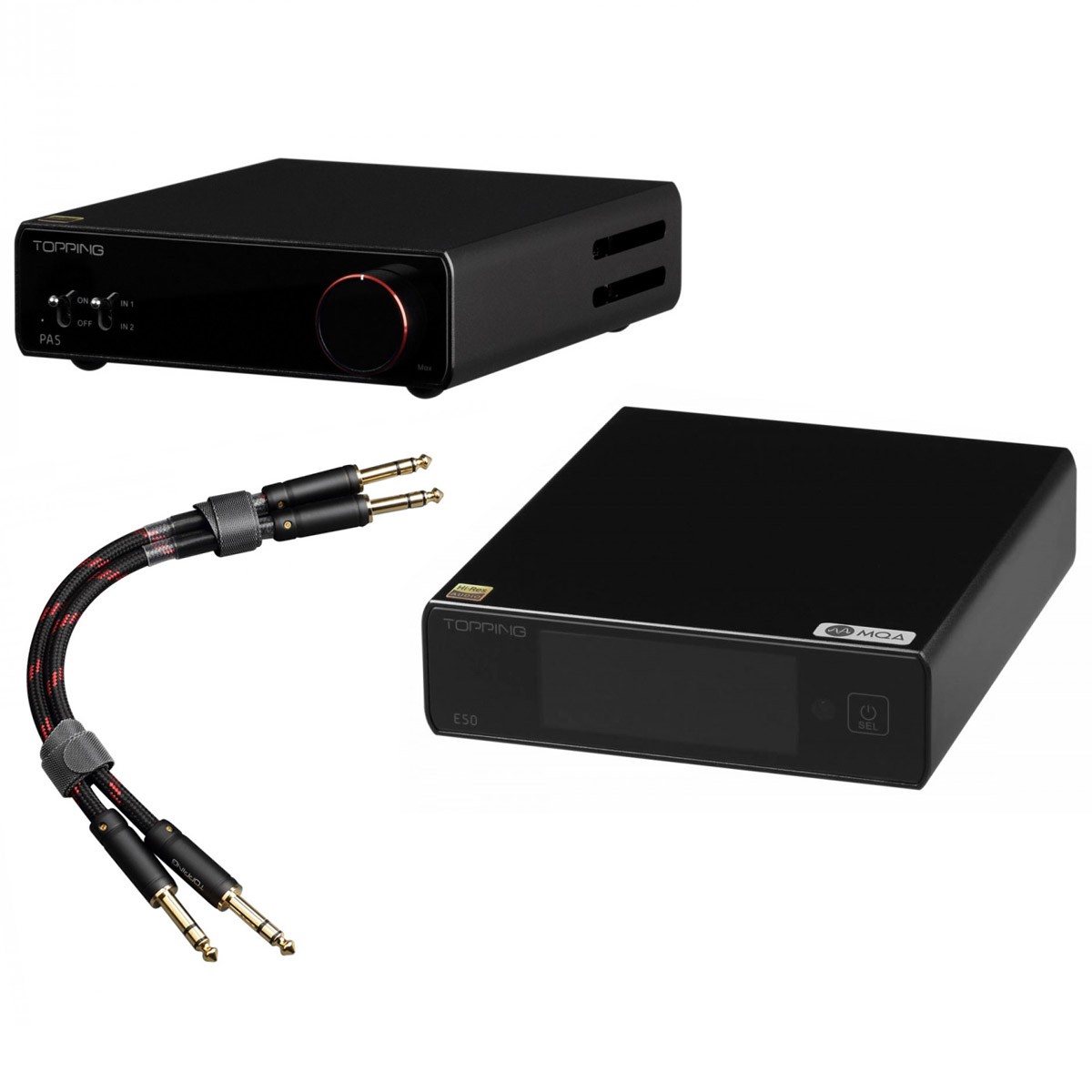

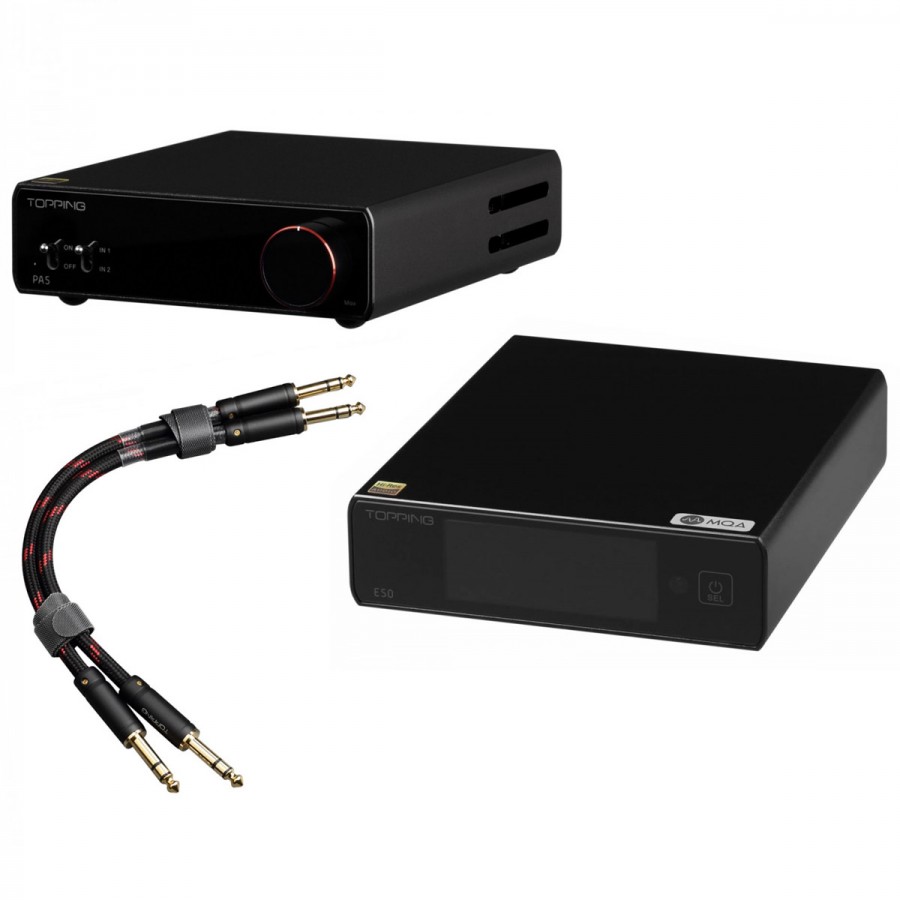

This Topping pack composed of an E50 DAC, a PA5 amplifier and TCT1 connection cables allows you to enjoy a complete and coherent set, capable of a high quality sound reproduction at an affordable price.

No customer reviews yet, login to write a review.

By buying this product you get 63 loyalty points


Reference : 15894
New product

635,00 €tax incl.

529,17 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Pack content


More info

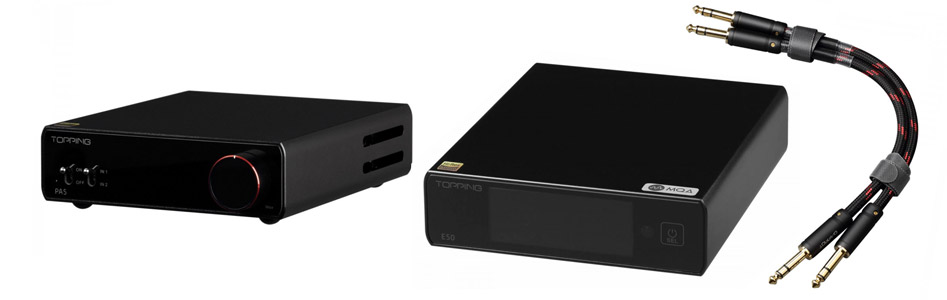

Pack Topping E50 + PA5 + TCT1

DAC E50 ES9068AS + Balanced Amplifier PA5 + Jack 6.35mm Cables TCT1

Pack Topping DAC ES9068AS + Amplificateur Symétrique + Câbles Jack 6.35mm

This Topping pack composed of an E50 DAC, a PA5 amplifier and TCT1 connection cables allows you to enjoy a complete and coherent set, capable of a high quality sound reproduction at an affordable price.

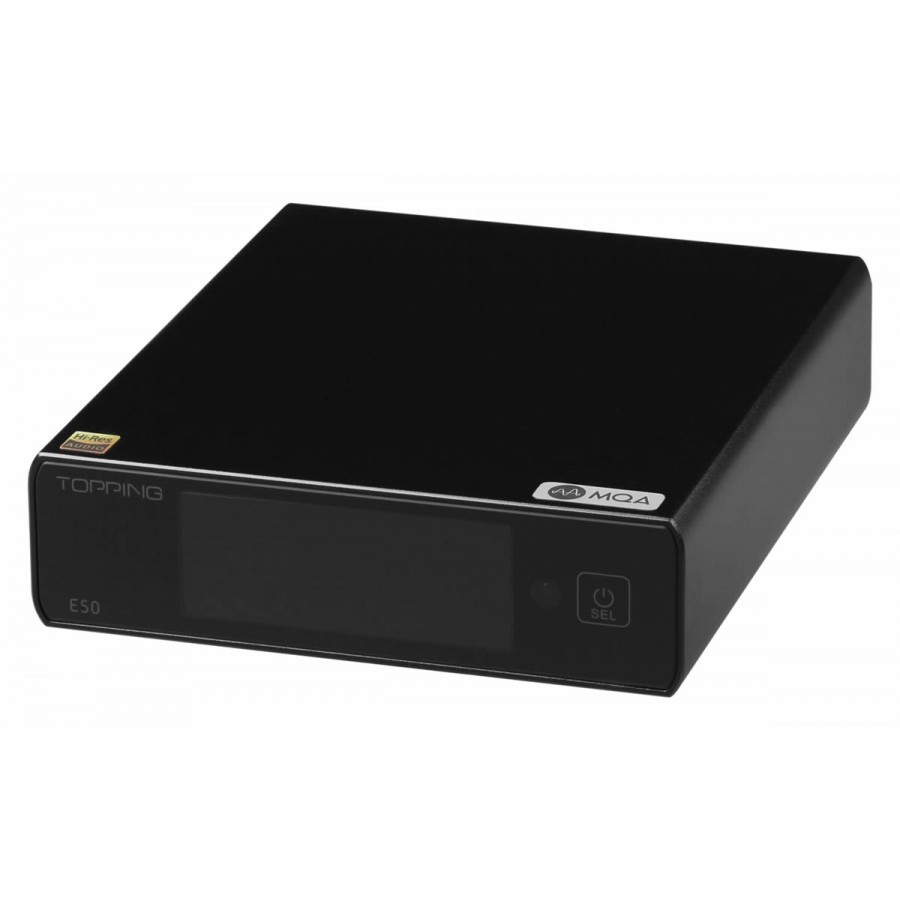

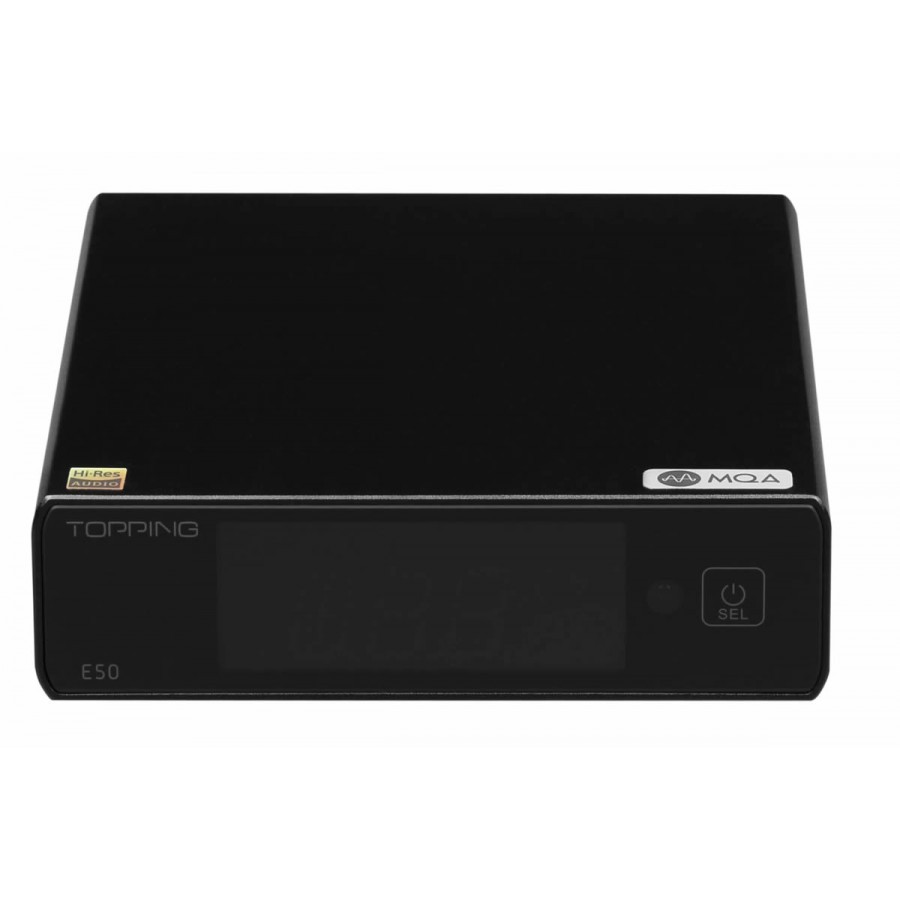

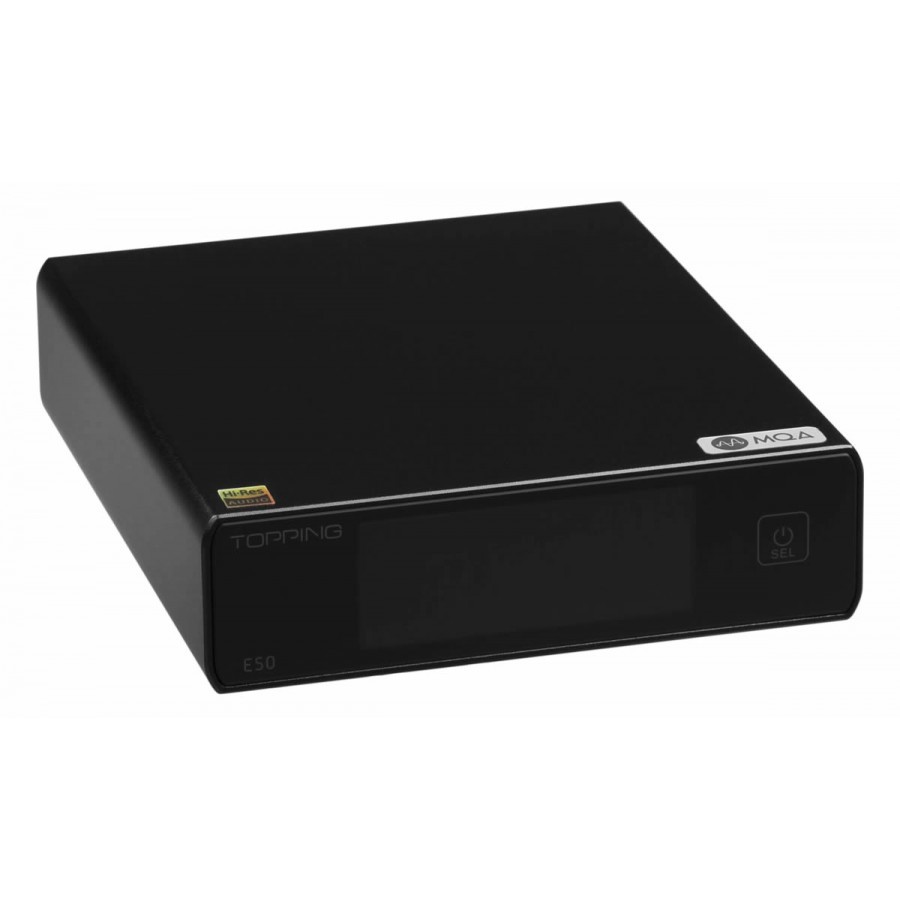

Topping E50 DAC

Topping offers with its E50 a compact and very powerful DAC, using proven audio components widely recognized by audiophiles. This one is indeed based on an ESS ES9068AS digital/analog conversion chip, as well as an XMOS XU216 USB interface, allowing it to read high resolution files but also to decode MQA files. It also benefits from a balanced output on TRS connectors.

View the product page

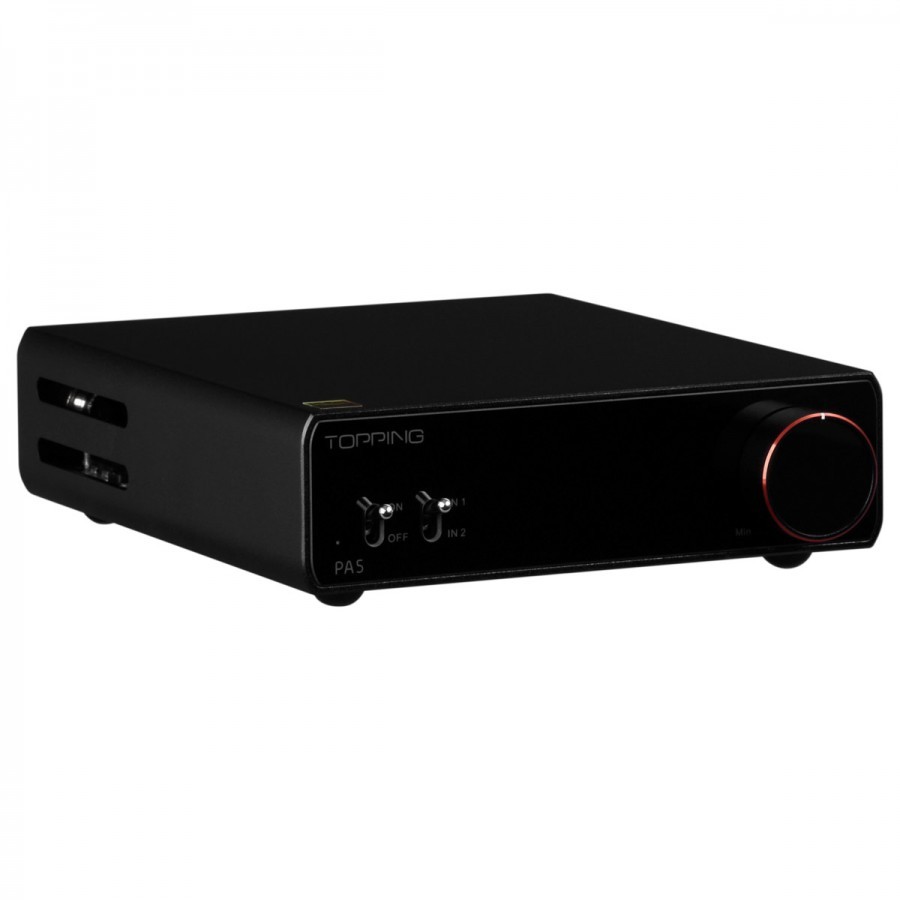

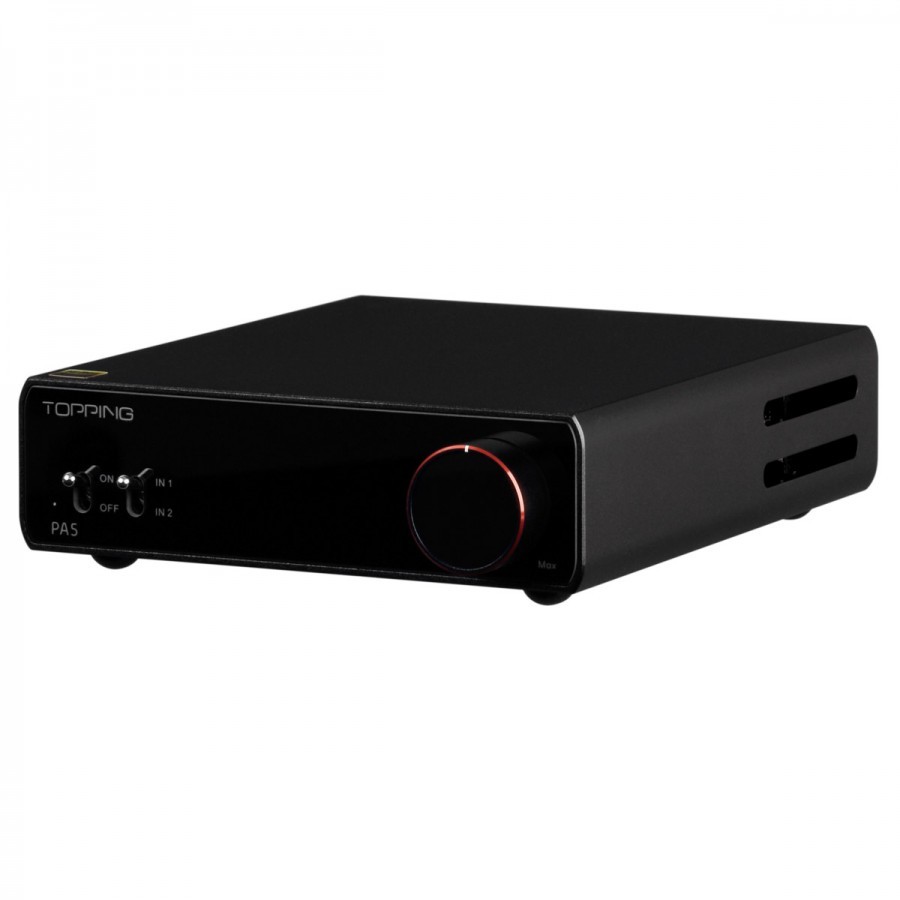

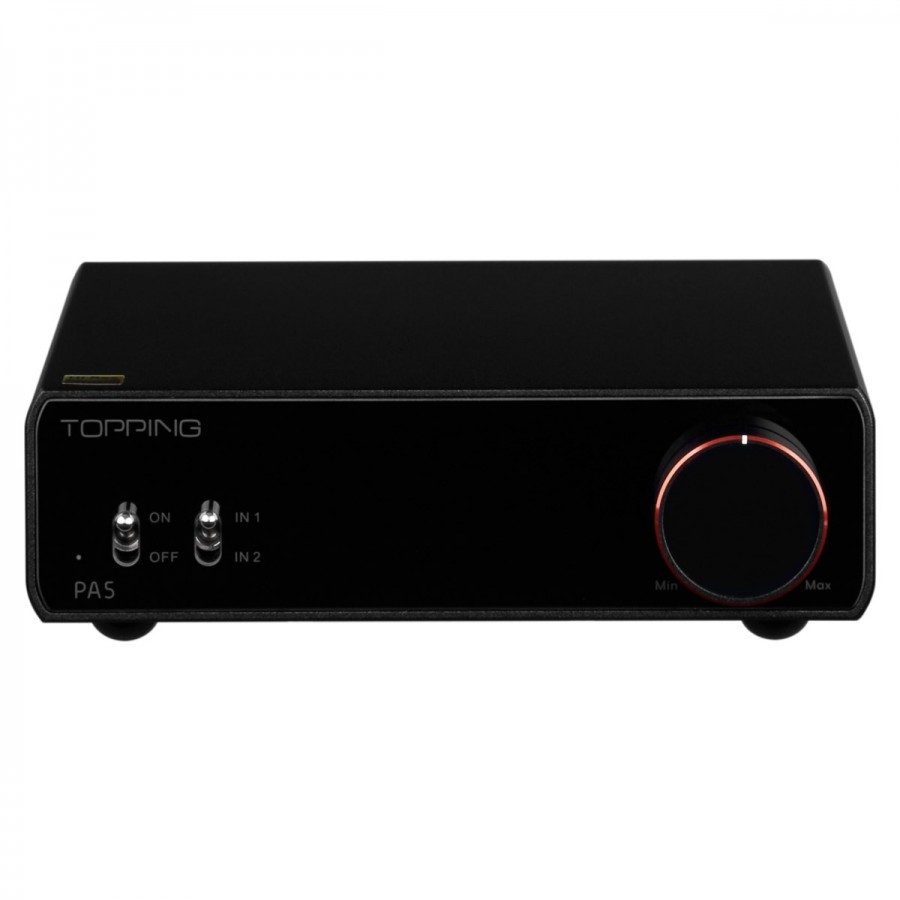

Topping PA5 Amplifier

Topping's PA5 is a compact yet powerful and high performance balanced amplifier. It incorporates an optimized new generation Class D amplifier circuit capable of delivering 2x125W of power at 4Ω, with high efficiency. This new circuit offers a precise, neutral and rich sound reproduction, with a totally inaudible background noise. The symmetrical design of the PA5 also allows it to limit its noise level considerably and to cancel ground loops.

View the product page

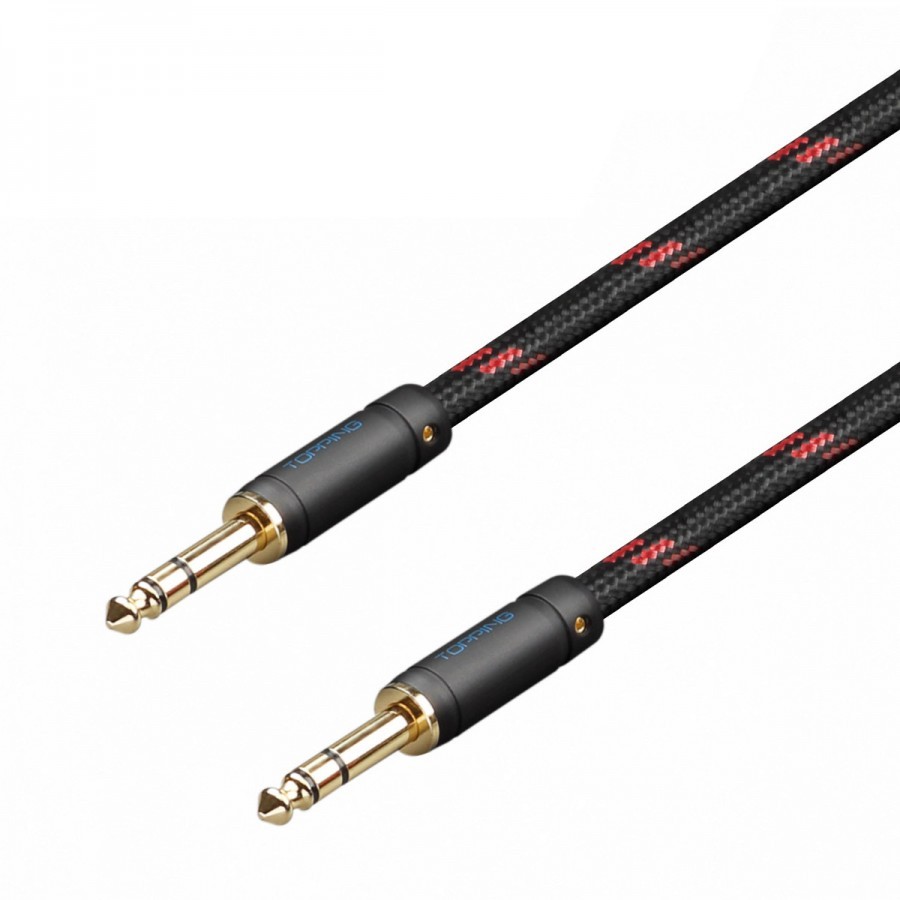

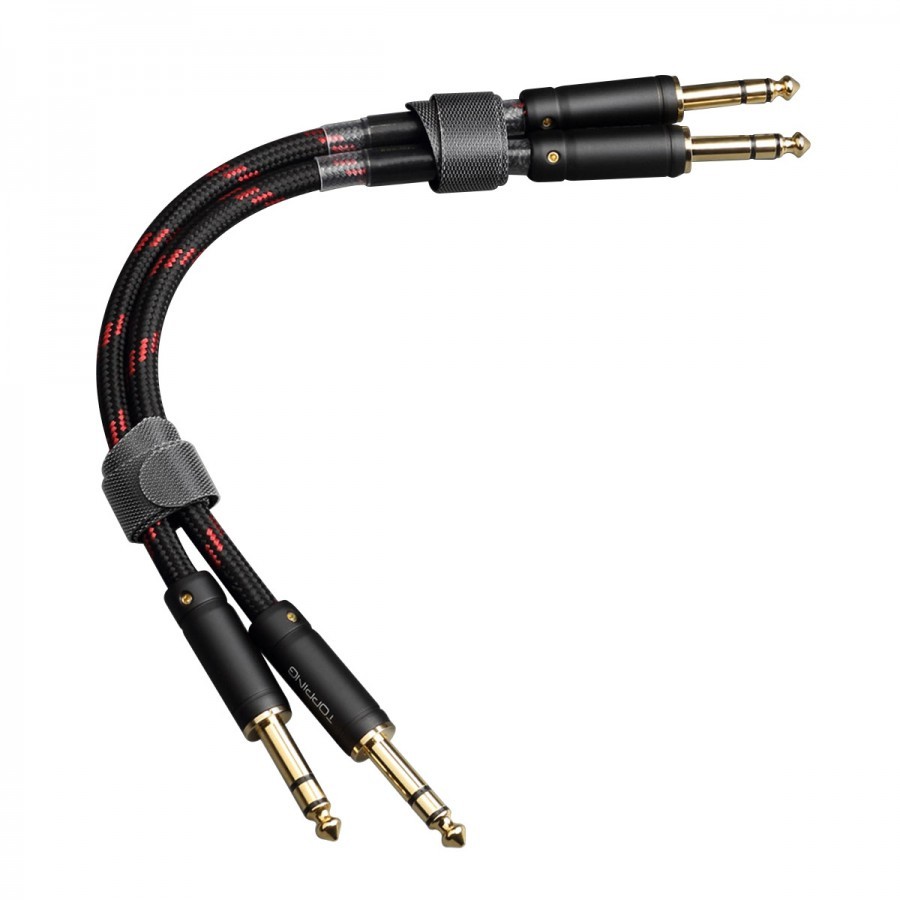

Jack 6.35mm TCT1 Cables

The TCT1 cables from Topping are high quality 6.35mm jack cables. They integrate 6N copper and 6N silver plated copper conductors ensuring a perfect signal transmission. Each conductor has a section of 0.533mm² (19AWG). The contacts of the connectors are gold plated in order to maintain an excellent conductivity while ensuring a great resistance to oxidation. Each cable is covered with a beautiful and robust black and red braided nylon sheath. They will allow you to connect the E50 and the PA5 together.

View the product page

Technical characteristics

Specifications
Product typeDAC + Amplifier + Jack 6.35mm cables
Pack content1x Topping E50
1x Topping PA5
1x Topping TCT1
Topping E50 Specifications
Product typeDAC
DAC ChipESS ES9068AS
Supported sampling ratesUSB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA
Optical, Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64, MQA

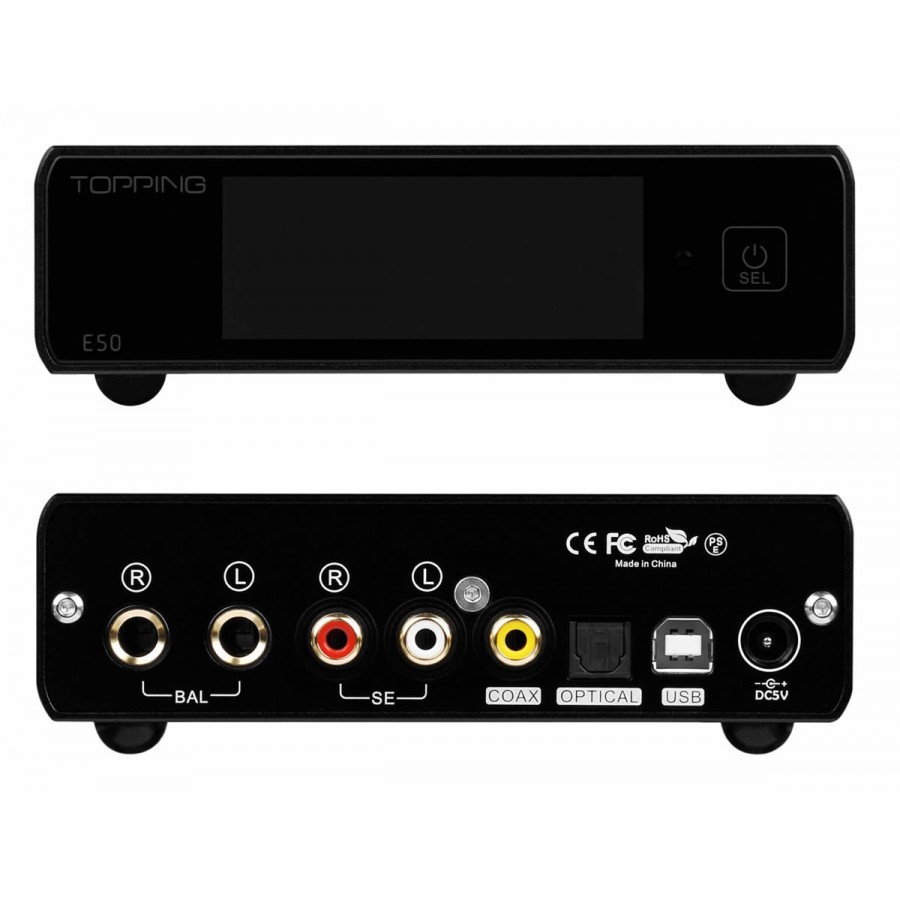

Inputs1x USB-B
1x Optical Toslink
1x Coaxial
Outputs1x Single-ended stereo RCA
1x Balanced TRS Jack 6.35mm
THD+N @ A-WeightingSingle-ended : < 0.0001% @ 1kHz
Balanced : < 0.00009% @ 1kHz
THD+N @ No-Weighting 90kBwSingle-ended : < 0.0003% @ 20Hz-20kHz
Balanced : < 0.0003% @ 20Hz-20kHz
SNR @ A-WeightingSingle-ended : 124dB @ 1kHz
Balanced : 126dB @ 1kHz
Dynamic range @ A-WeightingSingle-ended : 124dB @ 1kHz
Balanced : 126dB @ 1kHz
Frequency responseSingle-ended : 20Hz-40kHz (±0.3dB)
Balanced : 20Hz-40kHz (±0.3dB)
Output levelSingle-ended : 2Vrms @ 0dBFS
Balanced : 4Vrms @ 0dBFS
Noise @ A-WeightingSingle-ended : < 1.3µVrms
Balanced : < 2.3µVrms
CrosstalkSingle-ended : -130dB @ 1kHz
Balanced : -139dB @ 1kHz
Output impedanceSingle-ended : 20Ω
Balanced : 100Ω
Supply voltage5VDC
Dimensions129 x 155 x 41mm
ColorBlack
Package1x Topping E50
1x Remote control
1x USB-A to Jack DC power cable
1x USB-A to USB-B cable

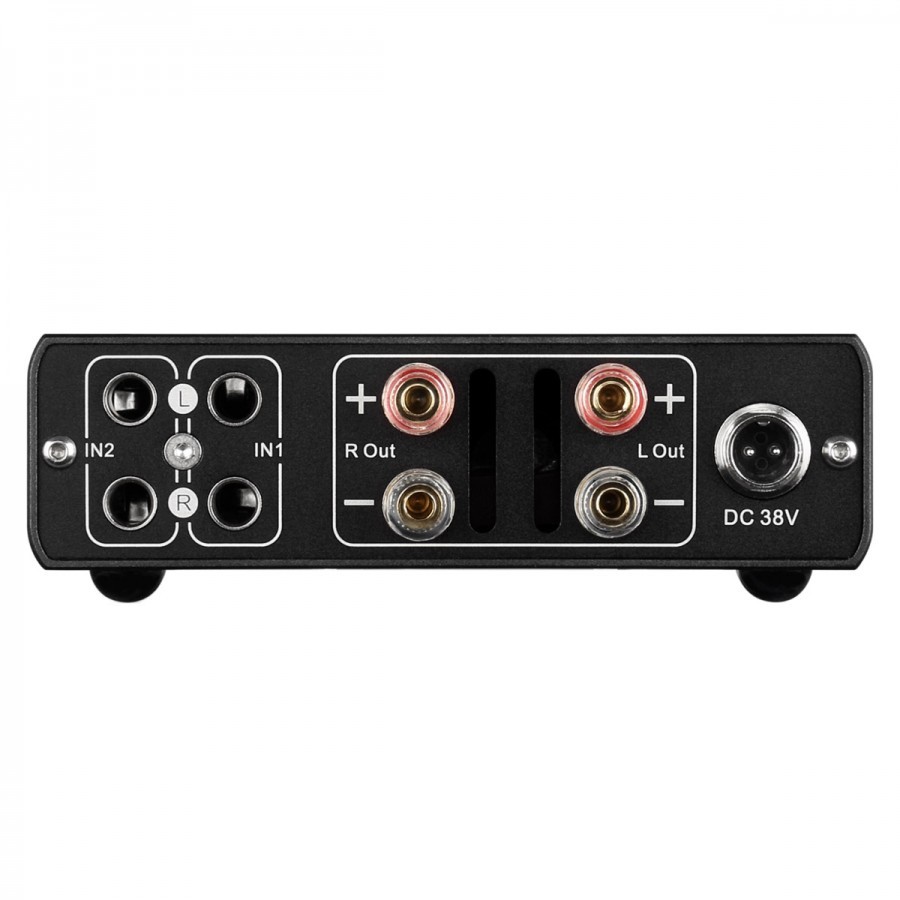

Topping PA5 Specifications
Product typeAmplifier
Inputs2x Balanced stereo Jack TRS
OutputSpeaker terminals (BTL output)
Output power2x140W @ 4Ω, THD+N < 10%
2x125W @ 4Ω, THD+N < 1%
2x85W @ 8Ω, THD+N < 10%
2x65W @ 8Ω, THD+N < 1%
DisplayLED
THD+N @ A-Weighting, 1kHz< 0.0005% @ 4Ω 5W
< 0.0004% @ 8Ω 5W
THD+N @ No-Weighting 20kBw< 0.0015% @ 4Ω 5W
< 0.0006% @ 8Ω 5W
SNR @ A-Weighting124dB
Dynamic range @ A-Weighting124dB
Frequency response20Hz-40kHz (±0.3dB)
Output level65Vpp @ RL=4Ω
68Vpp @ RL=8Ω
Noise @ A-Weighting< 16µVrms
Crosstalk-106dB
Input sensitivity2.6Vrms
Gain19.1dB
Channel balance0.1dB
Output impedance< 0.01Ω
Supply voltage38VDC 4A
Standby consumption< 0.1W
Dimensions166 x 129 x 41mm
ColorBlack
Package1x Topping PA5
1x Power supply
Topping TCT1 Specifications
Product typeJack 6.35mm TRS cables
ConnectorsMale Jack 6.35mm TRS
Length25cm
Cable external diameterØ8mm
Conductors materialCopper
Silver plating copper
Conductors section0.533mm² (19AWG)
Connectors contacts platingGold
External sheathBraided nylon
ColorBlack and red
QuantitySold in pairs (1 cable with red markings, 1 cable with white markings)
