DAYTON AUDIO DTA-100LF Low Frequency Amplifier with EQ for Subwoofer and Exciter

DAYTON AUDIO DTA-100LF Low Frequency Amplifier with EQ for Subwoofer and Exciter
Dayton Audio's DTA-100LF is a Class D low frequency amplifier specifically designed to drive a subwoofer or vibrator. Powerful, it is able to develop a maximum power of 100W under 4Ω or 70W under 8Ω. It also includes three crossovers and a variable phase control to protect, integrate and tune your speakers in any system.

No customer reviews yet, login to write a review.

By buying this product you get 16 loyalty points


Reference : 15950
New product

169,00 €tax incl.

140,83 € tax excl.
Including 0,05 € for green tax

- +


Last items in stock !
Shipping date: 28-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Dayton Audio DTA-100LF

Low Frequency Amplifier with EQ for Subwoofer and Exciter

Dayton Audio DTA-100LF Amplificateur Basses Fréquences avec Égaliseur pour Subwoofer et Vibreur

Dayton Audio's DTA-100LF is a Class D low frequency amplifier specifically designed to drive a subwoofer or vibrator. Powerful, it is able to develop a maximum power of 100W under 4Ω or 70W under 8Ω. It also includes three crossovers and a variable phase control to protect, integrate and tune your speakers in any system.

An adjustable subsonic crossover is used to protect the speakers from over-excursion. A low-pass filter allows the speakers to be integrated with full-range speakers. Finally, a single-band parametric crossover helps manage peaks that may arise from the room acoustics themselves.

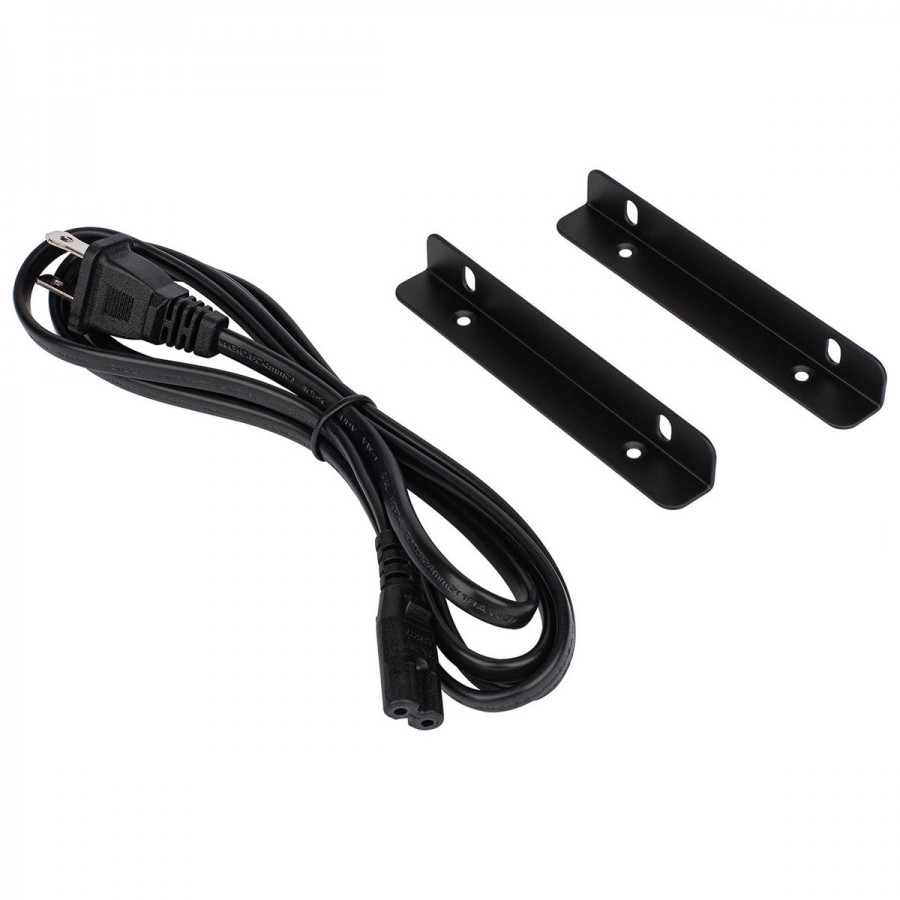

The Dayton Audio DTA-100LF is also capable of detecting an input signal to automatically turn on and off. It also comes in a convenient compact case with brackets for mounting under a shelf or desk, for example.

To use the power cable on European/French power outlets, an adapter sold separately is required.

Technical characteristics

Specifications
Product typeLow frequency amplifier
Input1x Stereo RCA
Outputs1x Stereo RCA
Speaker terminals
Max output power100W @ 4Ω
70W @ 8Ω
THD< 1%
Frequency response20Hz - 180Hz ±3dB
SNR95dB
Input sensitivity200mV
Low pass crossover range30Hz - 200Hz
Phase adjustment0° - 180° variable
Line input impedance22kΩ
Line output impedance4kΩ
General
Supply voltage120-240VAC
ConsumptionMax : 150W
Standby : 1.8W
Dimensions190.5 x 139.7 x 50.8mm
Weight1.5kg

Data sheet
InputRCA
OutputSpeaker terminal
OutputRCA
ColorBlack
Channel1 (Mono)
Channel2 (Stereo)
ClassClass D / T
Amplifier chipN/A
Power (W)100.0
Remote ControlNo
