WONDOM ADP-XAI AA-AA11432 Audio Distribution Panel Combo XLR / Jack 6.35mm TRS Inputs

The Wondom ADP-XAI (AA-AA11432) is an analog audio distribution panel designed to ensure the interface between XLR and 6.35mm TRS jack connectors to terminal block wiring. It allows routing analog audio signals to RJ128 terminals, thus facilitating the integration of equipment not featuring XLR or Jack 6.35mm connectors while maintaining a direct signal correspondence.

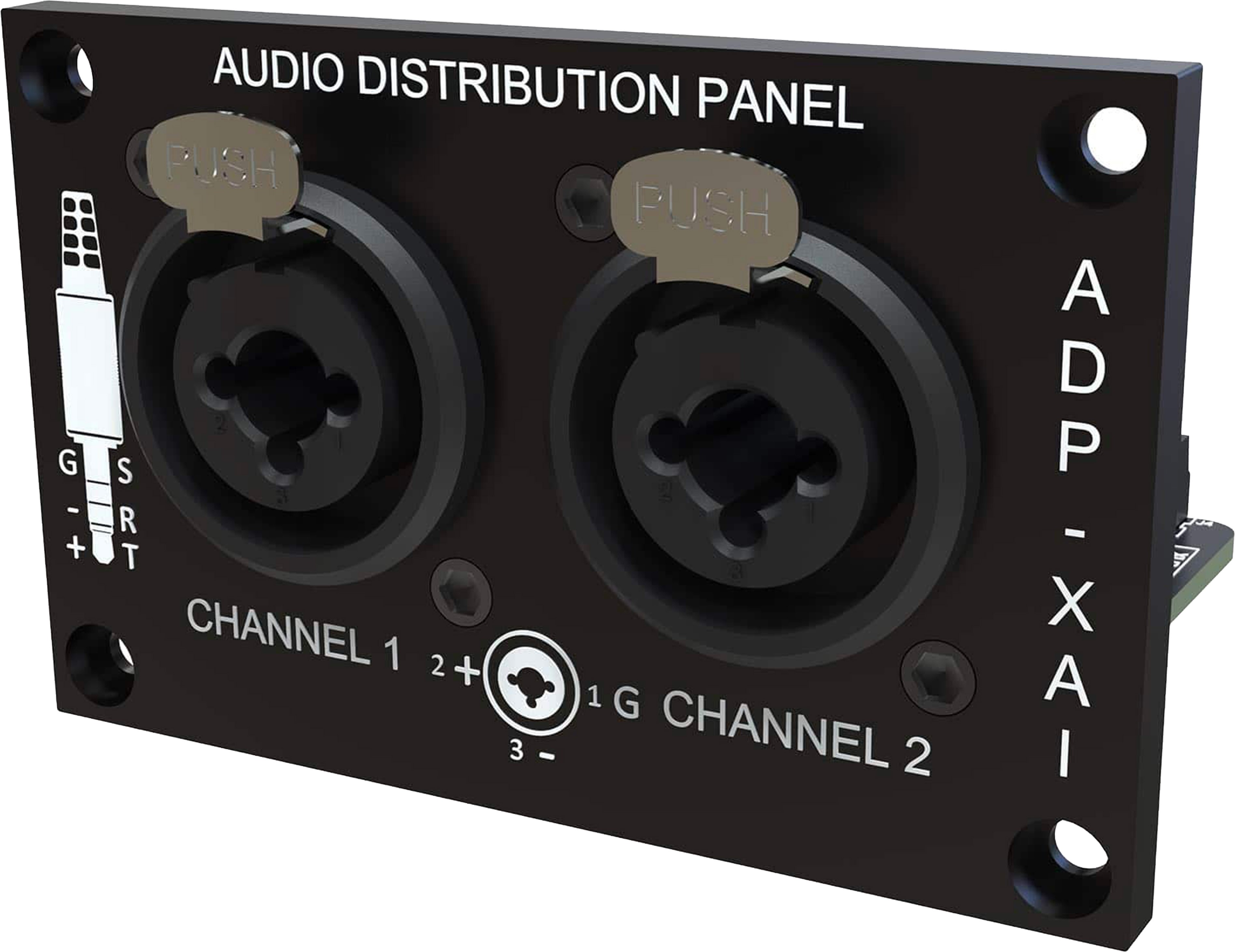

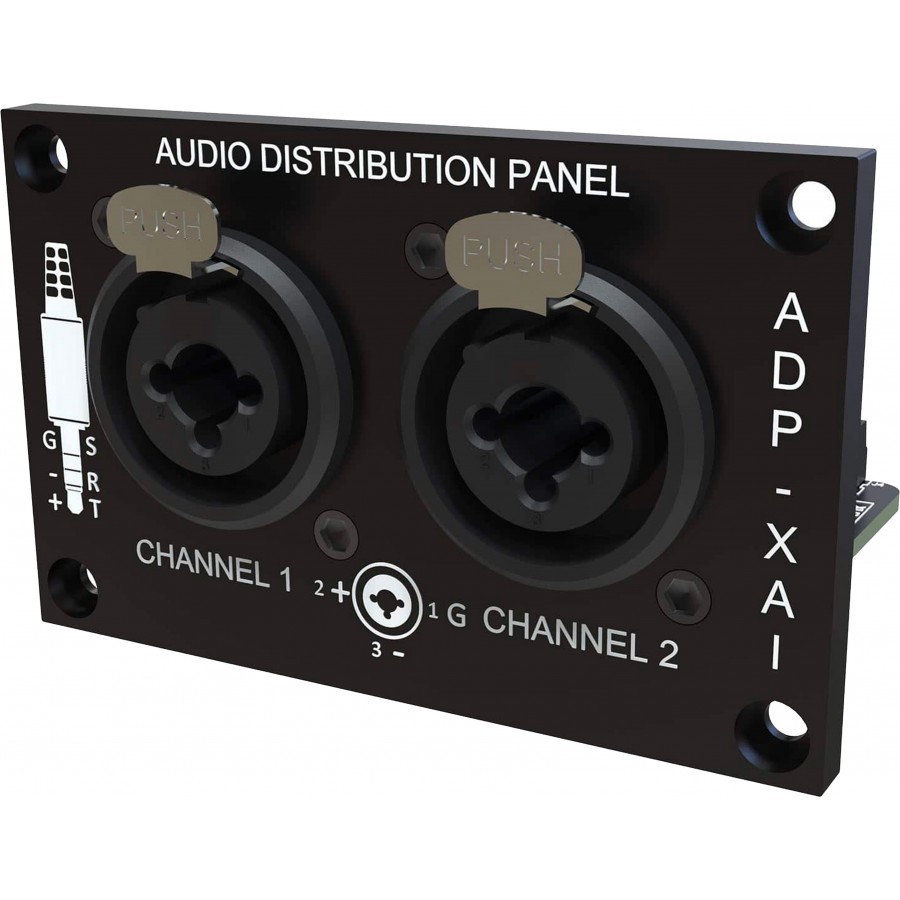

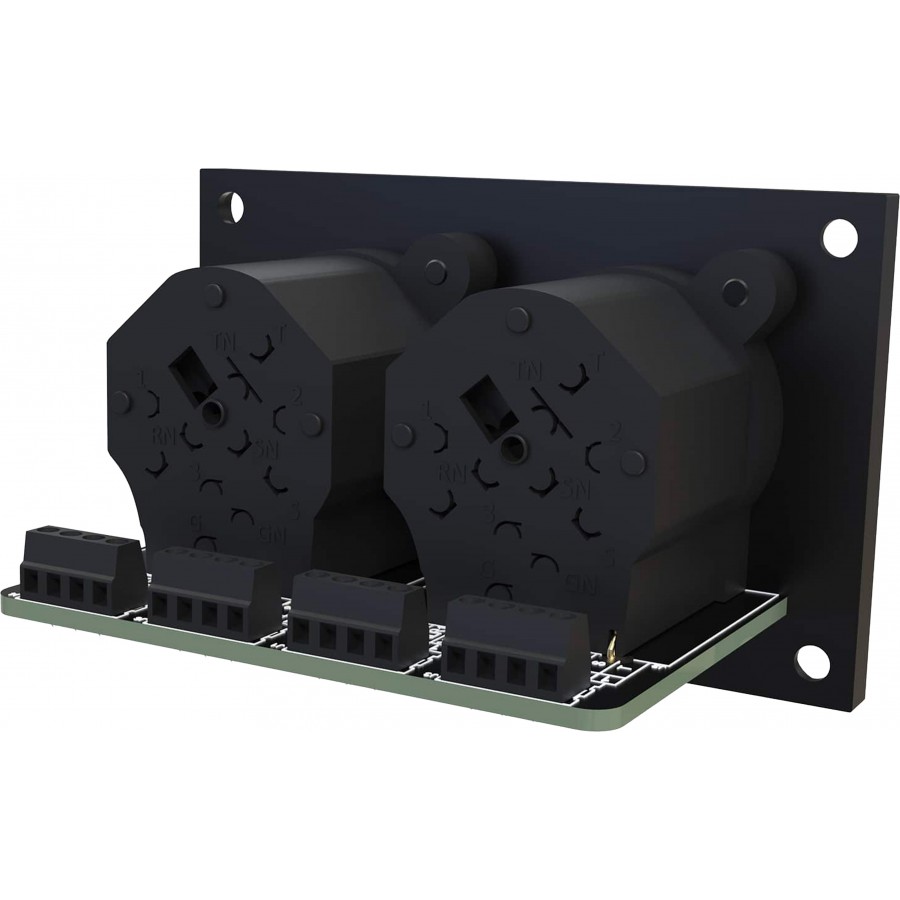

It integrates 3-pin XLR connectors and stereo 6.35mm TRS jack on the front panel, allowing to connect different analog audio sources on the same panel. Each input is directly connected to a RJ128 screw terminal, which allows to retrieve the signal in wired form to integrate it into an existing system. The connection preserves the three conductors of the audio signal, corresponding to hot, cold and ground links, thus ensuring connection continuity compatible with differential audio inputs.

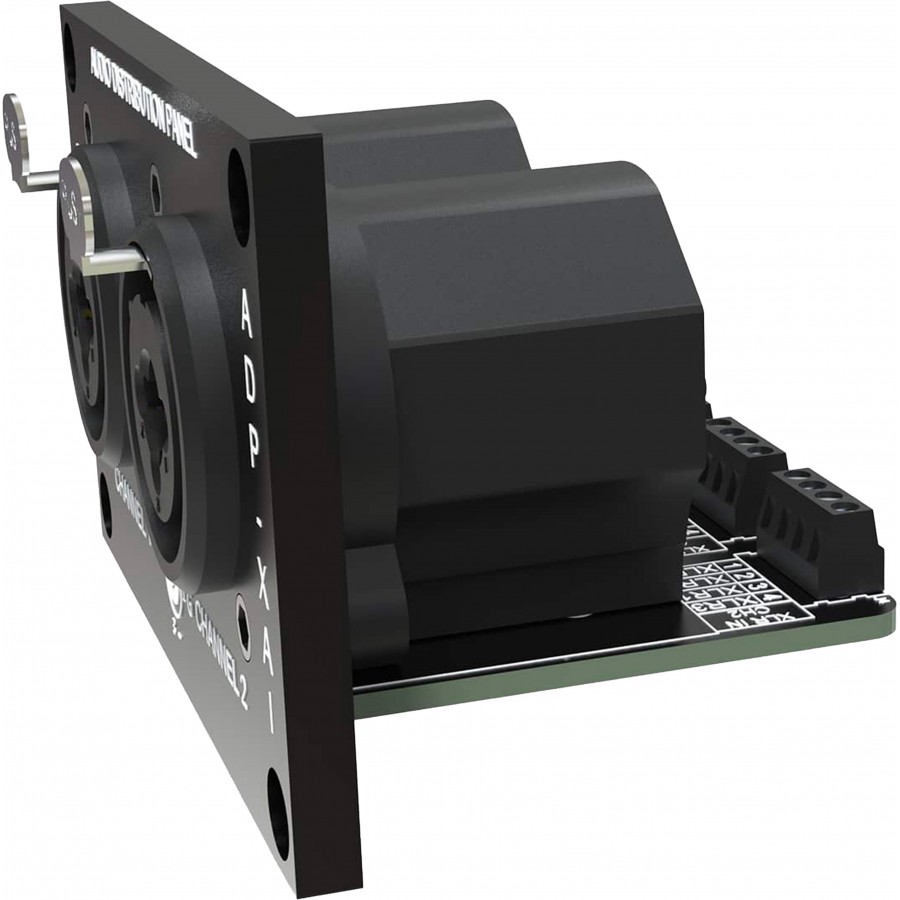

The panel is based on a 4mm thick aluminum front panel, allowing direct mounting on different supports while maintaining alignment and stability of the connectors. Its compact format of 69.85x44.45mm and its M3 screw mounting facilitate its integration into technical panels, chassis or custom interfaces.
