DAYTON AUDIO BR-1 Kit DIY Bookshelf Speaker 2 Way

New
This Dayton Audio BR-1 kit allows you to build your own Hi-Fi bookshelf speakers. They are based around a DC160-8 bass driver and a DC28FL-8 silk dome tweeter. Once assembled, the bookshelf speakers can deliver a maximum power of 100W under 8Ω with a frequency response of 43Hz to 18kHz.

No customer reviews yet, login to write a review.

By buying this product you get 29 loyalty points


Yes, notify me when available !
Reference : 21205
New product

299,00 €tax incl.

249,17 € tax excl.

- +


Available on order
Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Dayton Audio BR-1 Kit DIY Bookshelf Speaker 2 Way 100W 85dB 4 Ohms 43Hz-18kHz (Pair)

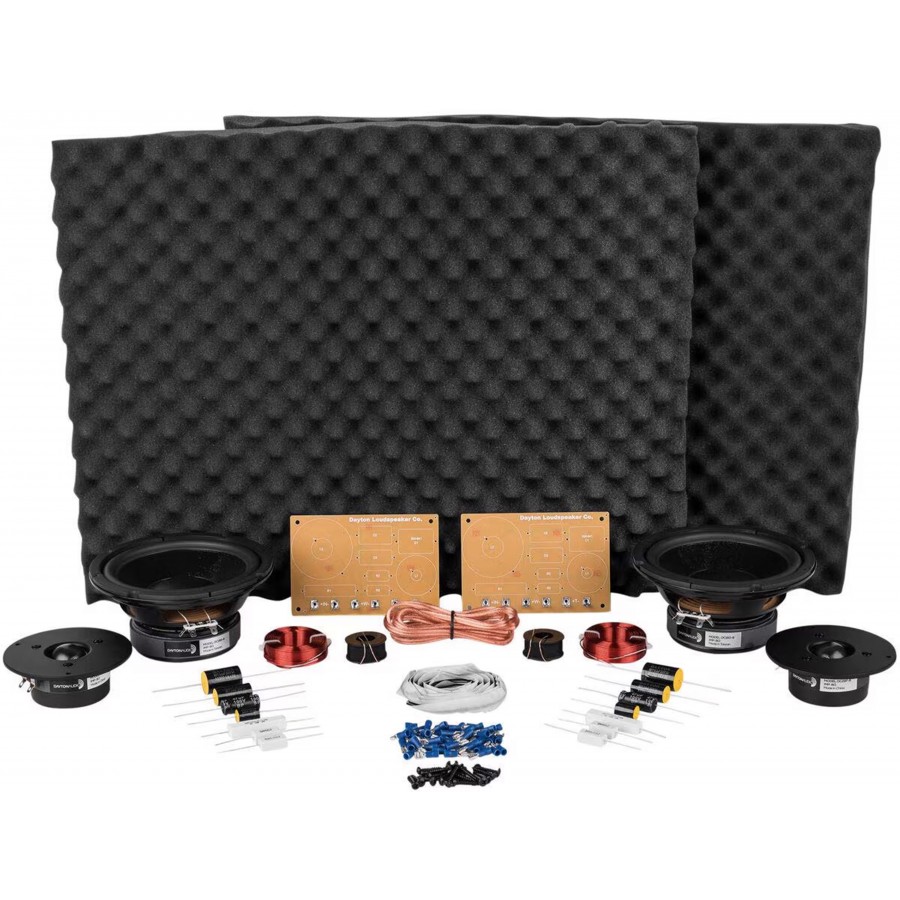

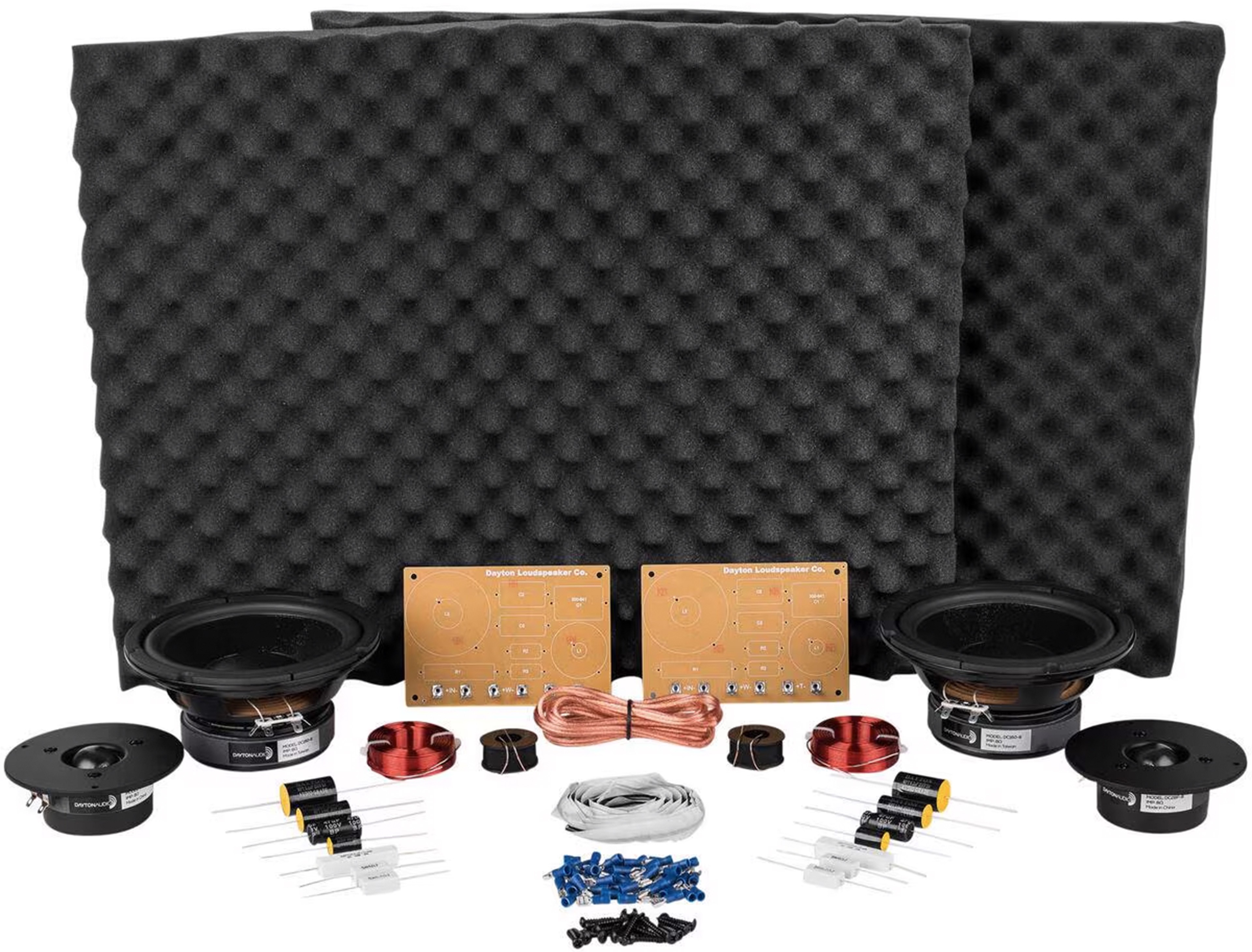

Dayton Audio BR-1 : Front view of kit contents


This Dayton Audio BR-1 kit allows you to build your own Hi-Fi bookshelf speakers. They are based around a DC160-8 bass driver and a DC28FL-8 silk dome tweeter. Once assembled, the bookshelf speakers admit a maximum power of 100W under 8Ω with a frequency response of 43Hz to 18kHz.

This kit comes with an assembly manual and, although simple to assemble, it requires basic soldering skills, particularly for the crossover section.

Please note: This kit does not include the cabinet.


This kit includes:

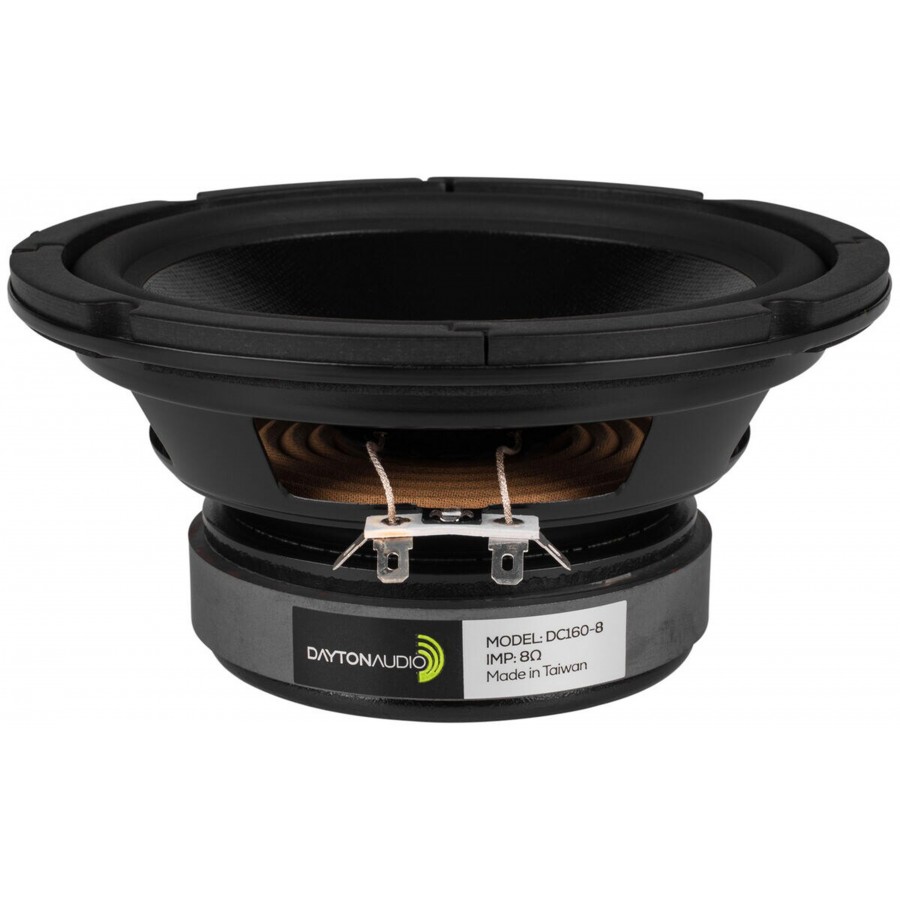

  • 2 Dayton Audio DC160-8 woofers

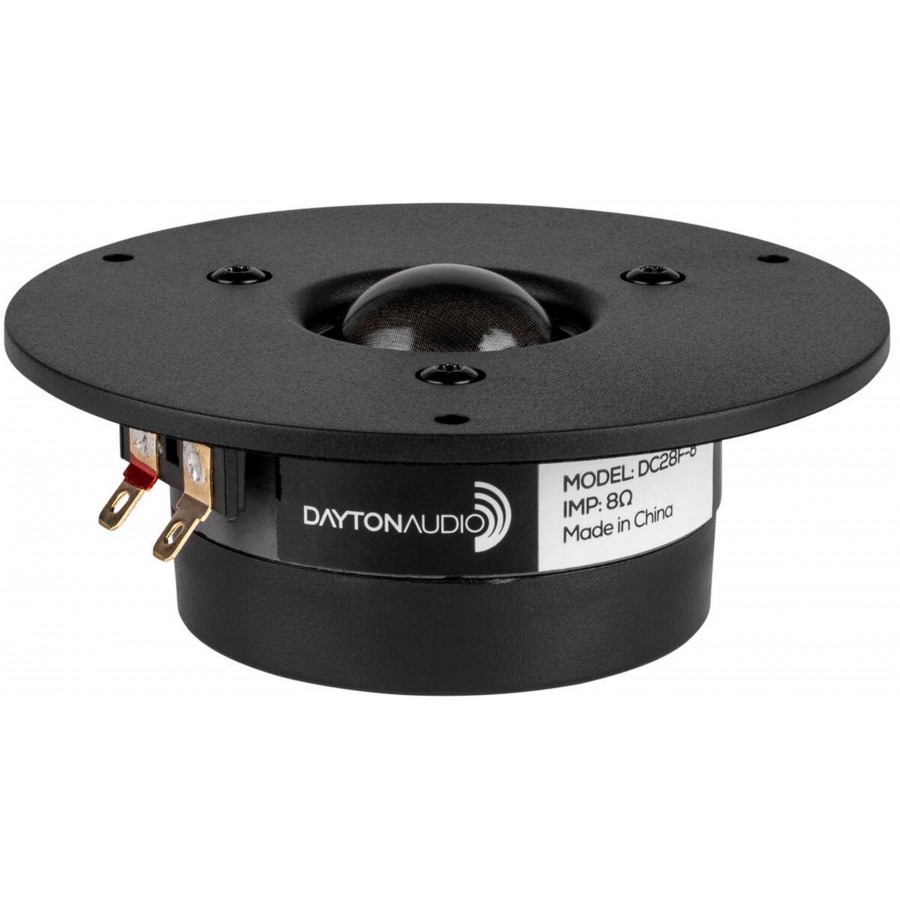

  • 2 DC28F-8 tweeter speaker
  • 2 BR-1XO crossover filters
  • 2 Non-polarised capacitors 47 µF-100 V
  • 2 DFFC-0.10 bypass capacitors 0.10 µF 400 V
  • 2 Non-inductive resistors DNR-8.0 8Ω 10 W
  • 2 DMPC-3.0 polypropylene capacitors 3.0 µF 250 V
  • 2 Air core coils 0.4 mH 20 AWG
  • 1.8m of 16 AWG speaker cable
  • 24 Female Blade Connectors
  • 2 Absorbent foam pads
  • Screws


Technical characteristics

Specifications
Product typeKit for bookshelf speakers
Power rating100W max
Sensitivity85dB
Frequency response43Hz-18kHz
Impedance8Ω
General
Conditionnement2x Dayton Audio DC160-8 woofers
2x DC28F-8 tweeter speakers
2x BR-1XO crossover filters
2x Non-polarised capacitors 47 µF-100 V
2x DFFC-0.10 bypass capacitors 0.10 µF 400 V
2x Non-inductive resistors DNR-8.0 8Ω 10 W
2x DMPC-3.0 polypropylene capacitors 3.0 µF 250 V
2x Air core coils 0.4 mH 20 AWG
1.8m of 16 AWG speaker cable
24x Female Blade Connectors
2x Absorbent foam pads
Screws
Assembly guide
