SHANLING ONIX MIRACLE Streamer / DAP / DAC / Headphone Amplifier / HiFi Power Supply 768 kHz DSD512 MQA

SHANLING ONIX MIRACLE Streamer, DAP, DAC ESS ES9039Pro, Headphone Amplifier, HiFi Power Supply 768 kHz, DSD512, MQA
With the Onix Miracle pack, Shanling offers a combination of products capable of providing for any situation, allowing you to always enjoy your music at its best. An Onix XM10 acts as a streamer and portable player for on-the-go use, while an Onix XP10 and Onix XPS10 act as a DAC/headphone amplifier and hi-fi power supply for sedentary use. Each of these products has been designed to work together to give you the best in the most versatile way possible.

No customer reviews yet, login to write a review.

By buying this product you get 499 loyalty points


Yes, notify me when available !
Reference : 19562
New product

4 999,00 €tax incl.

4 165,83 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Shanling Onix Miracle Streamer / DAP / DAC ESS ES9039Pro / Headphone Amplifier / HiFi Power Supply 768 kHz DSD512 MQA

SHANLING ONIX MIRACLE : Front view

With the Onix Miracle pack, Shanling offers a combination of products capable of providing for any situation, allowing you to always enjoy your music at its best. An Onix XM10 acts as a streamer and portable player for on-the-go use, while an Onix XP10 and Onix XPS10 act as a DAC/headphone amplifier and hi-fi power supply for sedentary use. Each of these products has been designed to work together to give you the best in the most versatile way possible.

Onix Miracle: Onix XM10 - Portable player / Streamer

The XM10 brings the flexibility of an open Android 10 system, a Snapdragon 665 processor and a 6-inch 2K IPS touchscreen. Its main role is as a streamer, giving the Onix Miracle pack a familiar Android interface and simple access to all the most popular streaming services and music applications. Simply insert the XM10 into the precision clocked, low jitter docking port above the Onix DAC/PREAMP and enjoy.

SHANLING ONIX MIRACLE : on a desk

Furthermore, when you're on the move, all you have to do is take the XM10 with you to enjoy an audio circuit which, although simpler than the Onix Miracle pack, still features an AKM AK4493S DAC chip and two Ricore RT6863 amplifier chips, all combined with a balanced output option thanks to the 4.4mm adaptor supplied.

Onix Miracle : Onix XP10 - High-end DAC / Headphone amplifier

Featuring an ESS9039PRO 8-channel digital-to-analogue converter, with an in-house developed OPA1611-based I/V conversion stage, an OPA2211 low-pass filter and a pair of PGA2311s for precise volume control at 254 levels, the XP10 perfectly fulfils the DAC role within the Onix Miracle package. Furthermore, as well as being a DAC, it is also an advanced transistor headphone amplifier, using a fully balanced audio design and delivering up to 5.6W of power into 32 ohms and 0.85W into 300 ohms.

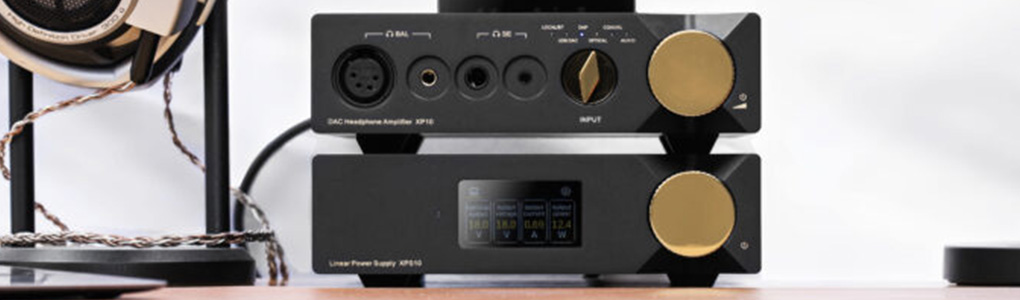

SHANLING ONIX MIRACLE : Close-up of the Onix XP10 and Onix XPS10

Additional functions are available thanks to the Ingenic X2000 platform and compact 3.2-inch touchscreen. Bluetooth 5.0 compatibility and LDAC support make music streaming easy and even allow the XP10 to act as a completely independent device. It all fits into a compact CNC-machined chassis, with a gold-plated volume wheel recalling the origins of the Onix brand.

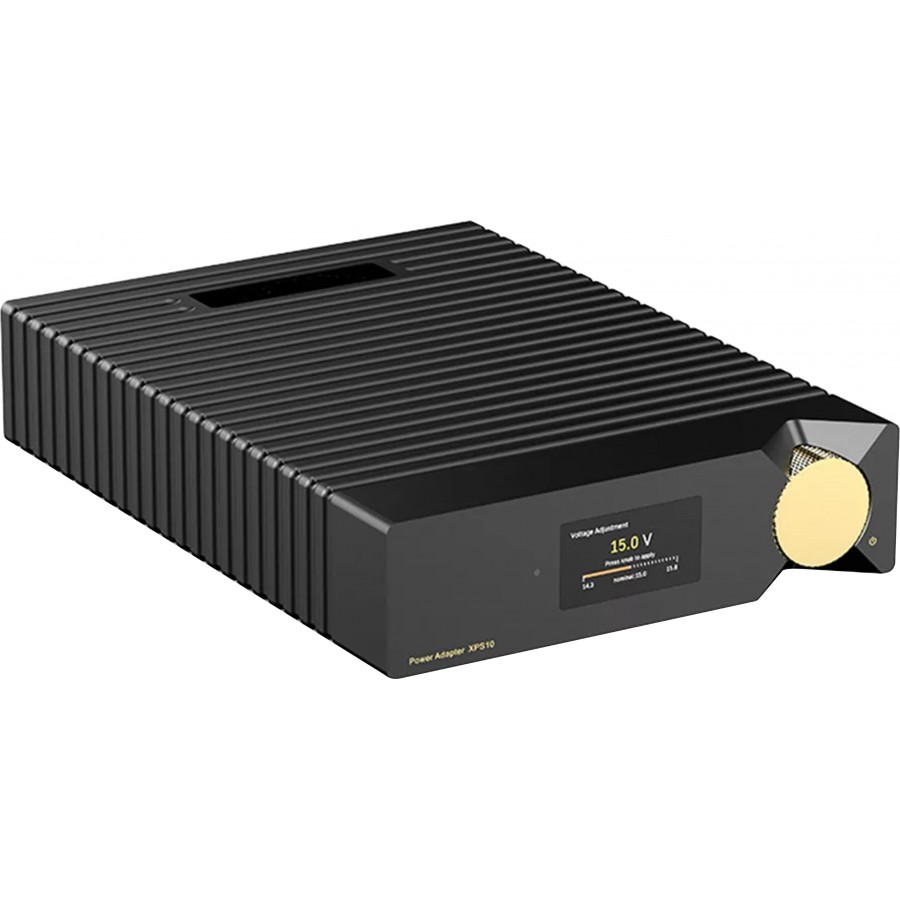

Onix Miracle : Onix XPS10 - Dedicated power supply

Designed to accompany the XP10 DAC, the XPS10 uses a pair of Noratel 30W transformers and offers a single 12 - 24 V output with macro and micro controls. In fact, in addition to providing the DAC with its own power supply, its variable output allows you to adjust the supply voltage, from a smooth sound at 12V to a very dynamic sound at 24V. You can set this parameter as finely as possible using micro-adjustments on a scale of 0.1V. This excellent control over the overall sound allows it to be used with any pair of headphones or speakers.

Technical characteristics

Onix XM10 specifications
Product typeStreamer
DAP
Audio outputs3.5 mm Jack with the option of a balanced 4.4 mm Jack via an adapter
OSAndroid 10 Open
ProcessorSnapdragon 665 8-core
Storage64 Go and microSD card slot (up to 2 To)
Screen6-inch IPS with 2160 x 1080 resolution
DAC chipAKM AK4493SEQ
Amplification chips2x RT6863
Battery3350mAh
Battery autonomyUp to 18 hours
Sampling ratePCM 32 bit / 768 kHz
DSD512
MQA
Output powerSingle-ended: 125mW @32 Ohm
Balanced : 230mW @32 Ohm
Total harmonic distortion more noise (THD+N)0.0003%
Dynamic range120dB
SNR120dB
Channel separation110dB @ 32 Ohms
Output impedance0.8 - 1.6 Ohms
Onix XP10 specifications
Product typeDAC
Headphone amplifier
InputsUSB dock
USB-C
Coaxial
Optical Toslink
Bluetooth
Stereo RCA
OutputsCoaxial
Optical Toslink
Stereo RCA
Stereo XLR
Headphone outputBalanced XLR
Balanced Jack 4.4mm
Single-ended Jack 3.5mm
Single-ended Jack 6.35mm
DAC chipESS ES9039Pro
USB inputXmos XU316
System platformIngenic X2000
Screen3.2-inch touchscreen
Remote controleVia SyncLink in the Eddict Player application
Sampling ratePCM 32 bit / 768 kHz
DSD512
MQA
BluetoothBluetooth 5.0 with support for LDAC and SBC protocols
Output powerSingle-ended Headphone output : 7.5V @32 Ohm
Balanced Headphone output : 13.5V @32 Ohm
RCA : 2.2V
XLR : 4.4V
Total harmonic distortion more noise (THD+N)Single-ended Headphone output : 0.0006% @32 Ohm
Balanced Headphone output : 0.0003% @32 Ohm
RCA : 0.0005% @32 Ohm
XLR : 0.0005% @32 Ohm
Dynamic rangeSingle-ended Headphone output : 121dB @32 Ohm
Balanced Headphone output : 124dB @32 Ohm
Signal-to-noise ratio (SNR)Single-ended Headphone output : 121dB @32 Ohm
Balanced Headphone output : 124dB @32 Ohm
RCA : 121dB @32 Ohm
XLR : 123dB @32 Ohm
Channel separationSingle-ended Headphone output : 73dB @32 Ohm
Balanced Headphone output : 111dB @32 Ohm
RCA : 114dB @32 Ohm
XLR : 111dB @32 Ohm
Frequency responseSingle-ended Headphone output : 20Hz - 40Hz (-0.5dB)
Balanced Headphone output : 20Hz - 40Hz (-0.5dB)
RCA : 20Hz - 40Hz (-0.5dB)
XLR : 20Hz - 40Hz (-0.5dB)
Output impedanceSingle-ended Headphone output : 0.4 Ohm
Balanced Headphone output : 2.4 Ohm
Onix XPS10 specifications
Screen1.9 inches
Input voltage220V - 230V
Output voltage12 - 24V
General
WeightOnix XM10 : 300g
Onix XP10 : 1400g
Onix XPS : 2500g
ColorBlack
Package1x Onix XM10
1x Onix XP10
1x Onix XPS10
4.4mm Jack to 3.5mm Jack adapter
USB-C to USB-A cable

Data sheet
InputOptical
InputMicro SD
InputUSB
InputSPDIF
InputBluetooth
InputWiFi
InputRCA
OutputXLR
OutputJack 4.4mm
OutputOptical Toslink
OutputJack 3.5mm
OutputJack 6.35mm
OutputRCA
DAC / ADC ChipES9039MPro / ES9039MSPro
DAC / ADC ChipAK4493SEQ
Max sampling rate768kHz
Max sampling rateDSD512
Max sampling rateMQA
ColorBlack
ClassClass A / AB
Output voltage (V)12.0
Output voltage (V)24.0
Output current (A)NC
Input voltage (V)220.0
Input voltage (V)230.0
Power SupplyNC
NetworkingYes
Remote ControlNo
Streaming services & Network protocolsSpotify
Streaming services & Network protocolsQobuz
Streaming services & Network protocolsAmazon Music
Streaming services & Network protocolsDeezer
Streaming services & Network protocolsTidal
