ATOHM S500-MK2-X ICE POWER Class D Amplifier Module Subwoofer 500W 4Ω

ATOHM S250-MK2-X ICE POWER Class D Amplifier Module Subwoofer 220W 4Ω
The Atohm S500-MK2-X Ice Power is a Class D amplifier module for subwoofers offering excellent technical performance and great musicality. It is capable of delivering a power of 220W under 4 ohm and offers many essential features.

Average votes for this product
2.0 / 5

By buying this product you get 55 loyalty points


Reference : 17395
New product

550,00 €tax incl.

458,33 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 25-06-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

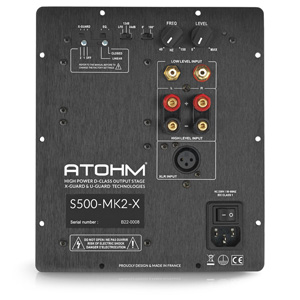

Atohm S500-MK2-X Ice Power

Class D Amplifier Module Subwoofer 500W 4Ω

Atohm S500-MK2-X Ice Power Module Amplificateur Class D Subwoofer 500W 4Ω

Specialized in the design and manufacture of high-end loudspeakers and speakers, Atohm® also designs and offers amplifier modules with a very high level of performance. Thanks to their sophisticated signal processing, Atohm modules offer a wide range of settings and connections to meet the most demanding applications, such as active subwoofers in closed or bass-reflex loads, active loudspeakers or single-ended power supplies. All this while offering excellent technical performance and great musicality in a very small footprint.

Extensive research has been conducted by the brand on components, schematics, layout topology, power supply and overall construction to develop the best products.

The Atohm S500-MK2-X amplifier module includes many features and specifications:

  • Ice Power™ output stage rated at 500W RMS into 4Ω. Class D technology, providing excellent 80% efficiency and a high damping factor, making the module compatible with any load impedance greater than or equal to 3Ω. Great musicality and generous power in a very small footprint.
  • The X-GUARD™ technology bypasses the disadvantages of a classic subsonic filter by ensuring that the loudspeaker's excursion never exceeds an absolute limit (risk of breakage, very high distortion) whatever the amplitude of the input signal. This technology preserves the signal and its phase (unlike a subsonic filter). The extreme bass is more faithful, the connection with the main speakers more homogeneous and the loudspeaker protected. The S500-MK2-X offers 6 internal settings (X25, X30 and X35) and (AMPLITUDE1 / AMPLITUDE2) via jumpers. The activation of this function is done via two settings available on the front panel: X-GUARD1™ and X-GUARD2™.
  • In addition to a classic linear mode, the S250 module has two "CLOSED" modes designed to extend the response to very low frequencies of the speaker(s) mounted in a closed load. This is not a simple boost but a transform equalisation. The choice of mode 1 or 2 is made by internal adjustment. The activation of the "CLOSED" mode is done via a setting on the front panel.
  • The U-GUARD™ device reduces the formation of square wave signals at the output of the device and prevents saturation of the power stages. Thus, whenever the signal exceeds the defined threshold, the U-GUARD technology limits the formation of harmonics. This is an essential function, especially when using a subwoofer, as harmonics can make the subwoofer perfectly locatable. It also allows to maintain a signal shape closer to the original one.
  • Module totally assembled in France.

It is possible to connect the module via pre-out / subwoofer output of a preamplifier / processor or directly to the speaker outputs (in parallel) of a conventional stereo amplifier. The S500-MK2-X module can also be bypassed for high-performance HiFi broadband use (mono block) via a simple internal modification. In this case, only the gain control remains active. This can be used for the realization of monitoring speakers for example.

Atohm S500-MK2-X Ice Power Module Amplificateur Class D Subwoofer 500W 4Ω


Technical characteristics

Specifications
Product typeAmplifier module
Amplification typeClass D
Output power500W RMS @ 4Ω, 80s, LFE mode
Low level inputRCA
XLR
High level inputSpeaker terminals
OutputOn terminal block with 4.8mm lugs
Rated load impedance4-16Ω (3 min.)
Max peak current20A
Damping factor> 1000
THD< 0.1%
Subsonic filterX-Guard technology
Low pass filterAdjustable from 36Hz (-3dB) to 178Hz (-3dB)
Filter slopeAdjustable : 12dB / 24dB / LFE
Phase control0-180°
ProtectionsShort circuits
Overheating
CC
General
Supply voltage115/230V (internally switchable) 50Hz
Consumption320W Max.
Weight900g
Package1x Module Atohm S500-MK2-X
Speaker cable 80cm with fast-on lugs
Power cable
Screws

Atohm S500-MK2-X Ice Power Module Amplificateur Class D Subwoofer 500W 4Ω Atohm S500-MK2-X Ice Power Module Amplificateur Class D Subwoofer 500W 4Ω Atohm S500-MK2-X Ice Power Module Amplificateur Class D Subwoofer 500W 4Ω

Data sheet
InputRCA
InputXLR
OutputSpeaker terminal
ClassClass D / T
Amplifier chipIce Power
Power (W)500.0
