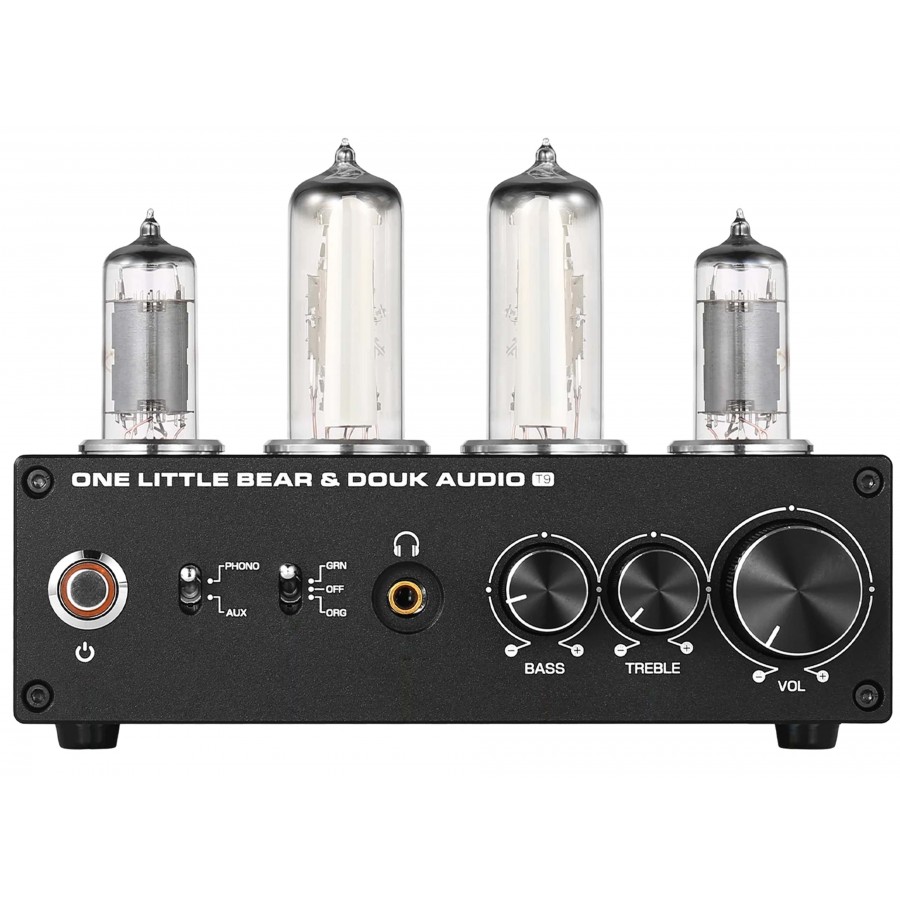

DOUK AUDIO T9 Tube Phono Preamplifier
By buying this product you get 16 loyalty points

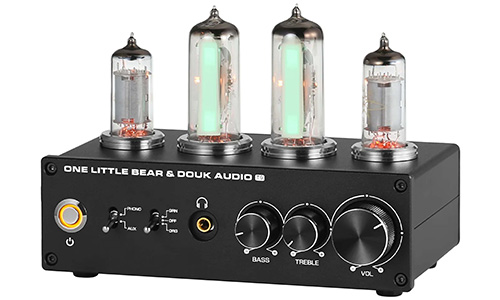

DOUK AUDIO T9 Tube Phono Preamplifier MM/MC with 6A2 / 6E2 Tubes
The DOUK Audio T9 is a tube MM/MC phono preamplifier. It features four tubes, including two 6E2 tubes and two 6A2 tubes, offering a colorful and dynamic sound reproduction that is most enjoyable. The phono input supports both MM and MC cartridges for a high level of compatibility with turntables. In addition, it has an independent headphone amplification circuit and a 3.5mm jack output. Capable of driving headphones with an impedance of 32 to 300 ohms, the T9 is also compatible with a wide range of headphones and IEMs. Bass and treble tone controls also allow you to sculpt the sound to your preferences. On the aesthetic side, you can choose between green and orange tube backlight colors for a pleasing visual appearance.
DOUK AUDIO T9: high-quality features and components

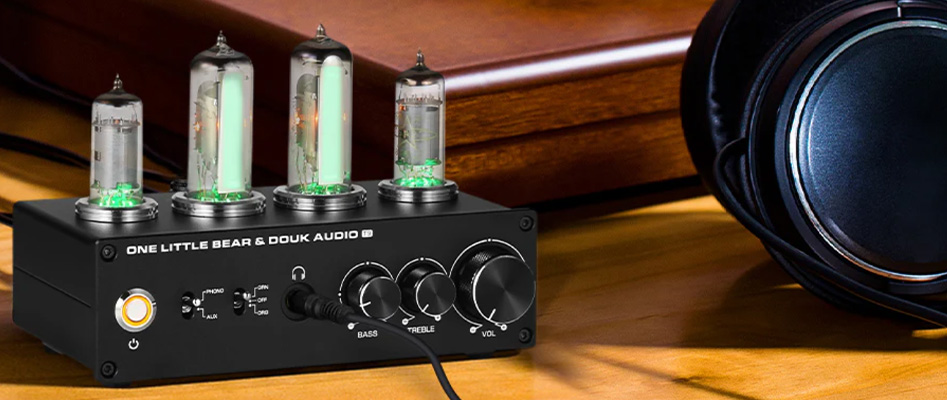

6A2/6E2 tubes for a warm sound
These tubes deliver an authentic sound when listening to your favorite vinyl records.

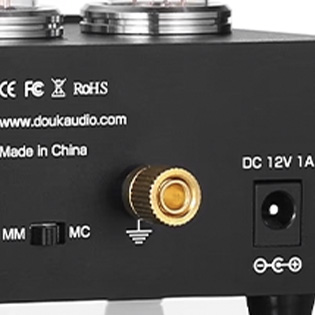

MM/MC compatibility
A switch allows both types of phono cartridges to be made compatible with the T9.

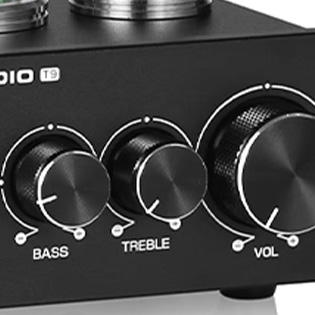

Tone adjustment
The bass and treble controls allow you to adjust the sound to suit the source or the listener's preferences.

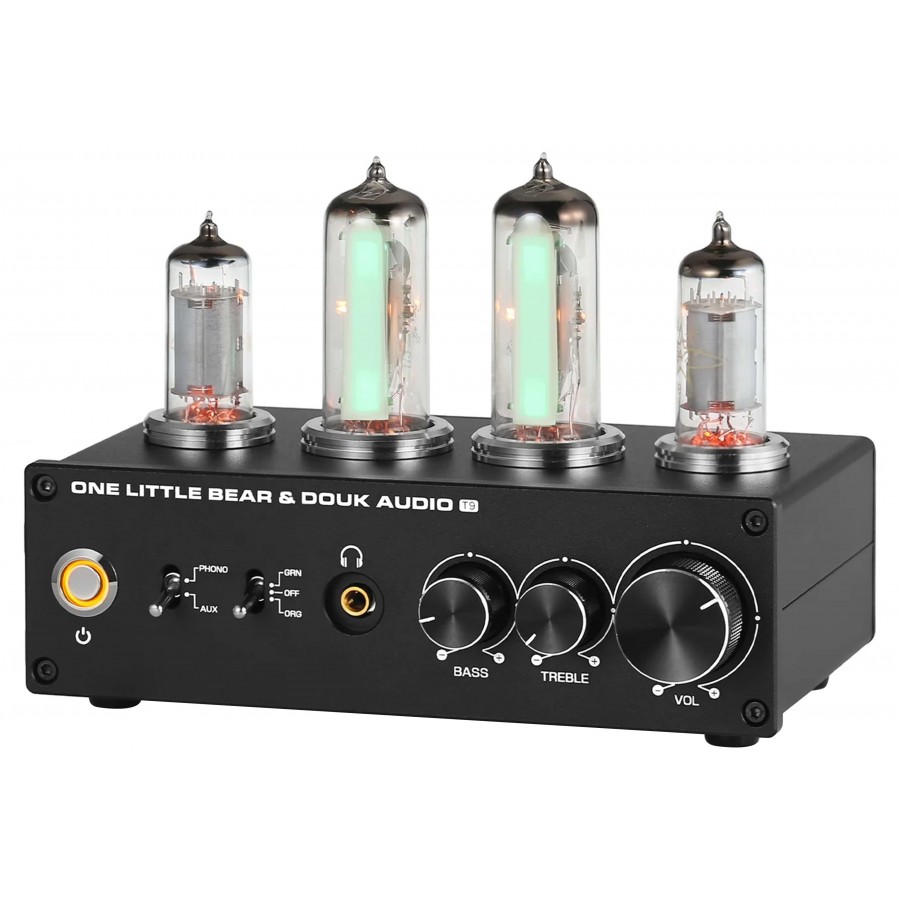

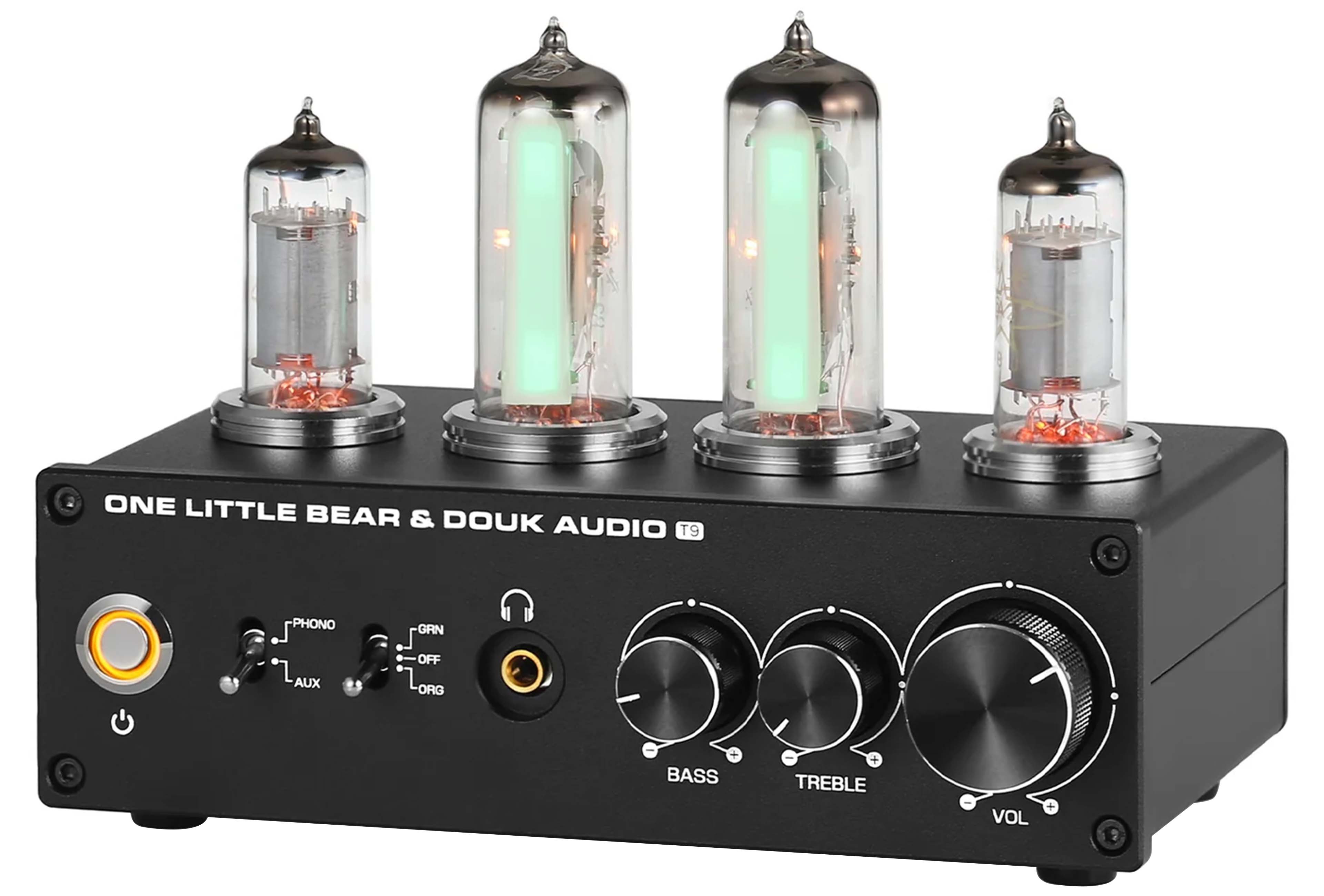

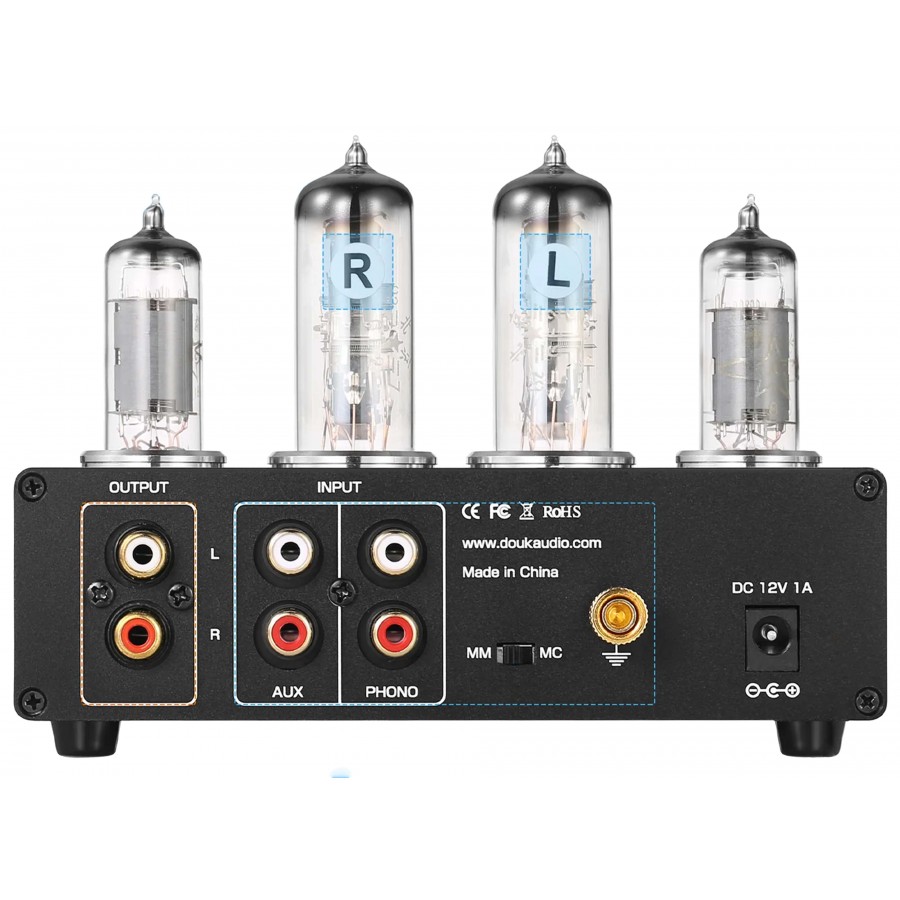

DOUK AUDIO T9 overview
| 1 | Power button |
| 2 | Source selector |
| 3 | Tube backlight color switch |
| 4 | 3.5mm headphone jack output |
| 5 | Bass adjustment |
| 6 | Treble adjustment |
| 7 | Volume control |
| 8 | RCA line output |
| 9 | RCA input |
| 10 | MM/MC phono input |
| 11 | MM/MC switch |
| 12 | 12V 1A power supply via DC jack |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Phono preamplifier |
| Tubes | 2x 6E2/6A2 |
| Inputs | 1x MM/MC phono input 1x RCA AUX input |
| Outputs | 1x RCA output 1x 3.5mm headphone jack output |
| Headphone output power | 250mW@32Ω 100mW@64Ω 60mW@128Ω |
| THD | ≤0.1% |
| Bass/treble adjustment | ±10dB |
| Backlight adjustment | Green/Orange/Off |
| Settings with phono input | |
|---|---|
| Phono input level | 0.005V RMS (MM) 0.0005V RMS (MC) |
| Output level | 0.6Vrms |
| Input impedance | 47K ohm (MM) 330ohm (MC) |
| SNR | ≥80dB |
| Frequency response | Compliant with RIIA ±2dB |
| AUX RCA input setting | |
|---|---|
| AUX RCA input level | 0.775V RMS |
| Output level | 1.5V RMS |
| Input impedance | 100 Kohm |
| SNR | ≥106dB |
| Frequency response | 20Hz-20KHz (±0.5dB) |
| General | |
|---|---|
| Power supply | 12V DC 1A via jack DC |
| Dimensions | 154 x 87 x 47mm |
| Weight | 600g |

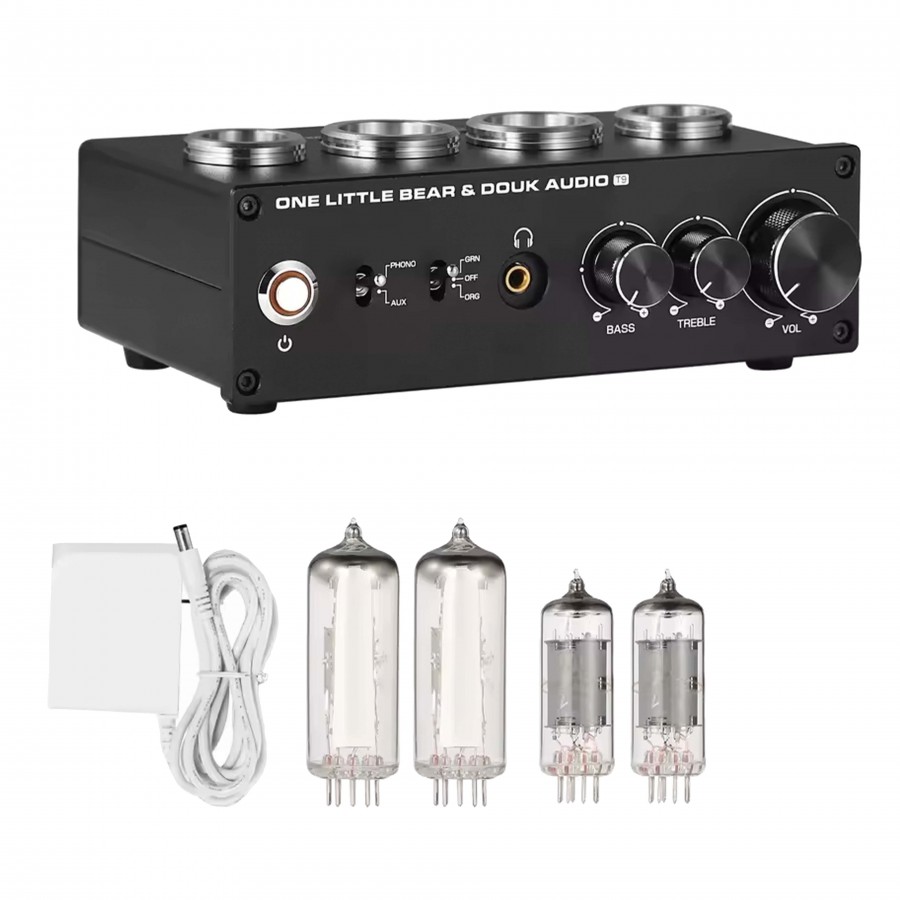

| Package | 1x DOUK AUDIO T9 preamplifier 2x 6E2 tubes 2x 6E2 tubes 1x Ground cable (alligator clips) 1x 12V 2A DC jack power adapter |
