SMSL DL300 DAC AK4191 + AK4499 Headphone amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA-CD

SMSL DL300 DAC AK4191 + AK4499 Amplificateur Casque XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD
Successor to the DL200, the SMSL DL300 retains the basic features of its predecessor, but with a number of improvements. Indeed, this time the DL300 incorporates the combination of AKM AK4191 (digital interface) and AK4499EX (DAC chip). This chipset enables the DL300 to support high-resolution streams up to PCM 32bit 768kHz, DSD DoP256, native DSD DSD512 and MQA/MQA-CD streams.

Average votes for this product
5.0 / 5

By buying this product you get 47 loyalty points


Reference : 18383
New product

479,00 €tax incl.

399,17 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 21-02-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

SMSL DL300

DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD

SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD

Successor to the DL200, the SMSL DL300 retains the basic features of its predecessor, but with a number of improvements. Indeed, this time the DL300 incorporates the combination of AKM AK4191 (digital interface) and AK4499EX (DAC chip). This chipset enables the DL300 to support high-resolution streams up to PCM 32bit 768kHz, DSD DoP256, native DSD DSD512 and MQA/MQA-CD streams. Like the DL200, the DL300 features two headphone outputs on the front panel (6.35mm jack and 4.4mm balanced). It features high-quality components such as a Qualcomm QCC5125 Bluetooth 5.1 receiver chip and an XMOS XU-316 USB interface. In terms of connectivity, it features the essentials: USB-C input, Toslink optical, SPDIF coaxial, RCA stereo output, as well as a new balanced stereo output on XLR ( previously Jack 6.35mm on the DL200) and an I2S input via HDMI.

The many improvements made to the SMSL DL300 make it a versatile, high-performance headphone DAC/ headphone amplifier.

SMSL DL300

SMSL DL200

DAC chip

AK4191 + AK4499EX

ES9039Q2M

Display

IPS

LED

I2S interface

DoP Display

Blanced stereo output

Stereo XLR

Jack TRS 6.35mm

Preamplifier mode

FN Key

Customizable

Non customizable

Sound tone presets

4

Volume control unit

dB, for precise adjustment

Numerical value

Output mode

Headphone output / XLR / RCA / XLR+RCA

Headphone output / Line output

AKM DAC combo: AK4191 + AK4499EX

The SMSL DL300 supports high fidelity sampling rates up to PCM 32bit 768kHz, DSD DoP256, native DSD DSD512 and MQA/MQA-CD streams, thanks to its combination of AKM AK4191 and AK4499EX chips. These chips deliver clear, rich sound reproduction, while allowing very low THD+N distortion: 0.00006% (-124dB, UN-WTD).

SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD
SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD

XMOS XU-316 USB interface

A third-generation USB XMOS XU-316 interface on a USB-C connector enables the SMSL DL300 to process high-resolution streams. This makes it ideal for users wishing to use their computer as an audio source.

Bluetooth 5.1

A QCC5125 Bluetooth receiver chip from Qualcomm supports the standard codecs SBC and AAC, as well as the high-resolution codecs aptX, aptX HD, aptX Adaptive and LDAC. As a result, the DL300 enables users to transmit high-quality audio streams wirelessly.

SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD
SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD

Support MQA and MQA-CD streams

The SMSL DL300 decodes MQA (Master Quality Authenticated) files, offering sound quality as close as possible to the actual studio recording. It also supports the MQA-CD format, enabling this format to be read from a CD player. MQA streams are supported by Toslink optical, coaxial and USB-C inputs.

A high-performance headphone amplifier

In addition to its DAC function, the SMSL DL300 is a high-performance headphone amplifier. Its front panel features two headphone outputs: a 6.35mm jack and a balanced 4.4mm jack. Moreover, a gain control with two settings (Low: 0dB & High: +7dB) is available. Headphone output distortion remains reliable at 0.0001% (-120dB, UN-WTD) and output power is 2x2W @ 16Ω and 2x1W @ 32Ω.

SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD

6 PCM filters and 4 tone controls

PCM filters are available to act on the audio signal within the SMSL DL300, along with 4 tone control options to adjust to your source and listening preferences.

SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD

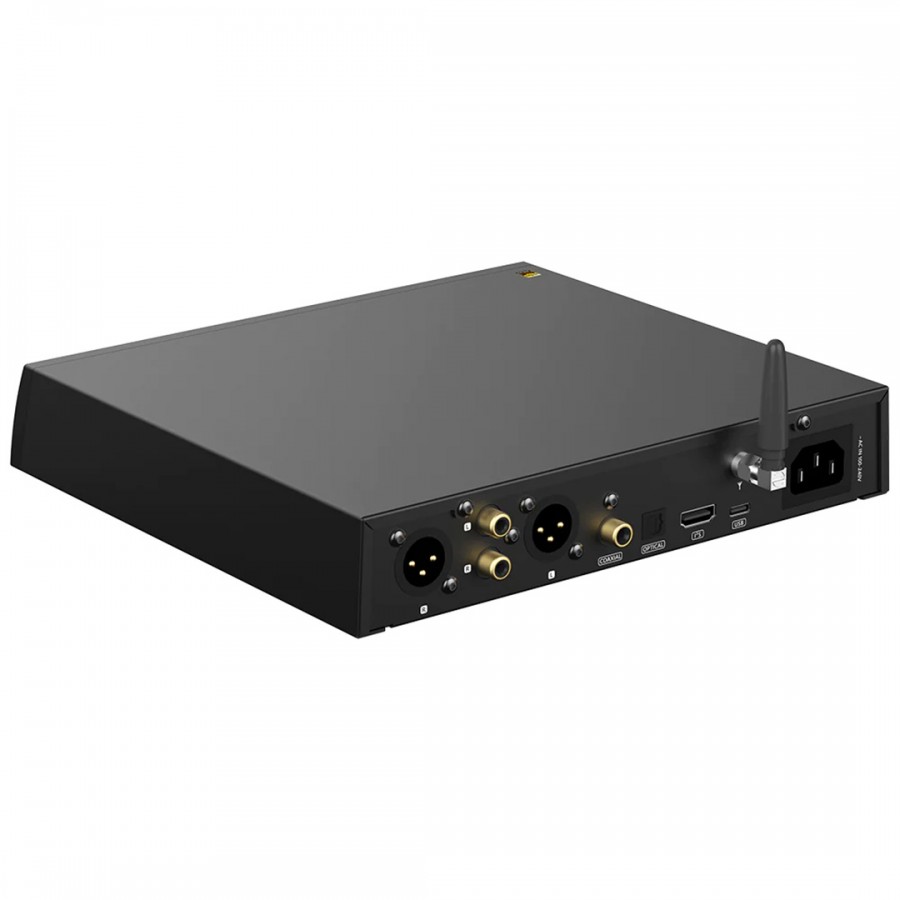

SMSL DL300 overview

SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD
16.35mm jack headphone output
24.4mm headphone output
3Display
4Multifunction button
5XLR balanced stereo output
6RCA stereo output
7SPDIF coaxial input
8Toslink optical input
9I2S input via HDMI
10USB-C input
11Bluetooth antenna
12Power supply IEC

Technical characteristics

Specifications
Product typeDAC
Headphone amplifier
DAC chipAK4191 + AK4499EX
AOP5x AOP OPA1612
Inputs1x USB-C
1x Optical Toslink
1x SPDIF Coaxial
1x I2S via HDMI

Bluetooth
Outputs1x RCA stereo line output
1x XLR balanced line output

1x 6.35mm headphone output
1x 4.4mm balanced headphone output
THD+NDAC: 0.00006% (-124dB, un-wtd)
Headphone output: 0.0001% (-120dB, un-wtd)
Output levelXLR: 5Vrms
RCA: 2.5Vrms
Headphone outputs power2x 2W @ 16Ω
2x 1W @ 32Ω
Ouput impedanceXLR : 200Ω
RCA : 100Ω
Headphone outputs : près de 0Ω
Headphone output gain adjustmentLow: 0db
High: +7dB
Dynamic rangeXLR: 132dB
Headphone outputs: 127dB
SNRXLR : 132dB
Headphone outputs127dB
USB TransmissionAsynchronous
USB compatibilityWindows 7 / 8 / 8.1 / 10 / 11 (with driver)
Mac OSX 10.6 ou +
Linux
Supported sampling ratesUSB : PCM 32bit 768kHz, DSD DoP256, DSD512, MQA
Optical Toslink and coaxial : PCM 24bit 192kHz, DSD DoP64, MQA-CD
Bluetooth5.1
Supported Bluetooth codecsSBC, AAC, aptX, aptx HD, aptX Adaptative, LDAC
General
Power consumption20W
Standby power consuption0.5W
Dimensions222 x 39 x 207mm
Net weight1.54kg
ColorBlack
Package1x DAC Headphone amplifier SMSL DL300
1x Remote control
1x USB-A to USB-C cable
1x Bluetooth antenna
1x Power supply cable schuko
SMSL DL300 DAC AK4191 + AK4499 Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA MQA-CD

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
InputI2S via HDMI
OutputJack 4.4mm
OutputRCA
OutputJack 6.35mm
OutputXLR
DAC / ADC ChipAK4499EX
Max sampling rateDSD512
Max sampling rateMQA
Max sampling rate768kHz
ColorBlack
ClassN/A
NetworkingNo
Remote ControlYes
