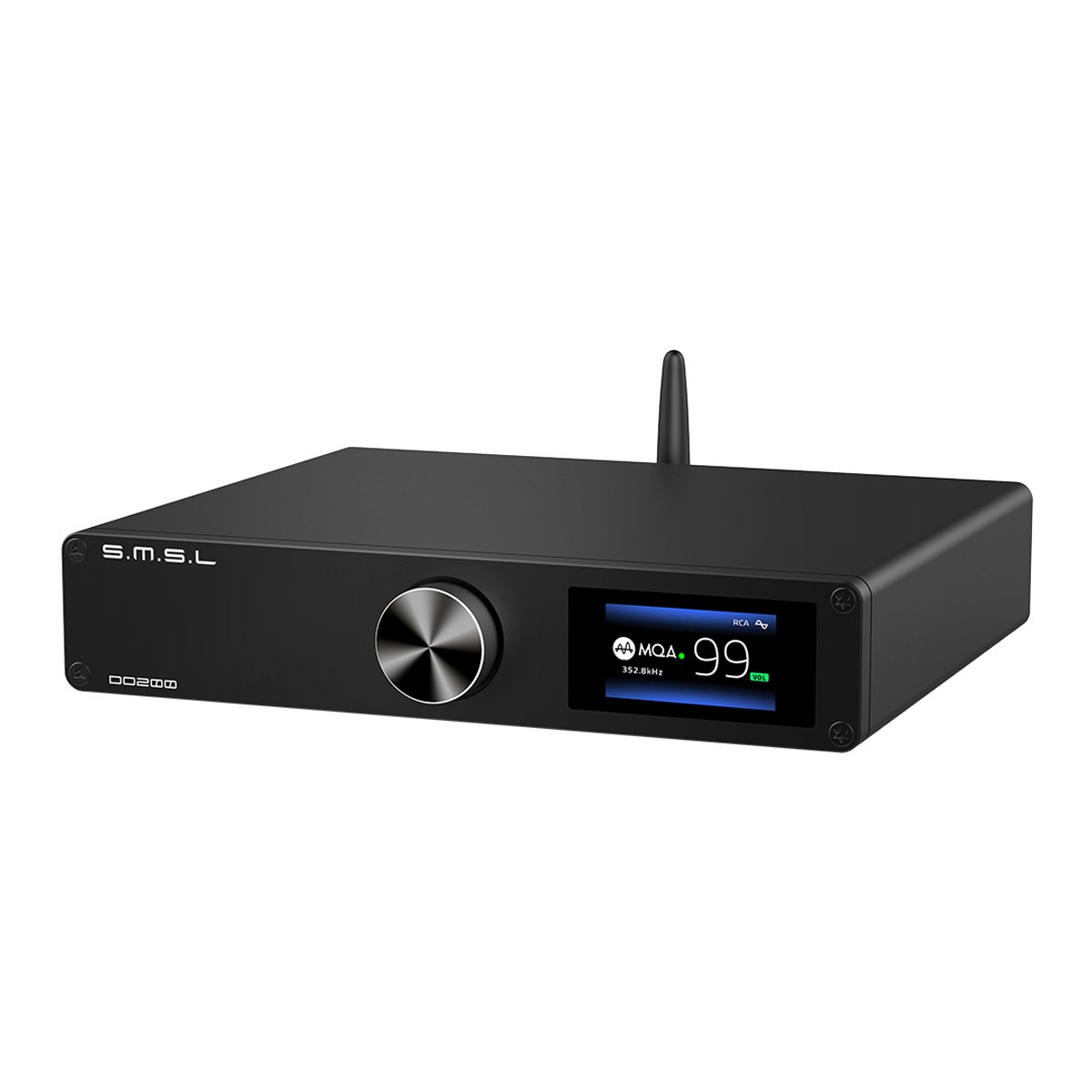

SMSL DO200 DAC 2x ES9068AS XMOS Bluetooth 5.0 LDAC 32bit 768kHz DSD512 MQA

SMSL DO200 DAC ES9068AS XMOS Bluetooth 5.0 32bit 768kHz DSD512 MQA
SMSL offers with its DO200 a small, powerful and complete DAC. Its digital/analog conversion stage is equipped with 2x ESS9068AS DAC chip, able to offer a transparent, rich and precise sound reproduction. Added to this DAC is an excellent XMOS XU216 USB interface. The association of these two components allows the support of high sampling rates, up to PCM 32bit 768kHz, DSD512 as well as the decoding of MQA files.

Average votes for this product
5.0 / 5

By buying this product you get 52 loyalty points


Reference : 15726
New product

529,00 €tax incl.

440,83 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

This product has been replaced by the new version, the SMSL DO200 MKII DAC 2x ES9068AS XMOS XU316.

SMSL DO200

DAC 2x ES9068AS XMOS Bluetooth 5.0 32bit 768kHz DSD512 MQA

SMSL DO200 DAC ES9068AS XMOS Bluetooth 5.0 32bit 768kHz DSD512 MQA

SMSL offers with its DO200 a small, powerful and complete DAC. Its digital/analog conversion stage is equipped with 2x ESS9068AS DAC chip, able to offer a transparent, rich and precise sound reproduction. Added to this DAC is an excellent XMOS XU216 USB interface. The association of these two components allows the support of high sampling rates, up to PCM 32bit 768kHz, DSD512 as well as the decoding of MQA files.

SMSL DO200 DAC ES9068AS XMOS Bluetooth 5.0 32bit 768kHz DSD512 MQA
SMSL DO200 DAC ES9068AS XMOS Bluetooth 5.0 32bit 768kHz DSD512 MQA

MQA Decoding

MQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers or rights holders. These files are light enough to stream or download.

The DO200 incorporates an MQA decoder to read these files in order to provide the best possible audio quality.

Bluetooth 5.0 - QCC5125

Particularly practical, the DO200, in addition to its connectivity, is equipped with a Bluetooth 5.0 receiver from Qualcomm. This one supports the classic codecs SBC and AAC, as well as the high quality codecs aptX, aptX-HD and LDAC, allowing to reach a restitution close to that of the CD, in wireless.

SMSL DO200 DAC ES9068AS XMOS Bluetooth 5.0 32bit 768kHz DSD512 MQA

A readable and practical screen

The DO200 is equipped with a beautiful, bright and readable display, protected by a tempered glass window. It clearly displays all the essential information for a comfortable use of the device.

SMSL DO200 DAC ES9068AS XMOS Bluetooth 5.0 32bit 768kHz DSD512 MQA
1Audio format
2Active output display. When blank, two active output at the same time
3Phase indicator
4Volume level
5Sampling rate. When Bluetooth input, display the decoding format

Flexible connectivity

The back of DO200 reveals a particularly complete connectic, allowing the DAC to adapt to the great majority of audio systems. On the input side, we find USB-B, I2S via HDMI, AES/EBU, Optical, Coaxial and of course Bluetooth. On the output side, the DO200 provides single-ended stereo RCA and balanced stereo XLR.

SMSL DO200 DAC ES9068AS XMOS Bluetooth 5.0 32bit 768kHz DSD512 MQA
1Multifonction knob
2Screen
3IR Receiver
4RCA Output
5Bluetooth antenna
6Optical input
7Power supply connector
8Balanced XLR output
9AES/EBU Input
10I2S via HDMI Input
11Coaxiale input
12USB-B input
13Power button

Technical characteristics

Specifications
Product typeDAC
DAC Chip2x ES9068AS
InputsBluetooth 5.0
1x AES/EBU
1x I2S via HDMI
1x Coaxial
1x USB-B
1x Optical Toslink
Sorties1x Single-ended stereo RCA
1x Balanced stereo XLR
THD+N0.00008% (-122dB)
Dynamic rangeXLR : 129dB
RCA : 125dB
SNR129dB
Output impedance< 10Ω
USB transmission modeAsynchronous
Supported sampling ratesUSB, I2S : PCM up to 32bit 768kHz, DSD up to DSD512
Optical, Coaxial, AES/EBU : PCM up to 24bit 192kHz, DSD DoP up to DSD64
General
Supply voltage100-240VAC (Power cable included)
Consumption5W
Standby consumption< 0.5W
Dimensions / Weight210x40x170mm / 1,2kg
RemoteYes
Housing materialAluminum
ColorBlack
Package1x SMSL DO200
1x Remote control
1x Antenna
1x USB Cable
1x Power cable

Data sheet
InputSPDIF
InputBluetooth
InputAES/EBU
InputUSB
InputOptical
InputI2S via HDMI
OutputXLR
OutputRCA
DAC / ADC ChipES9068AS
Max sampling rateDSD512
Max sampling rateMQA
Max sampling rate768kHz
ColorBlack
NetworkingNo
Remote ControlYes
